- AMD Ryzen 7 5800X processor is the newest CPU in the Ryzen family based on Zen 3 Architecture. It is designed to offer you high-speed gaming performance. Supports dual channel DDR4 support for up to 3200MHz.
- The 8 core and 16 threads combo processor combined with 36MB of Cache come with a full suite of technologies designed to elevate your PC’s processing power including Precision Boost 2, Precision Boost Overdrive and PCIe 4.0. The unlocked processor has a base clock speed of 3.8GHz with Max Boost Clock of 4.7GHz. It comes with Wraith Stealth cooler adding that extra flair to your gaming rig and making sure the processor is cooled sufficiently.
- The ASRock B550 Steel Legend motherboard is designed to support the latest 3rd Gen AMD AM4 Ryzen and Future AMD Ryzen with AMD B550 chipset and DDR4 supports up to 128GB. 14 Power Phase Design offers overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers.
- The board supports AMD Radeon Vega Series Graphics in Ryzen Series APU and Multi-GPUs with AMD Quad CrossFireX Technology and CrossFireX. The ASRock Full Spike Protection protects the LAN Port, USB and Audio Ports against any unexpected spikes in voltages.
- Packed with HDMI and DisplayPort which support 4K Ultra HD the board meets all your requirement be it gaming, office or designing purpose. To enjoy faster data transfer the rear ports includes 2 x USB 3.2 Gen2 (Rear Type A+C) and 5 x USB 3.2 Gen(2 Front, 2 Rear, 1 Front Type-C).
Be unstoppable with the unprecedented speed of the world's best desktop processors. AMD Ryzen 5000 series processors deliver the ultimate in high performance, whether you are playing the latest games, designing the next skyscrapper or crunching scientific data. With AMD Ryzen, you're always in the lead.
Performance You Deserve
AMD Ryzen 5000 series processors power the most demanding games and obliterate multithreaded tasks like 3D or video rendering and software compiling. With 8 cores, 16 threads, boost clock of up to 4.7 GHz and up to 36MB cache, AMD Ryzen 5000 Series processors deliver game-changing performance.
Tough as steel.
Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.
Dual M.2 Sockets for SSD
Ready for higher capacity & faster storage with Hyper M.2 socket that supports PCIe Gen4 x4 and M.2 socket capable of running PCIe Gen3 x2 and SATA3 mode.
Intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
M.2 For WiFi
Besides the onboard LAN port, ASrock Motherboard allows users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
Reinforced Steel Slot
Comes with the next generation PCI Express 4.0 standard with benifits of Extra anchor points, Stronger latch, Ensure signal stability, Make sure heavy graphics cards to be well-installed.
USB 3.2 Gen1
Delivers up to 5 Gbps data transfer rate and next generation reversible USB design at the front panel of computer case to meets all your high transfer rates requirements.
Dual USB 3.2 Gen2
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
Dragon 2.5 Gb/s LAN
Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
2oz Copper PCB
Inner layers that provide stable signal traces. Delivering lower temperature and higher energy efficiency for overclocking, support the DDR4 memory modules with extreme memory performance.

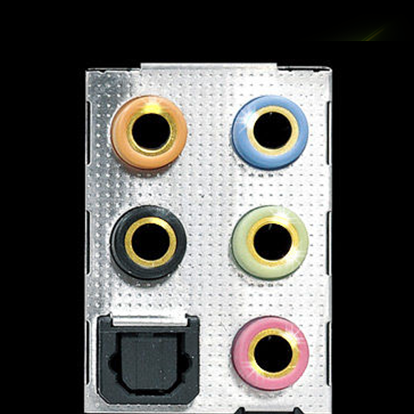

Gold Audio Jacks
All other types of jacks will wear off in time, but gold looks better! ASRock B550 Steel Legend have best quality Gold audio jack provides stable sound transmission.
|Max. Boost Frequency||Up to 4.7GHz|
|Lithography||TSMC 7nm FinFET|
|System Memory||Up to 3200MHz|
|Processor Graphics||Discrete Graphics Card Required|
|PCIe Express Version||PCIe 4.0|
|Storage Boost Technology||AMD StoreMI Technology|
|Product Family||AMD Ryzen Processors|
|Model||B550 Steel Legend|
|CPU Socket||AMD AM4 Socket|
|Memory||4 x DDR4 DIMM Slots
AMD Ryzen series CPUs (Matisse) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
Max. capacity of system memory: 128GB
Supports Extreme Memory Profile (XMP) memory modules
15μ Gold Contact in DIMM Slots
|Graphics||Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
|Expansion Slots||AMD Ryzen series CPUs (Matisse) : 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)
AMD Ryzen series APUs (Renoir) : 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)
2 x PCI Express 3.0 x1 Slots
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
|Multi-GPU support||AMD Quad CrossFireX and CrossFireX|
|Storage||6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)
1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)
|LAN||1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)|
|Audio||7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
Premium Blu-ray Audio support
Supports Surge Protection
PCB Isolate Shielding
Individual PCB Layers for R/L Audio Channel
|Rear Panel I/O||2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
|Internal I/O Connectors||1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers
2 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector (15μ Gold Audio Connector)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
1 x Dr. Debug with LED
|H/W Monitoring||Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, CPU VDD 1.8V
|BIOS||256Mb AMI UEFI Legal BIOS with GUI support
Supports Plug and Play
ACPI 5.1 compliance wake up events
SMBIOS 2.3 support
CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustment
|Accessories||Quick Installation Guide, Support CD
2 x SATA Data Cables
3 x Screws for M.2 Sockets
2 x Standoffs for M.2 Sockets
|Dimensions||30.5 cm x 24.4 cm|
|Warranty||3 Years of Brand Warranty|
