ASUS ROG Crosshair VIII Hero X570 AMD AM4 ATX Gaming Motherboard with PCIe 4.0

From
ASUS
  • ₹ 37,099.00
  • Regular price ₹ 58,500.00
  • 37% Off
  • EMI starts from ₹ . More details
  • Over 8,00,000+ happy customers, and counting! Thank you for your trust in us. Made by Proud Indians, for Proud Indians
Contact-less
Delivery
No Cost
EMI
14 Days
Return
Free
Shipping
Warranty

Out of Stock

Highlights:
  • ASUS Crosshair VIII Hero Gaming motherboard is designed to support the latest for 2nd, and 3rd Gen AMD Ryzen processors and up to two M. 2 drives and USB 3. 2 Gen 2 to maximize connectivity and speed.
  • The board supports multiple GPUs with Supports NVIDIA 2-Way SLI Technology, AMD 2-Way CrossFireX Technology and AMD 3-Way CrossFireX Technology.
  • The board comes with comprehensive cooling using active PCH heatsink, ROG cooling zone, Dual on-board M. 2 heatsinks and a water pump Header.
  • ASUS's 5-Way Optimization helps you in automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.

Alternate Text
ASUS ROG STRIX X570-F ATX Motherboard

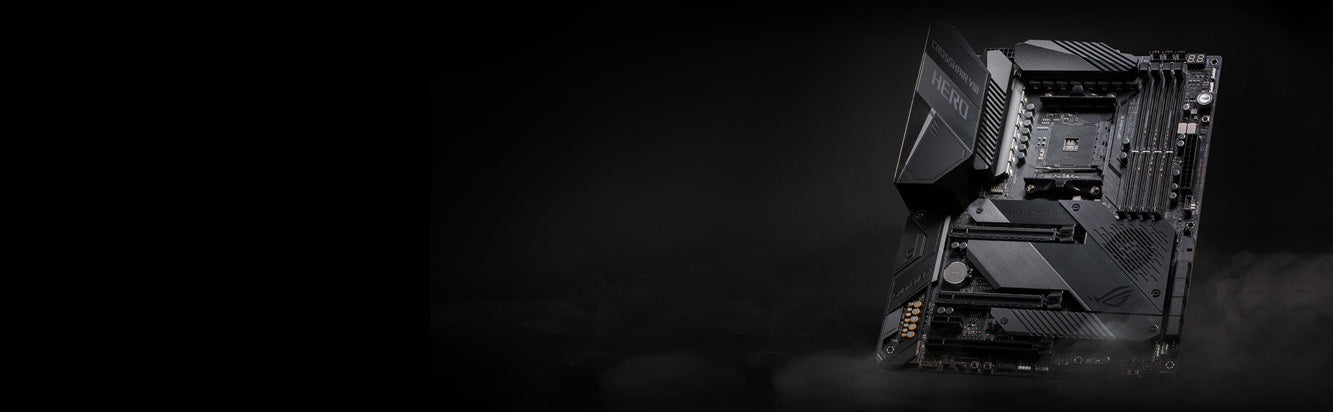

The Crosshair VIII Hero

ROG Crosshair VIII Hero comes equipped with an optimized power-design layout and all the cooling headers you need to handle the prodigious power of the latest AMD Ryzen processors without performance-zapping thermal throttling.​

ASUS ROG STRIX X570-F ATX Motherboard

Memory

Infused with proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, Optimem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies.

ASUS ROG STRIX X570-F ATX Motherboard

Dual PCIe 4.0 M.2

Dual PCIe 4.0 M.2 slots support up to type 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices.

ASUS ROG STRIX X570-F ATX Motherboard

Cooling Innovation

The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path. A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.

ASUS ROG STRIX X570-F ATX Motherboard

Networking

2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. ROG Crosshair VIII Hero features the latest. Intel LAN reduces CPU overhead and increases TCP and UDP throughput.​​

ASUS ROG STRIX X570-F ATX Motherboard

Aura Sync

ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header. The Hero's​ Addressable Gen 2 headers allows the software to automatically tailor lighting effects.

ASUS ROG STRIX X570-F ATX Motherboard

ASUS Node

ASUS Node is a proprietary bi-directional interface that allow ASUS motherboards to communicate with other system components, opening up a wealth of new options for system builders.​

Model ROG Crosshair VIII Hero
CPU Socket AMD AM4
CPU Support AMD AM4 Socket 3rd and 2nd AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Chipset AMD X570
Memory

3rd Gen AMD Ryzen Processors
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/

3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/

2933/2800/2666/2400/2133 MHz Un-buffered Memory
2nd Gen AMD Ryzen Processors
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

Multi-GPU support 3rd and 2nd Gen AMD Ryzen Processors
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Supports AMD 2-Way CrossFireX Technology
Expansion Slot 3rd Gen AMD Ryzen Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
2nd Gen AMD Ryzen Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16
1 x PCIe 4.0 x1
LAN Intel I211-AT
Realtek RTL8125-CG 2.5G LAN
ASUS LAN Guard
ROG GameFirst Technology
Storage 3rd Gen AMD Ryzen Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
Audio ROG SupremeFX 8-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS ES9023P
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- Sonic Studio III + Sonic Studio Virtual Mixer
- DTS Sound Unbound
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Ports 3rd Gen AMD RyzenTM Processors :
4 x USB 3.2 Gen 2 port(s)
2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
AMD X570 chipset :
4 x USB 3.2 Gen 2 port(s)
AMD X570 chipset :
6 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
4 x USB 2.0 port(s)
I/O Ports 1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x Anti-surge 2.5G LAN (RJ45) port
1 x USB BIOS Flashback Button(s)
5 x Gold-plated audio jacks
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
8 x USB 3.2 Gen 2 (up to 10Gbps) ports
Anti-surge LAN (RJ45) port
Internal I/O ports 2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
1 x TPM connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x 4-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Slow Mode switch(es)
1 x Reset button(s)
1 x Node Connector(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
1 x Speaker connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Accessories User's manual
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ROG big sticker
1 x Q-Connector
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x ROG coaster(s)
1 x ROG Thank you card
Dimensions 30.5 cm x 24.4 cm (12 x 9.6 inch )
ATX Form Factor
Warranty 3 Years of Brand Warranty
