ASUS Prime Z590-P/CSM Intel Z590 LGA 1200 ATX Motherboard with PCIe 4.0, three M.2 slotsand Thunderbolt 4 Support

ASUS Prime Z590-P/CSM Intel Z590 LGA 1200 ATX Motherboard with PCIe 4.0, three M.2 slotsand Thunderbolt 4 Support

Brand: ASUS
Regular price Rs. 18,999.00
Regular price Rs. 28,000.00 Sale price Rs. 18,999.00
Sale Sold out
  • Free Shipping: We deliver to 27000+ pin codes in India.
  • 10-Days Return: We got you covered with easy returns.
  • Original Warranty: This product has original Brand warranty.
Easy Returns Cancellation Policy Shipping Policy Trust Center
  • The ASUS Prime Z590-P/CSM motherboard is designed to support latest Intel Socket LGA1200 for 11th Gen Intel Core processors, 10th Gen Intel Core, Pentium Gold and Celeron Processors.
  • The ASUS Z590 motherboard is PCIe 4.0 Ready supporting up to 128GB DDR4 5133MHz(OC) of memory and Intel Turbo Boost Technology to push your experience to its peak.
  • Prime Z590 features the most comprehensive cooling options ever that are configurable via Fan Xpert 4 or the UEFI BIOS. It employs VRM heatsink, M.2 heatsink and hybrid fan headers.
  • Enjoy extended connectivity with the next-gen technology of PCIe 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, and Thunderbolt 4 header support.
  • The ASUS motherboard have Aura SyncA, well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers.

~section~

ASUS Prime Z590-P/CSM ATX Motherboard-From tpstech.in
ASUS Prime Z590-P/CSM ATX Motherboard-From tpstech.in

Prime Z590-P/CSM

Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590-P/CSM provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. It is expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors.

ASUS Prime Z590-P/CSM ATX Motherboard-From tpstech.in

Three M.2 Slots

Prime Z590-P/CSM offers a total of three M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express 4.0, enabling quicker boot-up and app load times with OS or application drives.

ASUS Prime Z590-P/CSM ATX Motherboard-From tpstech.in

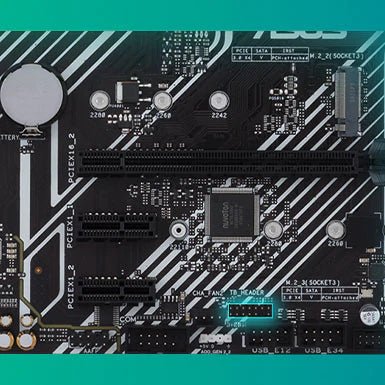

Thunderbolt 4 Header Support

Via an on-board header the board supports Thunderbolt 4. With ThunderboltEX 4, it can perform daisy-chain function up to an 8K resolution, 100 watts of power to fast-charge devices and 40 Gbps bi-directional data transfer.

ASUS Prime Z590-P/CSM ATX Motherboard-From tpstech.in

PCIe 4.0 Slot

The board offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

ASUS Prime Z590-P/CSM ATX Motherboard-From tpstech.in

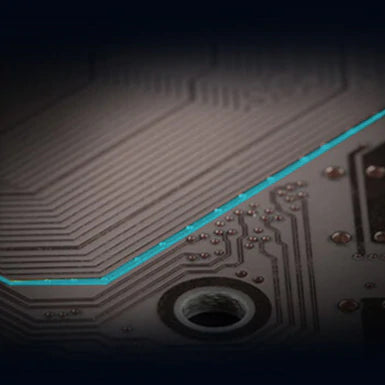

ASUS OptiMem II

ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

ASUS Prime Z590-P/CSM ATX Motherboard-From tpstech.in

USB 3.2 Gen 2x2 Type-C

Numerous USB ports support high-end rigs loaded with peripherals, including both front and rear USB Type-C connectors with fast USB 3.2 Gen 2x2 for transmission speeds of up to 20 Gbps.

ASUS Prime Z590-P/CSM ATX Motherboard-From tpstech.in

Realtek 2.5 Gb Ethernet

Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

~section~

Model ASUS PRIME Z590-P/CSM
CPU Socket Intel Socket LGA1200
CPU Support Intel Socket LGA1200 for 11th Gen Intel Core processors, 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel Z590
Memory 4 x DIMM, Max. 128GB, DDR4 DDR4
5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/
4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)
/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/
3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
On-Board Graphics support 1 x DisplayPort 1.4
1 x HDMI 1.4/2.0
Expansion Slot Intel 11th and 10th Gen Processors:
1 x PCIe 4.0/3.0 x16 slots
- Intel 11th Core processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes
- Intel 10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes
Intel Z590 Chipset:
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Ethernet 1 x Realtek 2.5Gb Ethernet
Storage Intel 11th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel 11th Core processors support PCIe 4.0 x4 mode,
this slot will be disabled for other CPUs
Intel Z590 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110
(supports PCIe 3.0 x4 and SATA modes)
M.2_3 slot (Key M), type 2242/2260/22110
(supports PCIe 3.0 x4 and SATA modes)
4 x SATA 6Gb/s ports
Audio Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features:
- Audio Shielding
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
USB Ports Rear USB (Total 6 ports):
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 9 ports):
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x V-M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port
Internal I/O ports Fan and Cooling related:
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related:
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB:
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous:
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt header
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Packages
2 x M.2 SSD screw packages
Installation Media
1 x Support DVD
Documentation
1 x User manual
Dimensions 30.5 cm x 23.4 cm
Form Factor ATX
Warranty 3 Years of Brand Warranty
