- The MSI MEG X570 ACE motherboard Supports 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors. Go for the gold with MEG X570 ACE. Win games anywhere with 2.5G gaming LAN and WIFI AX, set records with the Frozr Heatsink Design and outshine the competition with Mystic Light Infinity.
- Designed with the patended fan and double bearings to provide the best performance for enthusiast gamers and prosumers. MSI fan headers can automatically detect if a fan needs to run in DC or PWM mode, streamlining the fan tuning experience.
- MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
- Features high-bandwidth and low-latency dual Ethernet networks for demanding power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
- Mystic Light Infinity brings together colorful lighting and an infinity mirror for deceptively endless light effects. Personalize your PC with 16.8 million colors and 29 effects through the Mystic Light APP. Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.2 devices.
M.2 Shield Frozr
Sustain maximum high-speed M.2 SSD data transfer with M.2 Shield Frozr. Prevent SSD thermal throttling with a double sided thermal design that includes a heatsink across the board.

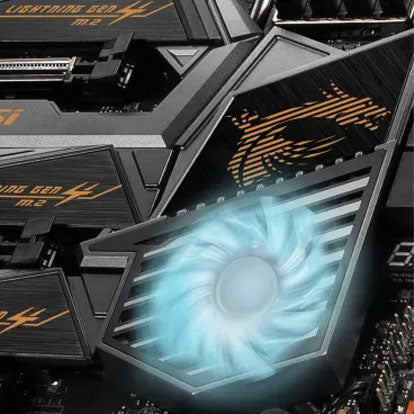

When it comes to high performance motherboards, controlling heat is essential. The X570 chipset, with its PCI-E Gen4 capabilities, is actively cooled to sustain massive data bandwidth.
Connect to a high-speed WIFI 6 network with onboard Intel Wi-Fi 6. OFDMA and two-way MU-MIMO technology optimize data transmission and deliver speeds up to 2.4Gbps.
Mystic Light Infinity II
Mystic Light Infinity brings together colorful lighting and an infinity mirror for deceptively endless light effects. Personalize your PC with 16.8 million colors and 29 effects through the Mystic Light APP.
Lightning Gen 4 Solution
Strike fast with MSI Lightning Gen 4 PCI-E. Attach ultra fast PCI-E 4.0 devices and enjoy up to 64GB/s unidirectional transfer bandwidth.
Maximize USB Device Performance
Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.2 devices.
2.5G + 1G Gaming LAN
Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Built with high quality components, MSI GAMING LAN is tuned to deliver the best online gaming experience without lag.
Unmatched Memory Performance
MSI takes memory stability and performance to the extreme. We've designed an optimized memory circuit design for reliability and tested compatibility extensively in partnership with major memory manufacturers.
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while doing
Immerse Yourself Into Virtual Worlds
MSI motherboards are optimized for Mixed Reality, Augmented Reality and Virtual Reality devices. Through joint efforts with major VR brands, MSI brings gamers and professionals realistic and vivid experiences.
|Model||MEG X570 ACE|
|CPU Socket||Socket AM4|
|CPU Support||Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors|
|Chipset||AMD X570 Chipset|
|Memory||4 DIMMs, Dual Channel DDR4-4533+(OC)|
|Multi-GPU Support||Supports 2-Way NVIDIA SLI Technology
Supports 3-Way AMD CrossFire Technology
|Expansion Slot||2x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3)
3rd Gen AMD Ryzen support PCIe 4.0 x16/x0, x8/x8 modes
2nd Gen AMD Ryzen support PCIe 3.0 x16/x0, x8/x8 modes
Ryzen 4000 G-Series support PCIe 3.0 x16/x0, x8/x8 modes
Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode
1x PCIe 4.0/ 3.0 x16 slot (PCI_E5, supports x4 mode)
2x PCIe 4.0/ 3.0 x1 slots
|LAN||1x Intel WGI211AT Gigabit LAN controller
1x Realtek RTL8125 2.5 Gbps LAN controller
|WiFi & Bluetooth||Intel Wi-Fi 6 AX200
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
Supports Bluetooth 5.1
The Wireless module is pre-install in the M2_4 (Key-E) slot
|Storage||AMD X570 Chipset
4x SATA 6Gb/s ports
2x M.2 slots (M2_2/ M2_3, Key M)
Support PCIe 4.0/ 3.0 x4 and SATA 6Gb/s
Support 2242/ 2260 /2280 storage devices
1x M.2 slot (M2_1, Key M)
Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)
Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)
Supports 2242/ 2260 /2280/ 22110 storage devices
|Audio||Realtek ALC1220 Codec
7.1-Channel High Definition Audio
Supports Optical S/PDIF output
|USB Ports||AMD X570 Chipset
3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connectors
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
2x USB 3.2 Gen2 (3rd Gen AMD Ryzen/ Ryzen 4000 G-Series) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel
2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
|Internal Connectors||1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
4x SATA 6Gb/s connectors
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
2x USB 3.2 Gen 1 connectors (support additional 4 USB 3.2 Gen 1 ports)
1x USB 3.2 Gen 2 Type-C Port
1x 4-pin CPU fan connector
5x 4-pin system fan connectors
1x 4-pin water-pump connector
1x Front panel audio connector
2x System panel connectors
1x TPM module connector
1x Clear CMOS jumper
1x Chassis Intrusion connector
1x Power button
1x Reset button
1x Game Boost knob
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin CORSAIR connector
1x 2-pin LED power input
1x Debug Code LED
4x EZ Debug LEDs
|Dimension||30.5 cm x 24.4 cm|
