[RePacked] ASRock Z490 Steel Legend LGA1200 ATX Motherboard with PCIe 4.0 and Thunderbolt 3

Brand ASRock
3 reviews
Sale price Rs. 18,599.00  Regular priceRs. 40,000.00
Save 54% (Save Rs. 21,401.00)
  • . More details
    EMI Options

    EMI Plan


    Browse the EMI options here and select your preffered EMI option at the time of payment.
  • Easy On Pocket: All Payment Options

    Wallets

    BNPL

    Cardless EMI

    UPI

    Wallet
    PayTM, PhonePe, Google Pay, Airtel Money, and more.
    BNPL
    HDFC Flexipay, ICICI PayLater, LazyPay.
    Cardless EMI
    ZestMoney, EarlySalary, Instacred
    UPI
    Make hassle free payments using any UPI app.
    COD
    For all orders upto Rs. 5000/-.

    Out of Stock


    Quantity:
    Sold out

    Brand Warranty

    14 Days Replacement

    Free Shipping

    Brand Warranty
    This product comes with warranties provided by the brand/manufacturer ASRock.
    Return & Replacement
    This product is eligible for return or replacement as per Return and Replacement policy
    Free Shipping
    This product is eligible for a free standard shipping. Check delivery estimates using the pincode tool on this page.
    Activation/Appointment
    Once order is placed, our support team will contact you within 24 hours regarding next steps.
    Digital Product/Service
    Not a physical product hence shipping is not applicable. Service to be availed/activated through our support teams.
    Prepaid Only
    This product must be orders via online payment methods during check-out.

    Value for Money

    QC Passed

    Image on request

    Support

    Warranty

    Value for Money
    The product you want at a better price.
    QC Passed
    Tested for Structural and functional integrity by our trained technicians.
    Image on Request
    Actual product images made available on request.
    Support
    Pre and Post-sales support form TPS.
    Warranty
    Complete manufacturer Warranty.

    Over 8,00,000+ happy customers, and counting! Thank you for your trust in us. Made by Proud Indians, for Proud Indians

    Highlights:

    • The ASRock Steel Legend motherboard is designed to support the latest 10th Gen Intel Core processors with Intel Z490 chipset and DDR4 memory up to 128GB. The board supports Supports Intel Turbo Boost Technology 3.0. Enjoy increased performnce with BCLK Full-range Overclocking.
    • Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.
    • Equipped Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s. With Intel Optane memory support experience a responsive memory and accelerated performance.
    • The board supports Intel UHD Graphics letting you to enjoy Ultra HD 4K Videos. The ASRock Full Spike Protection protects the LAN Port, USB and Audio Ports against any unexpected spikes in voltages. To enjoy faster data transfer the rear ports includes 1 x USB 3.2 Gen2 Ports and 1 x USB 3.2 Gen2 Type-C Port with a speed of 10Gb/s.
    • With the dynamic design the board is of ATX form factor. Equipped with latest technologies like Temperature Sensing, Quiet Fan, Fan Multi-Speed Control and Voltage monitoring detection the ASRock Z490 Steel Legend help you stay ahead of the game.

    TFloe DX RGB
    ASRock Z490 Steel Legend MB

    ASRock Z490 Steel Legend

    Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

    ASRock Z490 Steel Legend MB

    PCIE 4.0 Clock Generator

    An additional external base clock generator that delivers PCI Express 4.0 standard.

    ASRock Z490 Steel Legend MB

    PCIE 4.0 M.2 Socket

    Hyper M.2 Key M socket, wth PCI Express 4.0 hardware for x4 high speed SSDs.

    ASRock Z490 Steel Legend MB

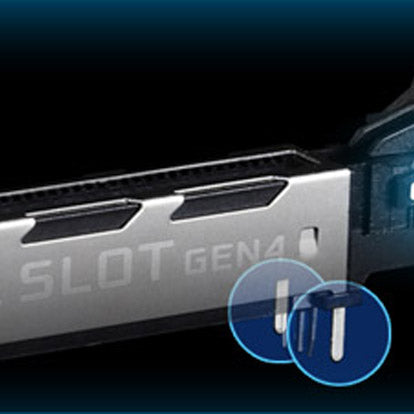

    PCIE 4.0 Steel Slot

    Equipped with reinforced steel slot which is based on PCI Express 4.0 hardware requirement.

    ASRock Z490 Steel Legend MB

    Base Frequency Boost (BFB) Technology

    Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.

    ASRock Z490 Steel Legend MB

    Front USB 3.2

    Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

    ASRock Z490 Steel Legend MB

    Dual USB 3.2 Gen2

    This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices.

    ASRock Z490 Steel Legend MB

    M.2 (KEY E) For WiFi

    Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

    ASRock Z490 Steel Legend MB

    Flexible Integrated I/O Shield

    Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

    ASRock Z490 Steel Legend MB

    Water Pump Header

    This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

    ASRock Z490 Steel Legend MB

    Dual M.2 For SSD

    Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s.

    ASRock Z490 Steel Legend MB

    Full Spike Protection

    Some sensitive digital components on the motherboard are vulnerable to power surges, but the ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

    You end up getting the product you want at a better price. Simply put, Value.

    'RePacked' products are those whose original packaging got torn/ damaged during transportation or storage. These may also include demo or open box products.

    Yes, but you have nothing to worry about because the products are validated for structural and functional integrity by our experienced technicians.

    Yes, our support team would be happy to share images of the product that you would be getting if ordered.

    Yes, 'RePacked' products from TPS are eligible for full term of warranty from the manufacturer.

    Yes, in most cases but be assured of getting a high quality functionally equivalent accessory of the same/different brand.

    At no point do we want any of our customers to be burdened by a faulty product hence we would offer a 14-days return and replacement window for 'RePacked' products.

    Yes, we would still be supporting you by connecting you with the brand's official support team for warranty claim.

    Model Z490 Steel Legend
    CPU Socket Intel Socket 1200
    CPU Support Intel Socket 1200 for 10th Gen Intel Core Processors
    Supports Intel Turbo Boost Max 3.0 Technology
    Supports Intel K-Series unlocked CPUs
    Chipset Intel Z490
    Memory 4 x DDR4 DIMM Slots
    Supports DDR4 4266+(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
    Supports Intel Extreme Memory Profile (XMP) 2.0
    On-Board Graphics support Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
    Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
    Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
    Multi-GPU support AMD CrossFireX
    Expansion Slot 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)
    3 x PCI Express 3.0 x1 Slots
    1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)
    LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    Dragon RTL8125BG
    Storage 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
    1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
    1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
    Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
    Premium Blu-ray Audio support
    Supports Surge Protection
    110dB SNR DAC with Differential Amplifier
    PCB Isolate Shielding
    Individual PCB Layers for R/L Audio Channel
    Gold Audio Jacks
    Nahimic Audio
    I/O Ports 2 x Antenna Mounting Points
    1 x PS/2 Mouse/Keyboard Port
    1 x HDMI Port
    1 x DisplayPort 1.4
    1 x Optical SPDIF Out Port
    2 x USB 2.0 Ports (Supports ESD Protection)
    1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
    1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
    2 x USB 3.2 Gen1 Ports (Intel Z490) (Supports ESD Protection)
    1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
    Internal I/O ports  1 x SPI TPM Header
     1 x Power LED and Speaker Header
     2 x RGB LED Headers - 2 x Addressable LED Headers
     1 x CPU Fan Connector (4-pin)
     1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
     5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
     1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
     1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
     1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
     1 x Front Panel Audio Connector
     1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only)
     2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel Z490) (Supports ESD Protection)
     2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
     1 x Front Panel Type C USB 3.2 Gen1 Header (Intel Z490) (Supports ESD Protection)
    Accessories Quick Installation Guide, Support CD
    2 x SATA Data Cables
    4 x Screws for M.2 Sockets
    2 x Standoffs for M.2 Sockets
    Dimensions 30.5 cm x 24.4 cm (12 x 9.6 )
    ATX Form Factor
    Warranty 3 Years of Brand Warranty
