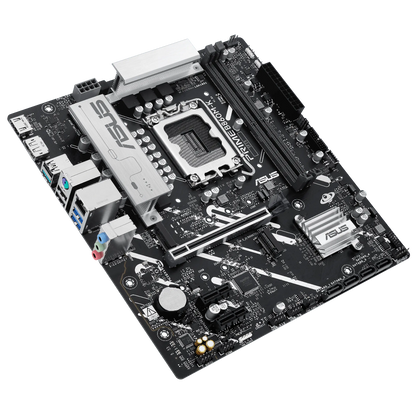

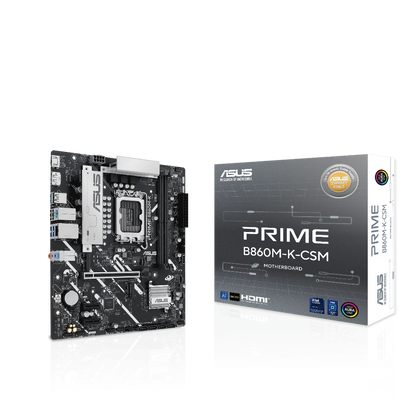

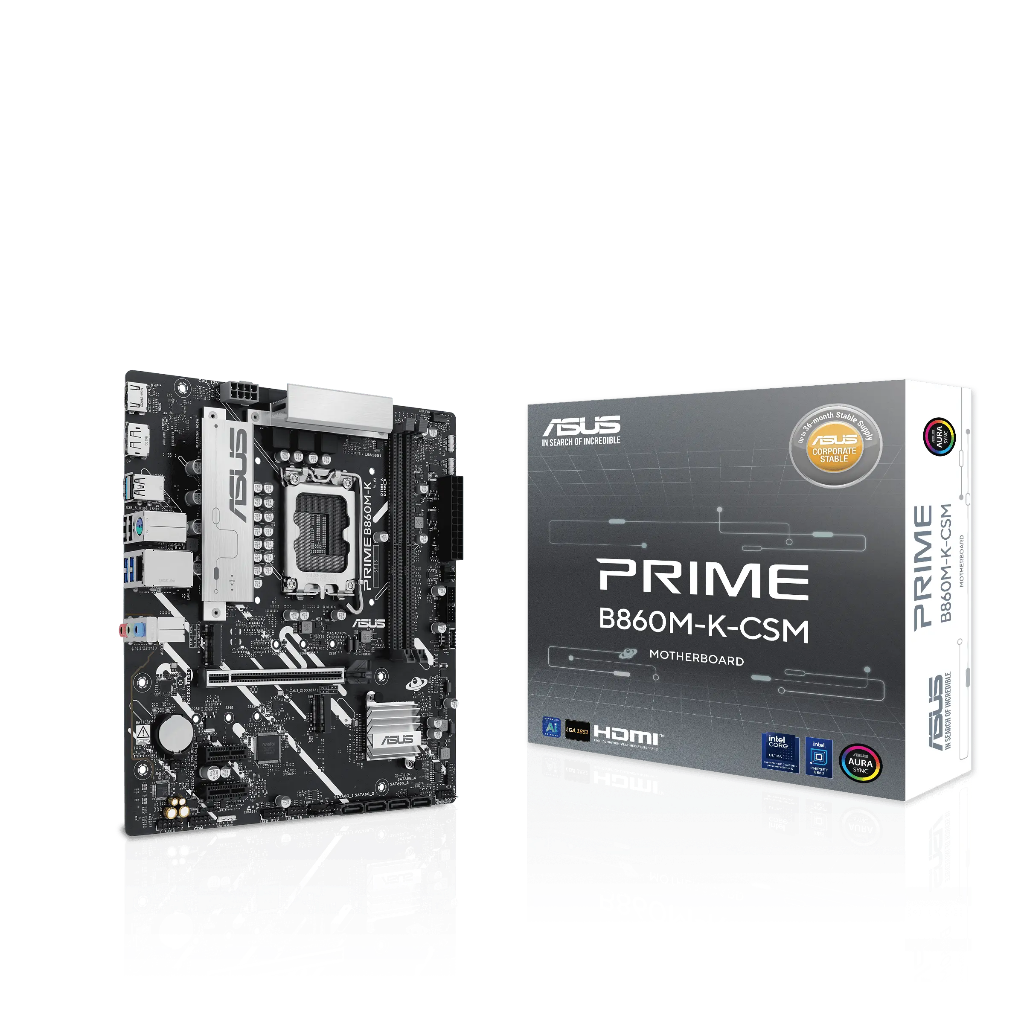

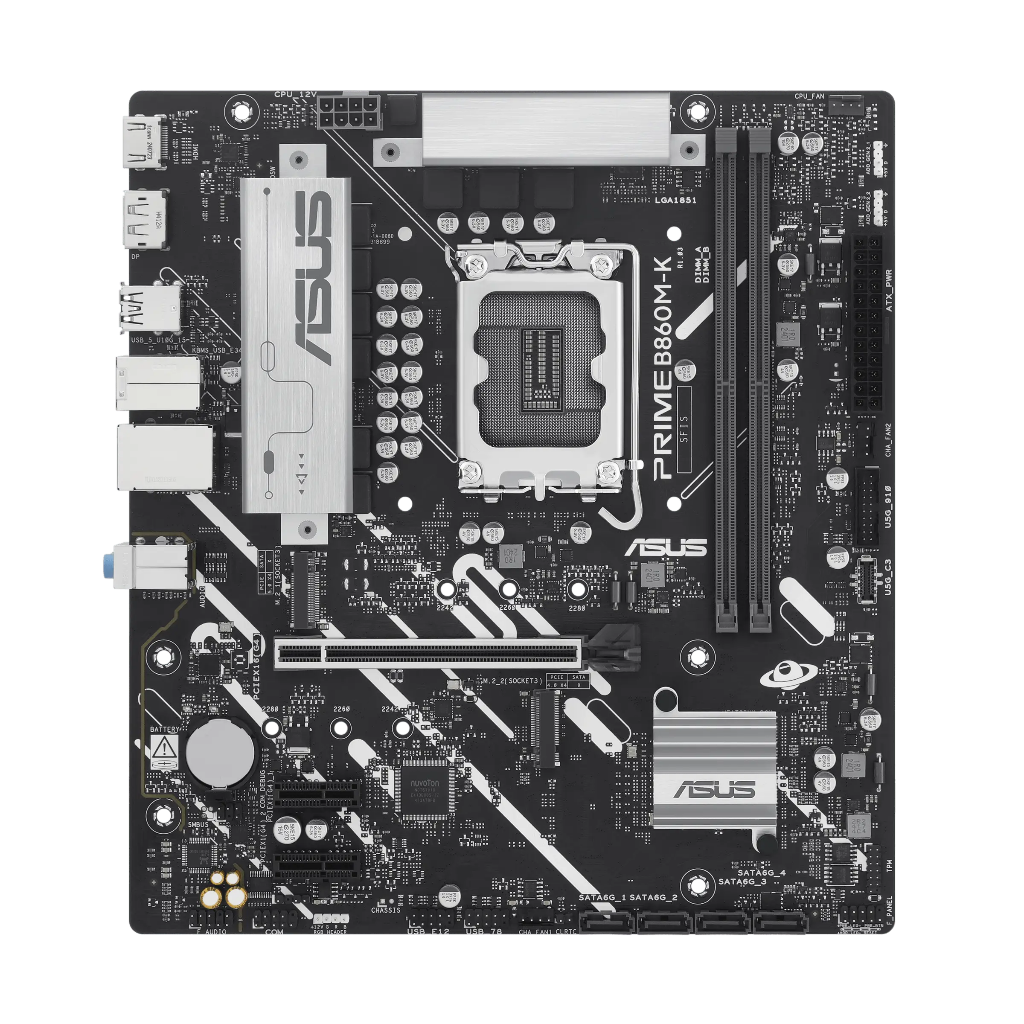

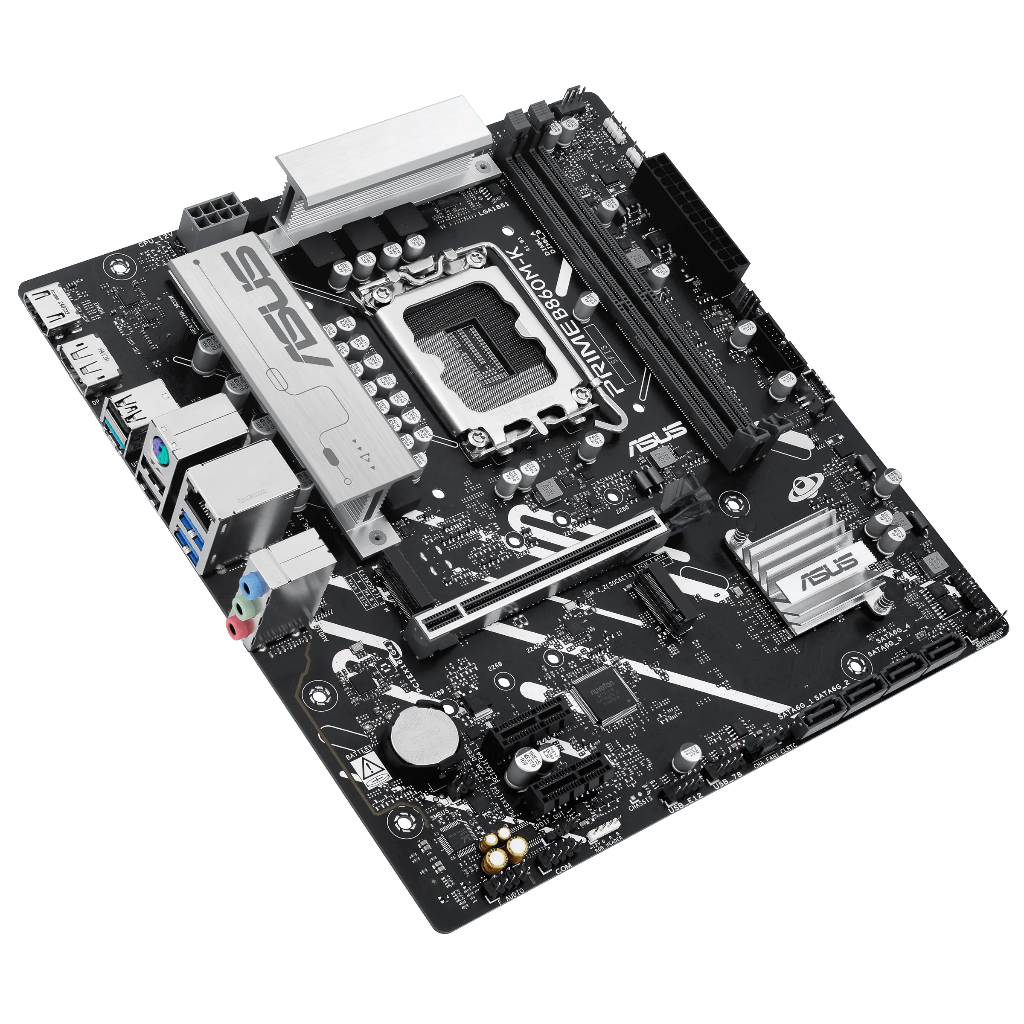

ASUS Prime B860M-K-CSM LGA1851 DDR5 Wi-Fi mATX Motherboard

ASUS Prime B860M-K-CSM LGA1851 DDR5 Wi-Fi mATX Motherboard

Brand: ASUS
Rs. 14,399.00
21% off Rs. 18,000.00 Rs. 14,399.00
Sale Sold out
Loading Offers...
+ Offers

Product Description:

Intel B860 Chipset: Supports the latest Intel Core Ultra Processors, ensuring high performance and compatibility.

Robust Power Design: Features a 6+1+1+1 phase design with discrete MOSFETs for efficient and stable power delivery.

Comprehensive Cooling Solutions: Includes multiple cooling options to maintain optimal temperatures during heavy workloads.

Advanced Connectivity: Equipped with PCIe 5.0, USB 3.1, and 2.5Gb Ethernet for fast and reliable connections.

ASUS Control Center Express: Provides server-grade IT management software for enhanced system stability and operational flexibility.

Model Name PRIME B860M-K-CSM
CPU Supports IntelĀ® Coreā„¢ Ultra Processors (Series 2), LGA1851*
Supports IntelĀ® Turbo Boost Technology 2.0 and IntelĀ® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** IntelĀ® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset IntelĀ® B860 Chipset
Memory 2 x DIMM slots, max. 128GB, DDR5
Supports up to 8800+MT/s (OC),Ā  Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports IntelĀ® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 1 x DisplayPort**
1 x HDMIā„¢ port***Ā
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Ā  Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots IntelĀ® Coreā„¢ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
IntelĀ® B860 Chipset
2 x PCIe 4.0 x1 slots
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
IntelĀ® Coreā„¢ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
IntelĀ® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* IntelĀ® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
USB Rear USB (Total 6 ports)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)**
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-CĀ®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports**
* USB Type-CĀ® power delivery output: max. 5V/3A.
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

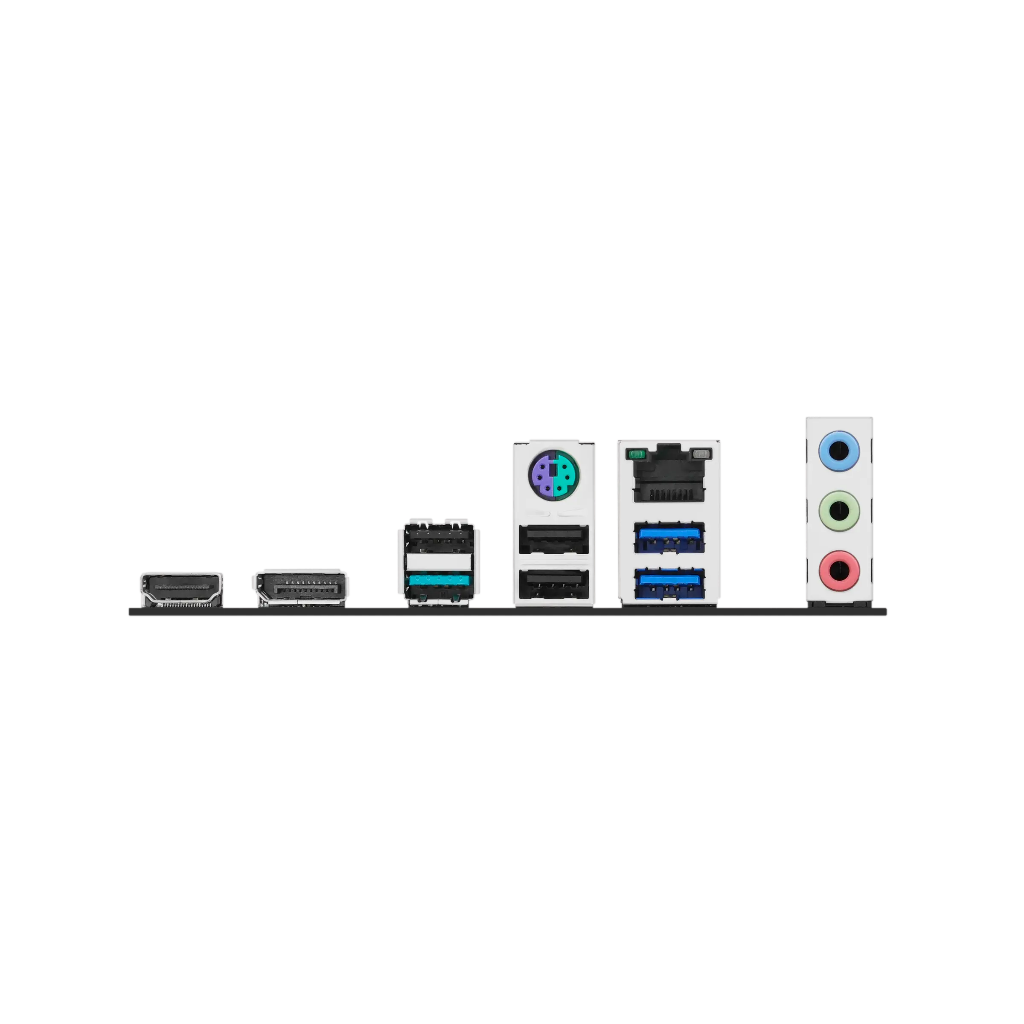

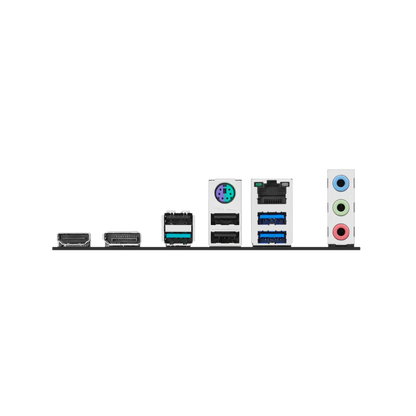

Back Panel I/O Ports 1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-CĀ® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
Special Features ASUS 5X PROTECTION III
- DIGI+VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen2 headers
Software Features ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
BIOS 256(128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 anchor package
Documentation
1 x Quick start guide
1 x ACC Express activation key card
Operating System Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor micro-ATX Form Factor
9.6 inch x 8.75 inch (24.4cm x 22.2cm)
Warranty 3-year limited warranty***
