GIGABYTE GeForce RTX 4090 GAMING OC 24GB GDDR6X 384-Bit Graphics Card
GIGABYTE GeForce RTX 4090 GAMING OC 24GB GDDR6X 384-Bit Graphics Card
Couldn't load pickup availability
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
RGB FUSION
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER .
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
4-YEAR WARRANTY
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.
| Model | GV-N4090GAMING OC-24GD |
| GPU | GeForce RTX 4090 |
| Core clock | 2535 MHz (Reference Card: 2520 MHz) |
| Memory Clock | 21 Gbps |
| Memory Size | 24 GB |
|
Memory Type |
GDDR6X |
| Memory Bus | 384-Bit |
| Card Bus | PCI-E 4.0 x 16 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| PCB Form | ATX |
| DirectX |
12 Ultimate
|
| OpenGL | 4.6 |
| Recommended PSU | 1000W |
| Power Connectors | 16 pin*1 |

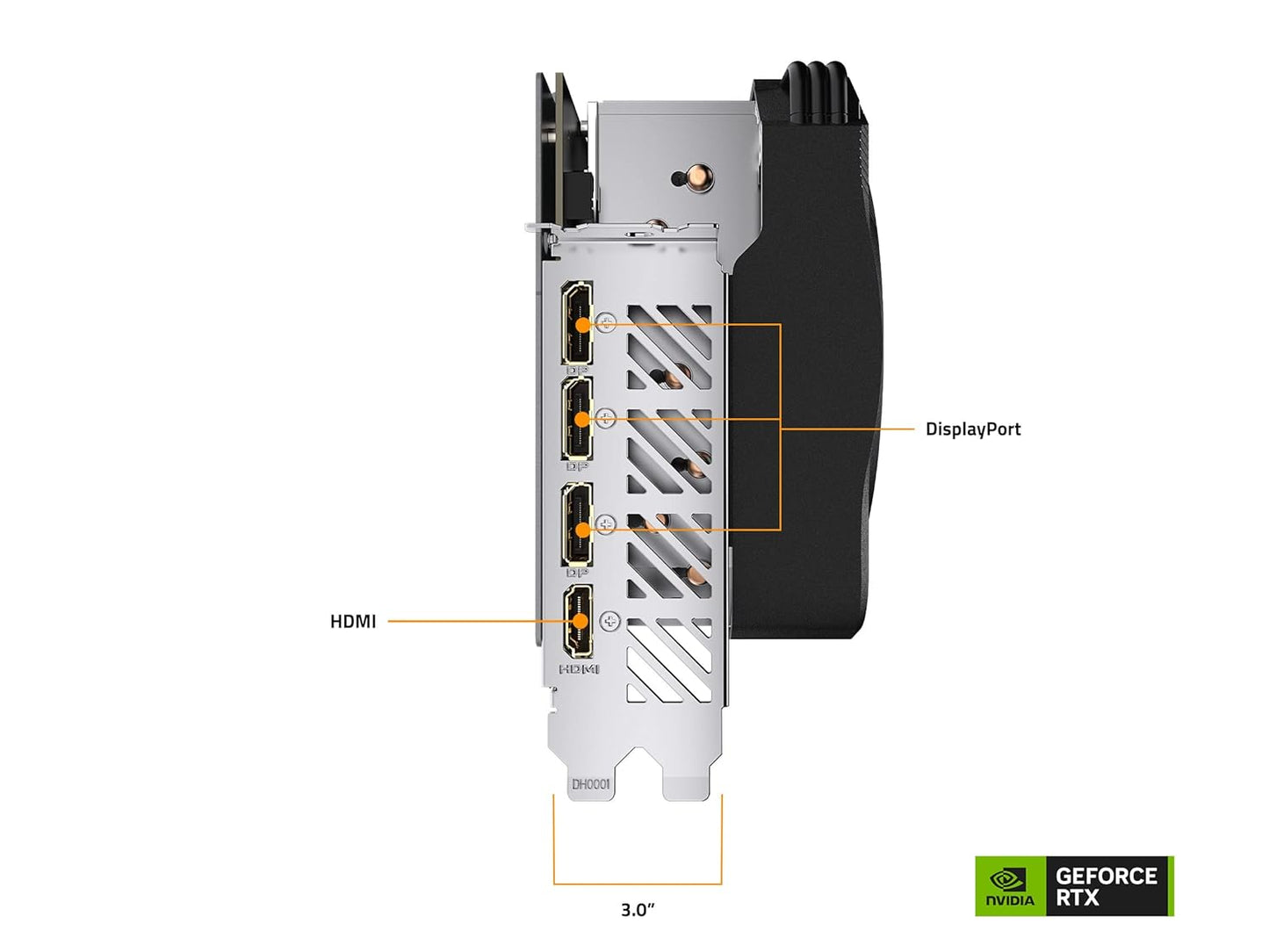

| Output | DisplayPort 1.4a *3 HDMI 2.1a *1 |
| Accessories | Quick guide Warranty registration Anti-sag bracket Anti-sag bracket installation guide One 16-pin to four 8-pin power adaptor |
| Card size | L=340 W=150.2 H=75.2 mm |
| Warranty | 4 Years Manufacturer Warranty |
