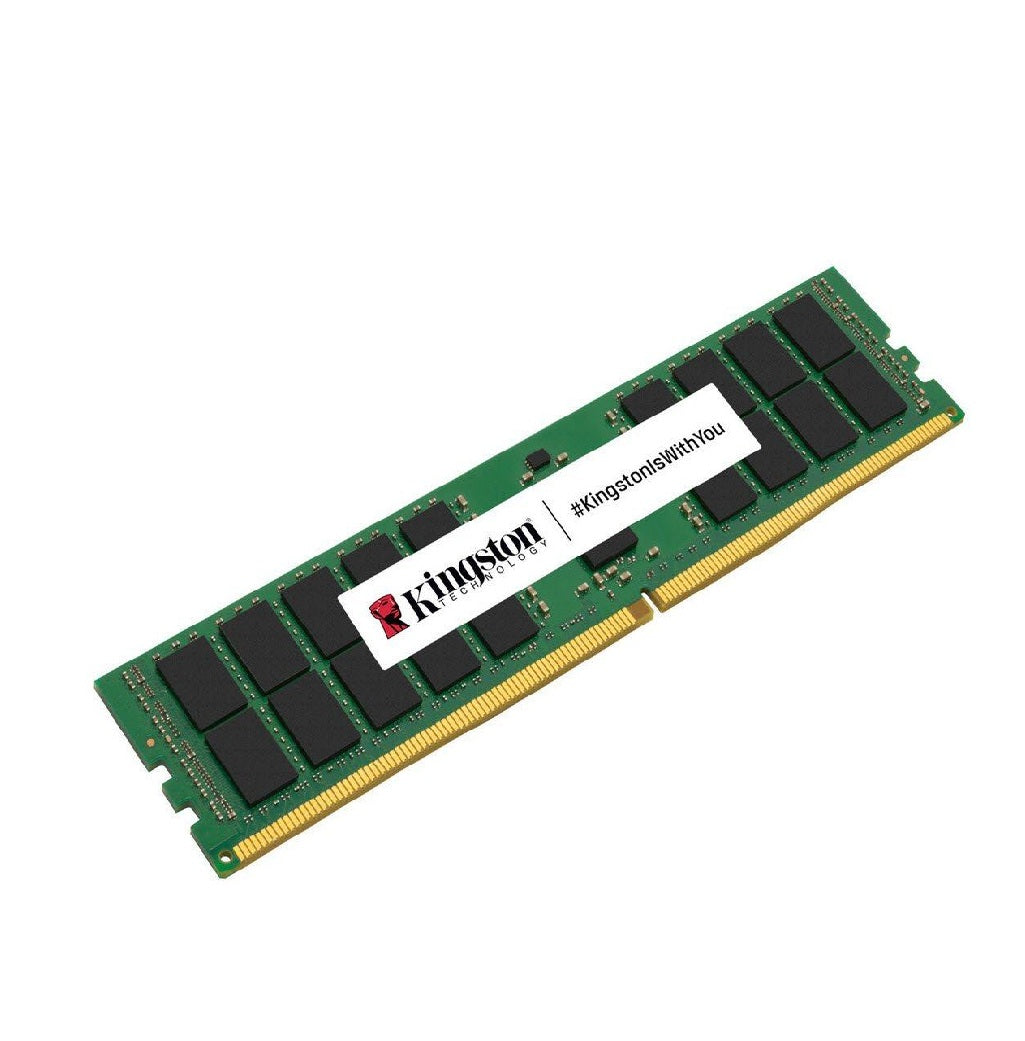

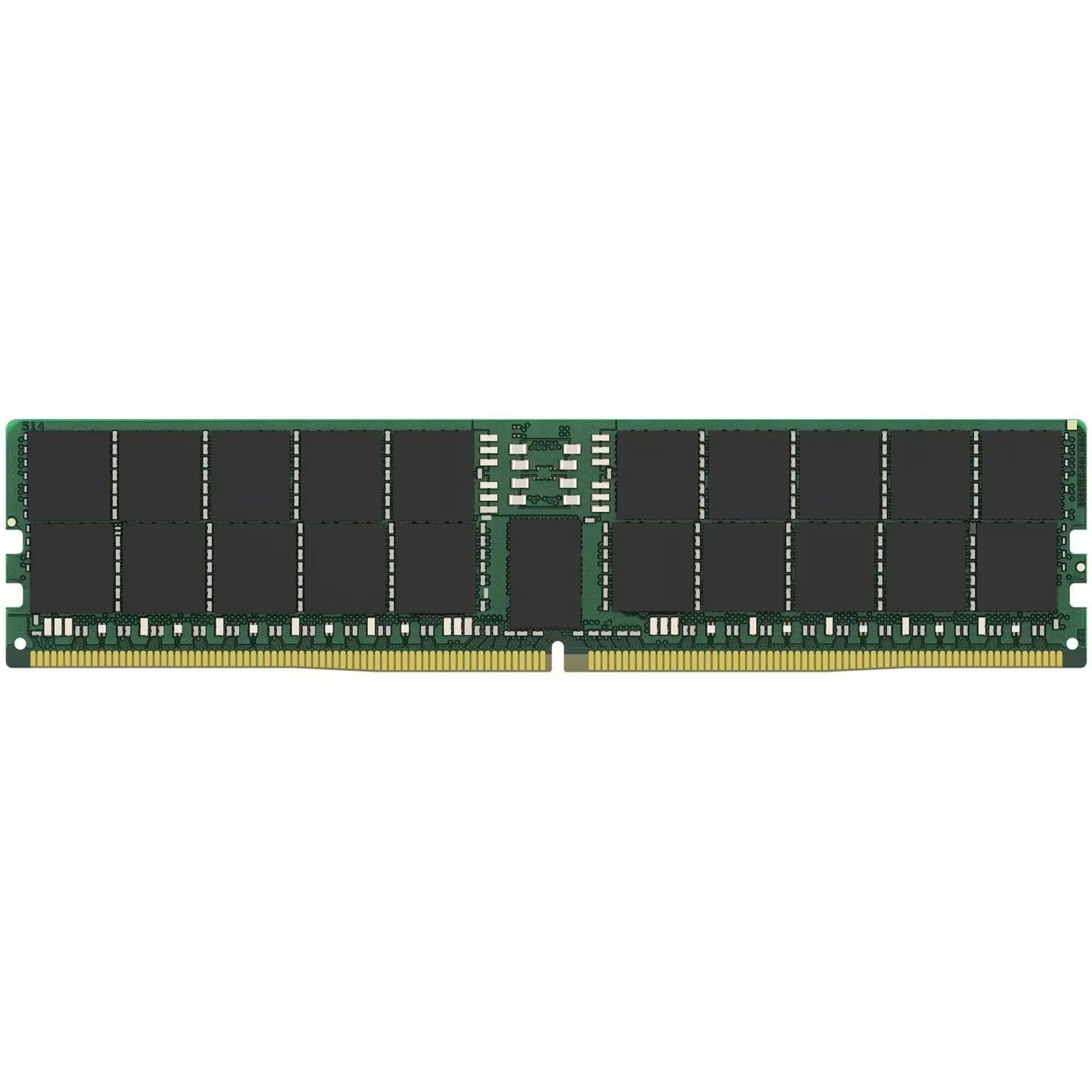

Kingston 64GB DDR5 5600MHz CL46 DIMM RAM ECC Server Workstation Memory
Kingston 64GB DDR5 5600MHz CL46 DIMM RAM ECC Server Workstation Memory
Couldn't load pickup availability
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🏢 Optimized for Servers & Workstations – purpose‑built to handle enterprise workloads, virtualization, and high‑performance computing.
🔒 Enhanced Reliability with ECC – error‑correcting technology actively detects and corrects memory errors, keeping systems stable under heavy demand.
⚡ Next‑Gen DDR5 Performance – delivers faster data transfer and higher bandwidth, enabling smoother multitasking and quicker response times.
🌱 Energy‑Efficient Design – engineered to run at lower voltage, reducing overall power draw and helping cut operational costs in data centers.
🔧 Seamless Integration – designed to meet JEDEC standards, ensuring compatibility with a wide range of DDR5 server platforms.
📈 Scalable for Growth – high‑density 64GB module supports memory‑intensive applications and allows businesses to expand capacity as workloads increase.
Product Specifications
| Specification | Details |
| Model | KSM56R46BD4-64MD |
| Capacity | 64GB |
| Memory Type | DDR5 SDRAM |
| Speed | 5600MT/s (PC5-44800) |
| CAS Latency (CL) | CL46 |
| Form Factor | 288-Pin DIMM |
| Rank | 2Rx4 |
| Error Correction | ECC Registered |
| DRAM Manufacturer | Micron |
| DRAM Die Revision | D-Die |
| Chip Organization | x4 |
| Data Width | x80 |
| Voltage | 1.1V typical |
| Operating Temperature | 0°C to +95°C |
| Storage Temperature | -55°C to +100°C |
| Row Cycle Time (tRCmin) | 48ns (min) |
| Row Active Time (tRASmin) | 32ns (min) |
| Row Precharge Time (tRPmin) | 16ns (min) |
| Refresh Command Time (tRFC) | 295ns (min) |
| Height | 1.23” (31.25mm) |
| Compliance | RoHS Compliant, Halogen-Free |
| Warranty | Lifetime |
