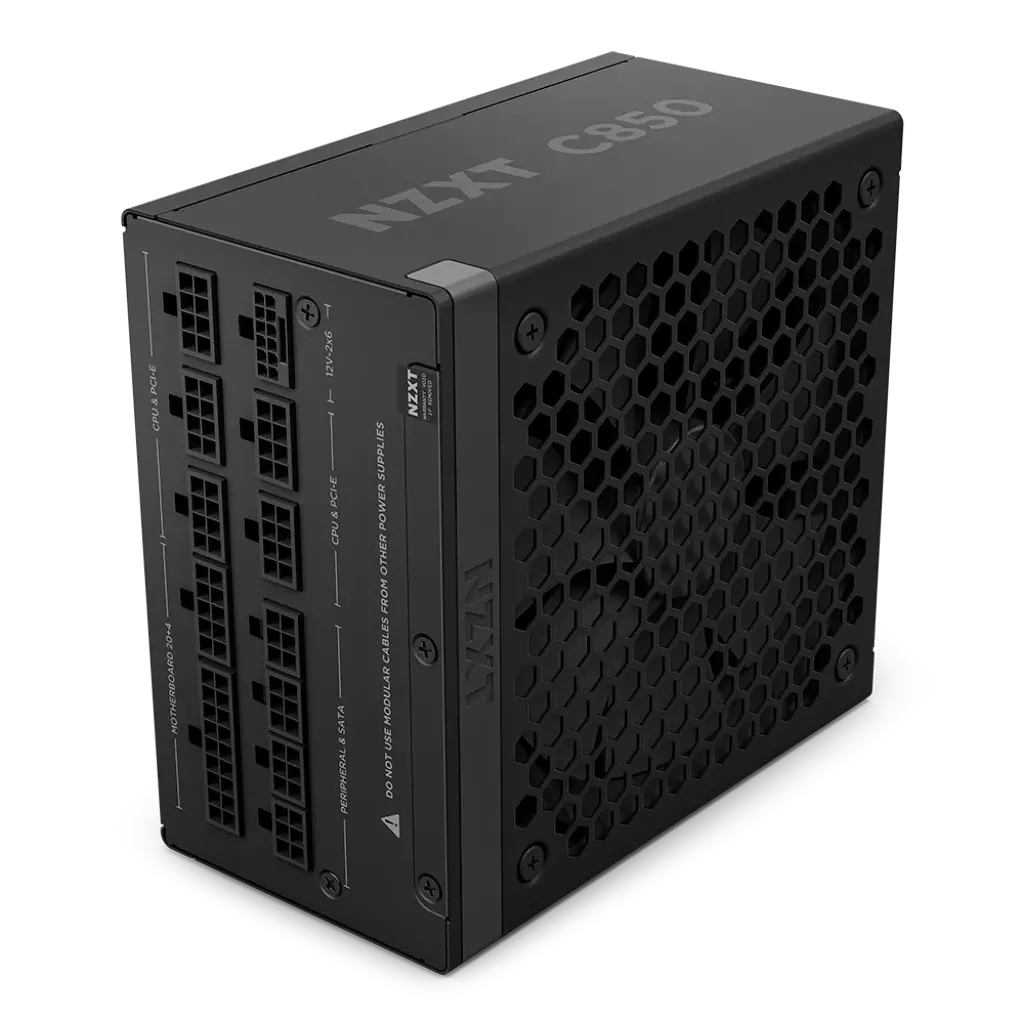

NZXT C850 850W Full Modular 80 Plus Gold ATX 3.1 SMPS Power Supply
NZXT C850 850W Full Modular 80 Plus Gold ATX 3.1 SMPS Power Supply
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
ATX 3.1 Compliant – Delivers stable, efficient power with enhanced spike resistance for next-gen CPUs and GPUs.
Fully Modular Design – Connect only the cables you need for a cleaner build and improved airflow.
80 PLUS Gold Certified – High efficiency under typical loads, reducing heat and energy consumption.
12V-2x6 Connector (600W Ready) – Supports NVIDIA® GeForce RTX™ 40/50 Series GPUs with up to 600W power delivery.
Ultra-Quiet Operation – 135mm fluid dynamic bearing fan with Zero Fan Mode stays silent under 50% load.
Premium Japanese Capacitors – Ensures long-term reliability, minimal ripple noise, and improved hold-up time.
Compact Form Factor – Saves space for better cable management and airflow in tight builds.
High-Quality Build – Rigorously tested for durability and performance under demanding conditions.
Wide Compatibility – Supports ATX 3.1, PCIe 5.0, and legacy connectors for modern and older systems.
| Specification | Details |
| Model Number | PA-8G2BB-UK (Black) |
| Form Factor | ATX 3.1 Compliant |
| Wattage | 850W |
| Efficiency Certification | 80 PLUS Gold, Cybenetics Gold, Cybenetics A- Noise |
| Modularity | Fully Modular |
| Cooling | 135mm Fluid Dynamic Bearing Fan with Zero Fan Mode |
| Fan Noise | Silent under 50% load |
| Capacitors | 100% Premium Japanese Capacitors |
| GPU Support | 12V-2x6 (16-pin) PCIe Cable – up to 600W for RTX 40/50 Series GPUs |
| Motherboard Connectors | 1 × 24-pin ATX, 1 × 4+4-pin CPU, 1 × 8-pin CPU |
| PCIe Connectors | 3 × 6+2-pin, 1 × 16-pin (12V-2x6) |
| SATA Connectors | 12 |
| Molex (Peripheral) Connectors | 4 |
| Input Voltage | 100V – 240V |
| Input Frequency | 50Hz – 60Hz |
| +12V Rail | Single Rail, 70.83A |
| Protections | OVP, OCP, SCP, OPP, OTP |
| Dimensions (L × W × H) | 160 × 150 × 86 mm |
| Weight | Approx. 1.74 kg |
| Certifications | FCC, CE, UKCA, CB, BSMI, BIS, RCM, TUV, cTUVus, KC, CP65 |
| Warranty | 10 Years from Brand |
