TP-Link CPE210 2.4GHz 300Mbps Wi-Fi 9dBi Outdoor CPE Dual-Polarized MIMO Antenna
TP-Link CPE210 2.4GHz 300Mbps Wi-Fi 9dBi Outdoor CPE Dual-Polarized MIMO Antenna
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:

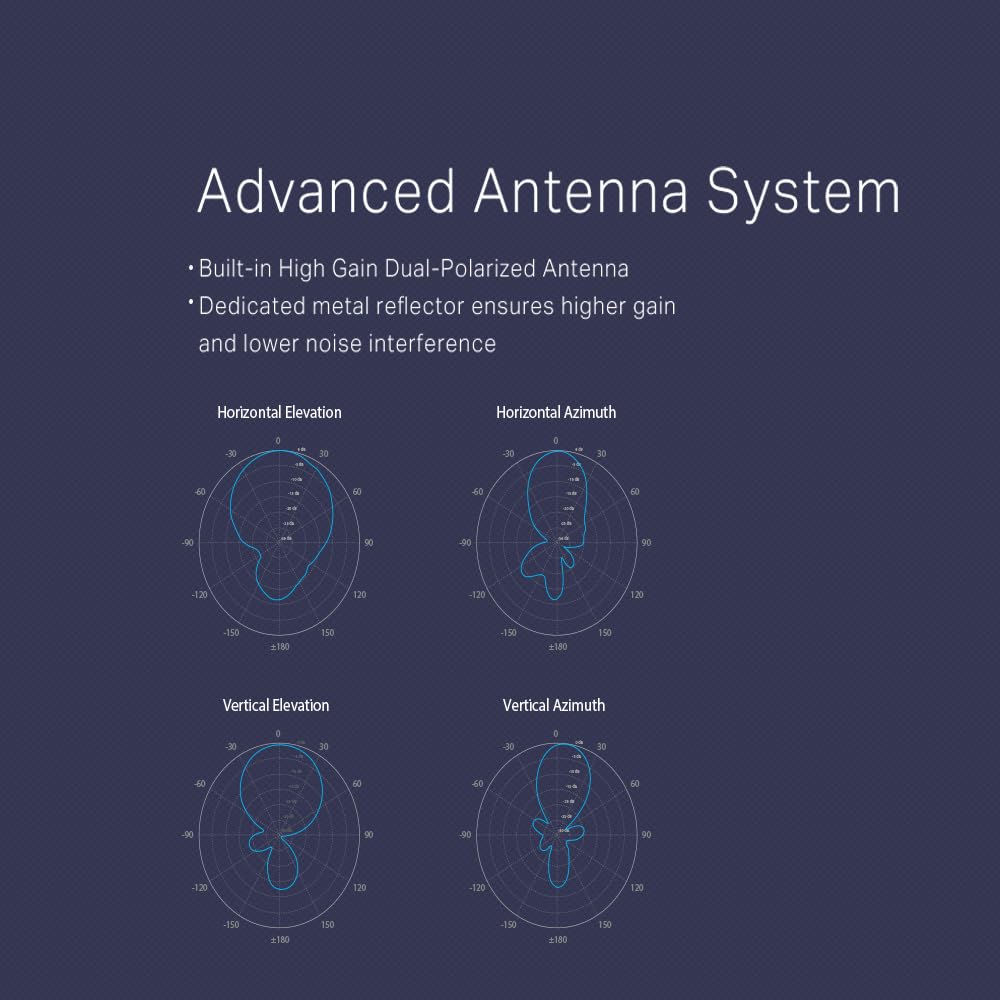

High Gain Antenna: The CPE210 is equipped with a powerful 9dBi 2x2 dual-polarized directional MIMO antenna, significantly boosting signal strength and coverage, making it ideal for long-distance wireless communication.
Extended Range: Optimized for long-range transmission, the CPE210 can reliably transmit data over distances exceeding 5 kilometers, making it perfect for outdoor networking scenarios.
Advanced TDMA Technology: Utilizing TP-Link's MAXtream TDMA technology, the CPE210 enhances throughput, capacity, and latency performance, making it well-suited for point-to-multipoint (PtMP) applications.
Multiple Operation Modes: The device supports various operation modes, including Access Point (AP), Client, AP Router, and AP Client Router (WISP), offering flexibility to meet different networking needs.
Durable Outdoor Design: Built to withstand harsh outdoor conditions, the CPE210 operates effectively in temperatures ranging from -40°C to +70°C and includes 6KV lightning protection, ensuring reliable performance in diverse weather environments.
| Model | CPE210 |
| Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface | 1 10/100Mbps Shielded Ethernet Port (Passive PoE in) 1 Grounding Terminal 1 Reset Button |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC |
| Max. Power Consumption | 10.5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
| Antenna |
Built-in 9dBi 2x2 Dual-polarized Directional Antenna Beam Width: 65° (H-Plane) / 35° (E-Plane) |
| Protection | 15KV ESD Protection 6KV Lightning Protection |
| Wireless Speeds | Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) |
| Interfaces | 1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data) |
| Dimensions | 4.3 x 2.2 x 1.3 in |
| Package Content | Outdoor Wireless CPE 24VDC Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide |
| Warranty | 1 Year Warranty |
