Product Description:

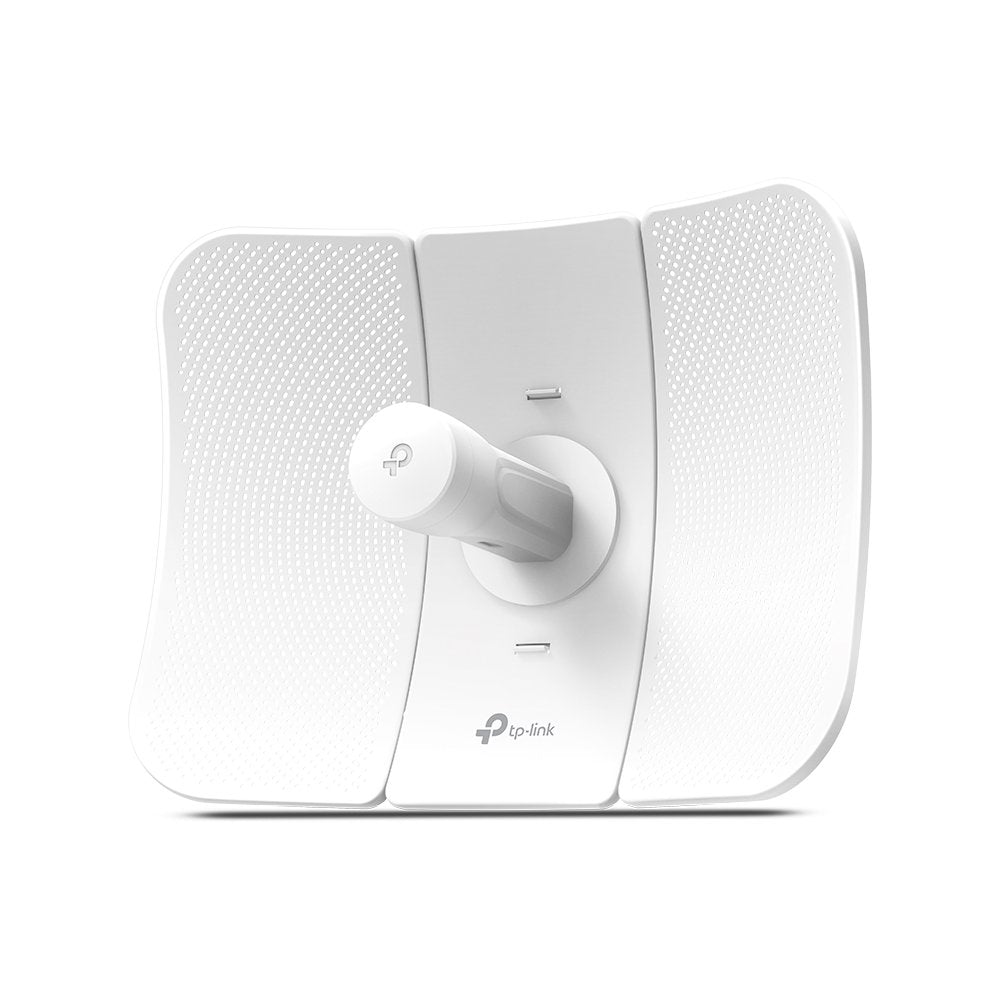

High Gain Antenna: The CPE610 is equipped with a powerful 23dBi 2x2 dual-polarized directional MIMO Cassegrain antenna, significantly boosting signal strength and coverage, making it ideal for long-distance wireless communication.
Extended Range: Designed for long-range transmission, the CPE610 can reliably transmit data over distances exceeding 20 kilometers, making it perfect for extensive outdoor networking scenarios.
Advanced TDMA Technology: With TP-Link's MAXtream TDMA technology, the CPE610 enhances throughput, capacity, and latency performance, making it well-suited for point-to-multipoint (PtMP) applications.
Robust Outdoor Design: Built to withstand harsh outdoor conditions, the CPE610 operates effectively in temperatures ranging from -30°C to +70°C and includes 6KV lightning protection and 15KV ESD protection, ensuring reliable performance in diverse weather environments.

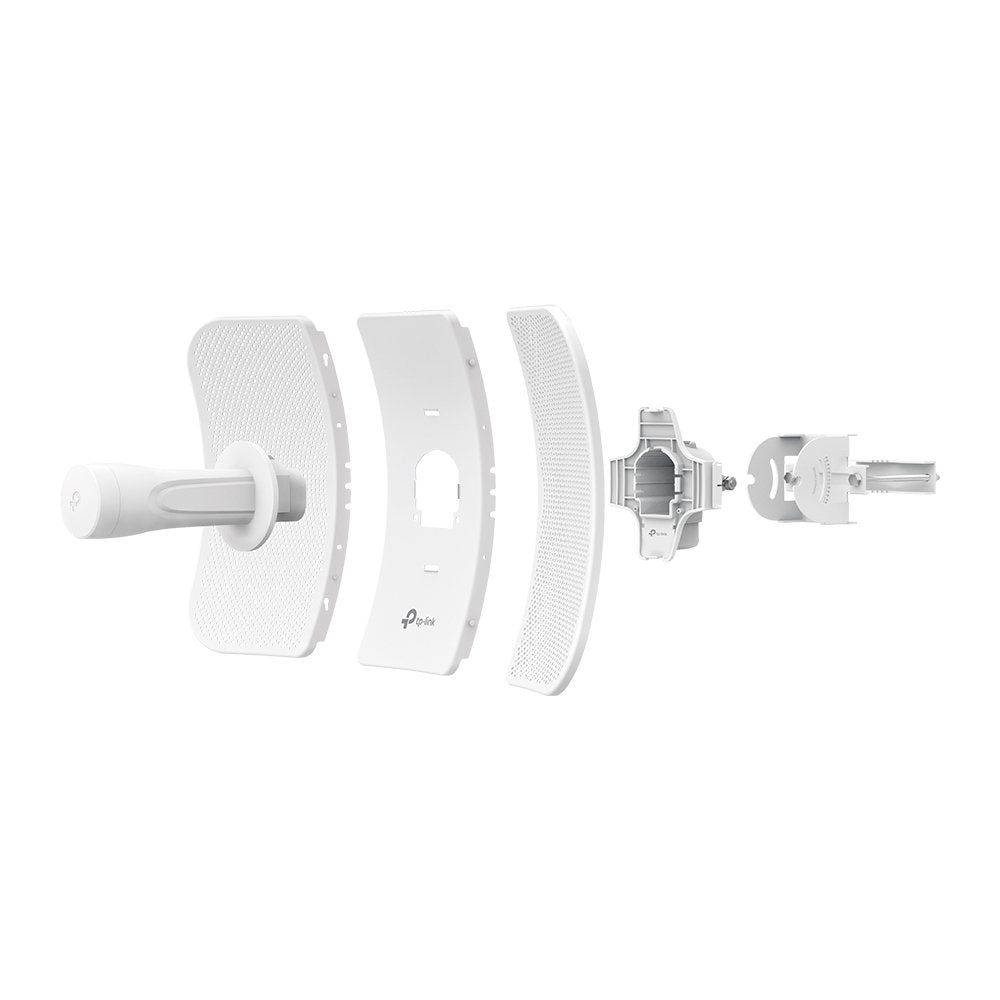

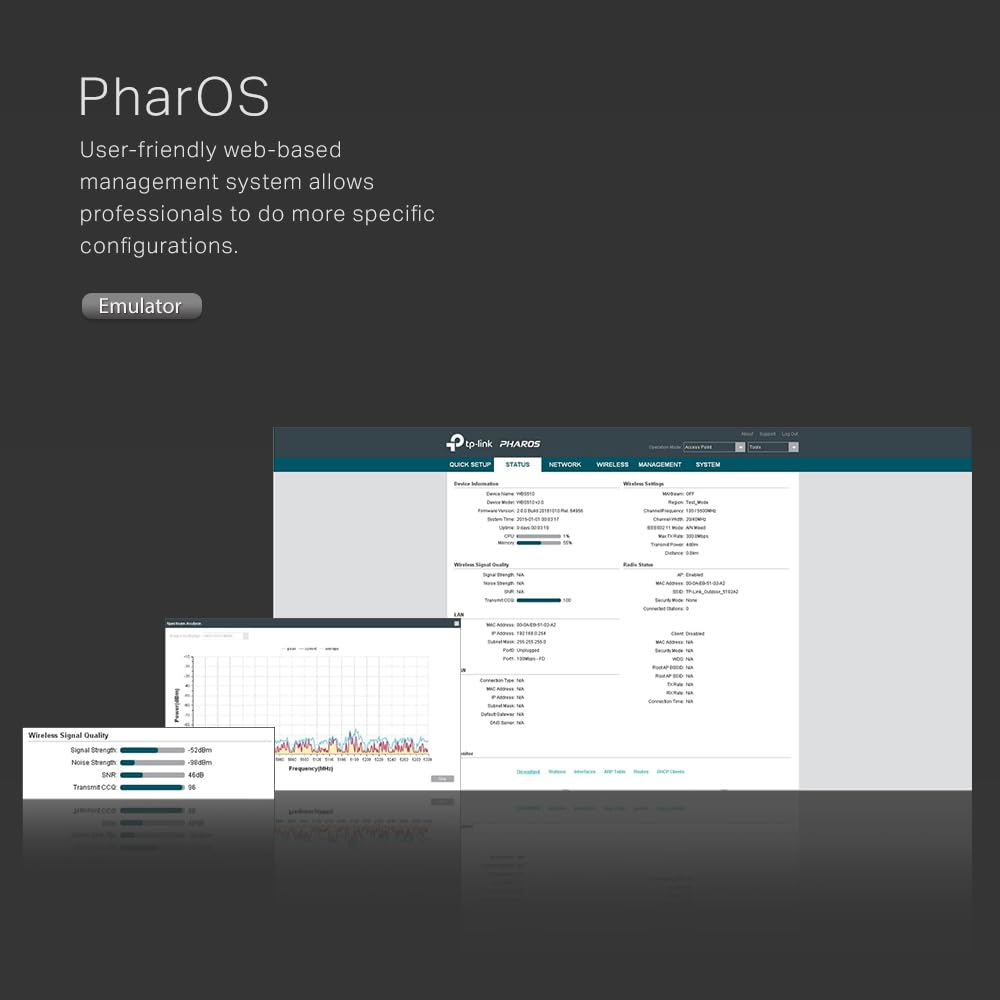

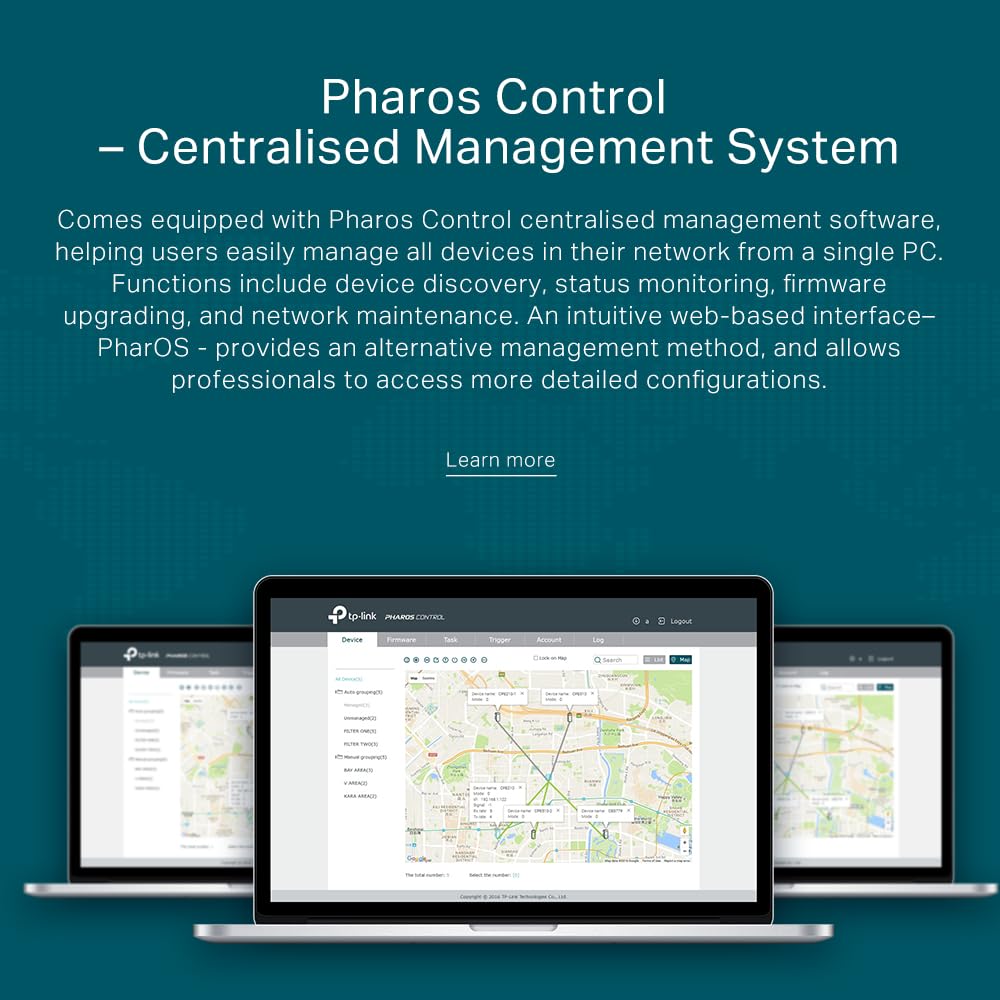

Easy Installation and Management: The CPE610 features innovative snap-lock parts for quick assembly and includes Pharos Control centralized management software, allowing users to easily manage all devices in their network from a single PC.
| Model | CPE610 |
| Processor | Qualcomm 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM,8MB Flash |
| Interface | 1 10/100Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button |
| Power Supply | Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC |
| Max. Power Consumption | 7.41 W Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
| Antenna | 23dBi |
| Protection | 15KV ESD Protection 6KV Lightning Protection |
| Wireless Speeds | Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) |
| Interfaces | 1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data) |
| Dimensions | 85.8×43.9×29.7 mm |
| Package Content | Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide |
| Warranty | 1 Year Brand Warranty |
