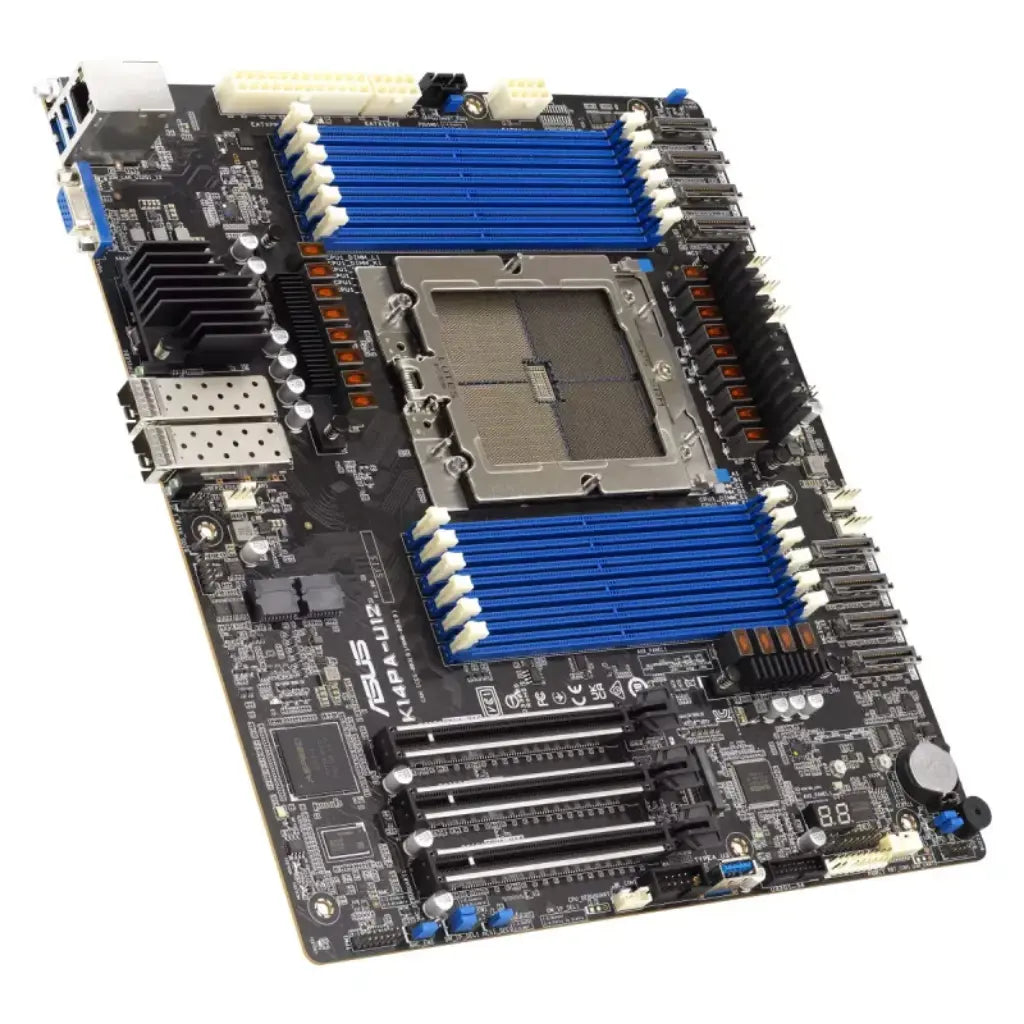

ASUS K14PA‑U12/ASMB11 AMD EPYC 9004 Socket SP5 DDR5 CEB Server Motherboard
ASUS K14PA‑U12/ASMB11 AMD EPYC 9004 Socket SP5 DDR5 CEB Server Motherboard
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🔥 Supports 128‑Core AMD EPYC 9004 CPUs – Built for extreme server workloads with next‑generation SP5 processors.
⚡ Dual 25GbE SFP28 Networking – High‑speed data transfer with teaming support for enhanced reliability.
🧠 12‑DIMM DDR5 Memory Capacity – Supports up to 3TB DDR5‑4800 RDIMM for maximum server performance.
🚀 PCIe 5.0 Expansion – Equipped with 3× PCIe 5.0 x16 slots for GPUs, accelerators, and high‑bandwidth add‑ons.
🛡️ ASMB11‑iKVM Remote Management – Advanced remote monitoring with ASPEED AST2600 controller.
🧩 Flexible Storage Options – M.2 PCIe 5.0 slot and MCIO connectors supporting up to 16 NVMe drives.
⚡ Dual 25GbE SFP28 Networking – High‑speed data transfer with teaming support for enhanced reliability.
🧠 12‑DIMM DDR5 Memory Capacity – Supports up to 3TB DDR5‑4800 RDIMM for maximum server performance.
🚀 PCIe 5.0 Expansion – Equipped with 3× PCIe 5.0 x16 slots for GPUs, accelerators, and high‑bandwidth add‑ons.
🛡️ ASMB11‑iKVM Remote Management – Advanced remote monitoring with ASPEED AST2600 controller.
🧩 Flexible Storage Options – M.2 PCIe 5.0 slot and MCIO connectors supporting up to 16 NVMe drives.
The ASUS K14PA‑U12/ASMB11 is a powerful CEB server motherboard engineered for AMD EPYC 9004‑series SP5 processors. It supports 12‑DIMM DDR5 memory, PCIe 5.0 expansion slots, and ultra‑fast dual 25GbE networking, making it ideal for heavy enterprise workloads. With flexible storage options, including MCIO and M.2 PCIe 5.0 support, it delivers exceptional scalability. Integrated ASMB11‑iKVM ensures secure and comprehensive remote management for efficient data‑center operations.
Product Specifications:
| Specification | Details |
| Model Name | ASUS K14PA‑U12/ASMB11 |
| Part Number | 90SB0CI0‑M0UAY0 |
| Form Factor | SSI CEB |
| Processor Support | AMD EPYC 9004‑Series (Up to 128 cores, up to 400W TDP) |
| CPU Socket | Socket SP5 (LGA 6096) |
| Chipset | AMD EPYC Server Platform |
| Memory Type | DDR5 RDIMM / 3DS RDIMM, up to 4800 MHz |
| Memory Slots | 12 DIMM slots (Maximum: 3TB) |
| PCI Express Slots | 3 × PCIe 5.0 x16 slots |
| M.2 Slot | 1 × M.2 PCIe 5.0 x4 (2280) with SATA mode support |
| Storage via MCIO | 8 × MCIO Gen5 connectors supporting up to 16 NVMe drives |
| Network Connectivity | Dual SFP28 25GbE + 1 Dedicated Management LAN |
| Management Controller | ASPEED AST2600 with ASMB11‑iKVM module |
| Rear I/O Ports | 2 × USB 3.2 Gen1, 2 × SFP28 25GbE, 1 × VGA, 1 × Mgmt LAN |
| Internal I/O | Serial header, TPM header, fan headers, USB headers, chassis intrusion header |
| Operating Temperature | 10°C – 35°C |
| Non‑Operating Temperature | -40°C – 70°C |
| Humidity (Non‑Operating) | 20% – 90% (non‑condensing) |
| Dimensions | 12" × 10.5" (CEB) |
| Weight | 1.4 kg |
| Warranty | 3 Years |
| Country of Origin | Taiwan |
