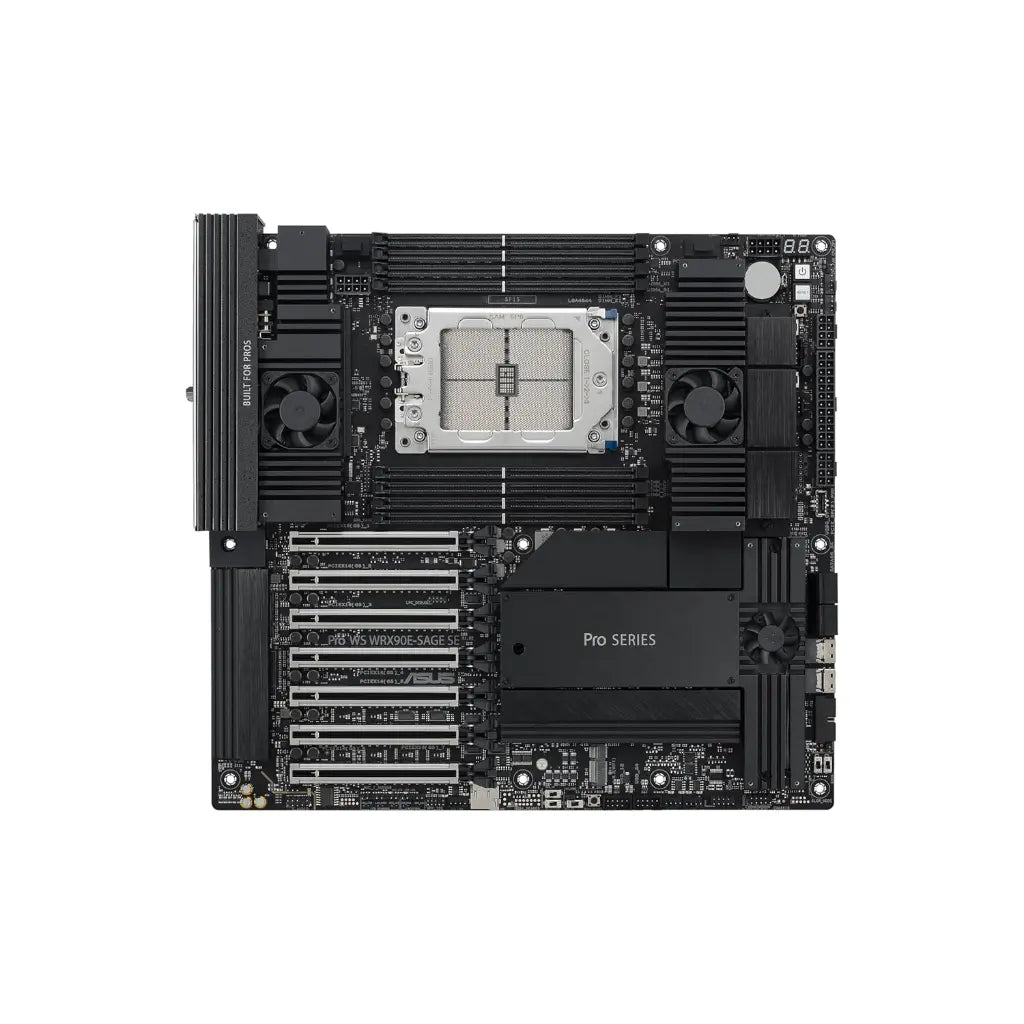

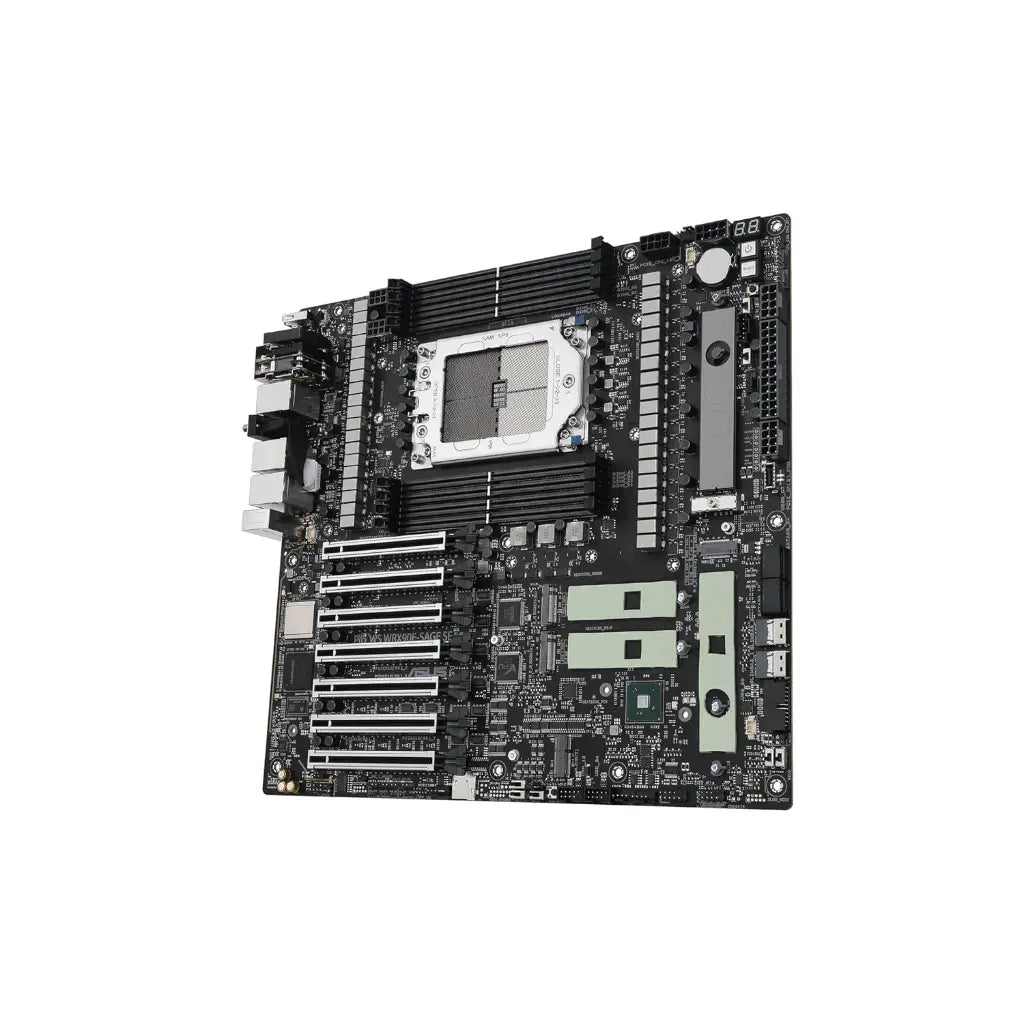

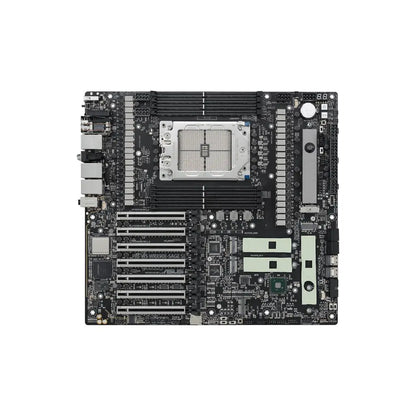

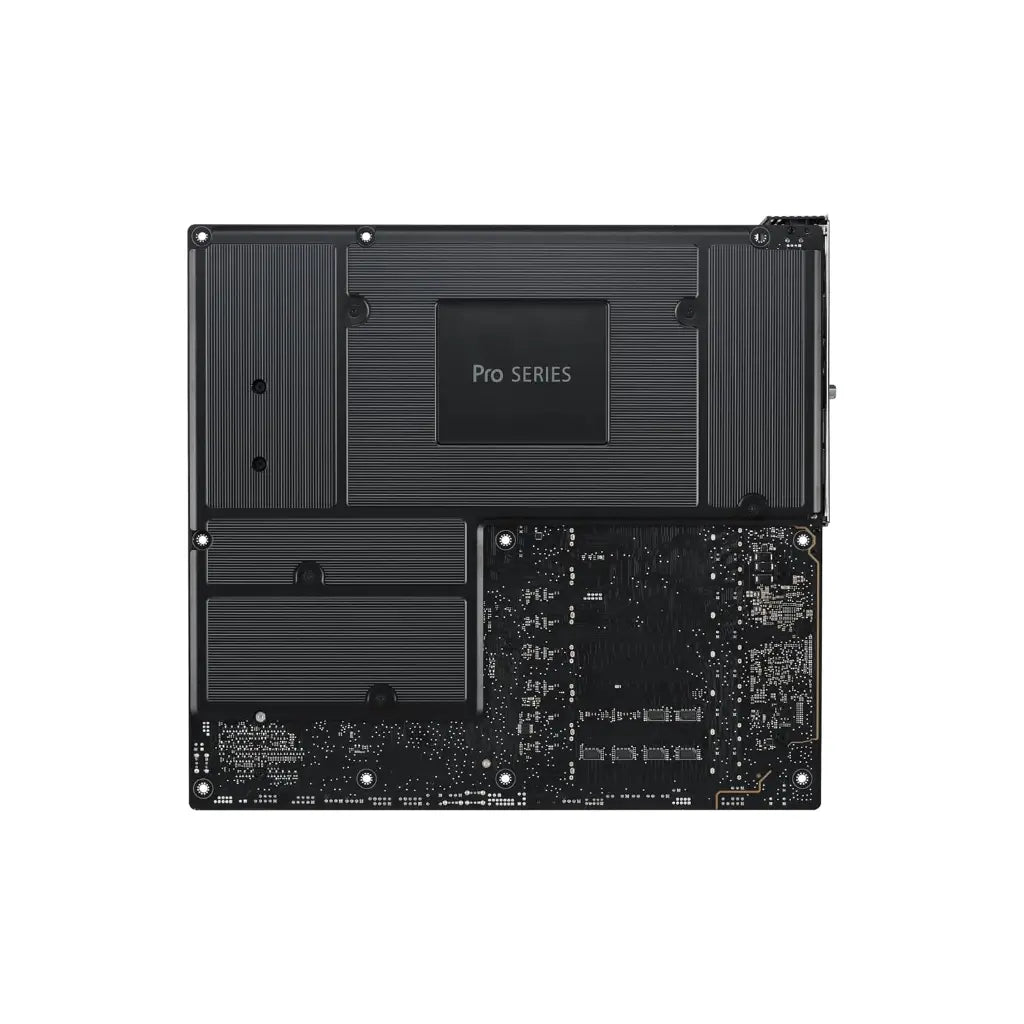

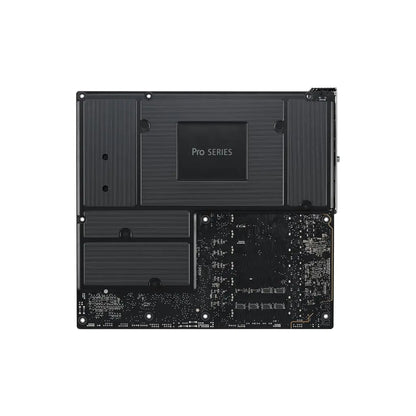

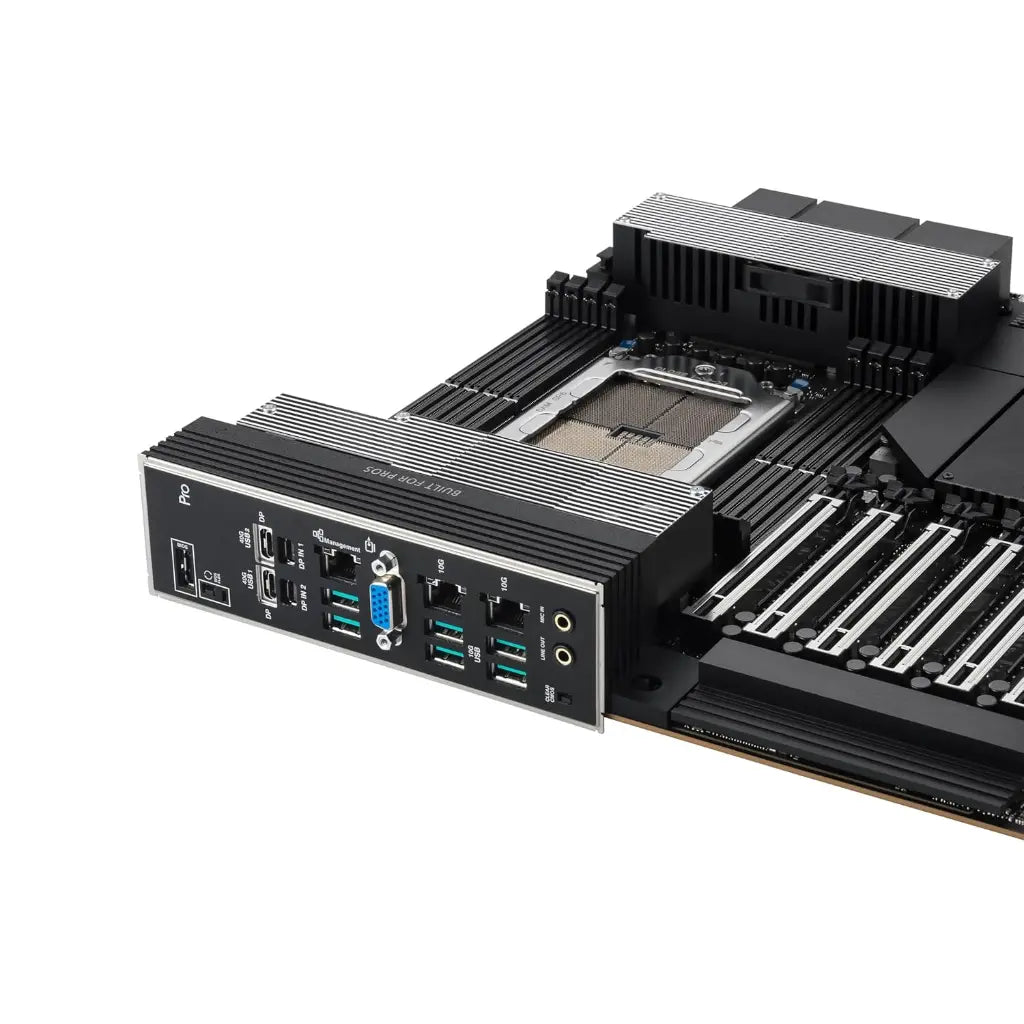

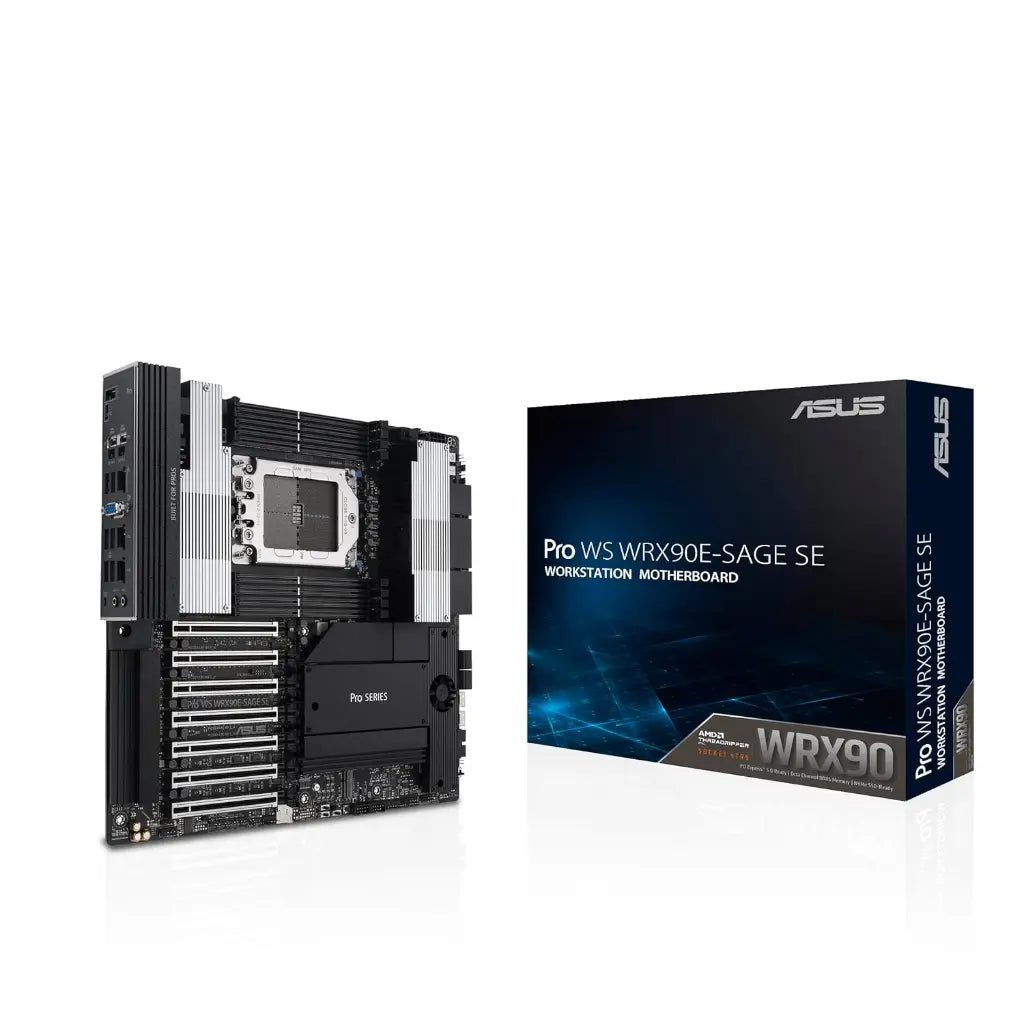

ASUS PRO WS WRX90E-SAGE SE AMD WRX90 Chipset sTR5 Socket DDR5 EEB Workstation Motherboard
ASUS PRO WS WRX90E-SAGE SE AMD WRX90 Chipset sTR5 Socket DDR5 EEB Workstation Motherboard
Couldn't load pickup availability
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
đ§ Socket & Chipset: AMD sTR5 socket with WRX90 chipset, supporting Ryzen⢠Threadripper⢠PRO 9000 & 7000 WX-Series processors for extreme workstation performance.
đ Memory Support: 8x DDR5 ECC Registered DIMM slots with 8-channel architecture, supporting up to 2TB for high-bandwidth multitasking and rendering.
đŽ Expansion Ready: Features 7x PCIe 5.0 x16 slots for multi-GPU setups, ideal for AI, simulation, and content creation workloads.
đž Storage Versatility: Equipped with 4x PCIe 5.0 M.2 slots, 2x SlimSAS ports, and 4x SATA 6Gb/s ports with support for RAID 0/1/5/10 via AMD RAIDXpert2.
đ Networking Power: Dual IntelÂŽ 10Gb Ethernet ports and dedicated Realtek 1Gb management LAN with ASUS LANGuard for ultra-fast and secure connectivity.
âď¸ Thermal & Power Design: 32+3+3+3 power stages, active VRM cooling, M.2 heatsinks, and steel backplate ensure stable performance under heavy loads.
The ASUS PRO WS WRX90E-SAGE SE is a powerhouse EEB workstation motherboard engineered for professionals in AI, simulation, and content creation. With support for AMD Ryzen⢠Threadripper⢠PRO 9000 & 7000 WX-Series CPUs, it delivers unmatched performance through 7 PCIe 5.0 x16 slots, dual 10Gb LAN, and up to 2TB DDR5 ECC memory. Advanced thermal solutions and server-grade remote management features make it ideal for 24/7 operation. Whether you're building a high-end workstation or a rendering rig, this board is built to handle it all.
Product Specifications:
| Specification | Details |
| Brand | ASUS |
| Model | PRO WS WRX90E-SAGE SE |
| Chipset | AMD WRX90 |
| Socket | sTR5 (Supports Ryzen⢠Threadripper⢠PRO 9000 & 7000 WX-Series) |
| Form Factor | EEB (12" x 13") |
| Memory Support | 8x DDR5 ECC Registered DIMM, up to 2TB, 8-channel architecture |
| Expansion Slots | 7x PCIe 5.0 x16 |
| Storage Options | 4x M.2 PCIe 5.0 x4, 2x SlimSAS PCIe 4.0 x4, 4x SATA 6Gb/s |
| LAN | Dual IntelÂŽ 10Gb Ethernet, Realtek 1Gb Management LAN |
| USB Ports | Rear: 2x USB4 (40Gbps), 6x USB 10Gbps, 1x USB 2.0; Front: USB 20Gbps, USB 5Gbps, USB 2.0 headers |
| Audio | Realtek ALC1220P 5.1 Surround Sound, 120 dB SNR playback |
| Power Design | 32+3+3+3 Power Stages, Dual 8-pin CPU connectors |
| Cooling | Active VRM fans, M.2 heatsinks, steel backplate |
| Special Features | PCIe Q-Release Slim, ASUS Control Center Express, IPMI remote management |
| Country of Origin | China |
| Model Number | 90MB1FW0-MVAAY0 |
| Warranty | 3 Years Manufacturer Warranty |
| Weight | 835 g |
