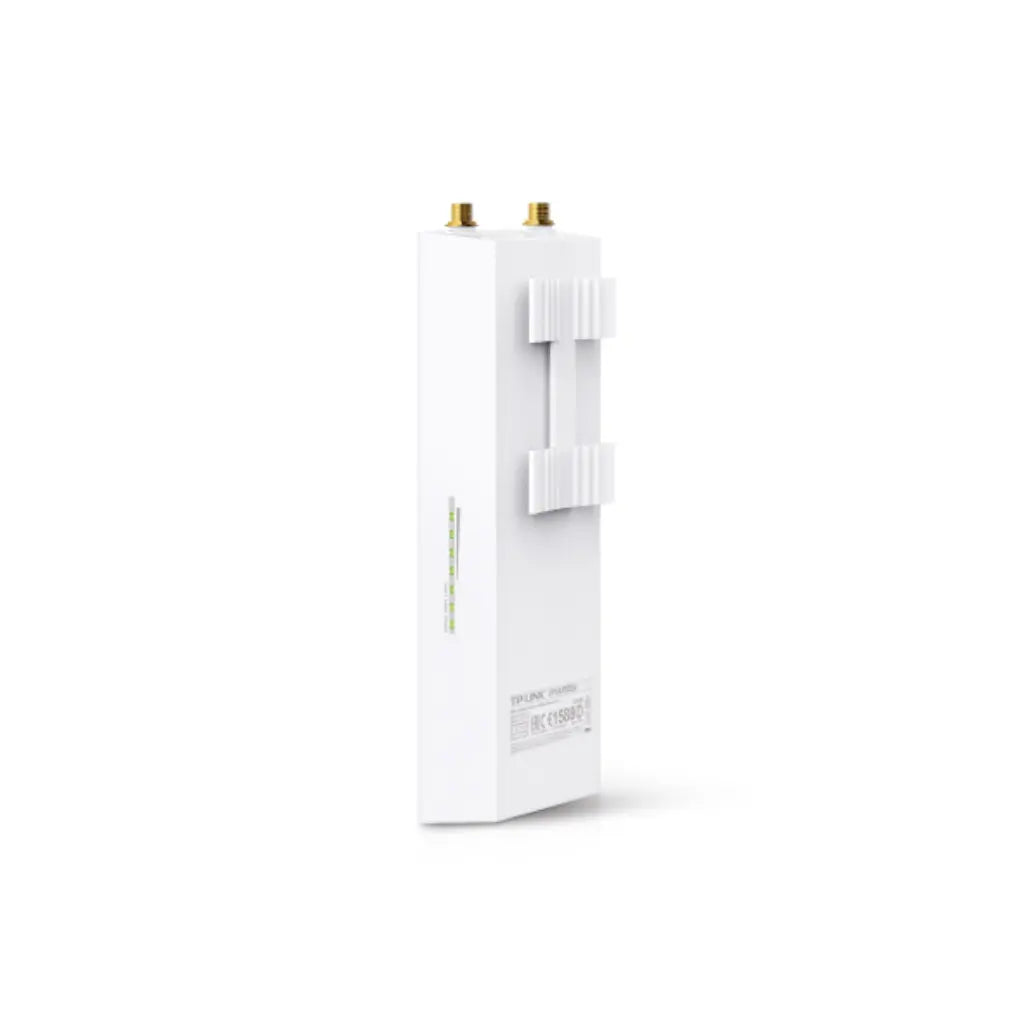

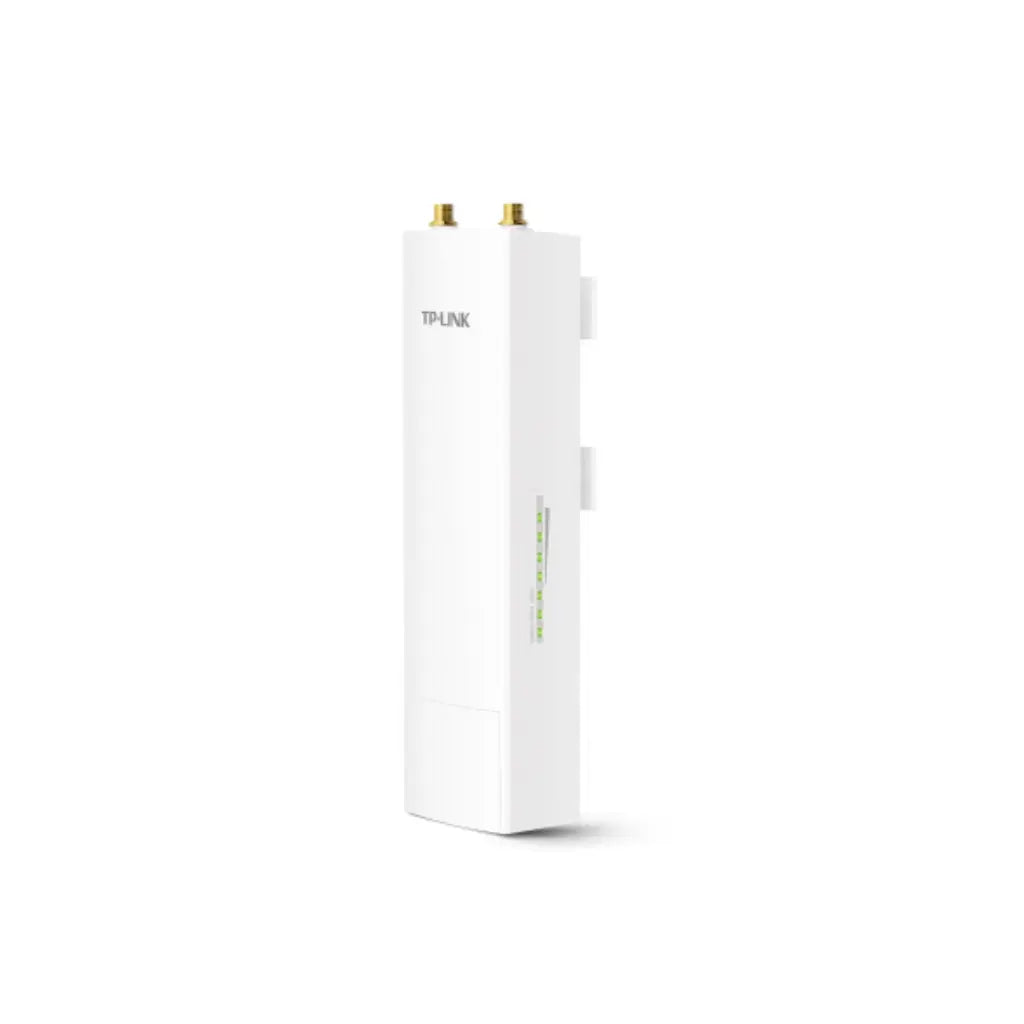

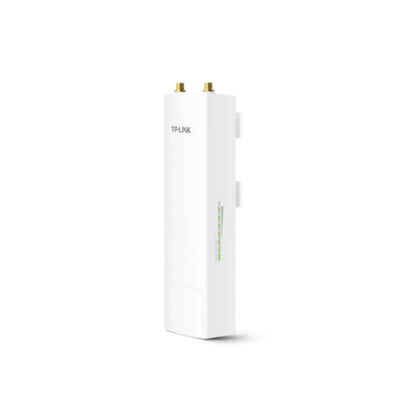

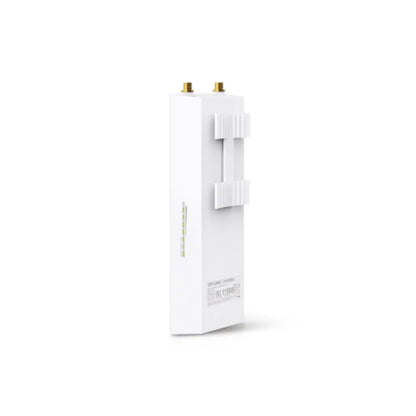

TP-Link WBS510 5GHz 300Mbps Outdoor Wireless Base Station with MAXtream TDMA & PoE Support
TP-Link WBS510 5GHz 300Mbps Outdoor Wireless Base Station with MAXtream TDMA & PoE Support
Couldn't load pickup availability
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
📡 Long-Distance Wireless Transmission: Supports data transfer over distances up to 50+ km when paired with TP-Link dish antennas.
⚡ MAXtream TDMA Technology: Ensures high throughput and low latency, ideal for Point-to-Multipoint (PtMP) applications.
🌐 Dual Ethernet Ports & Passive PoE: Equipped with two 10/100Mbps Ethernet ports, one supporting Passive PoE for flexible deployment.
🛡️ Weatherproof & Surge-Protected Design: IP65-rated enclosure with 15kV ESD and 6kV lightning protection for reliable outdoor performance.
🧠 Centralized Management via Pharos Control: Easily manage multiple devices from a single PC using Pharos Control software.
🔧 Flexible Operation Modes: Supports AP, Client, Bridge, Repeater, AP Router, and WISP Client modes for versatile networking setups.
The TP-Link WBS510 is a high-performance 5GHz 300Mbps Outdoor Wireless Base Station designed for long-range wireless networking. With support for MAXtream TDMA technology, it delivers stable throughput even in high-density environments. Its weatherproof build and centralized management via Pharos Control make it ideal for point-to-point and point-to-multipoint deployments. Whether for enterprise or outdoor Wi-Fi coverage, the WBS510 offers professional-grade reliability and flexibility.
Product Specifications:
| Specification | Details |
| Wireless Standards | IEEE 802.11a/n |
| Frequency Range | 5.15~5.85GHz |
| Wireless Speed | Up to 300Mbps |
| Transmit Power | Adjustable from 0 to 27dBm (500mW) |
| Antenna Interface | 2 × RP-SMA connectors for external MIMO antenna |
| Ethernet Ports | 2 × 10/100Mbps (1 × PoE, 1 × Extended) |
| Operation Modes | AP, Client, Bridge, Repeater, AP Router, WISP |
| Channel Bandwidth | Selectable: 5/10/20/40MHz |
| Management Software | Pharos Control |
| Web Interface | PharOS |
| Protection Features | 15kV ESD, 6kV Lightning |
| Enclosure Rating | Weatherproof (IP65) |
| Dimensions (L×W×H) | 198 × 74 × 40 mm |
| Operating Temperature | -30°C to 70°C |
| Country of Origin | China |
| Model Number | WBS510 |
| Warranty | 3 Years |
| Weight | 730 g |
