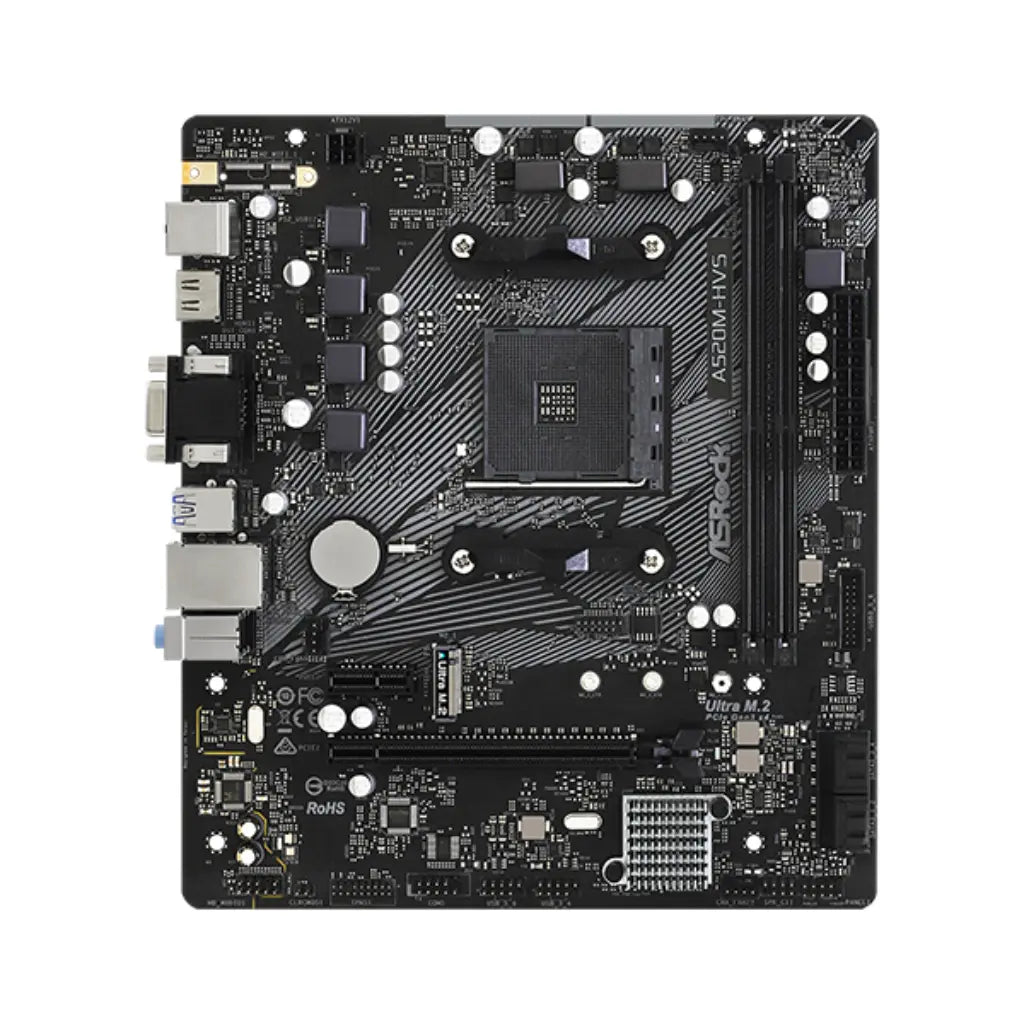

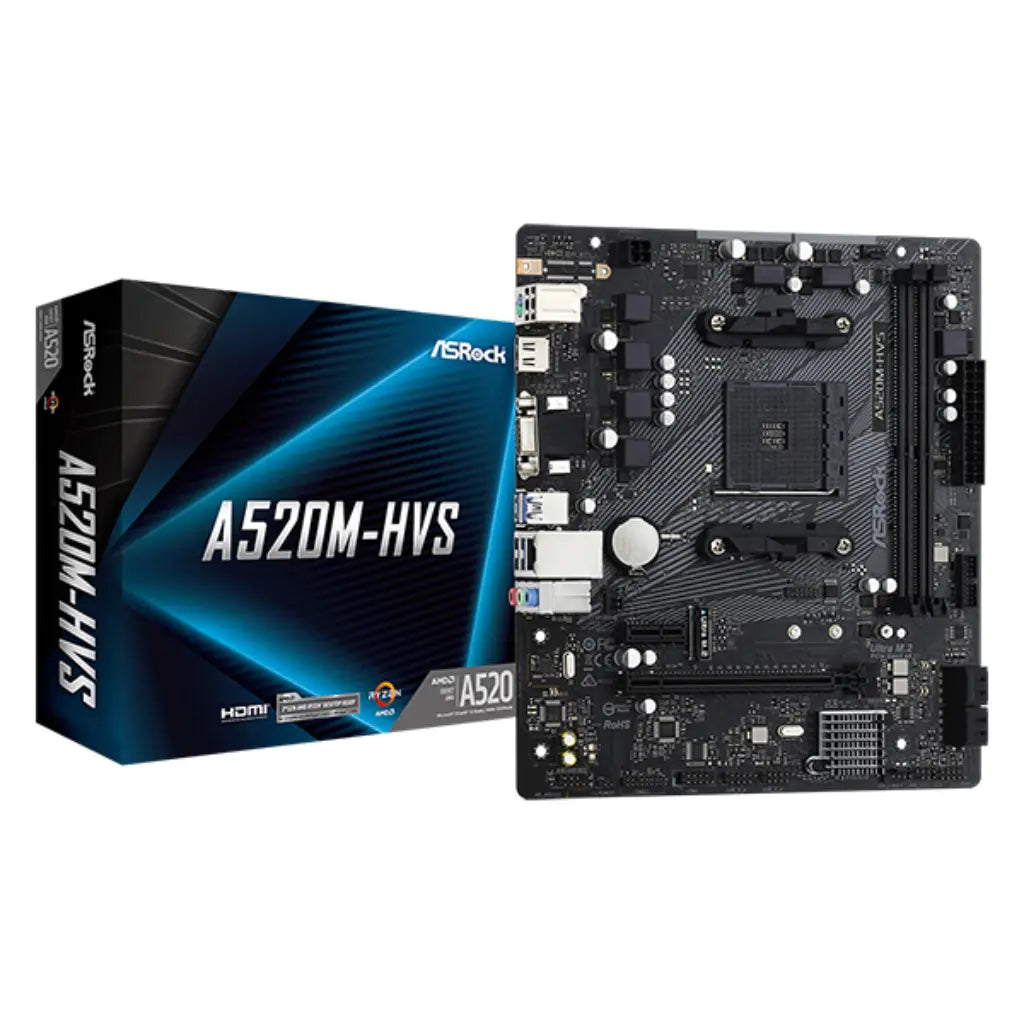

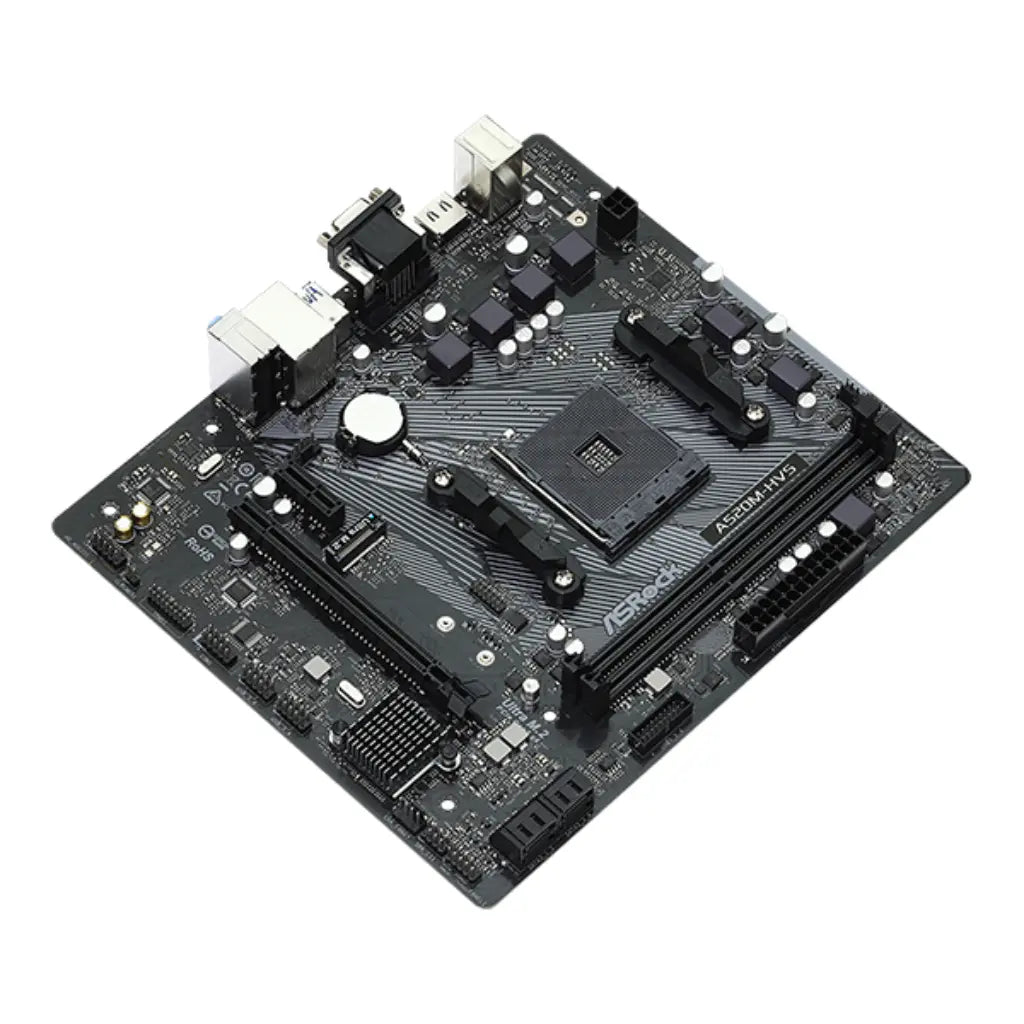

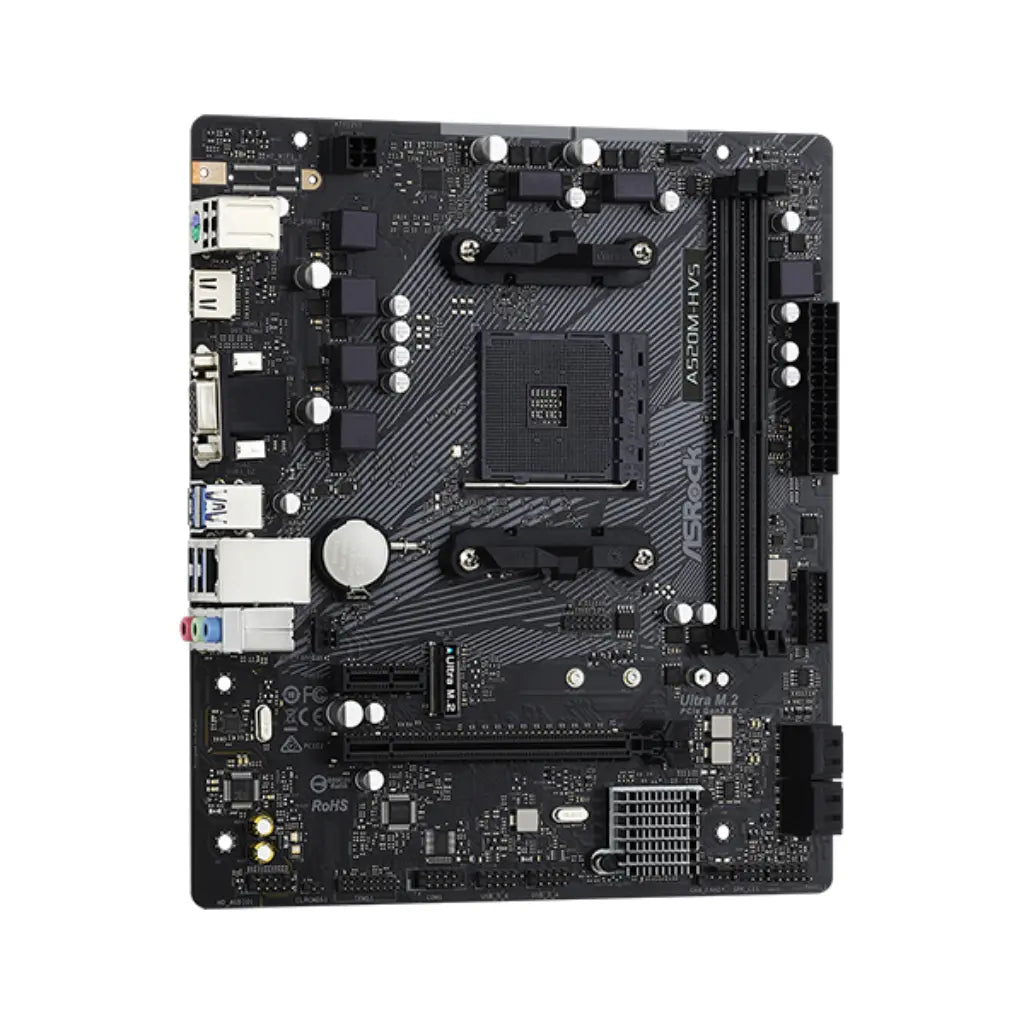

ASRock A520M HVS AMD A520 AM4 Micro ATX DDR4 Motherboard
ASRock A520M HVS AMD A520 AM4 Micro ATX DDR4 Motherboard
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
🔹 AMD AM4 Socket Support: Compatible with AMD Ryzen 3000 4000G and 5000 Series desktop processors for smooth performance
⚡ DDR4 Performance Boost: Supports dual channel DDR4 memory up to 4733MHz overclocking with maximum 64GB capacity
🔌 Ultra M2 Storage Slot: High speed PCIe Gen3 x4 Ultra M2 slot delivers faster boot and data transfer speeds

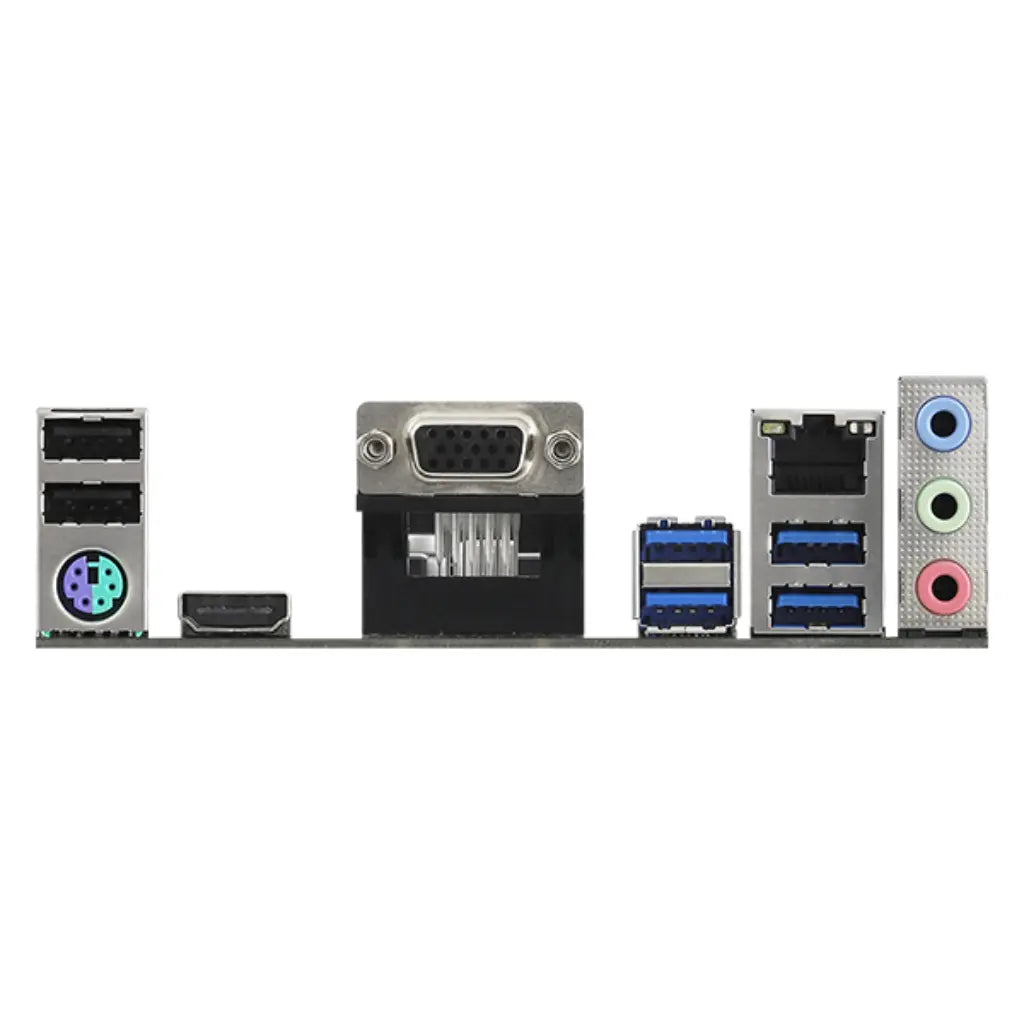

🖥️ Dual Display Output: HDMI 4K at 60Hz and VGA support enables flexible monitor connectivity
🛡️ Advanced Protection Design: High density PCB and full spike protection ensure long term system reliability
🌐 Gigabit LAN Connectivity: Realtek Gigabit LAN provides stable and fast wired internet connection
The ASRock A520M HVS motherboard is an ideal choice for budget AMD builds requiring performance and reliability. Powered by the AMD A520 chipset, it supports Ryzen 3000, 4000G, and 5000 Series processors on the AM4 socket. With DDR4 memory up to 4733MHz, Ultra M2 storage, HDMI 4K output, and Gigabit LAN, this Micro ATX motherboard delivers excellent everyday computing, office productivity, and entry‑level gaming stability.
| Brand | ASRock |
| Model | A520M HVS |
| Chipset | AMD A520 |
| CPU Socket | AMD AM4 |
| Supported Processors | Ryzen 3000 3000G 4000G 5000 Series |
| Memory Slots | 2 x DDR4 DIMM |
| Max Memory Support | Up to 64GB |
| Memory Frequency | Up to 4733MHz OC |
| Form Factor | Micro ATX |
| Expansion Slots | 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 |
| Storage Support | 4 x SATA3, 1 x Ultra M2 PCIe Gen3 x4 |
| Display Output | HDMI 4K 60Hz, VGA |
| USB Ports | USB 3.2 Gen1, USB 2.0 |
| Audio | Realtek ALC887 7.1 HD Audio |
| LAN | Realtek Gigabit Ethernet |
| Operating System Support | Windows 10 64 bit |
| BIOS | UEFI AMI BIOS |
| Country of Origin | China |
| Item Weight | 0.45 kg |
| Warranty | 3 Years Manufacturer Warranty |
| Part Number | A520M HVS |
