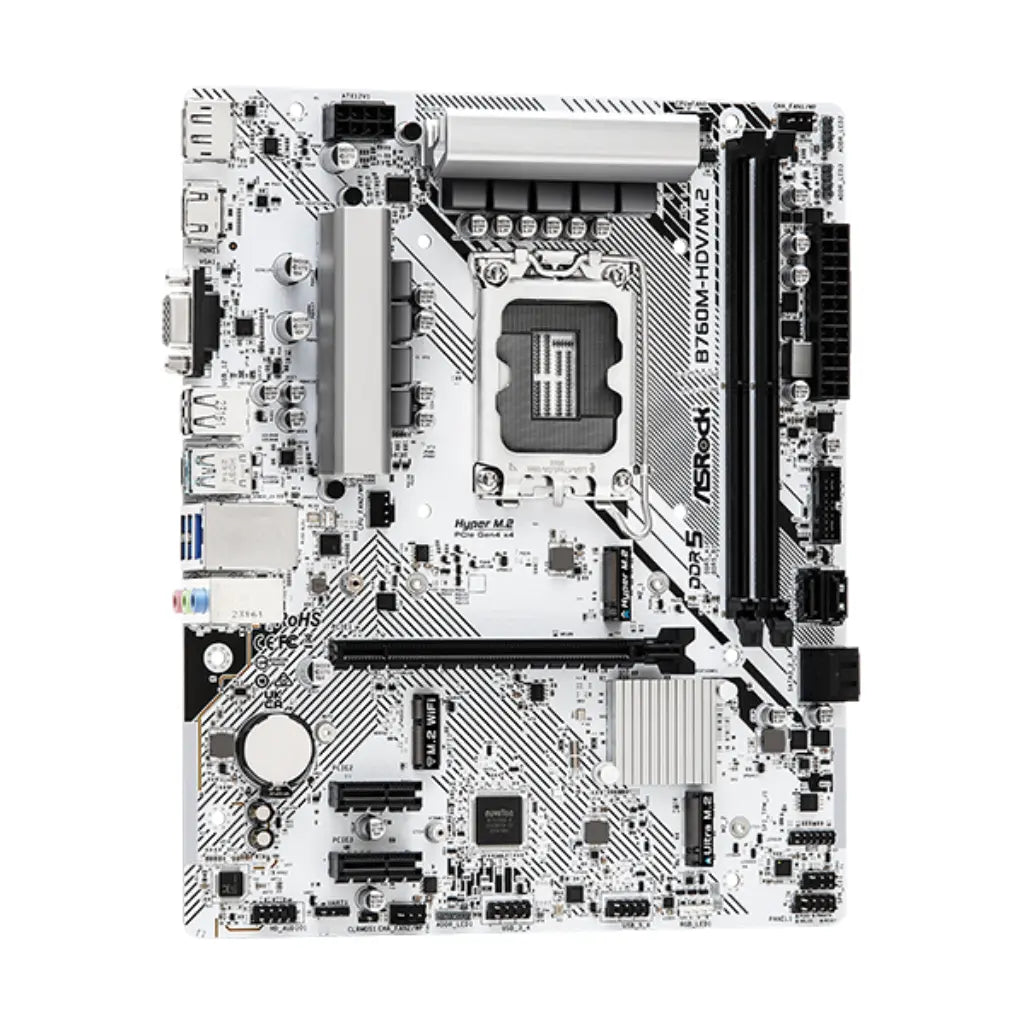

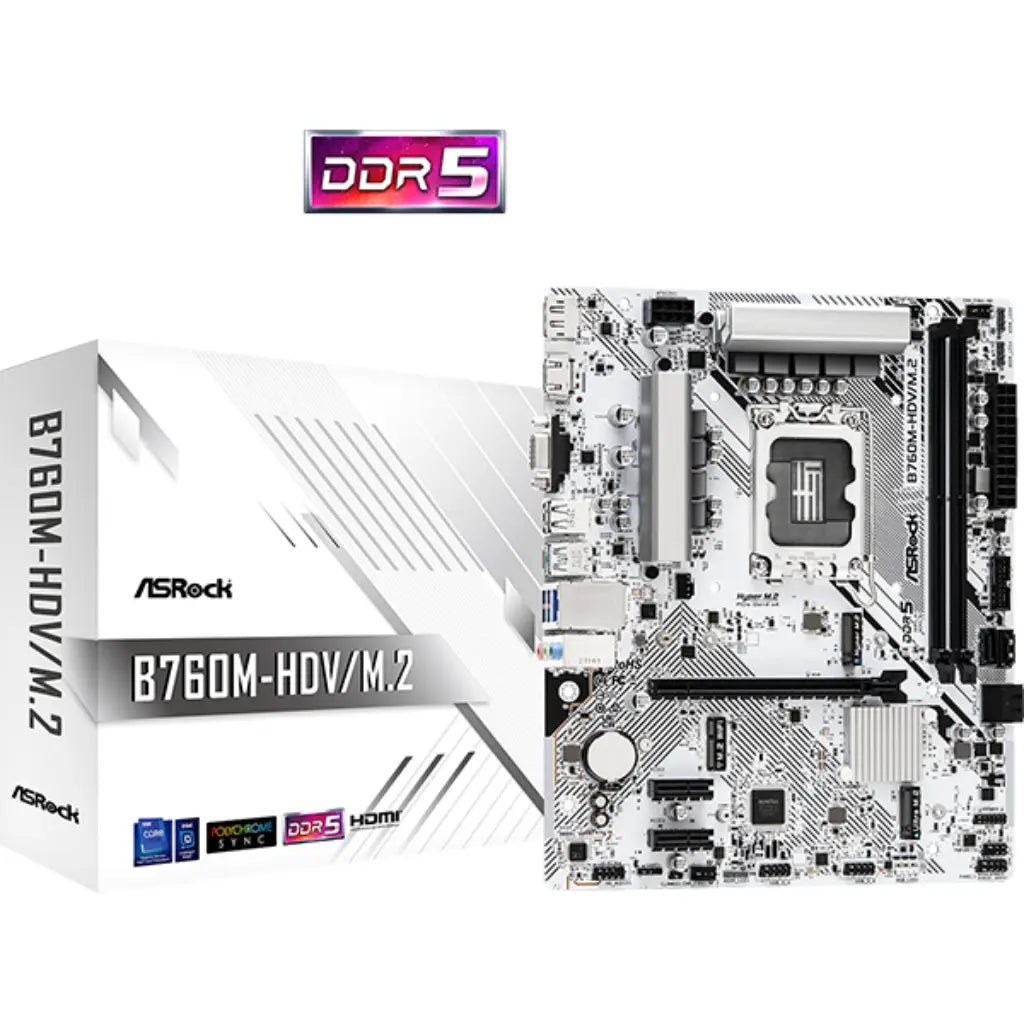

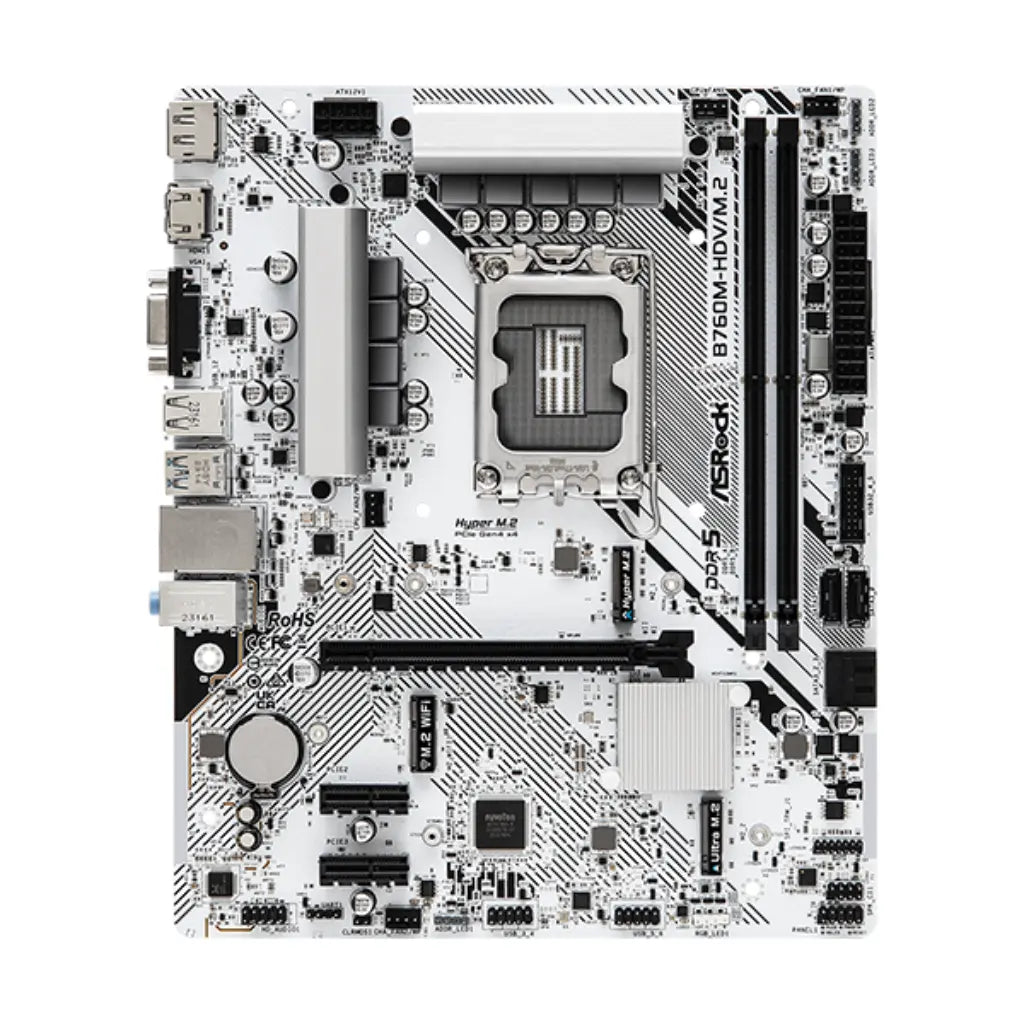

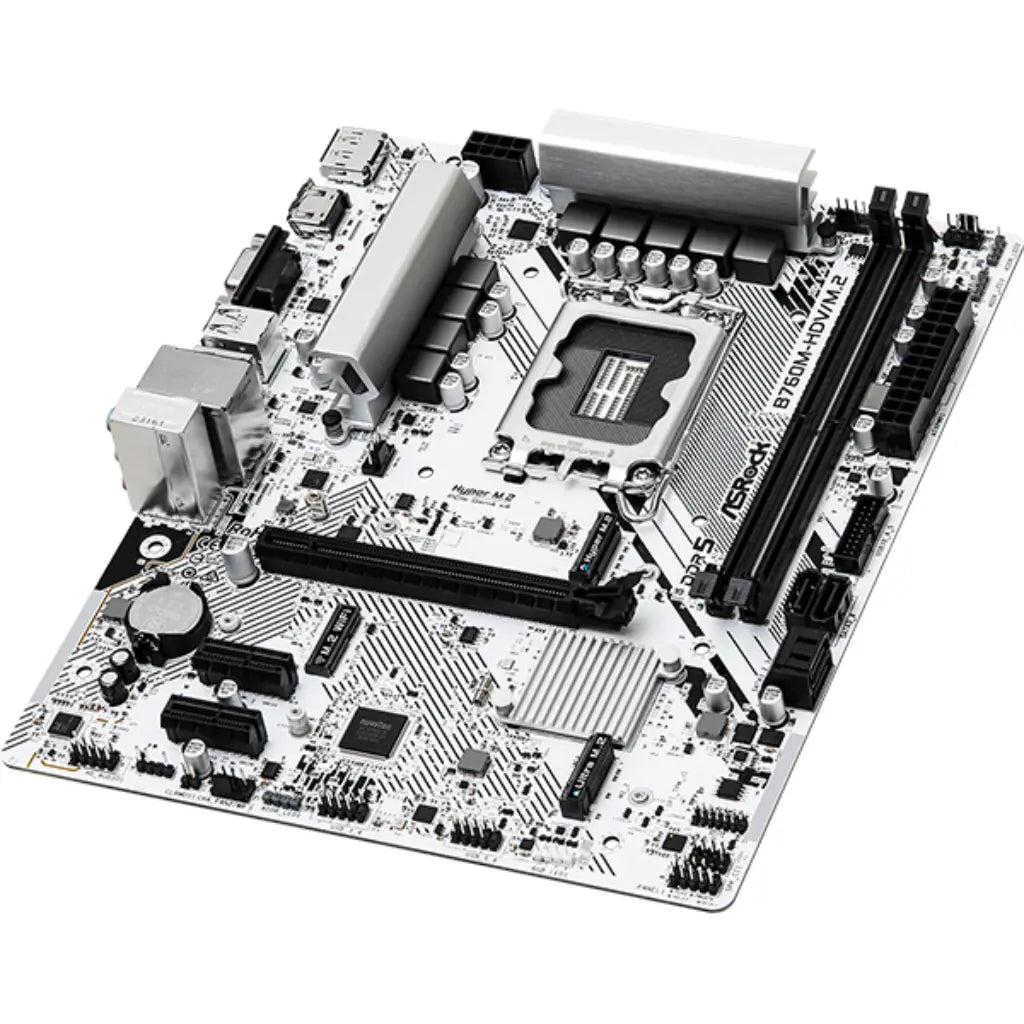

ASRock B760M-HDV/M.2 Intel B760 LGA1700 DDR5 Micro ATX Motherboard
ASRock B760M-HDV/M.2 Intel B760 LGA1700 DDR5 Micro ATX Motherboard
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🔧 CPU Support: Compatible with Intel 12th, 13th & 14th Gen Core™ processors (LGA1700 socket)
⚡ Memory Performance: 2x DDR5 DIMM slots supporting up to 7200+ MHz (OC) with Dual Channel architecture
🚀 Storage Expansion: Features 1x Hyper M.2 (PCIe Gen4x4) & 1x Ultra M.2 (PCIe Gen3x4) for blazing-fast SSDs
🌐 Networking: Integrated Dragon 2.5G LAN for ultra-fast and stable internet connectivity

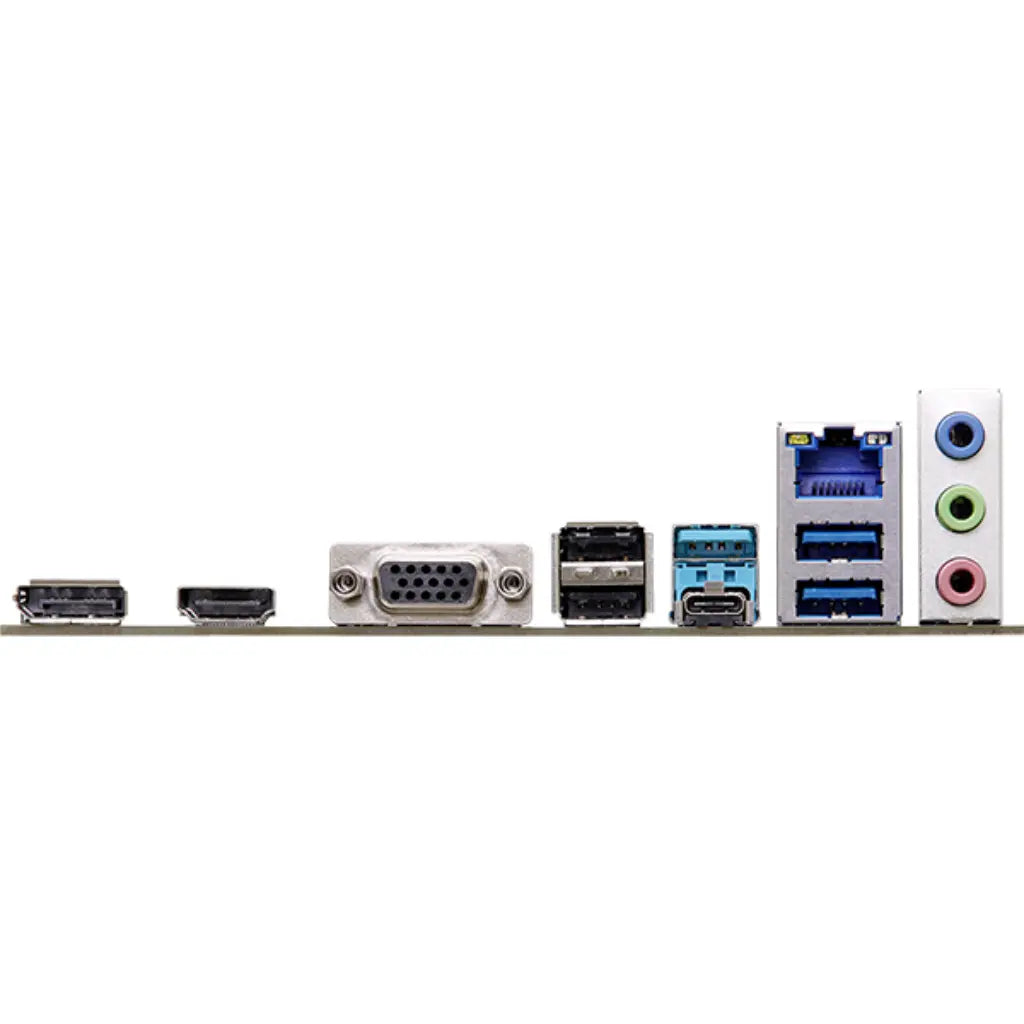

🎮 Graphics Outputs: Triple display support via HDMI, DisplayPort & D-Sub for flexible multi-monitor setups
🔌 Connectivity: Includes USB 3.2 Gen1 Type-C, multiple USB 3.2 Gen1 Type-A, and USB 2.0 ports for versatile I/O
The ASRock B760M-HDV/M.2 is a compact yet powerful Micro ATX motherboard built for Intel’s latest 12th, 13th, and 14th Gen CPUs. With support for high-speed DDR5 memory and dual M.2 slots, it delivers exceptional performance for gaming and productivity. The inclusion of Dragon 2.5G LAN ensures fast and reliable networking, while triple display outputs and USB Type-C enhance connectivity. Designed with a robust 7+1+1 power phase and premium components, this board is ideal for modern PC builds.
Product Specifications:
| Specification | Details |
| Brand | ASRock |
| Model | B760M-HDV/M.2 |
| Chipset | Intel B760 |
| Socket | LGA1700 |
| Form Factor | Micro ATX (24.4 cm x 20.1 cm) |
| Memory Support | 2x DDR5 DIMM, Dual Channel, up to 7200+ MHz (OC) |
| Max Memory Capacity | 128GB |
| Expansion Slots | 1x PCIe 4.0 x16, 2x PCIe 3.0 x1 |
| Storage Interfaces | 4x SATA3, 1x Hyper M.2 (Gen4x4), 1x Ultra M.2 (Gen3x4) |
| Graphics Outputs | HDMI, DisplayPort, D-Sub |
| Audio Codec | Realtek ALC897 7.1 CH HD Audio |
| LAN | Dragon 2.5G LAN |
| USB Ports | 1x USB 3.2 Gen1 Type-C, 5x USB 3.2 Gen1 Type-A, 6x USB 2.0 |
| RGB Support | Polychrome RGB headers (standard + addressable) |
| WiFi Slot | M.2 Key E (WiFi module not included) |
| Power Phase Design | 7+1+1 |
| Country of Origin | China |
| Model Number | B760M-HDV/M.2 |
| Warranty | 3 Years |
| Weight | 1 kg |
