ASRock H610M-HDV/M.2+ D5 Intel H610 LGA1700 DDR5 Micro ATX Motherboard

ASRock H610M-HDV/M.2+ D5 Intel H610 LGA1700 DDR5 Micro ATX Motherboard

Brand: ASRock
Rs. 7,040.00
59% off Rs. 16,900.00 Rs. 7,040.00
Sale Sold out
Loading Offers...
+ Offers

Product Description:

⚙️ CPU Support: Compatible with 14th/13th/12th Gen Intel® Core™ processors on LGA1700 socket; features a 6+1+1 power phase design for stable performance.

🧠 Memory: Supports dual-channel DDR5 memory up to 5600 MHz (13th Gen) / 4800 MHz (12th Gen), with a maximum capacity of 96 GB.

🚀 Storage: Equipped with Ultra M.2 (PCIe Gen3 x4) for high-speed NVMe SSDs and 4× SATA3 ports for traditional storage.

🎥 Triple Display Output: HDMI 2.1, DisplayPort 1.4 with DSC, and D-Sub support resolutions up to 8K@60Hz and 5K@120Hz.

🔊 Audio & Networking: Realtek ALC897 7.1-channel HD audio codec and Realtek Gigabit LAN ensure clear sound and reliable connectivity.

🔌 I/O & RGB: Includes USB 3.2 Gen1 Type-C, Type-A, multiple USB 2.0 ports, and an addressable RGB header compatible with Polychrome Sync.

ASRock H610M‑HDV/M.2+ D5 brings 14th/13th/12th Gen Intel® performance to a compact micro‑ATX platform, backed by a robust 6+1+1 power phase design.
With DDR5 dual‑channel support (up to 5600 MHz) and Ultra M.2 PCIe Gen3 x4, it’s tuned for responsive boot and swift workflows.Hook up three displays via HDMI 2.1, DP 1.4, D‑Sub while enjoying Realtek ALC897 audio and Gigabit LAN.Front/back USB 3.2 Gen1 (incl. Type‑C) plus Polychrome RGB header round out a feature‑rich board for modern builds.

Product Specifications:

Specification Details
Model ASRock H610M-HDV/M.2+ D5
Form Factor Micro ATX (22.0 cm × 19.3 cm)
Chipset Intel H610
Socket LGA1700
CPU Support 14th/13th/12th Gen Intel® Core™
Power Design 6+1+1 Power Phase
Memory Support 2× DDR5 DIMMs, up to 96 GB, 5600 MHz (13th Gen) / 4800 MHz (12th Gen)
Expansion Slots 1× PCIe 4.0 x16, 1× PCIe 3.0 x1
Storage 1× Ultra M.2 (PCIe Gen3 x4), 4× SATA3
Graphics Outputs HDMI 2.1, DisplayPort 1.4 with DSC, D-Sub
Audio Codec Realtek ALC897
LAN Realtek Gigabit LAN

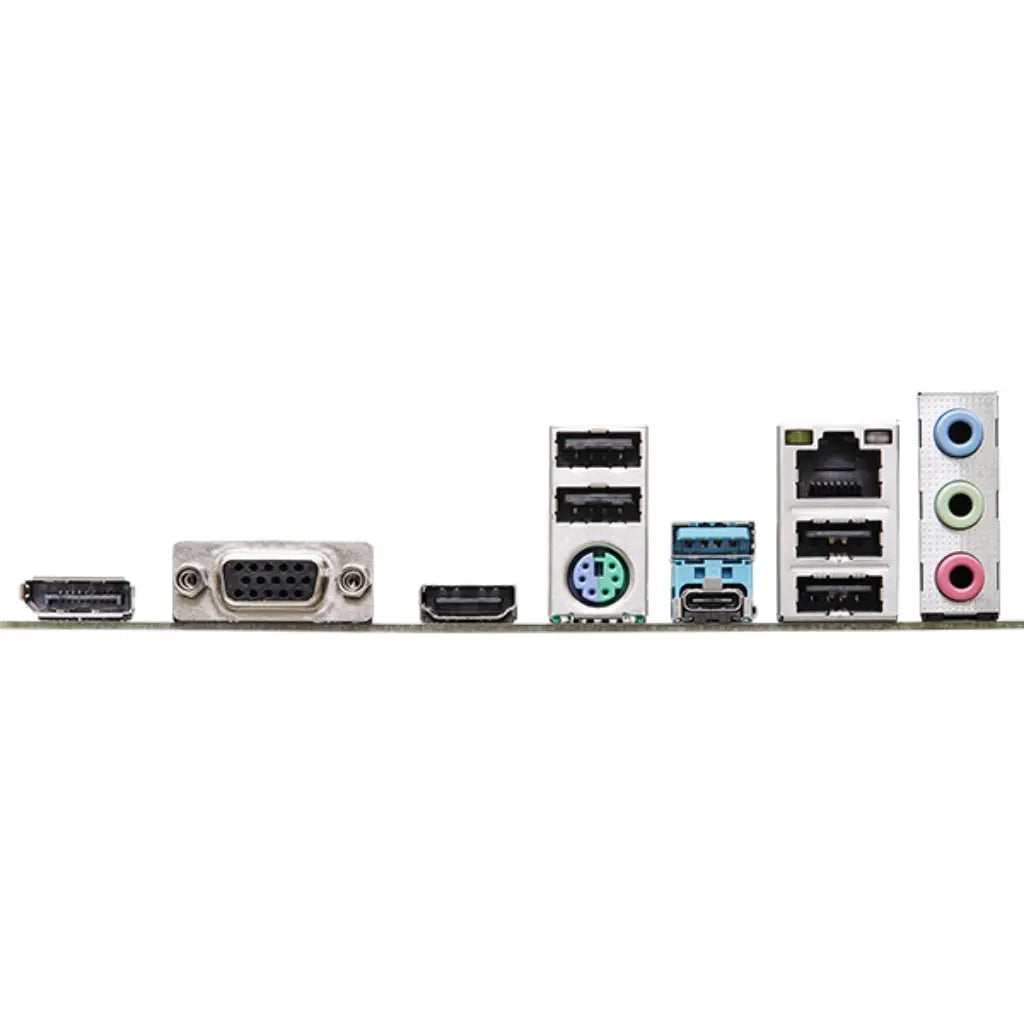

Rear I/O Ports USB 3.2 Gen1 Type-C, USB 3.2 Gen1 Type-A, 4× USB 2.0, HDMI, DP, D-Sub, RJ-45, Audio Jacks
Internal Headers USB 3.2 Gen1, USB 2.0, RGB Header
Compliance FCC, CE, ErP/EuP Ready
Country of Origin China
Warranty 3 Years Manufacturer Warranty
Weight 0.712 kg
