ASUS PRO WS WRX80E SAGE SE WIFI AMD WRX80 Chipset sWRX8 Socket DDR4 EEB Workstation Motherboard
ASUS PRO WS WRX80E SAGE SE WIFI AMD WRX80 Chipset sWRX8 Socket DDR4 EEB Workstation Motherboard
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🧠 CPU & Chipset: AMD sWRX8 socket with WRX80 chipset for Ryzen™ Threadripper™ PRO processors
🧵 Memory Capacity: 8× DIMM slots supporting up to 2048GB DDR4 ECC & Non-ECC, R-DIMM, LR-DIMM

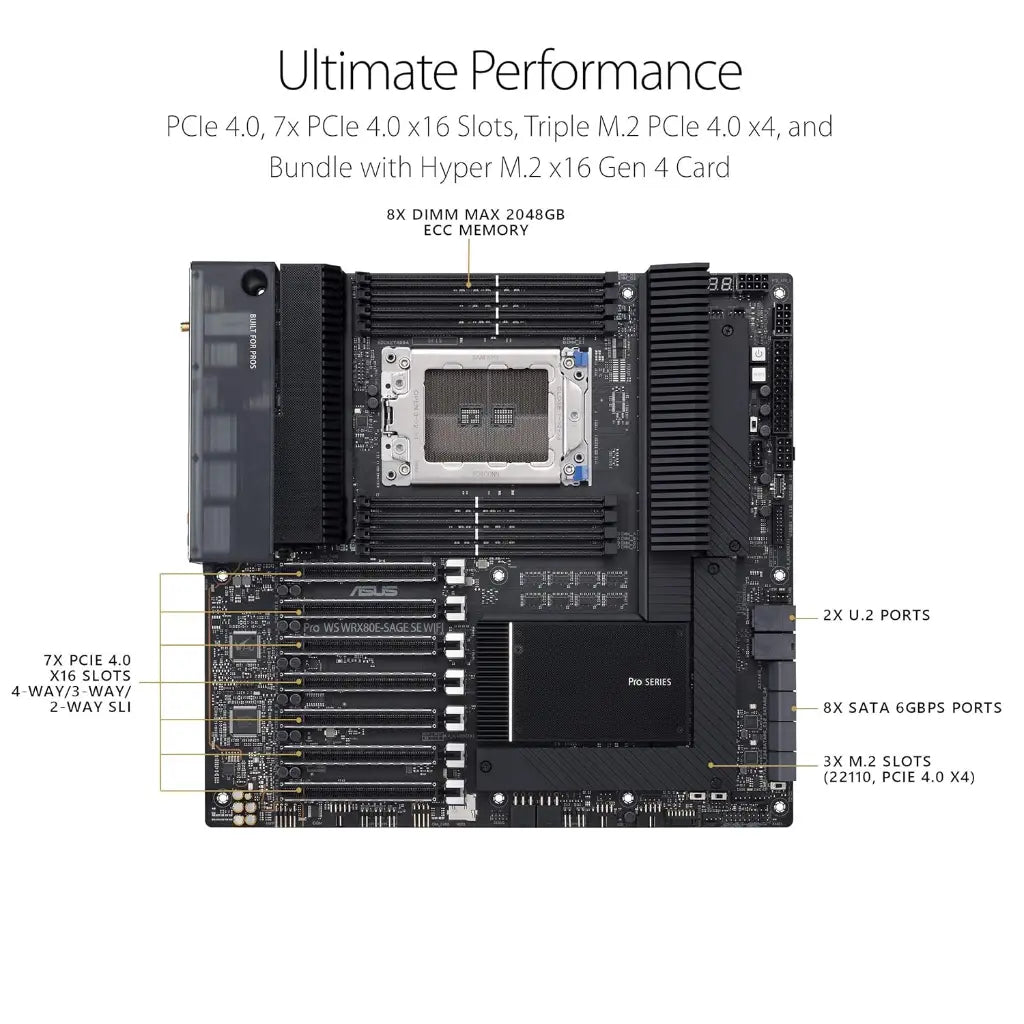

🎮 Expansion for Pros: 7× PCIe 4.0/3.0 x16 slots with NVIDIA 4-Way/3-Way/2-Way SLI® support
🚀 Storage Flexibility: 3× M.2, 2× U.2, 8× SATA 6Gb/s with NVMe RAID and bandwidth-sharing logic

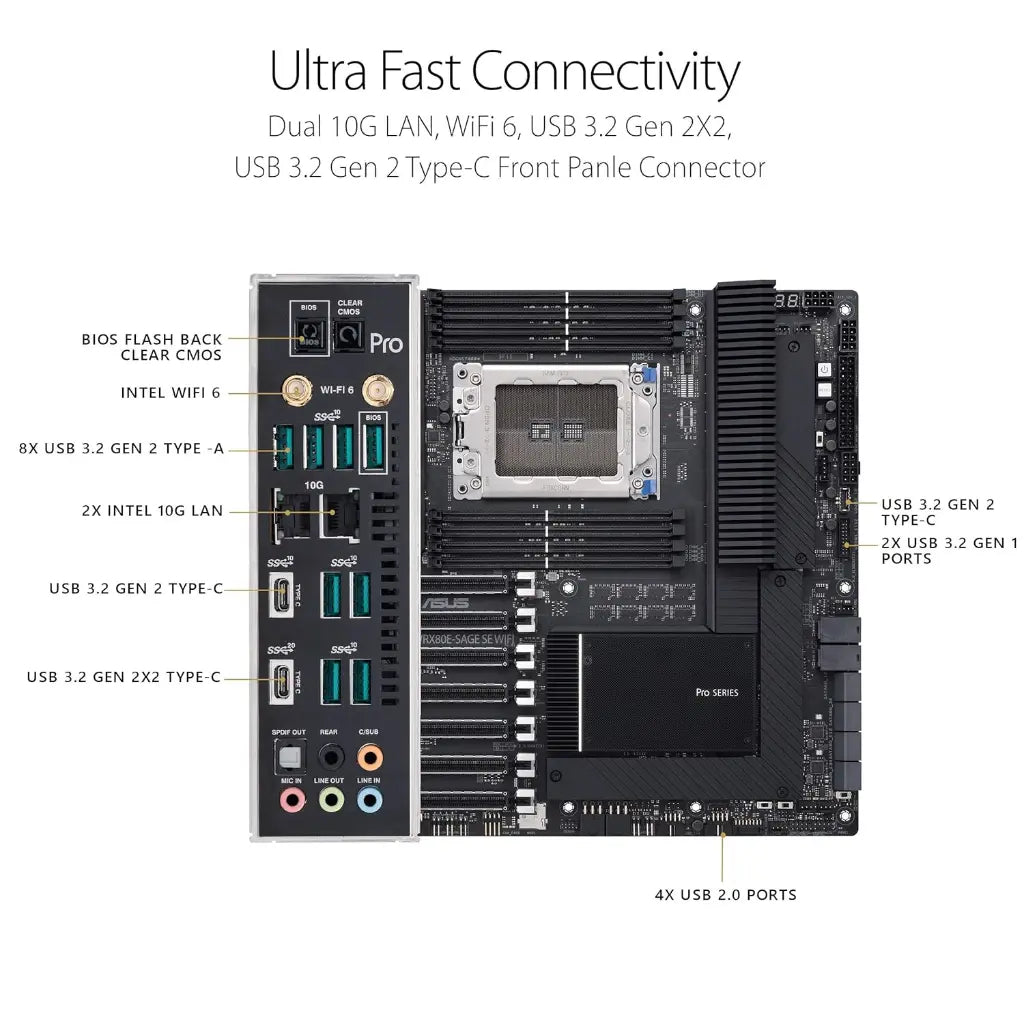

🌐 High-Speed I/O: Dual 10GbE LAN, Wi-Fi 6 (802.11ax), Bluetooth 5.2, USB 3.2 Gen 2x2 Type-C

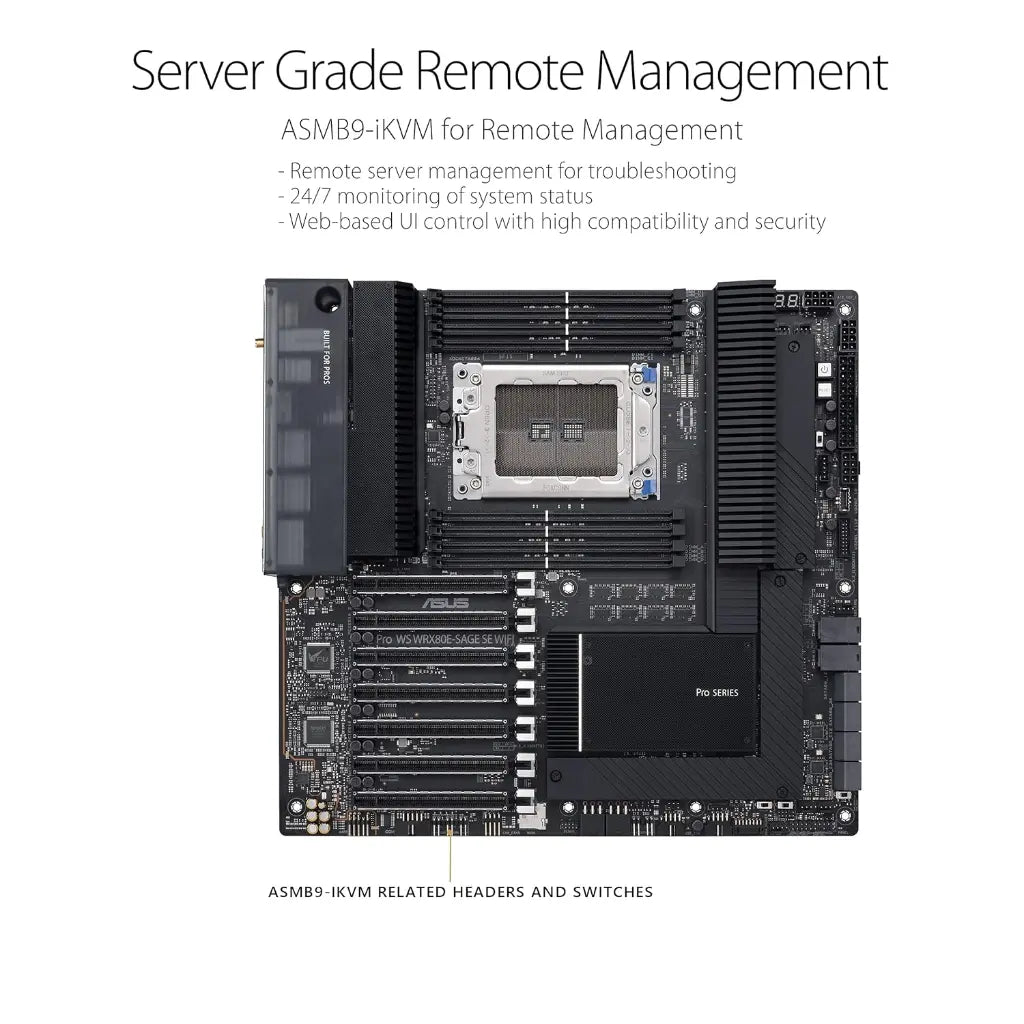

🛡️ Manageability & Reliability: ASMB9-iKVM BMC, SafeSlot, BIOS FlashBack™, Clear CMOS, pre-mounted I/O shield
ASUS Pro WS WRX80E-SAGE SE WIFI is a high-performance workstation motherboard designed for professionals using AMD Ryzen™ Threadripper™ PRO CPUs. It supports up to 2TB DDR4 memory across 8 channels and offers robust expansion with 7 PCIe 4.0 x16 slots. Storage options include triple M.2, dual U.2, and eight SATA ports. With dual 10GbE LAN, Wi-Fi 6, and remote management via ASMB9-iKVM, it's built for demanding workflows and enterprise-grade reliability.
Product Specifications:
| Specification | Details |
| Brand / Model | ASUS Pro WS WRX80E-SAGE SE WIFI |
| CPU Support | AMD Ryzen™ Threadripper™ PRO (sWRX8 socket) |
| Chipset | AMD WRX80 |
| Memory Support | 8× DIMM, up to 2048GB DDR4 ECC/Non-ECC, R-DIMM, LR-DIMM |
| PCIe Slots | 7× PCIe 4.0/3.0 x16 |
| Multi-GPU Support | NVIDIA 4-Way/3-Way/2-Way SLI® |
| Storage Options | 3× M.2, 2× U.2, 8× SATA 6Gb/s |
| RAID Support | NVMe RAID; bandwidth sharing between M.2 and U.2 slots |
| Networking | Dual 10GbE LAN (Intel X550-AT2) |
| Wireless & Bluetooth | Wi-Fi 6 (802.11ax), Bluetooth 5.2 |
| Rear I/O Ports | USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-A/C, audio jacks, S/PDIF |
| Audio | Realtek ALC4080 7.1-channel HD Audio |
| Internal Connectors | USB headers, fan headers, power connectors, VGA header |
| Manageability | ASMB9-iKVM BMC with IPMI support |
| Form Factor | EEB (12.2" × 13") |

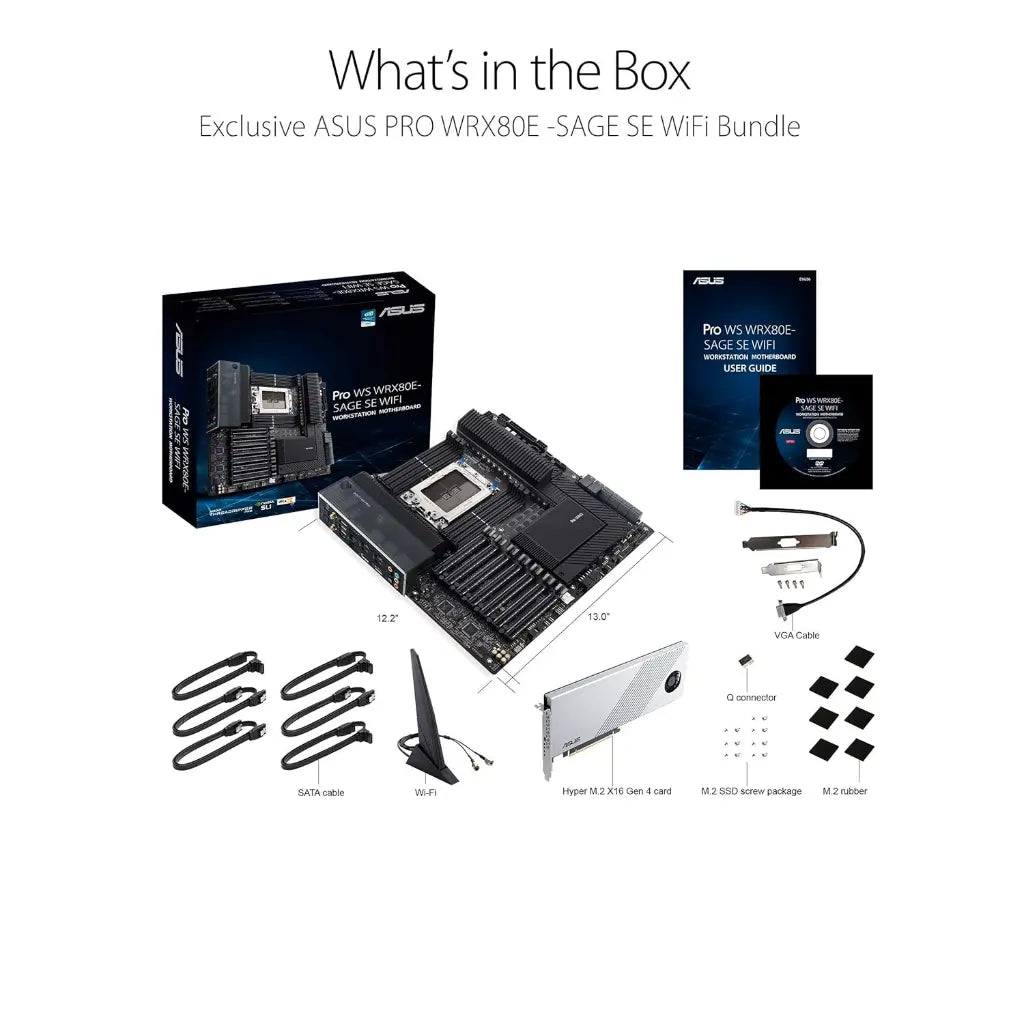

| Accessories | Hyper M.2 x16 Gen 4 Card, SATA cables, Wi-Fi antennas, Q-Connector |
| Country of Origin | China |
| Model Number | Pro WS WRX80E-SAGE SE WIFI |
| Warranty | 3 Years |
| Weight | 2.98 kg |
