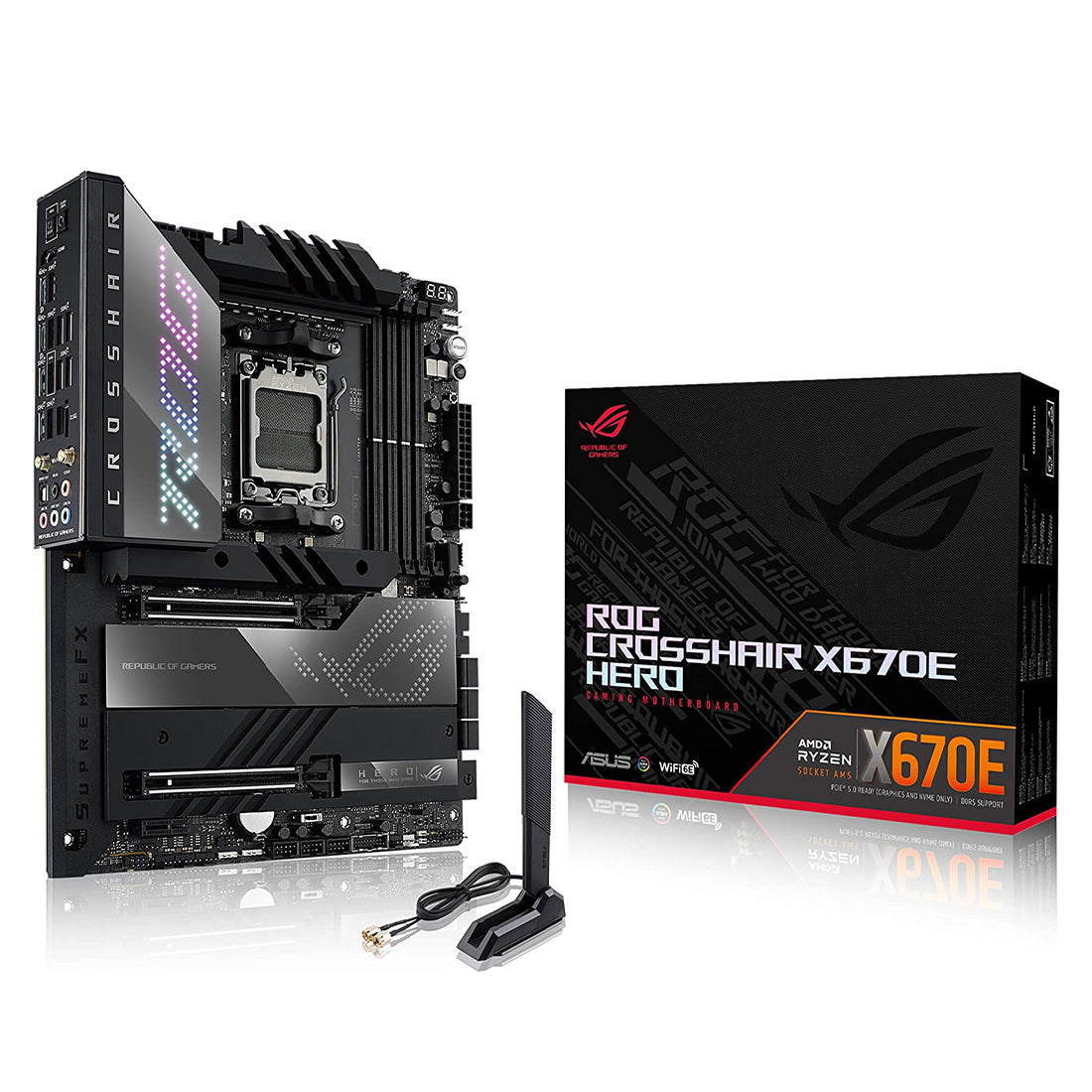

ASUS ROG CROSSHAIR X670E HERO WIFI AMD AM5 ATX Motherboard

ASUS ROG CROSSHAIR X670E HERO WIFI AMD AM5 ATX Motherboard

Brand: ASUS
Regular price Rs. 64,899.00
Sale price 24% off Rs. 64,899.00 Sale Sold out Regular price Rs. 85,000.00
  • The ASUS motherboard is designed to support latest AMD Socket AM5 for Ryzen 7000 series Processors.
  • The board is PCIe 5.0 storage Ready supporting up to 128GB DDR5 6400+MHz of memory and EXPO technology to push your gaming experience to its peak. The board support PCIe 5.0 video cards making it future proof.
  • Enjoy extended connectivity on ASUS X670E motherboard with the next-gen technology of WIFI6E, PCIe 5.0, Intel 2.5Gb Ethernet, USB 3.2 Gen 1 Type-C and Five M.2 slots.

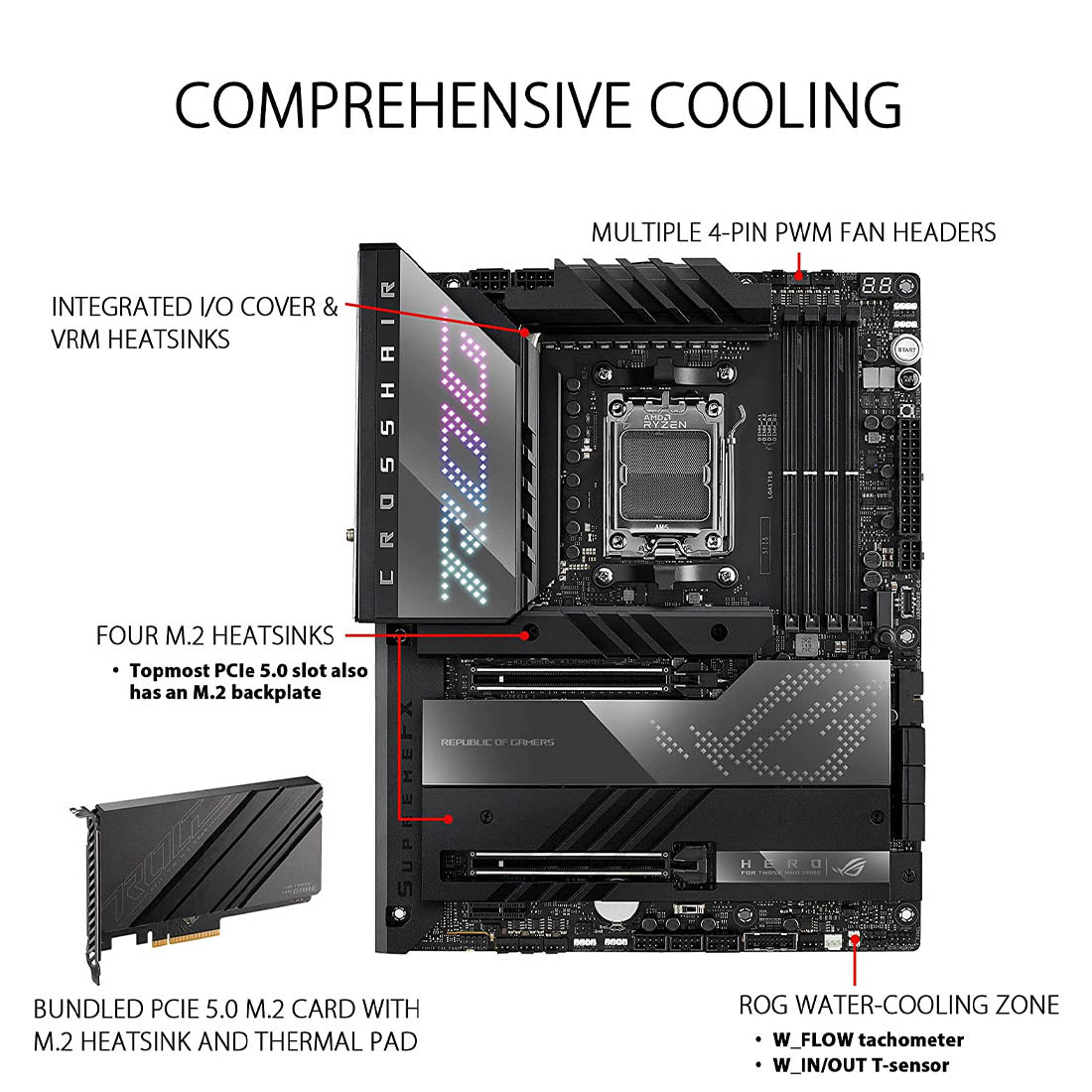

  • The motherboard comes with comprehensive cooling options such as VRM heatsink, M.2 Shield, and optimized AI Overclocking

~section~

ASUS ROG CROSSHAIR X670E WIFI Motherboard - From tpstech.in
ASUS ROG CROSSHAIR X670E WIFI Motherboard - From tpstech.in

DDR5 Overclocking

For those who want to fly past stock DDR5 speeds, the ASUS X670E Hero is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.

ASUS ROG CROSSHAIR X670E WIFI Motherboard - From tpstech.in

PCIe 5.0

The X670E motherboard have 4x M.2 slots, two of which are PCIe 5.0-ready offering 16 GB/s speeds, while the accompanying pair can deliver still-impressive 8 GB/s transfers through their PCIe 4.0 interfaces.

ASUS ROG CROSSHAIR X670E WIFI Motherboard - From tpstech.in

WIFI 6E

Onboard WIFI 6E technology takes advantage of newly available spectrum in the 6GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

ASUS ROG CROSSHAIR X670E WIFI Motherboard - From tpstech.in

USB-C Ports

Each USB4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use.

ASUS ROG CROSSHAIR X670E WIFI Motherboard - From tpstech.in

PCIe 5.0 M.2 Card

For even more storage, the bundled PCIe 5.0 M.2 Card features an additional Gen 5-ready slot, and boasts ample surface area for dissipating the heat of a full-size 22110 drive.

ASUS ROG CROSSHAIR X670E WIFI Motherboard - From tpstech.in

BIOS FlashBack

Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. Protected with SafeSlot and Q-Release button.

CoolerMaster Mobius 120p 120mm Case Fan 30th Anniversary Edition - from tpstech.in

Define Your Build

Unyielding power delivery and robust thermal management form the indelible tenets of its creed. Hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support and the finishing touches are added by exclusive utilities and overclocking controls that allow you to uniquely flex the performance of Ryzen 7000 Series processors.

ASUS ROG CROSSHAIR X670E WIFI Motherboard - From tpstech.in

USB 3.2 Gen 2x2

USB 3.2 Gen 2x2 adds an additional lane that can boost Type-C data transfers with speeds of up to 20 Gbps. The port also features Quick Charge 4+ technology that can quickly charge devices up to 60W.

ASUS ROG CROSSHAIR X670E WIFI Motherboard - From tpstech.in

Graphics Card Holder

Featuring a magnetic base and adjustable slider and hinge, the ROG Graphics Card Holder banishes sag and provides support where it’s needed most.

ASUS ROG CROSSHAIR X670E WIFI Motherboard - From tpstech.in

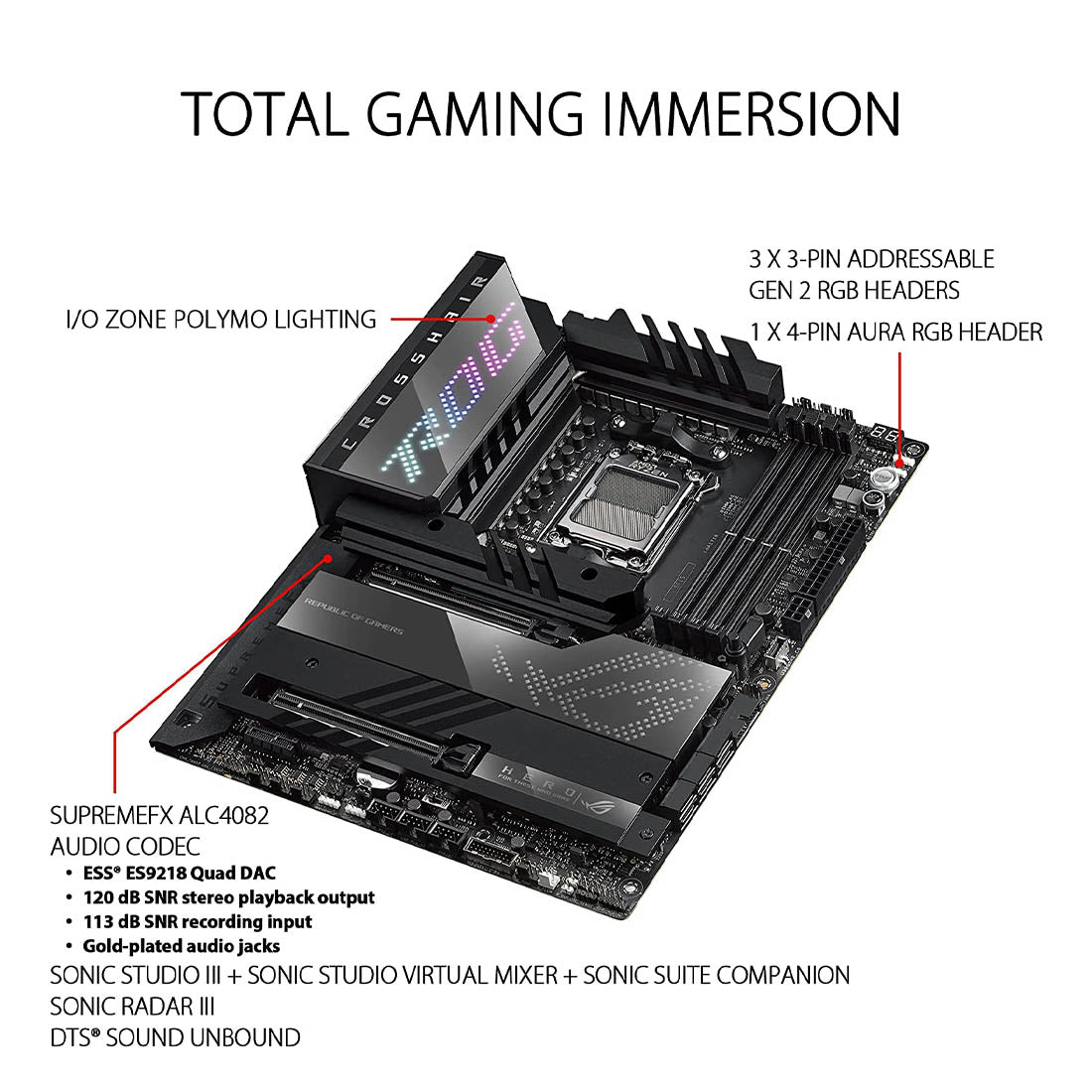

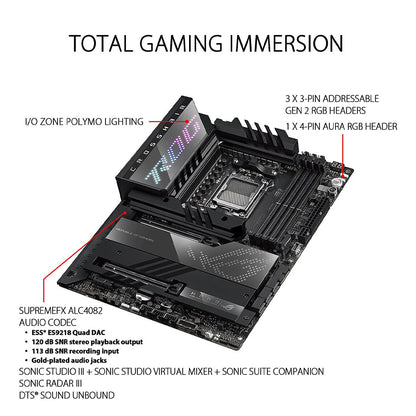

SupremeFX

ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide exceptional recording quality. There’s also a low-dropout regulator for cleaner power delivery.

~section~

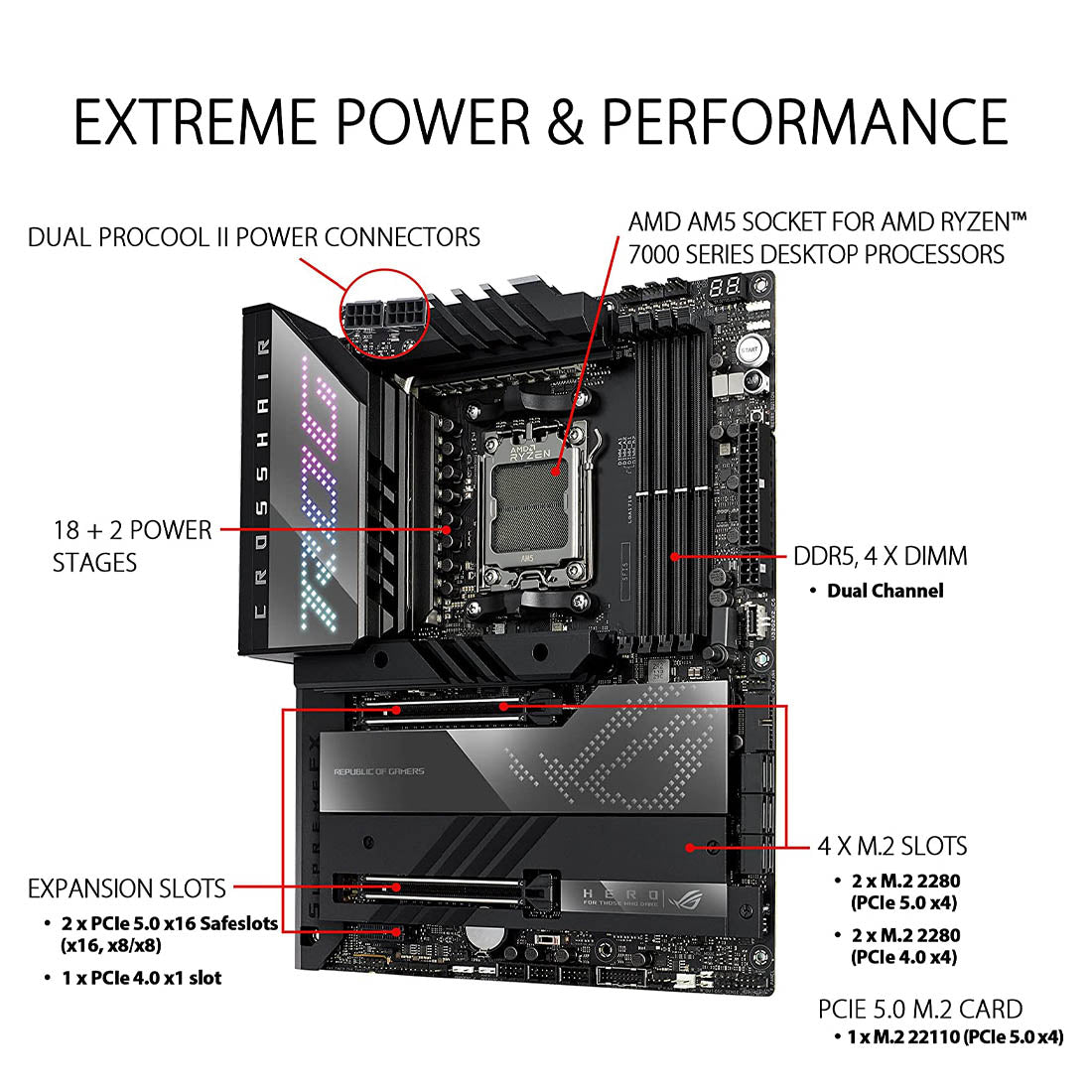

Model ASUS ROG CROSSHAIR Hero Motherboard
Part Number 90MB1BC0-M0EAY
CPU Socket AMD AM5
CPU Support AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processor.
Chipset AMD X670
Memory 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/
5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
On-Board Graphics support 2 x USB4 ports support USB Type-C display output
1 x HDMI
Expansion Slot 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s)
1 x PCIe 4.0 x1 slots
Wireless & Bluetooth Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz/6GHz frequency band
Bluetooth v5.3
Ethernet 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Storage 2x M.2
Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports
AMD Ryzen 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
6 x SATA 6Gb/s ports
Audio ROG SupremeFX 7.1 Surround Sound High
USB Ports Rear USB (Total 12 ports)
2 x USB4 ports with Intel JHL8540 USB4 controller (2 x USB Type-C)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C)
Front USB (Total 11 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4+)
2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports

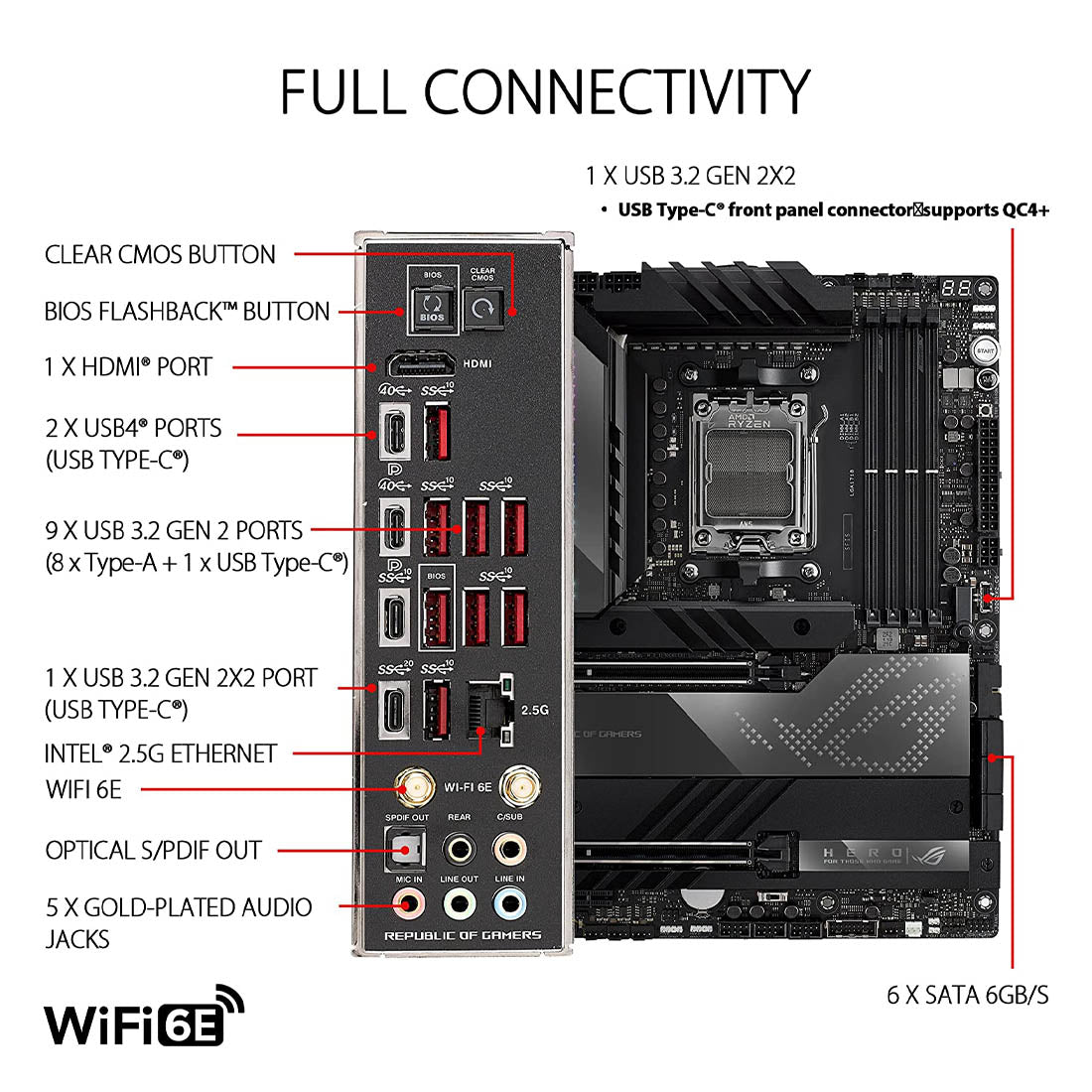

Back Panel I/O Ports 2 x USB4 ports with Intel JHL8540 USB4
controller (2 x USB Type-C)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
9 x USB 3.2 Gen 2 ports(8 x Type-A + 1 x Type-C)
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pinPCIe Power connector
Storage related
4 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration Mode Switch
1 x Aura RGB header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

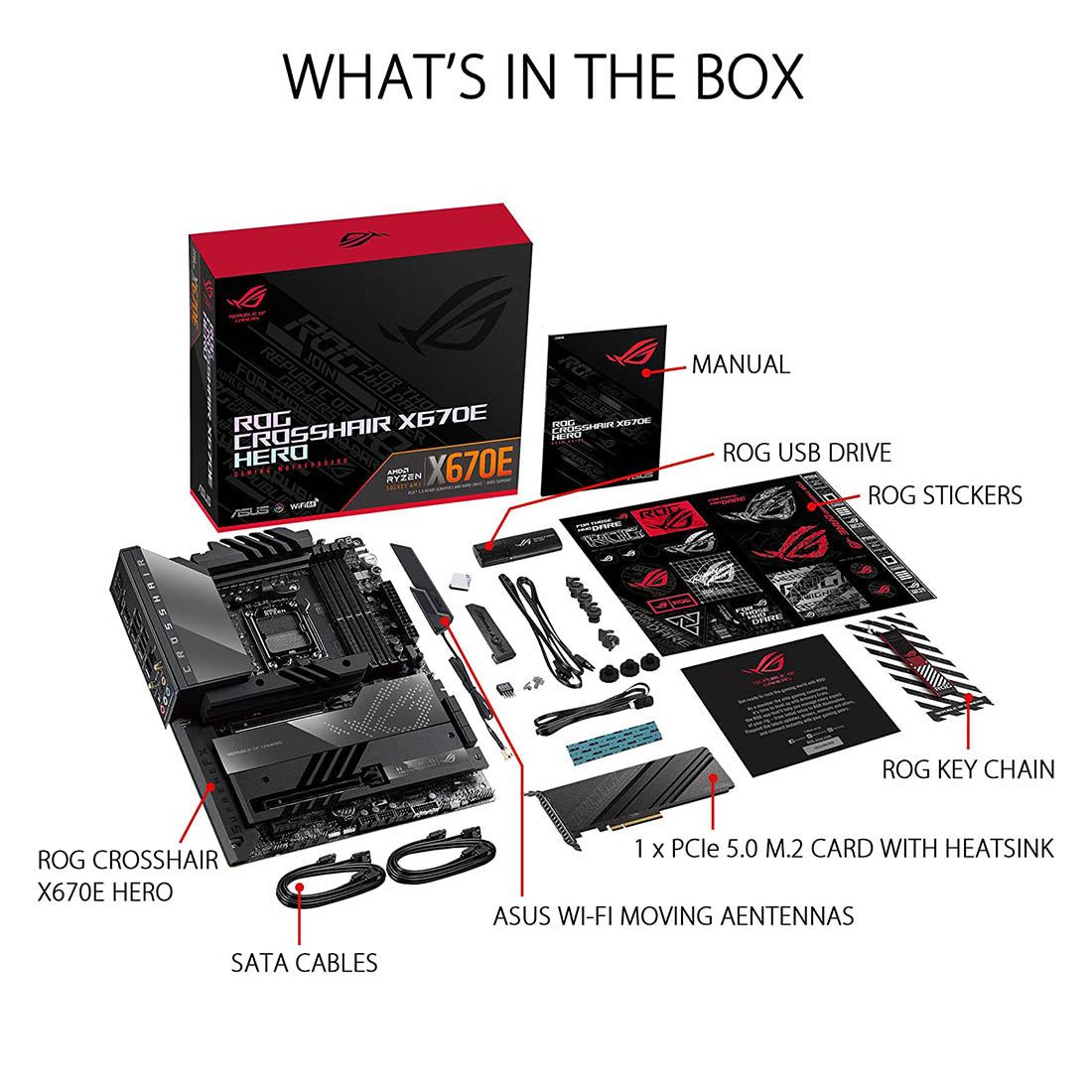

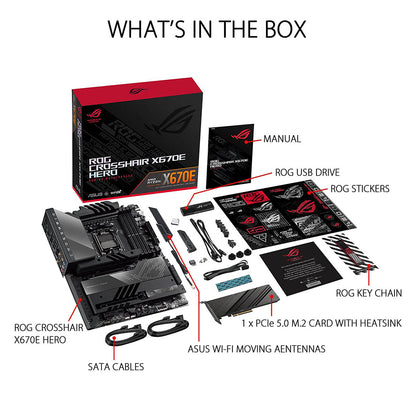

Accessories Cables
1 x ARGB RGB extension cable
1 x RGB extension cable
4 x SATA 6Gb/s cables
PCIe 5.0 M.2 Card with Heatsink
1 x PCIe 5.0 M.2 Card with heatsink
1 x M.2 screw package for PCIe 5.0 M.2 Card
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
3 x Rubber Packages for M.2 backplate
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Latch packages for M.2 backplate
1 x ROG Graphics card holder
1 x ROG key chain
1 x ROG stickers
1 x ROG thank you card
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x User guide
Operating System Windows 11 64-bit
Windows 10 64-bit
Dimensions ATX Form Factor
30.5cm x 24.4cm
Warranty 3 Years of Brand Warranty
