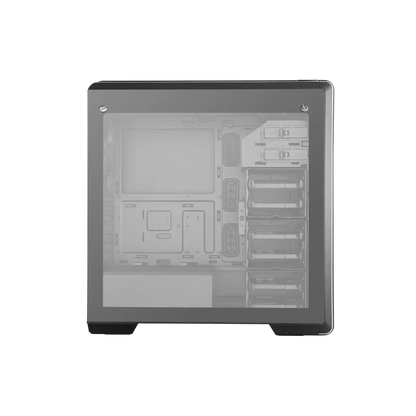

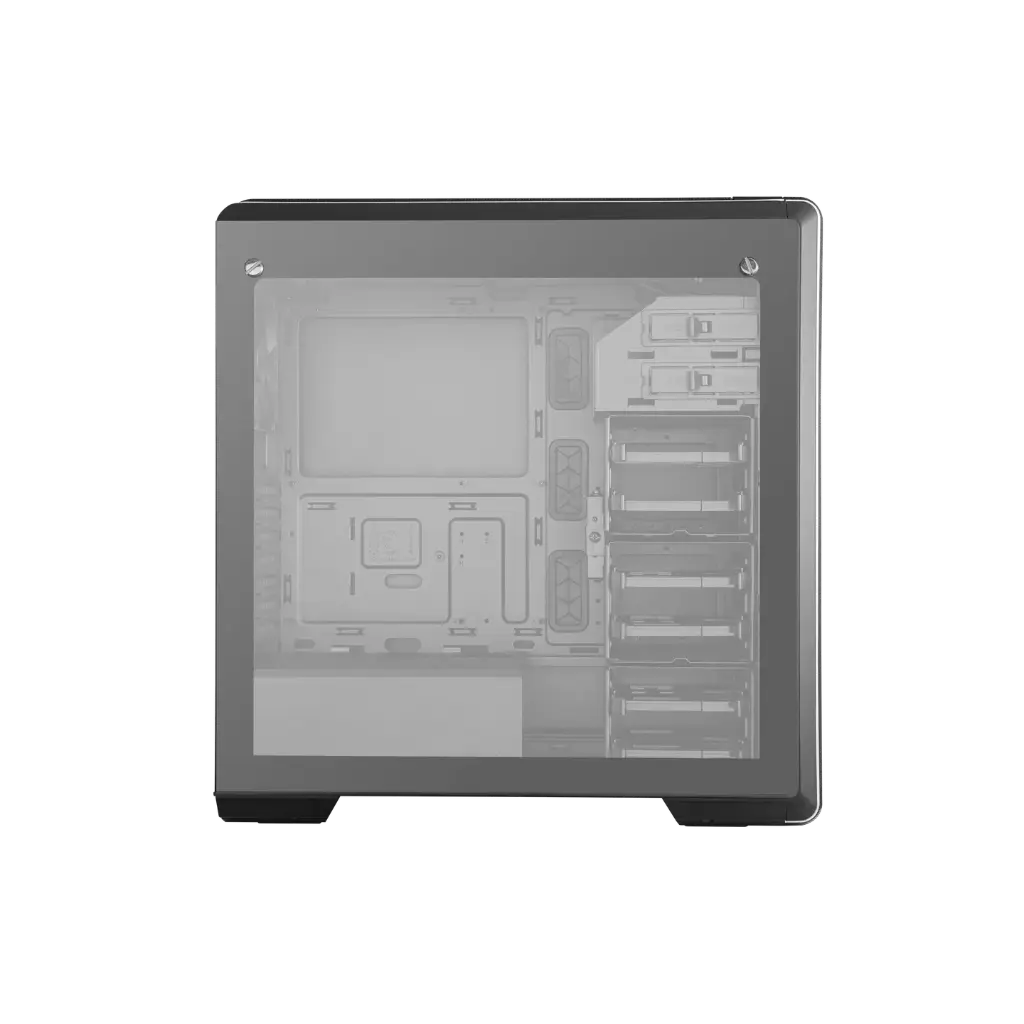

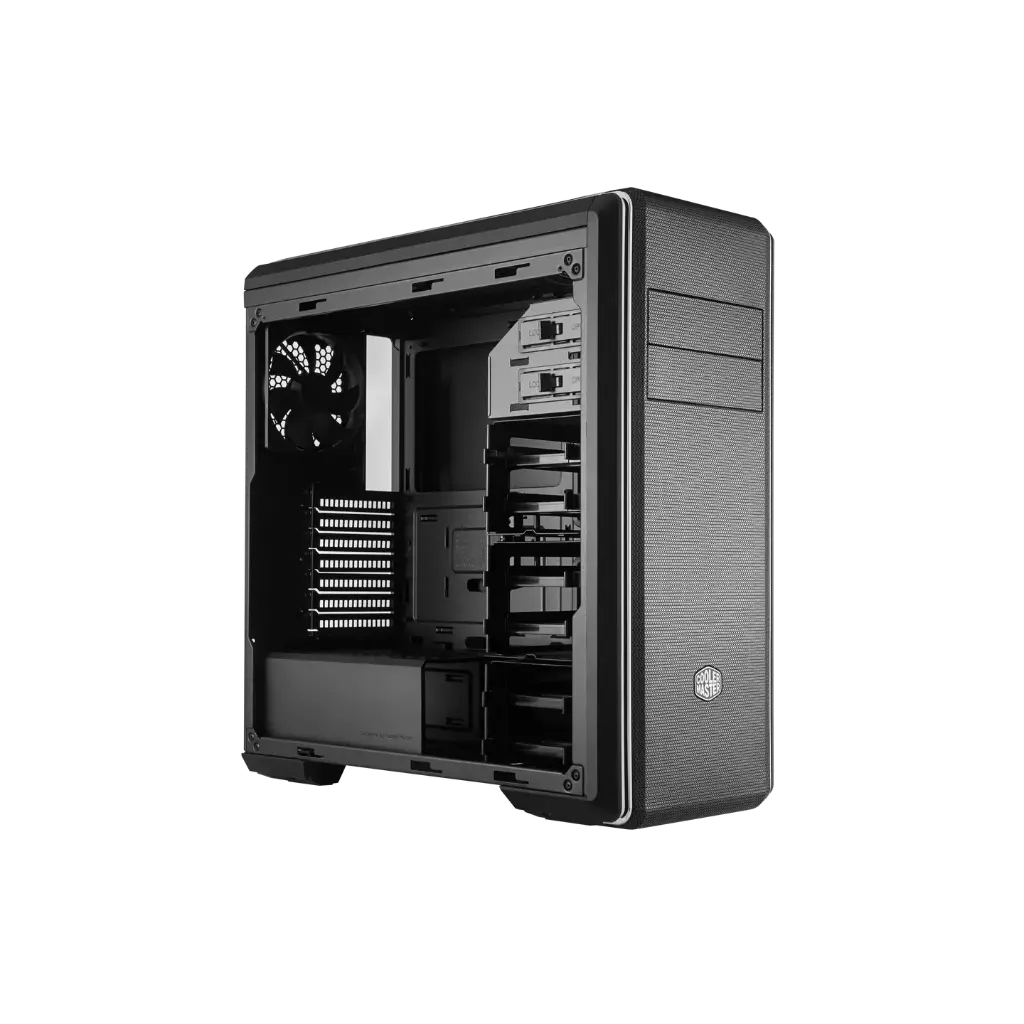

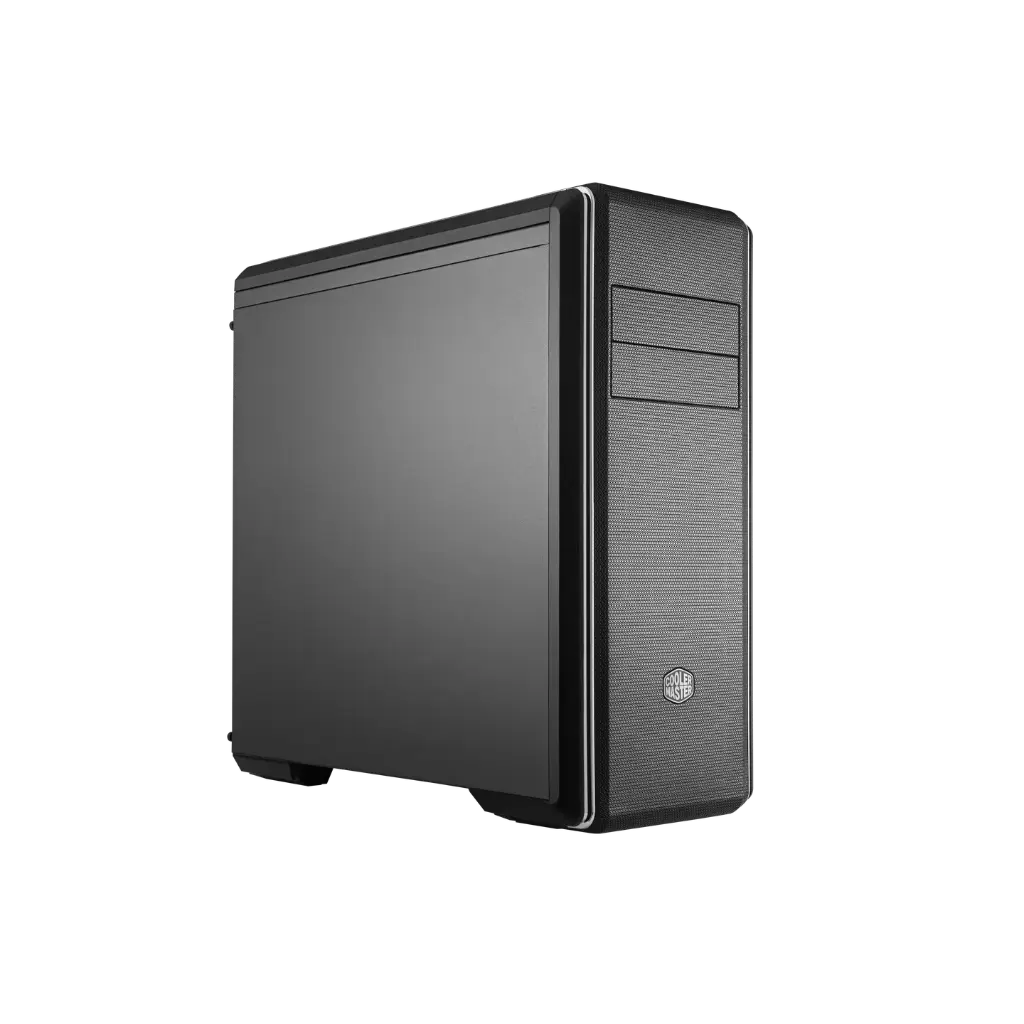

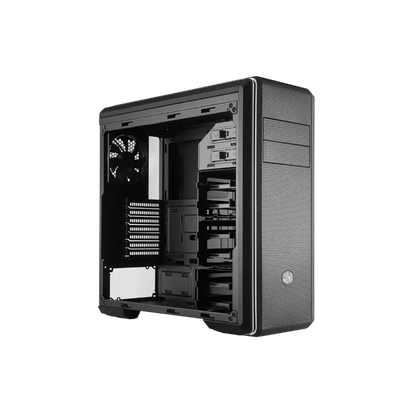

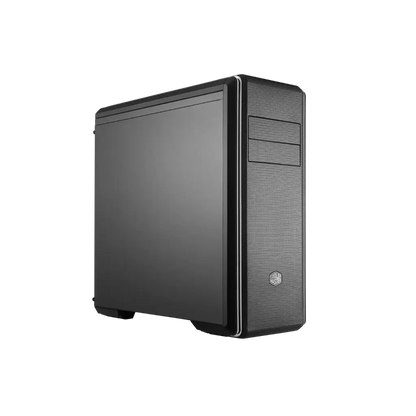

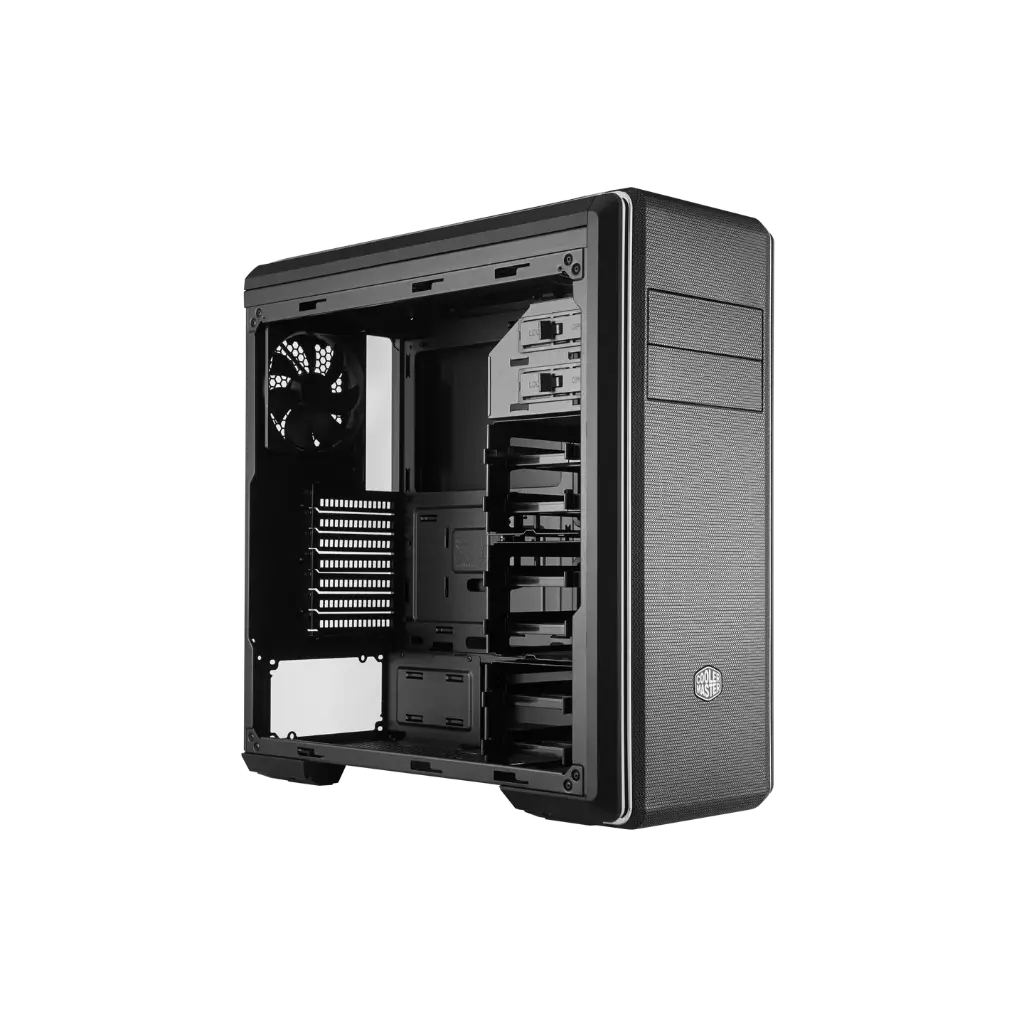

Cooler Master MasterBox CM694 Mid Tower ATX Cabinet with Curved Mesh Design
Cooler Master MasterBox CM694 Mid Tower ATX Cabinet with Curved Mesh Design
Regular price
Rs. 11,850.00
Regular price
23% off
Rs. 15,290.00
Sale price
Rs. 11,850.00
Quantity
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Loading Offers...
+ Offers
Couldn't load pickup availability
Product Description:
🔷 Curved mesh front and top panels deliver high airflow while filtering dust.
🧩 Modular drive cages support up to 6 HDDs and 8 SSDs for flexible storage layouts.
🛡️ Graphics card stabilizer arm prevents GPU sag and protects components.
⚡ Rich connectivity with USB 3.0, USB 3.1 Gen2 Type‑C, and 4‑pole headset jack.
❄️ Supports multiple fans and dual 360mm radiators for enhanced cooling performance.
🏗️ Compatible with Mini‑ITX, Micro‑ATX, ATX, and E‑ATX motherboards.
🧩 Modular drive cages support up to 6 HDDs and 8 SSDs for flexible storage layouts.
🛡️ Graphics card stabilizer arm prevents GPU sag and protects components.
⚡ Rich connectivity with USB 3.0, USB 3.1 Gen2 Type‑C, and 4‑pole headset jack.
❄️ Supports multiple fans and dual 360mm radiators for enhanced cooling performance.
🏗️ Compatible with Mini‑ITX, Micro‑ATX, ATX, and E‑ATX motherboards.
The Cooler Master MasterBox CM694 is a versatile mid‑tower cabinet engineered for high airflow, modular storage, and modern connectivity. Its curved mesh design improves cooling efficiency while keeping dust out. With adjustable drive cages, a GPU stabilizer, and support for E‑ATX motherboards, it is ideal for gaming or workstation builds. Dual 360mm radiator compatibility and multiple fan mounting options ensure excellent thermal performance, making it a reliable choice for powerful PC configurations.
Product Specifications:
| Materials | Steel, Plastic, Tempered Glass, Mesh |
| Size | Mid Tower |
| Color(s) | Black |
| Series | MasterBox Series |
| Model Number | MCB-CM694-KN5N-S00 (Steel), MCB-CM694-KG5N-S00 (TG) |
| Dimensions (L x W x H) | Steel: 493mm x 220mm x 506mm (incl. protrusions) |
| Dimensions (L x W x H) | Steel: 482mm x 220mm x 477mm (excl. protrusions) |
| Dimensions (L x W x H) | TG: 493mm x 224mm x 506mm (incl. protrusions) |
| Dimensions (L x W x H) | TG: 482mm x 224mm x 477mm (excl. protrusions) |
| Motherboard Support | Mini ITX, Micro ATX, ATX, E‑ATX |
| Expansion Slots | 7 |
| 5.25" Drive Bays | 2 |
| 2.5 / 3.5" Drive Bays (Combo) | 6 (3x drive cages) |
| 2.5" Drive Bays | 8 (2 + 6 combo) |
| Cable Routing | 27–29 mm |
| Clearance – CPU Cooler | 171 mm |
| Clearance – GFX | 410 mm |
| Clearance – GFX | 350 mm (with stabilizer) |
| Clearance – GFX | 280 mm (with stabilizer + drive cage) |
| Clearance – PSU | 276 mm |
| Clearance – PSU | 160 mm (drive cage rear position) |
| Power Supply Support | ATX PS2, Bottom Mount |
| Dust Filters | Top, Front, Bottom |
| Fan Support – Front | 3×120mm / 2×140mm (wo/ODD); 2×120mm / 2×140mm (w/ODD) |
| Fan Support – Top | 3×120mm; 2×140mm |
| Fan Support – Rear | 1×120mm |
| Pre-installed Fans – Front | 2×120mm (1200 RPM ± 200 RPM, 3‑pin) |
| Pre-installed Fans – Rear | 1×120mm (1200 RPM ± 200 RPM, 3‑pin) |
| Radiator Support – Rear | 120mm |
| Radiator Support – Top | 120mm, 140mm, 240mm, 280mm, 360mm |
| Radiator Support – Front | 120mm, 140mm, 240mm, 280mm, 360mm |
| I/O Panel | 2× USB 3.0 Type-A, 1× USB 3.1 Type‑C, 1× 3.5mm Headset Jack |
| Weight | 9.4 kg |
| Country of Origin | China |
| Warranty | 2-Year Manufacturer Warranty |
