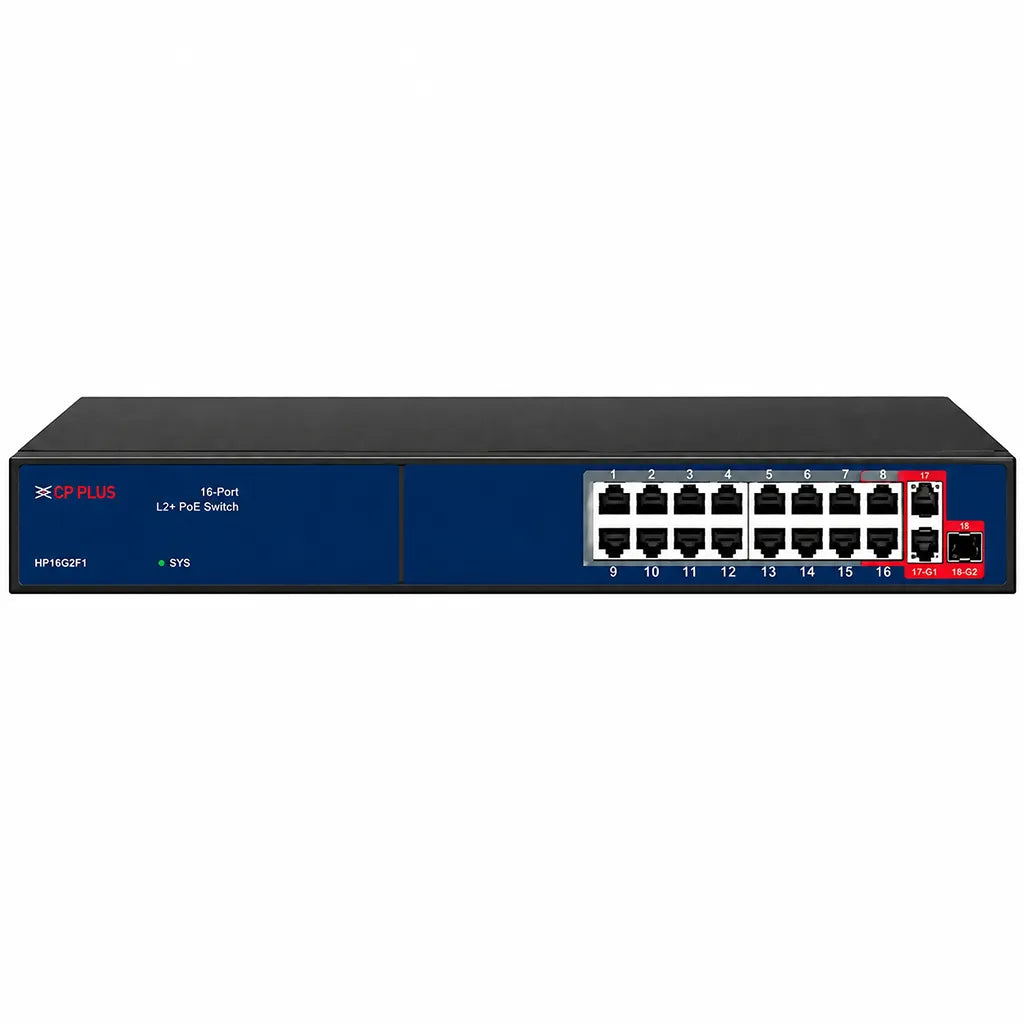

• CP PLUS CP-ANW-HP16G2F1-N30 16-Port AI PoE Switch front view with 2 Gigabit uplink ports and 1 SFP port for IP surveillance -tpstech.in

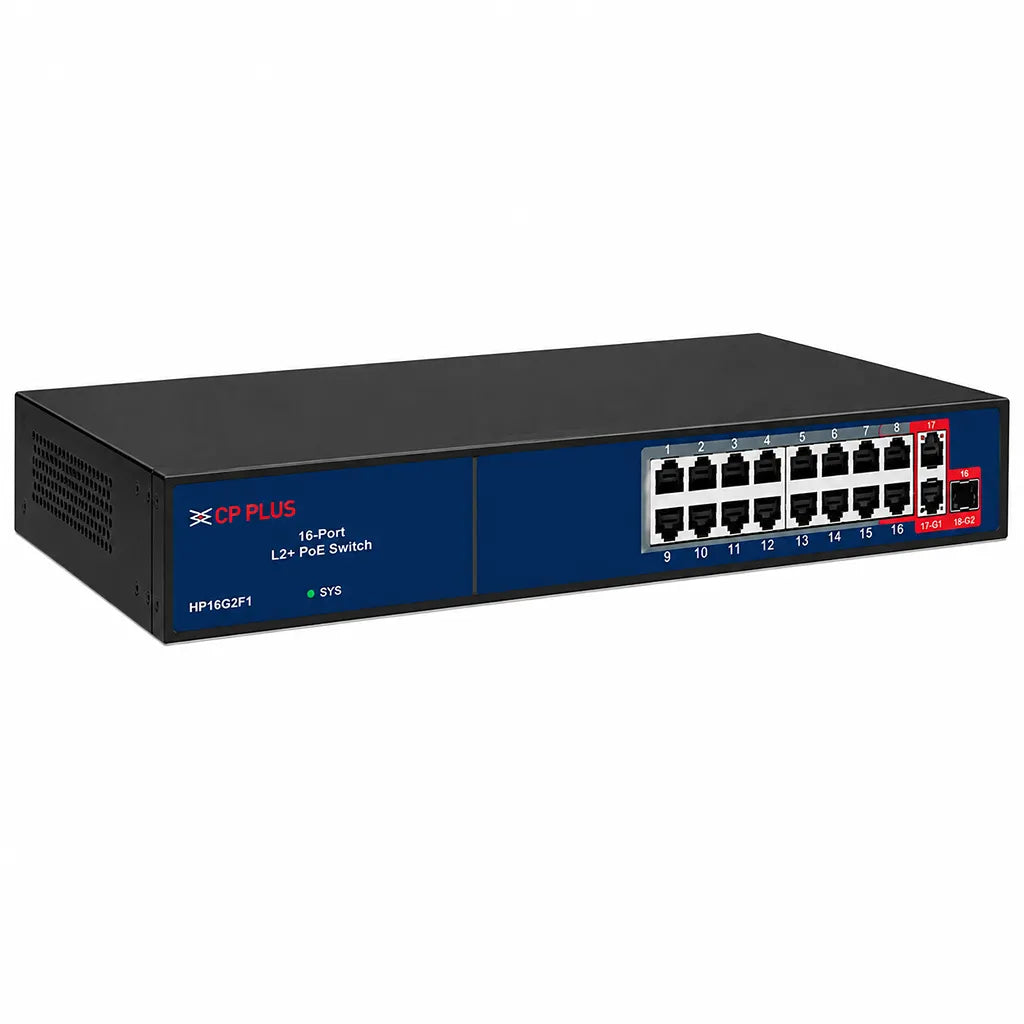

  • CP PLUS CP-ANW-HP16G2F1-N30 16-Port AI PoE Switch front left angle showing PoE ports and Gigabit uplink connectivity -tpstech.in

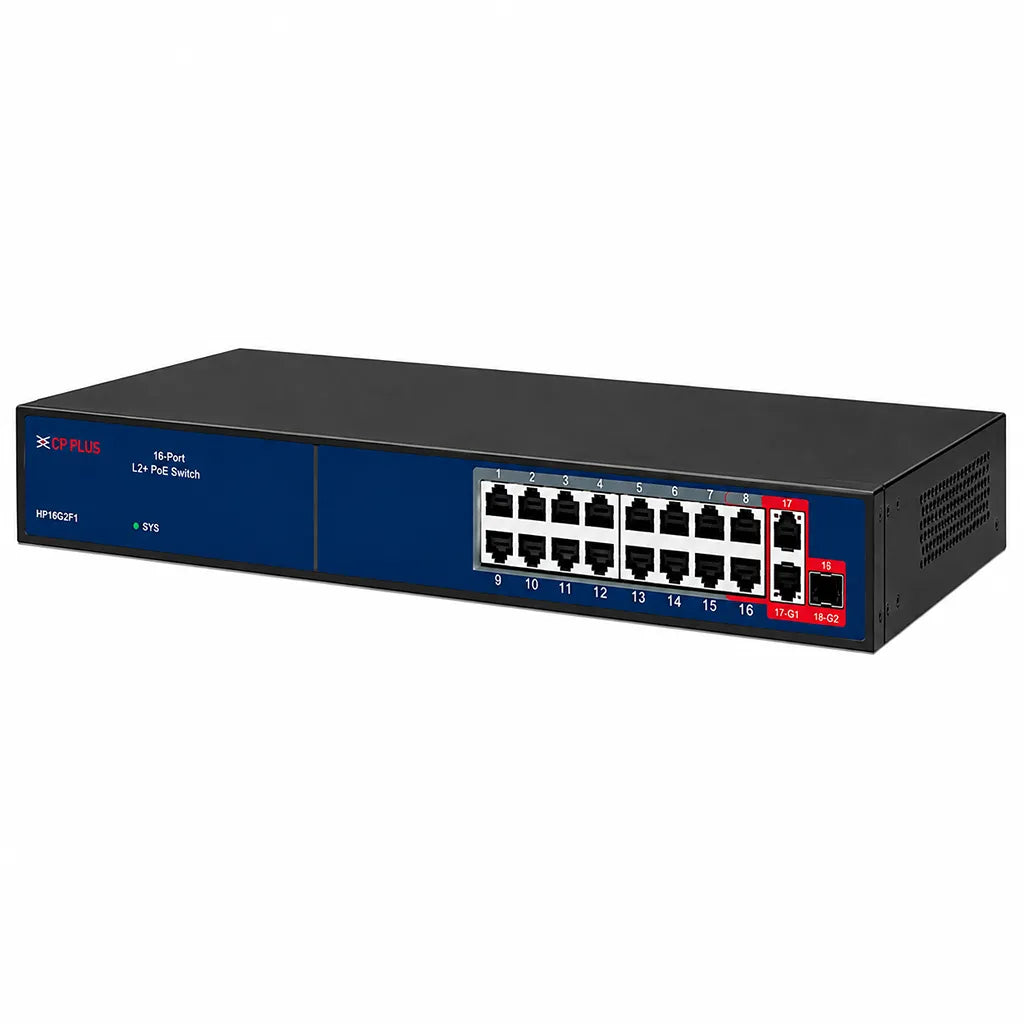

  • CP PLUS CP-ANW-HP16G2F1-N30 16-Port AI PoE Switch front right angle with 16 PoE ports, Gigabit uplinks and SFP port -tpstech.in

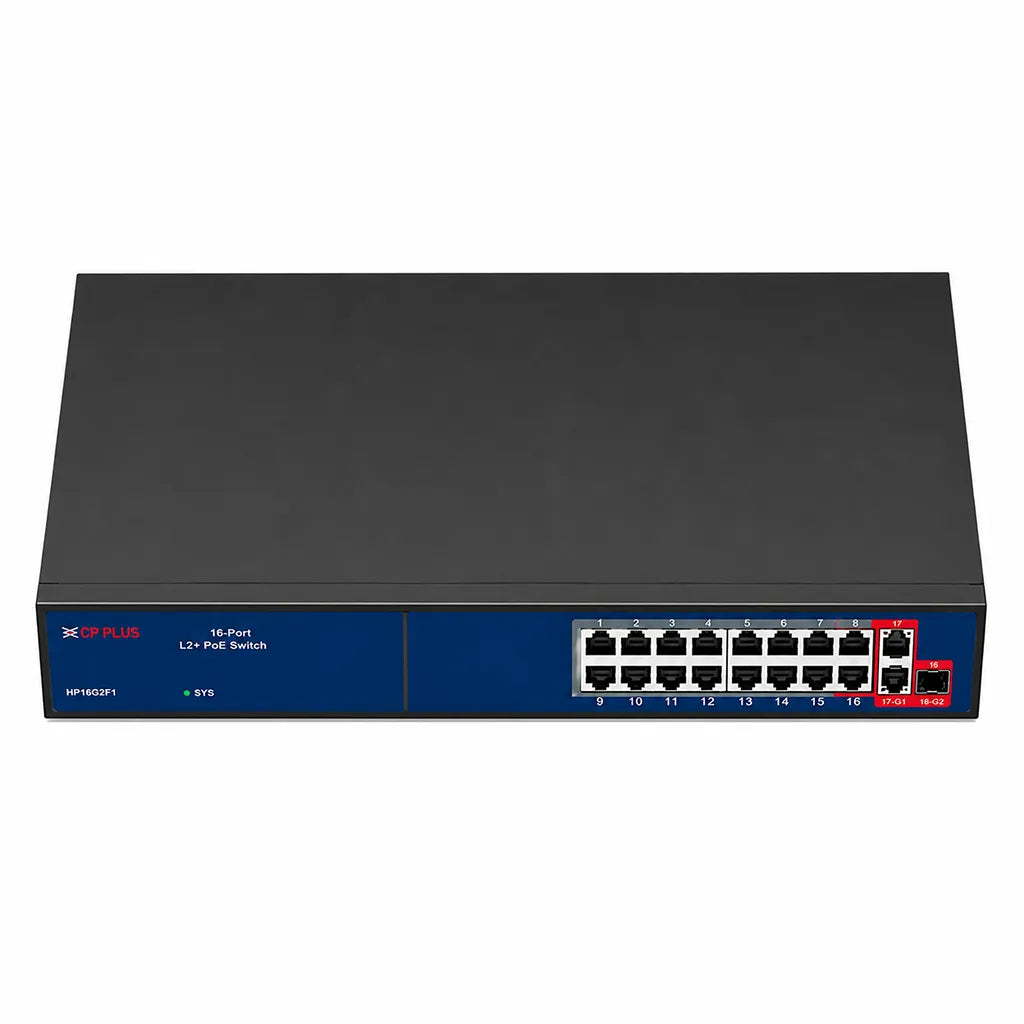

  • CP PLUS CP-ANW-HP16G2F1-N30 16-Port AI PoE Switch top front view for CCTV and enterprise networking applications -tpstech.in

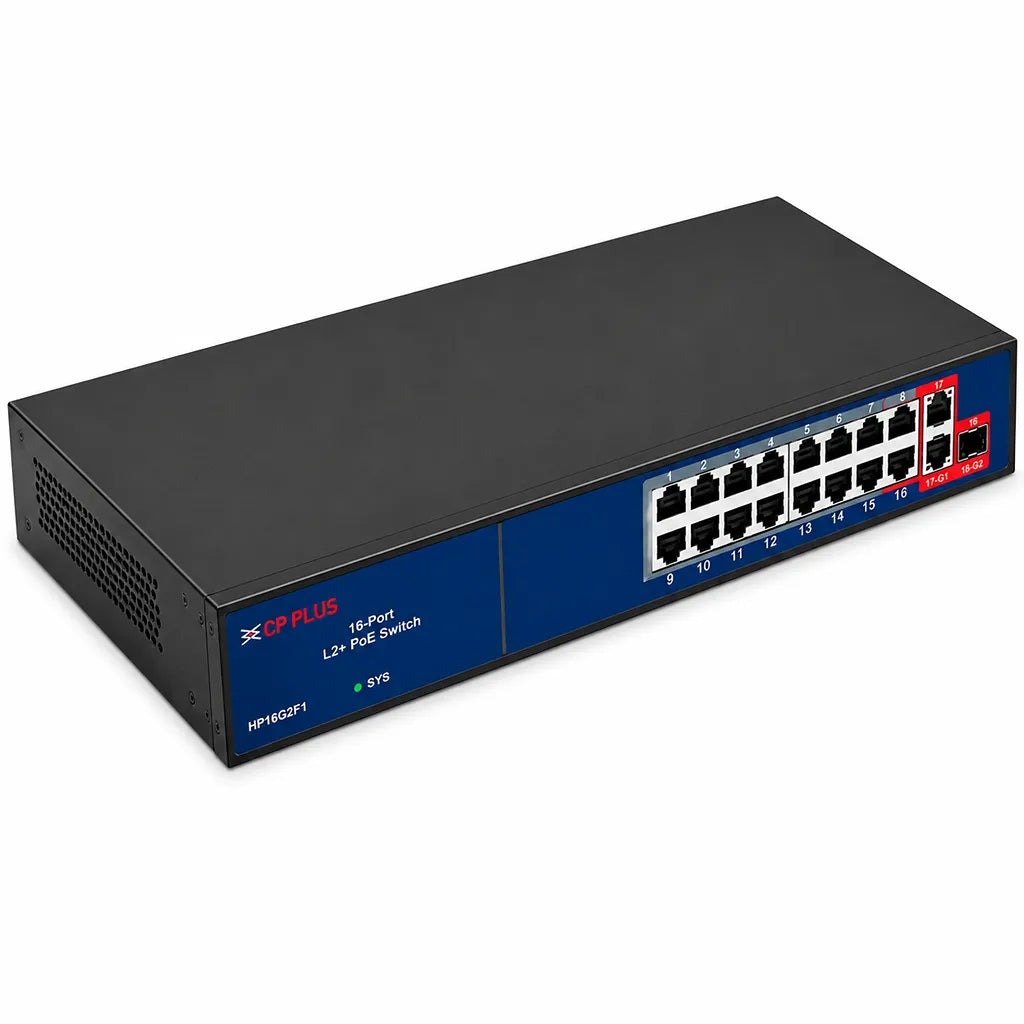

  • CP PLUS CP-ANW-HP16G2F1-N30 AI PoE network switch top left perspective with durable metal housing and 16 PoE ports -tpstech.in

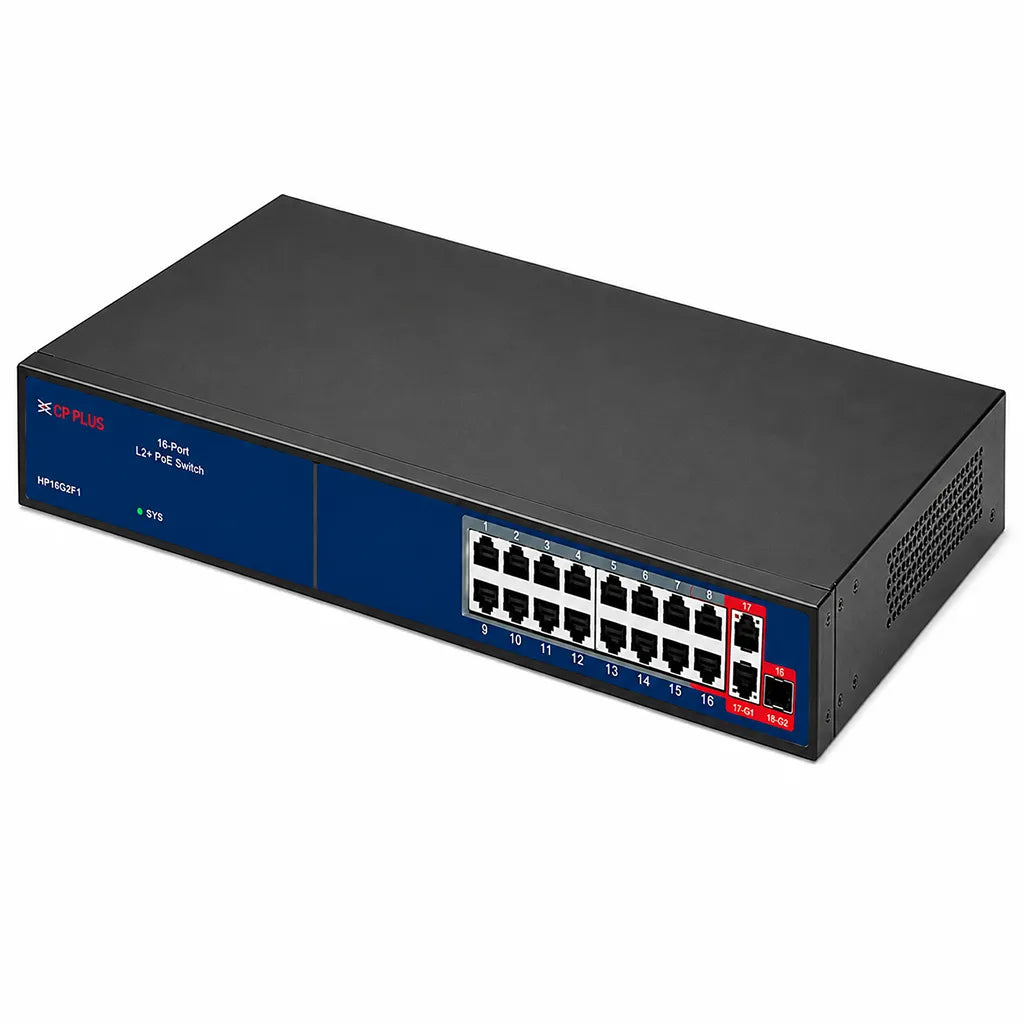

  • CP PLUS CP-ANW-HP16G2F1-N30 16-Port AI PoE Switch top right perspective featuring Gigabit uplinks and SFP port -tpstech.in

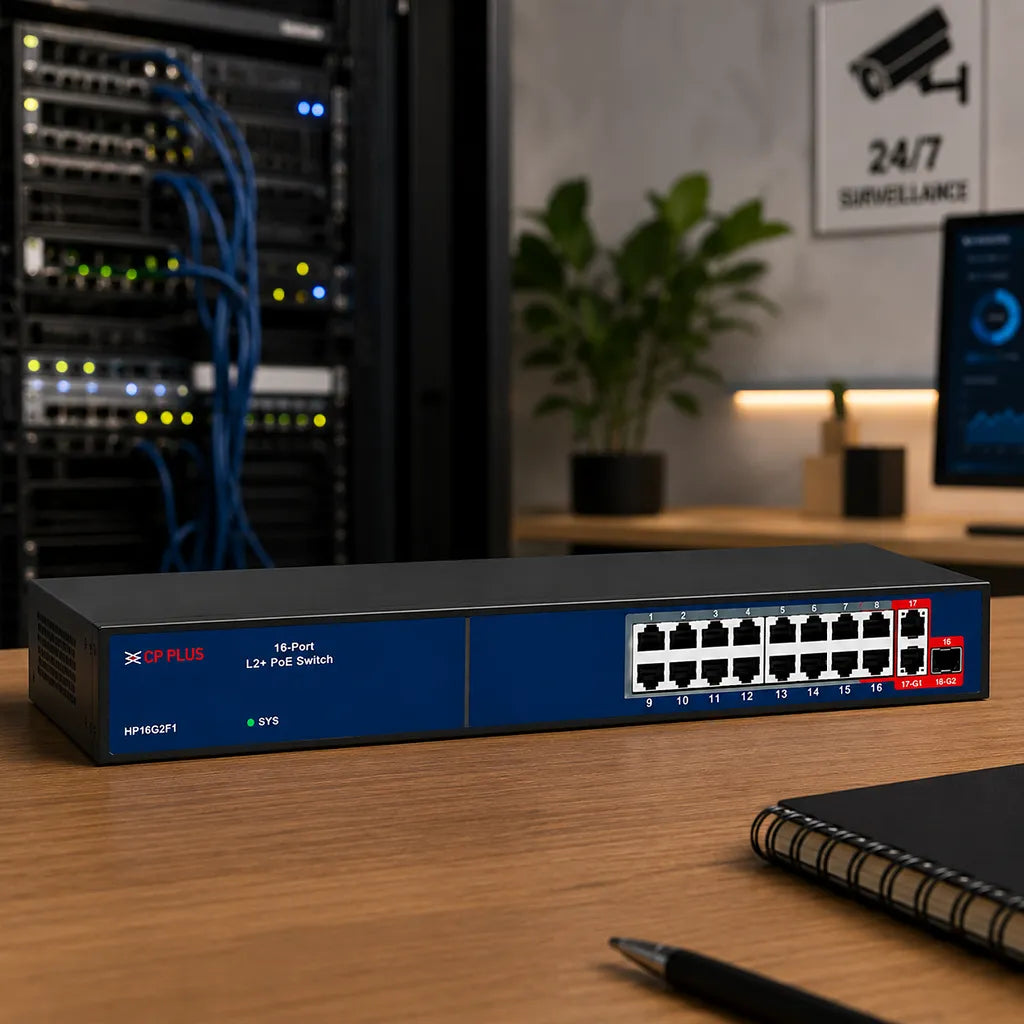

  • CP PLUS CP-ANW-HP16G2F1-N30 16-Port AI PoE Switch deployed in a CCTV surveillance network rack for reliable IP camera connectivity and Gigabit networking -tpstech.in
1 7

CP PLUS CP-ANW-HP16G2F1-N30 16-Port AI PoE Switch with 2 Gigabit Uplink

CP PLUS CP-ANW-HP16G2F1-N30 16-Port AI PoE Switch with 2 Gigabit Uplink

Brand: CP PLUS
Rs. 4,250.00
58% off Rs. 9,899.00 Rs. 4,250.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled
Loading Offers...
+ Offers

Product Description:

🔌 16 AI PoE Ports Power and connect compatible IP cameras and wireless access points through a single CAT.5 cable for a cleaner and simpler installation.

🤖 PoE Watchdog AI Function Automatically detects connected PoE devices and restarts unresponsive cameras to help maintain reliable network uptime.

📡 Long Distance Transmission Supports automatic transmission up to 250 meters on FE ports, making it suitable for extended surveillance deployments.

⚡ High Power & Device Protection Delivers up to 60W per supported port while providing lightning, surge, over-current, over-voltage, over-temperature and short circuit protection.

🔧 Plug and Play Deployment Zero configuration design with Auto MDI/MDIX enables quick installation without complex network setup.

The CP PLUS CP-ANW-HP16G2F1-N30 AI PoE Switch is designed for IP surveillance and networking applications requiring reliable PoE connectivity. Featuring 16 PoE ports, 2 Gigabit uplink ports and 1 Gigabit SFP uplink, it simplifies network deployment while supporting AI PoE Watchdog for automatic camera recovery. With long-distance transmission up to 250 meters, built-in electrical protection and plug-and-play operation, it is an ideal choice for CCTV installations, offices, commercial buildings and enterprise security networks.

Product Specifications:

Specification Details
Brand CP PLUS
Model CP-ANW-HP16G2F1-N30
Product Type AI PoE Switch
PoE Ports 16
Uplink Ports 2 × 10/100/1000Mbps RJ45
SFP Port 1 × 10/100/1000Mbps SFP
Network Ports PoE Ports 1–15: 10/100Mbps RJ45, PoE Port 16: 10/100/1000Mbps BT PoE RJ45
PoE Standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Network Standards IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
AI Function PoE Watchdog
Auto MDI/MDIX Yes
Maximum Transmission Distance Up to 250m (FE Ports)
Switching Capacity 12.8Gbps
MAC Address Table 8K
Power Budget Up to 300W
Maximum Port Output Up to 60W
Input Voltage AC 180–240V
Lightning Protection 6KV
ESD Protection 8KV
Operating Temperature -30°C to 60°C
Dimensions 430 × 180 × 45mm
Weight 2650g
Warranty 2-year manufacturer warranty
