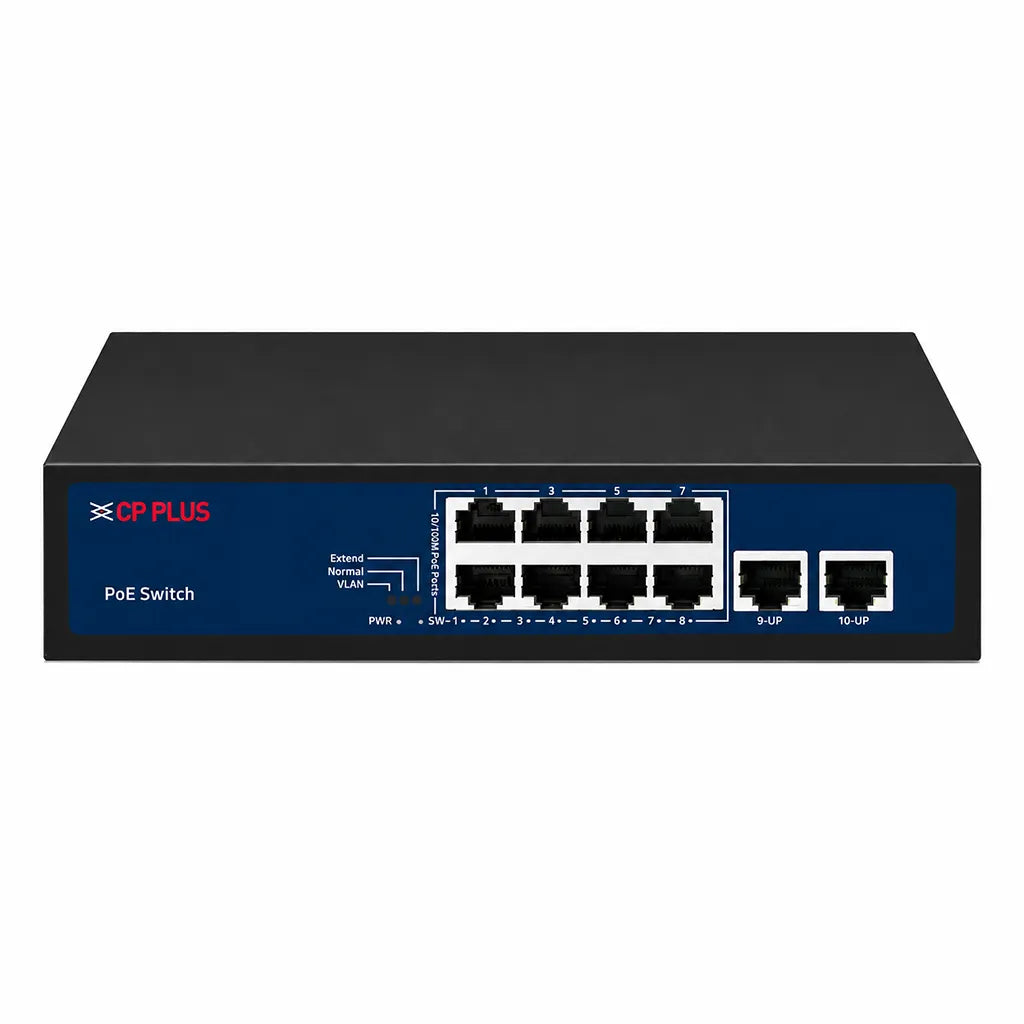

• Front view of CP PLUS CP-DNW-HPU8H2-96-V2 10 Port Fast Ethernet PoE network switch with 8 PoE ports and 2 uplink ports -tpstech.in

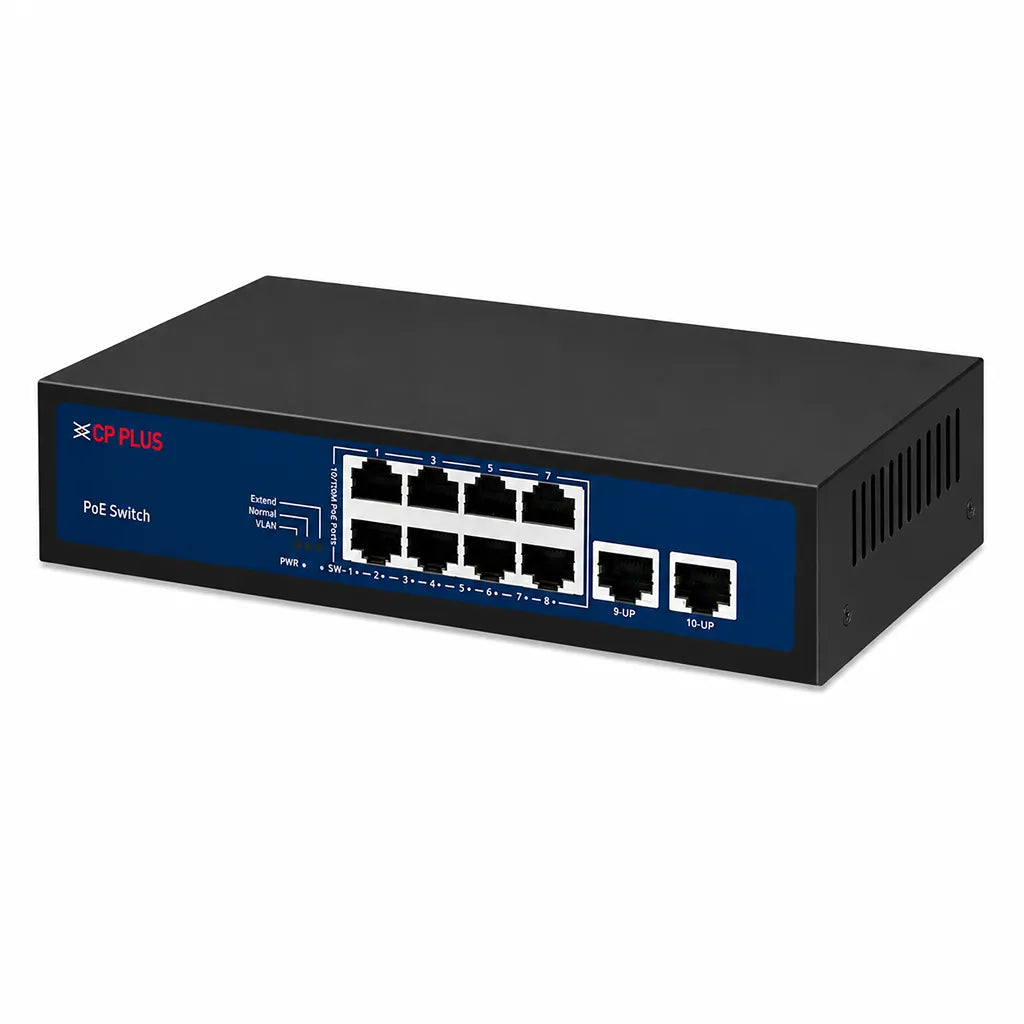

  • Right angled view of CP PLUS CP-DNW-HPU8H2-96-V2 8 Port PoE switch with dual uplink ports -tpstech.in

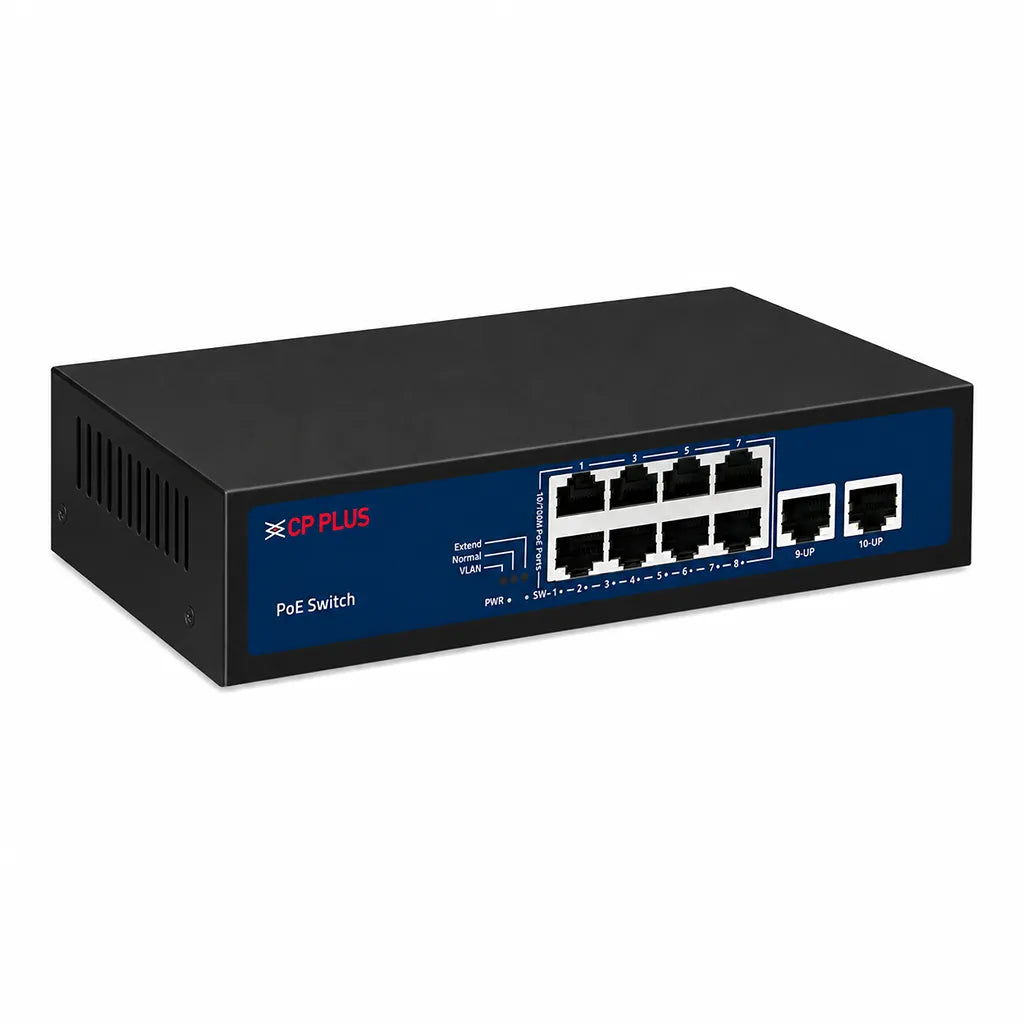

  • Left angled view of CP PLUS CP-DNW-HPU8H2-96-V2 Fast Ethernet PoE switch for CCTV and IP camera networking -tpstech.in

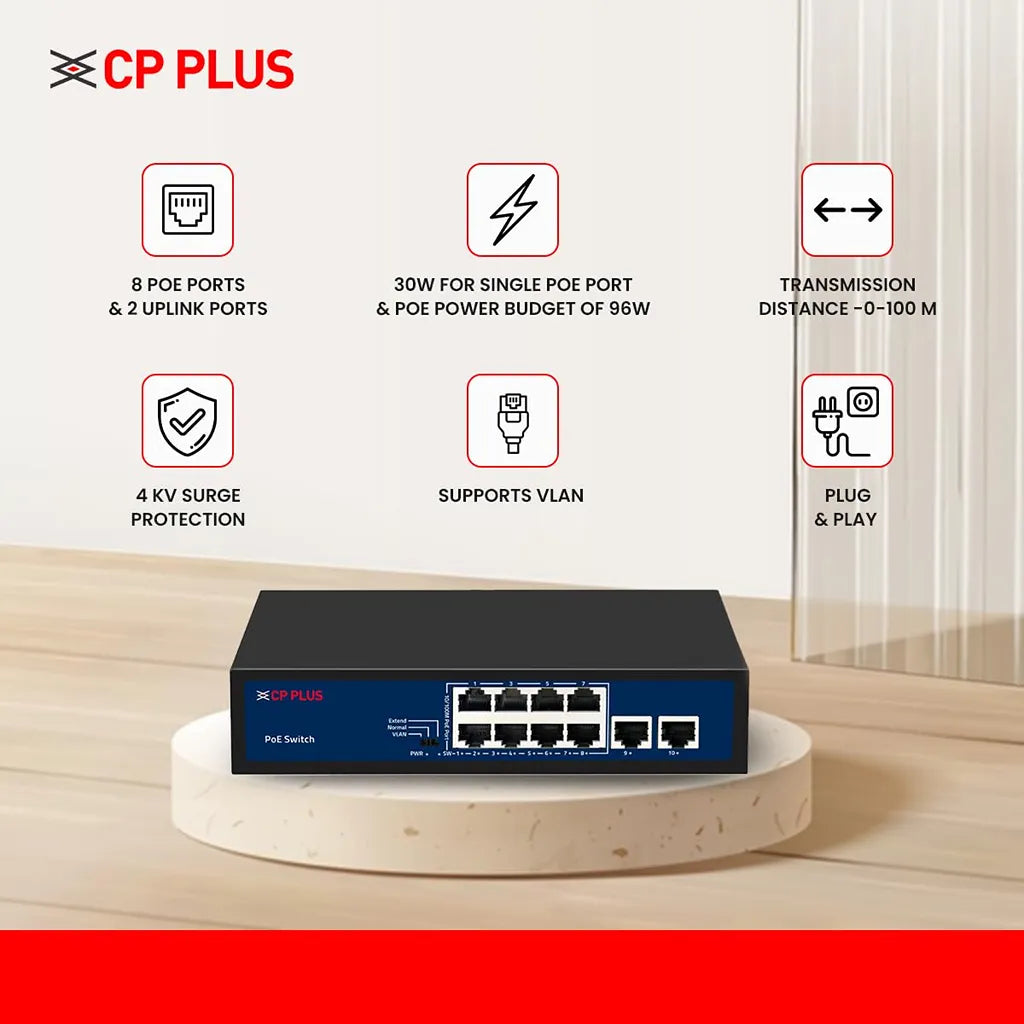

  • CP PLUS CP-DNW-HPU8H2-96-V2 PoE switch highlighting 8 PoE ports, 2 uplink ports, VLAN support, surge protection and plug and play operation -tpstech.in
  • CP PLUS CP-DNW-HPU8H2-96-V2 8 Port PoE Network Switch with 4KV surge protection for CCTV and IP camera networks -tpstech.in
  • CP PLUS CP-DNW-HPU8H2-96-V2 PoE switch featuring 8 PoE ports and 2 Fast Ethernet uplink ports for surveillance systems -tpstech.in
  • CP PLUS CP-DNW-HPU8H2-96-V2 Fast Ethernet PoE switch with VLAN support for secure CCTV network deployment -tpstech.in
  • CP PLUS CP-DNW-HPU8H2-96-V2 PoE switch supporting 250 meter Extend Mode for long-distance IP camera connectivity -tpstech.in

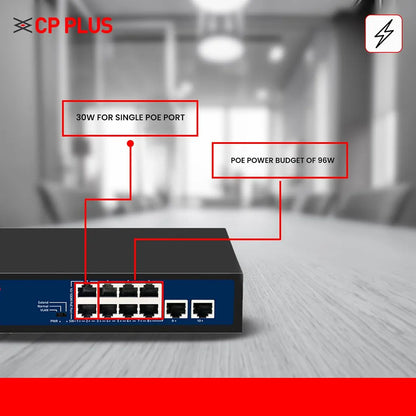

  • CP PLUS CP-DNW-HPU8H2-96-V2 network switch with 96W PoE budget and up to 30W output per PoE port -tpstech.in
  • CP PLUS CP-DNW-HPU8H2-96-V2 plug and play PoE switch installation guide for IP cameras and network devices -tpstech.in
1 10

CP PLUS CP-DNW-HPU8H2-96-V2 10-Port Fast Ethernet PoE Switch

CP PLUS CP-DNW-HPU8H2-96-V2 10-Port Fast Ethernet PoE Switch

Brand: CP PLUS
Rs. 4,250.00
58% off Rs. 9,899.00 Rs. 4,250.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled
Loading Offers...
+ Offers

Product Description:

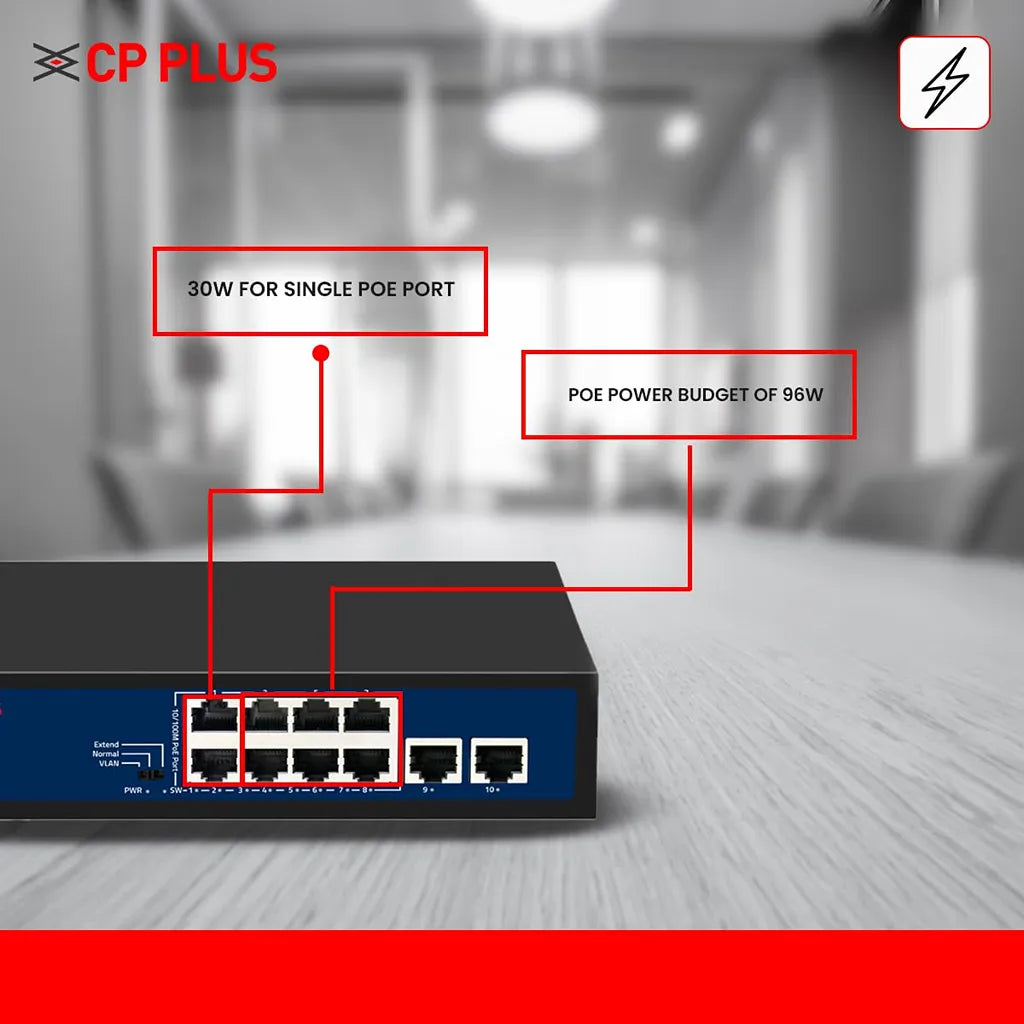

⚡ 8 PoE Ports with Power Delivery Deliver both power and data through a single Ethernet cable with up to 30W output per PoE port, making IP camera installations cleaner and easier.

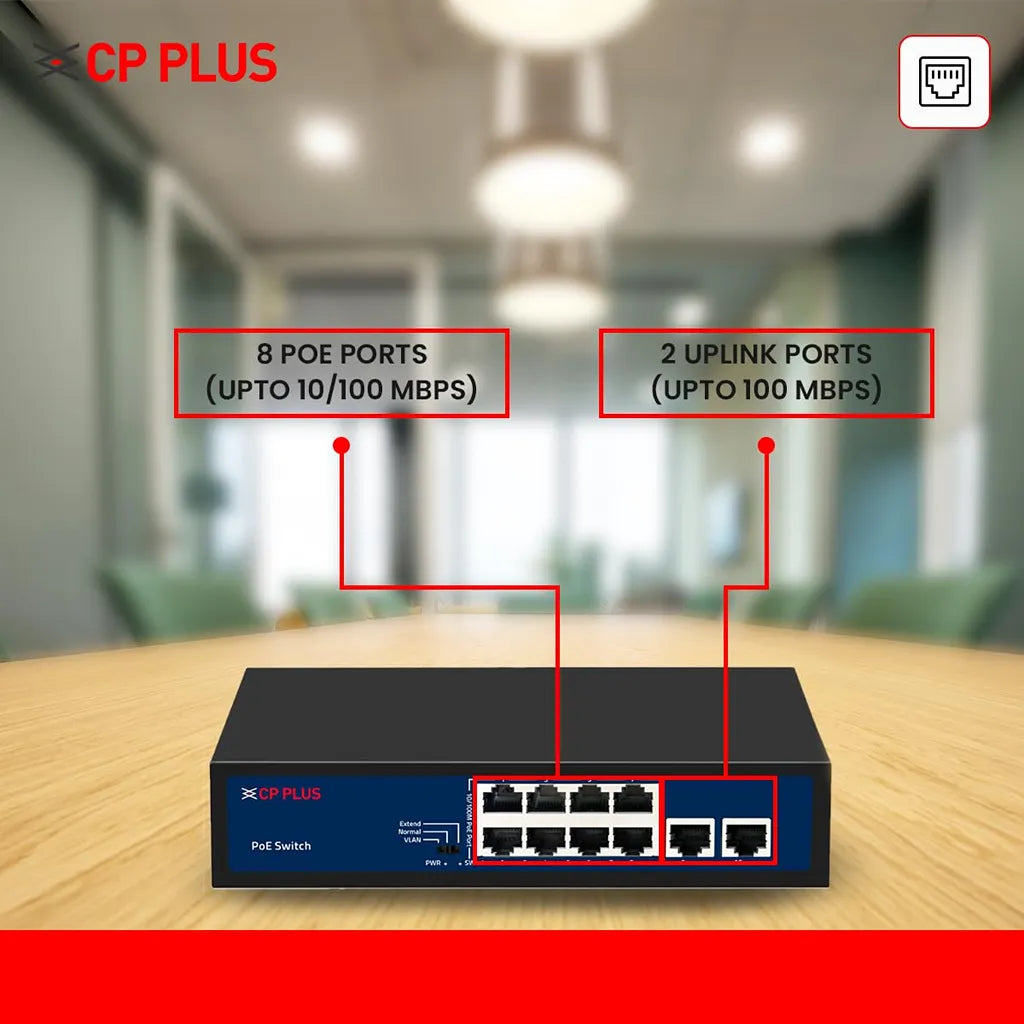

🌐 10-Port Fast Ethernet Connectivity Connect multiple surveillance and networking devices using 8 Fast Ethernet PoE ports and 2 Fast Ethernet uplink ports for efficient network expansion.

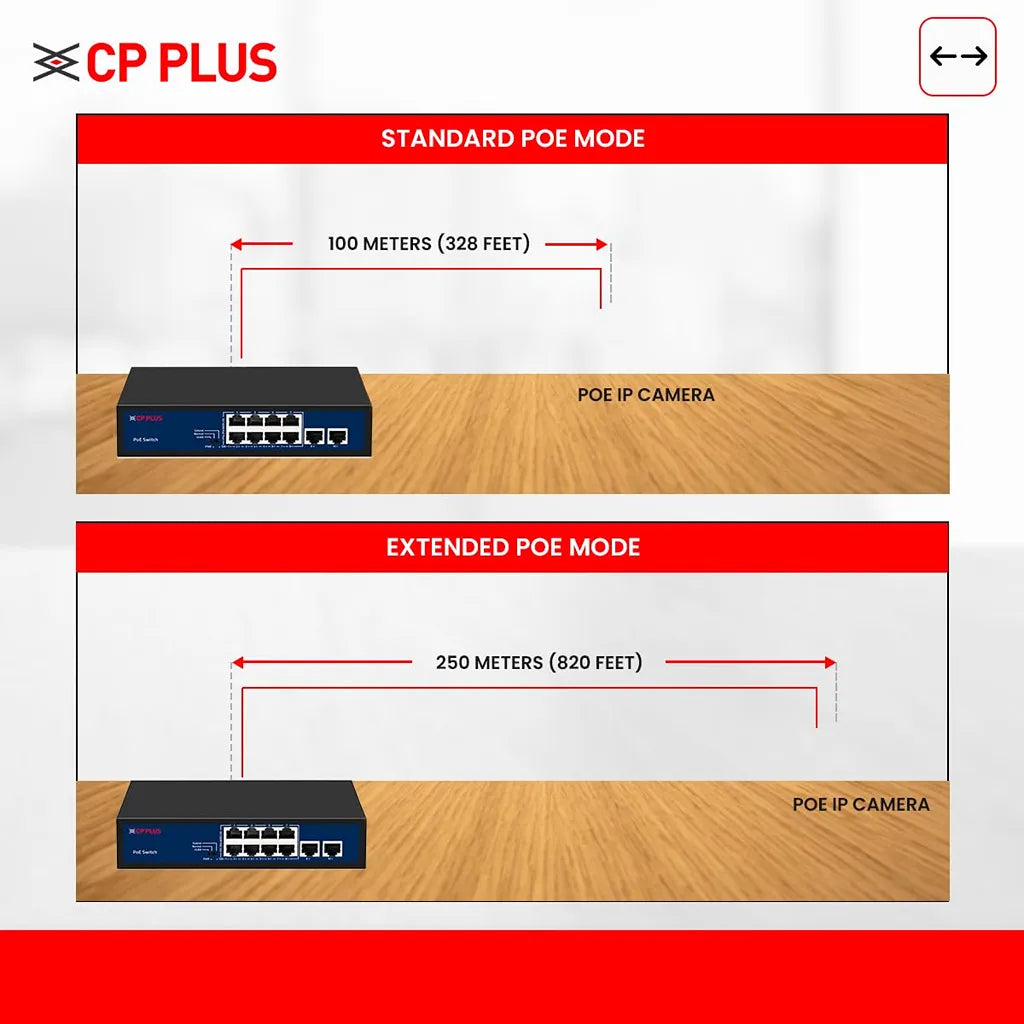

📡 Extended Transmission Mode Support cable distances up to 250m at 10Mbps in Extend Mode over Cat5e or higher cables, ideal for long-distance CCTV deployments.

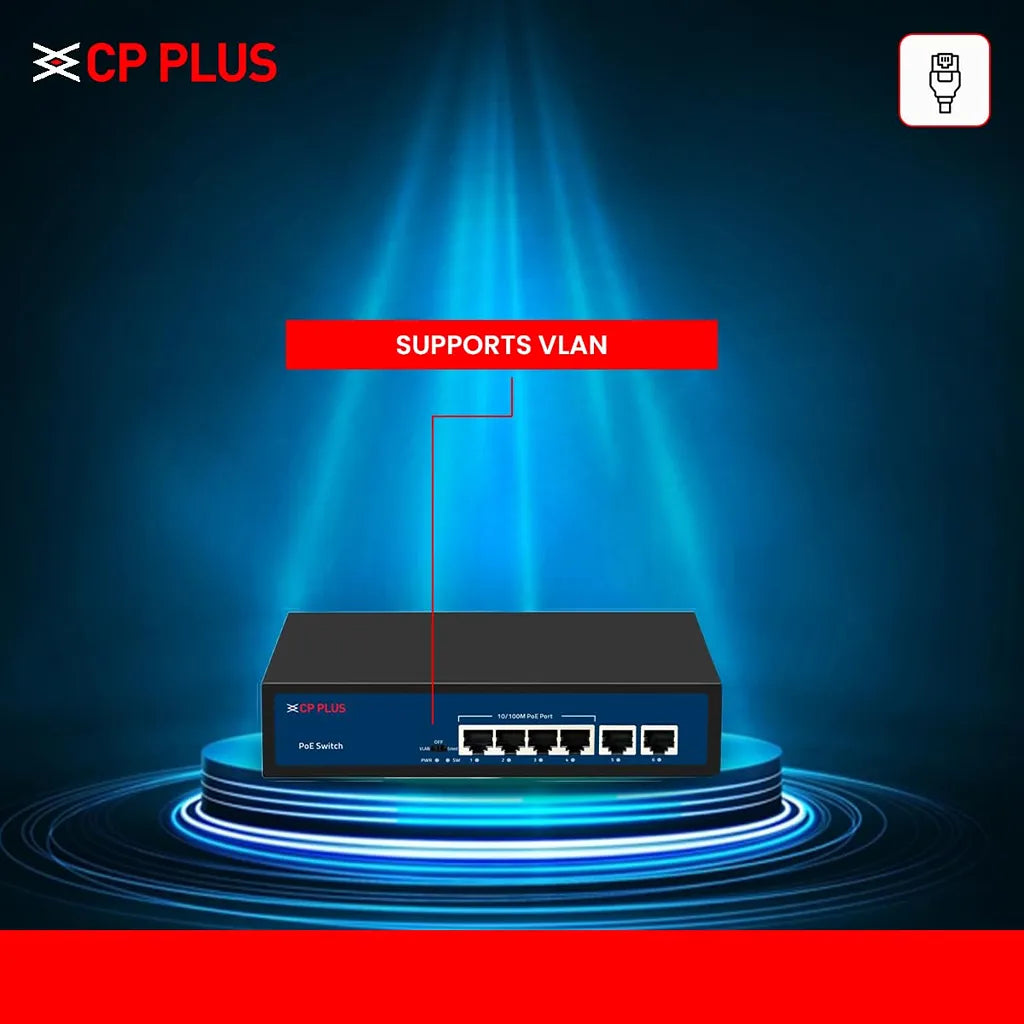

🛡️ Built-in VLAN & PoE Watchdog Improve network stability with VLAN support and PoE Watchdog, helping connected PoE devices recover automatically when required.

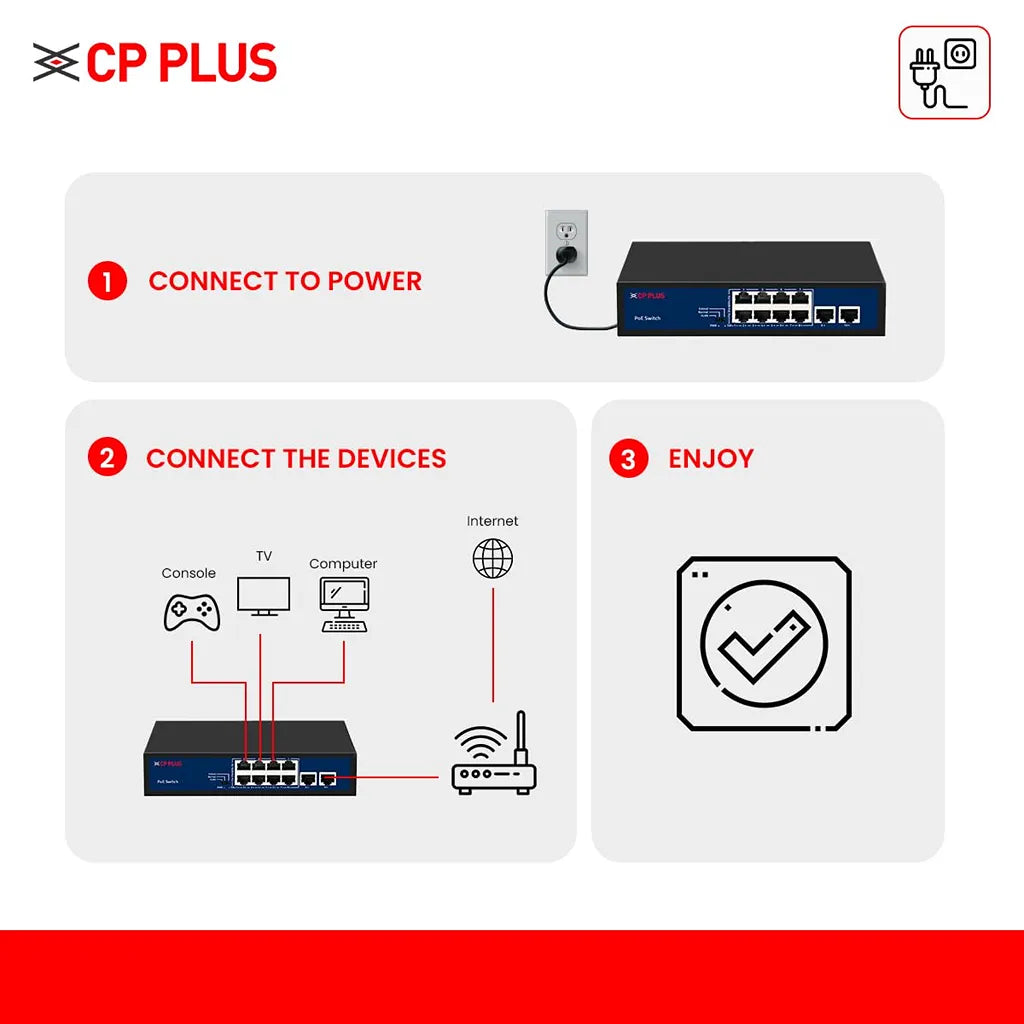

🔌 Plug and Play Installation Deploy your network quickly without additional configuration, making it suitable for surveillance systems, offices, retail stores, and small businesses.

The CP PLUS CP-DNW-HPU8H2-96-V2 is a 10-port Fast Ethernet PoE switch designed for reliable CCTV and network installations. It features 8 PoE ports with up to 30W output per port, 2 uplink ports, VLAN support, PoE Watchdog, and Extend Mode for cable runs up to 250m. Its plug-and-play design makes it ideal for IP cameras, wireless access points, and other PoE-enabled network devices in commercial and security environments.

Product Specifications:

Specification Details
Brand CP PLUS
Model CP-DNW-HPU8H2-96-V2
Product Type Fast Ethernet PoE Switch
Total Ports 10
PoE Ports 8 × 10/100Mbps RJ45
Uplink Ports 2 × 10/100Mbps RJ45
PoE Standards IEEE 802.3af, IEEE 802.3at
Maximum PoE Output per Port 30W
Total PoE Power Budget 96W
Switch Capacity 2Gbps
Packet Forwarding Rate 0.1488Mpps per Port
MAC Address Table 2K
Network Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode Store-and-Forward
Transmission Distance Up to 100m (100Mbps), Up to 250m (10Mbps Extend Mode)
VLAN Support Yes
Extend Mode Yes
PoE Watchdog Yes
Surge Protection RJ45 Common Mode 4KV, Differential Mode 2KV
ESD Protection Air Discharge 8KV, Contact Discharge 6KV
Operating Temperature -20°C to 50°C
Dimesion 20L x 12W x 4.5H Centimeters
Weight 620g
Warranty 2 Year Manufacturer Warranty
