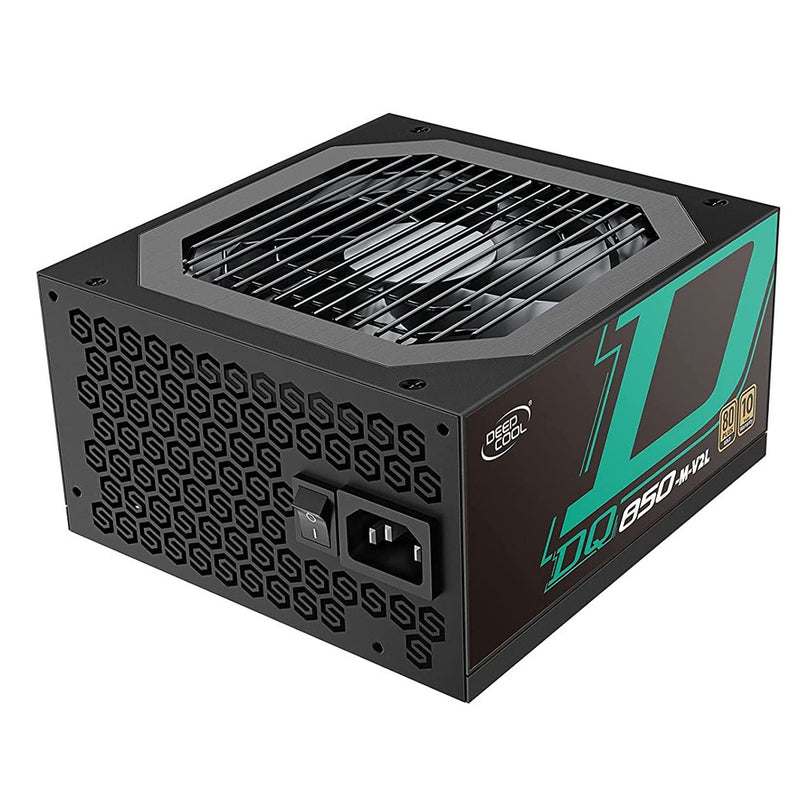

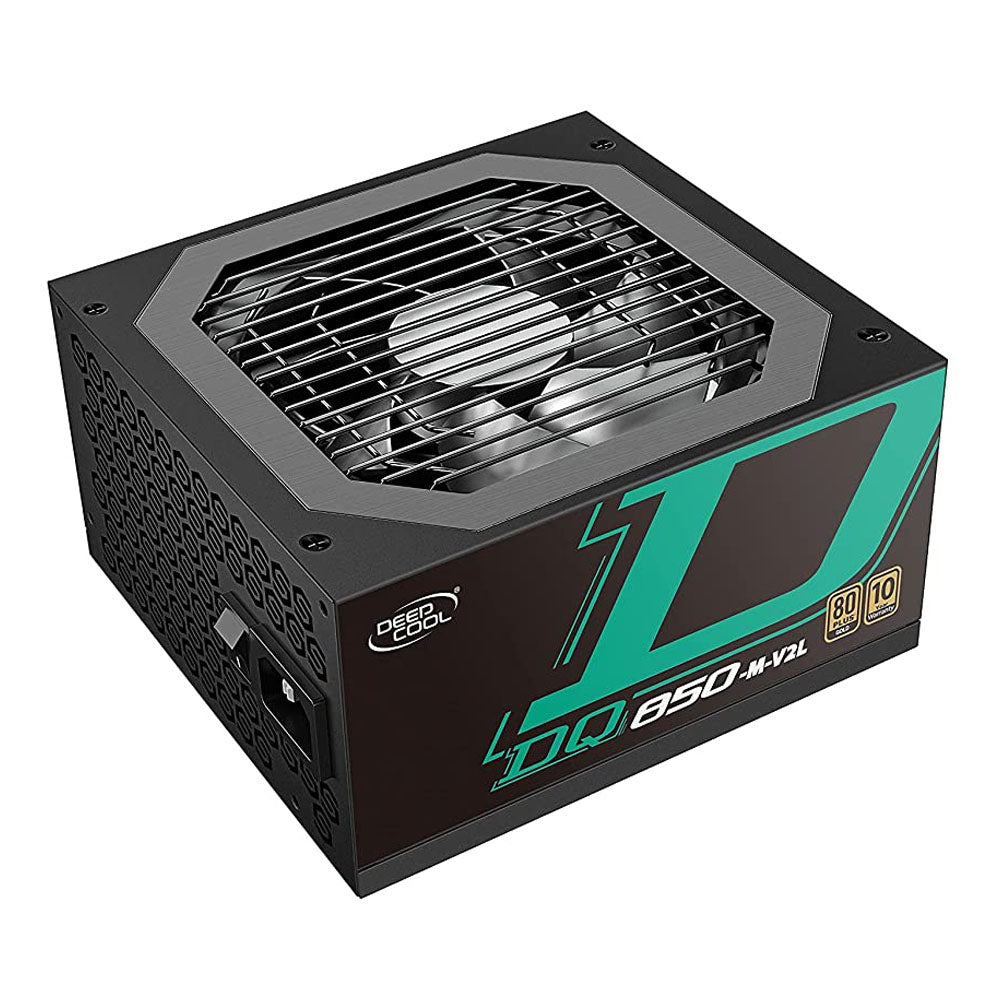

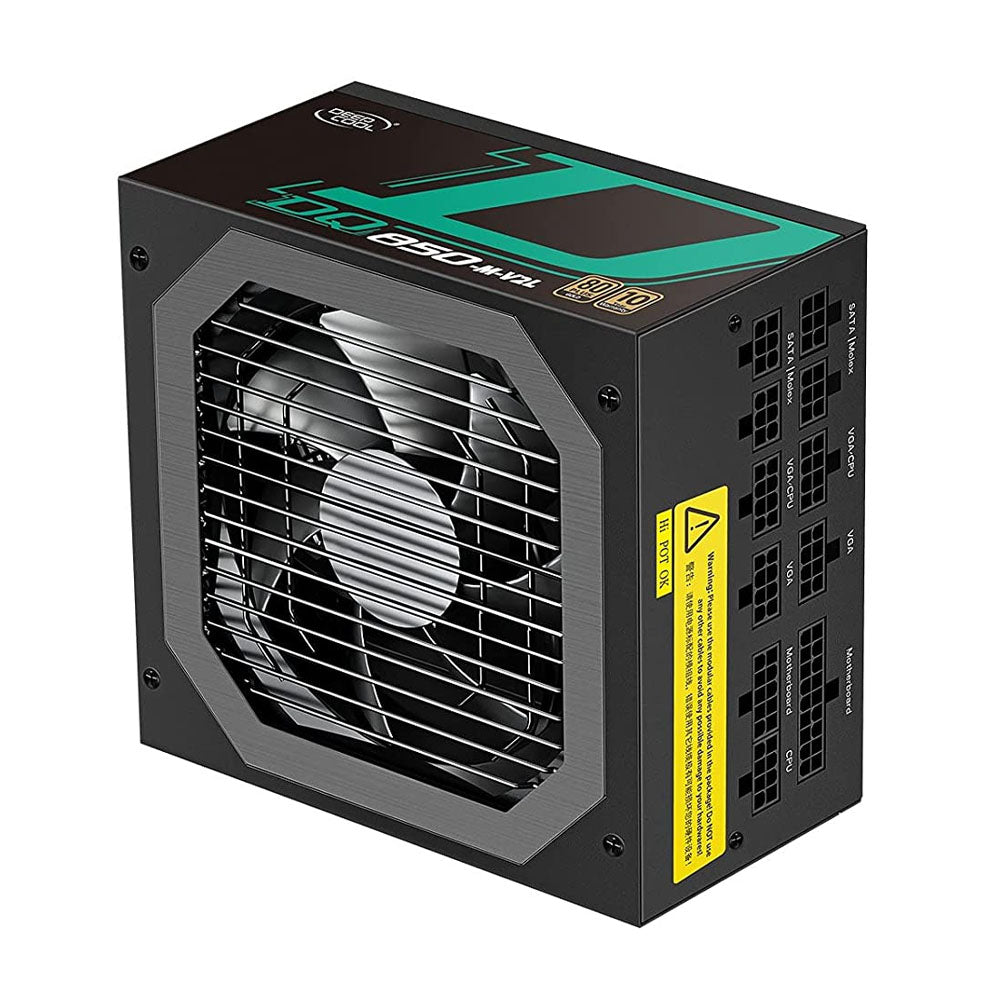

DEEPCOOL DQ850-M 850W Full Modular 80 Plus Gold SMPS Power Supply

DEEPCOOL DQ850-M 850W Full Modular 80 Plus Gold SMPS Power Supply

Brand: DEEPCOOL
Regular price Rs. 9,499.00
Regular price Rs. 19,999.00 Sale price Rs. 9,499.00
Sale Sold out
  • Free Shipping: We deliver to 27000+ pin codes in India.
  • 10-Days Return: We got you covered with easy returns.
  • Original Warranty: This product has original Brand warranty.
Easy Returns Cancellation Policy Shipping Policy Trust Center
  • DEEPCOOL DQ850-M comes with 80 Plus Gold certification. It is designed to deliver 1050 Watts at a typical minimum efficiency of 91.2%.
  • The Fully Modular SMPS gives extended connectivity with 2x SATA, 3x 4-Pin, 2x 6 PCI-e+2 Pin connectors giving guaranteed universal compatibility with all major motherboards.

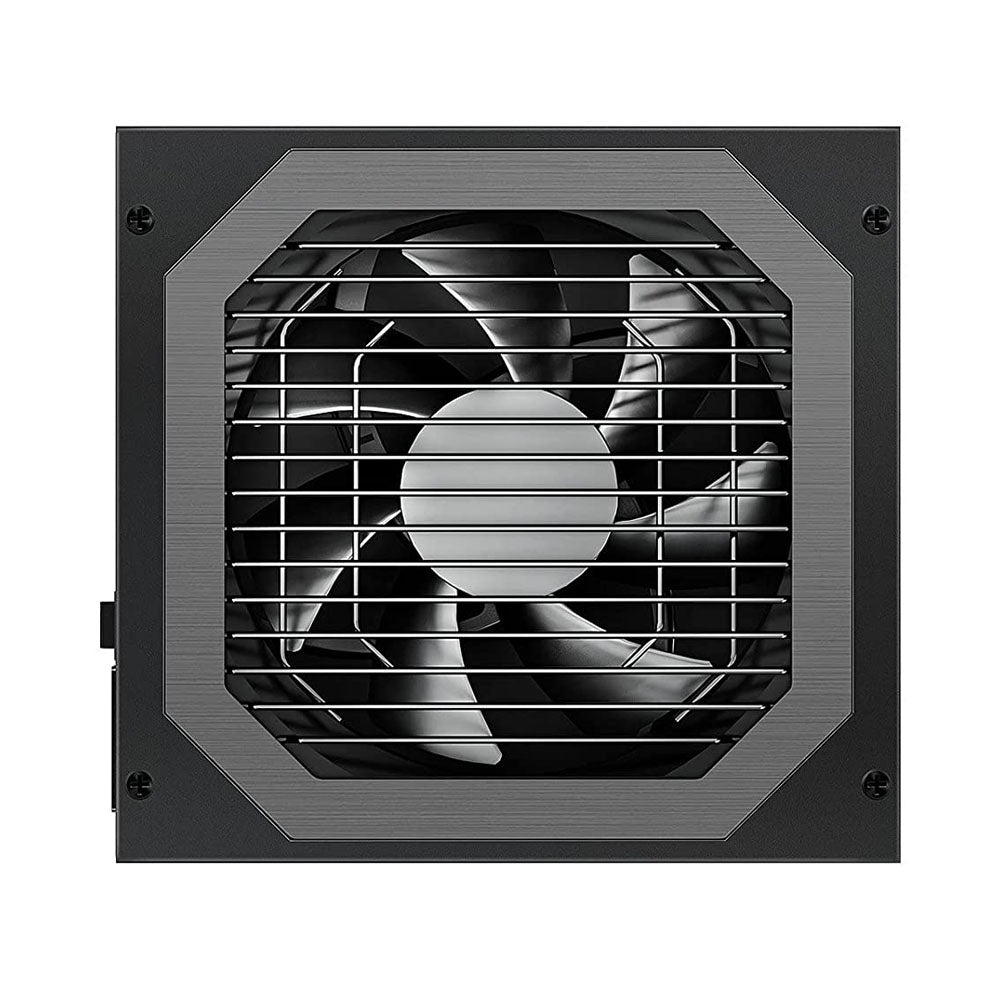

  • Equipped with 120mm FDB fan, the DQ850-M works smartly at low noises depending on the load and mode of operation. .
  • Enabled with Active PFC, the SMPS comes with a bunch of protections including OVP, OPP, SCP, UVP and OTP.
  • The DQ850-M-V2L delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.

~section~

DEEPCOOL DQ850 850W Full Modular SMPS Power Supply - From TPSTech
DEEPCOOL DQ850 850W Full Modular SMPS Power Supply - From TPSTech

80 PLUS Gold Certified

Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat. Built to deliver stable output capacity with high conversion efficiency, the DQ850-M-V2L offers better reliability for your PC system.

DEEPCOOL DQ850 850W Full Modular SMPS Power Supply - From TPSTech

Top-Notch Design

Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ850-M-V2L delivers improved performance with lower power dissipation.

DEEPCOOL DQ850 850W Full Modular SMPS Power Supply - From TPSTech

Power & Performance in Small Form Factor

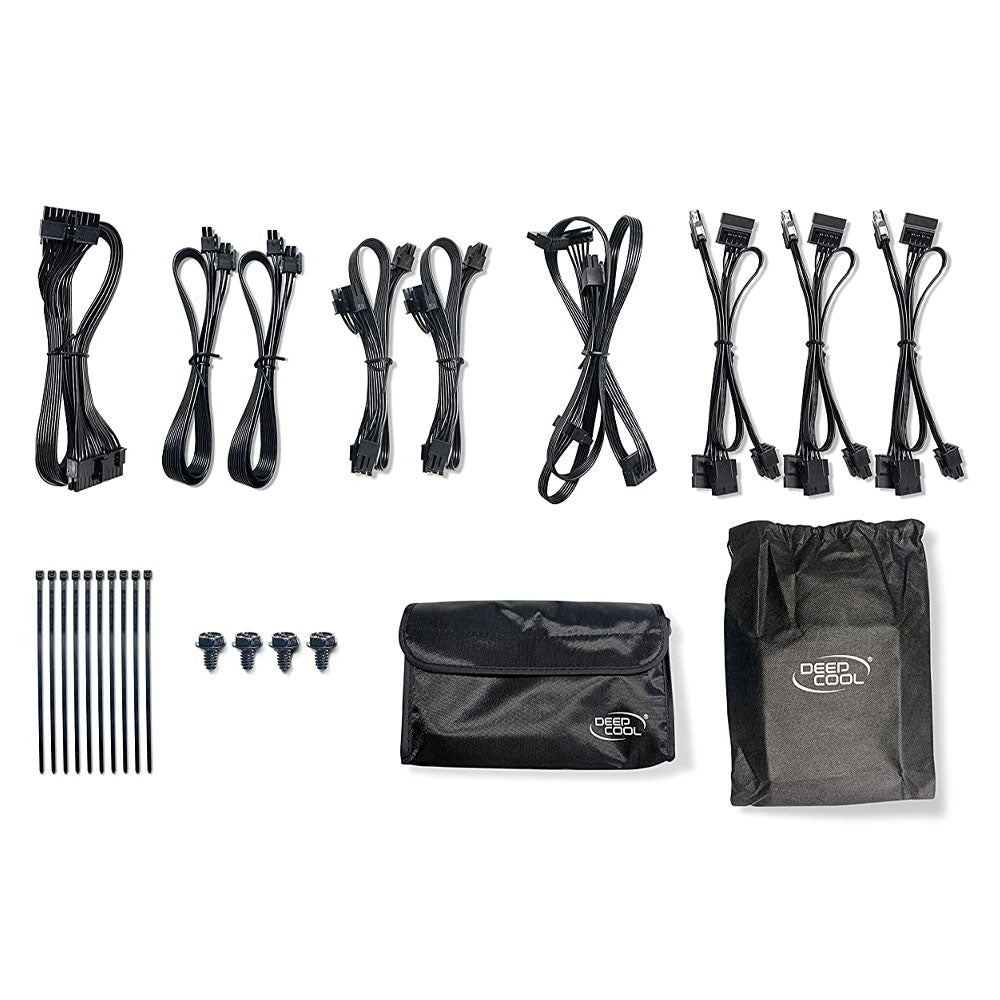

Easy cable management with flat cables keep your system clean and tidy. The DQ850-M-V2L fully modular 850W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs.

DEEPCOOL DQ850 850W Full Modular SMPS Power Supply - From TPSTech

High grade Japanese 105℃ PFC Boost Capacitor

DEEPCOOL DQ850 850W Full Modular SMPS Power Supply - From TPSTech

Excellent 1 and 2-stage EMI filter circuit

DEEPCOOL DQ850 850W Full Modular SMPS Power Supply - From TPSTech

Highly reliable supervisor IC for protections

~section~

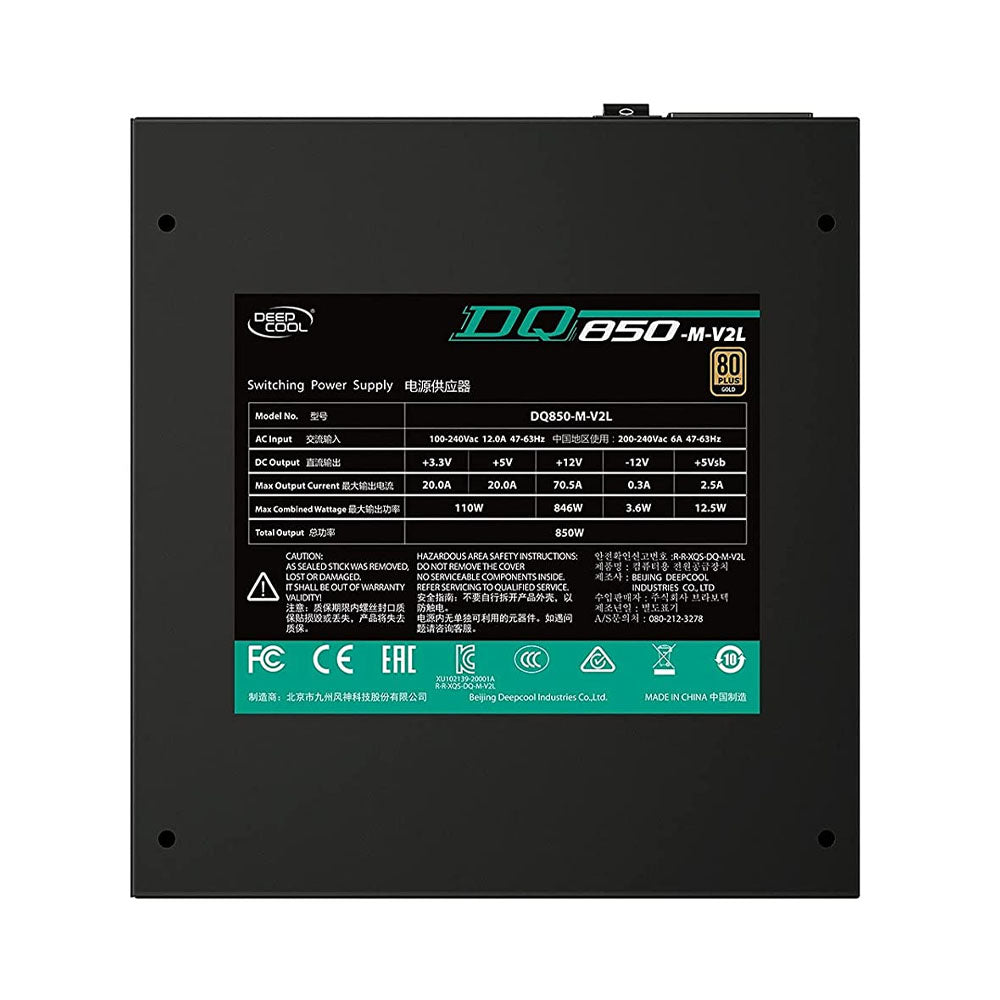

Model DQ850-M-V2L
Modular Full Modular
Compliant with CCC, CE, RCM, EAC, FCC, KCC, CB
Efficiency 80 PLUS GOLD Certified up to 91.2% efficiency
Input Voltage 100-240Vac
Input Current 12.0A
Input Frequency 47-63Hz
Wattage 850W
PSU Form Factor ATX 12V V2.4
PFC Active PFC
Fan 120 mm

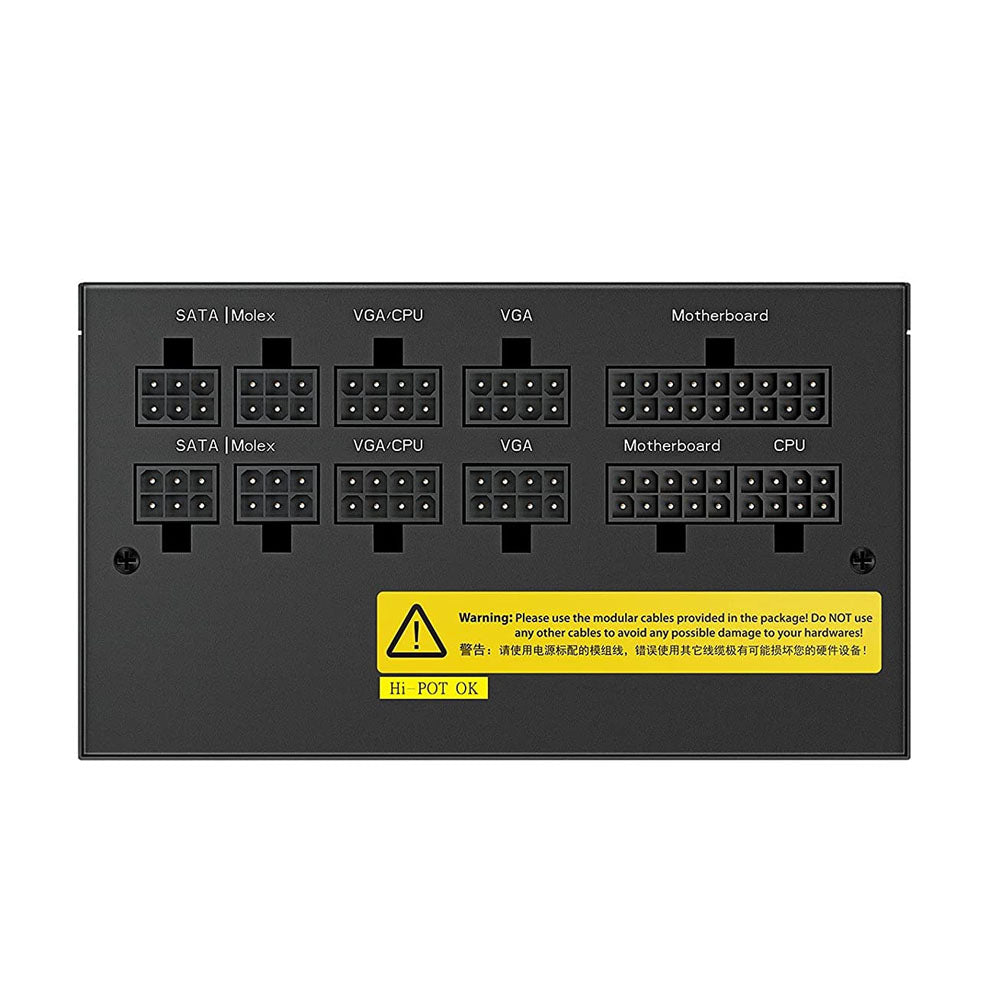

Connectors 1 x Main Power 24(20+4)Pin connector
2 x EPS 12V 8(4+4) pin connectors
4x SATA connectors
2x SATA
3 x PERIPHERAL 4-pin connectors
2 x PCI-E 6+2 pin connectors
MTBF 100,000 Hours
Protection OVP, OPP, SCP, UVP, OTP
Dimension 150 × 160 × 86 mm
Warranty 10 Year Warranty
