D‑Link DES‑1005C 5‑Port Fast Ethernet Unmanaged Switch Fanless Desktop Design
D‑Link DES‑1005C 5‑Port Fast Ethernet Unmanaged Switch Fanless Desktop Design
Regular price
Rs. 799.00
Regular price
43% off
Rs. 1,399.00
Sale price
Rs. 799.00
Quantity
Loading Offers...
+ Offers
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
✅ 5× 10/100 Mbps Fast Ethernet Ports – Expand your network easily with reliable wired connectivity
⚡ Energy‑Efficient Ethernet (802.3az) – Automatically reduces power usage based on cable length and activity
🔇 Silent Fanless Design – Perfect for quiet home or office setups without noise interruptions
🔄 Auto MDI/MDIX Support – Eliminates the need for crossover cables, ensuring hassle‑free plug & play
🛡️ 802.3x Flow Control & Store‑and‑Forward – Prevents packet loss and guarantees smooth data transfer
📈 High Switching Capacity (1 Gbps) – Handles up to 0.74 Mpps forwarding with a 2,000‑address MAC table
⚡ Energy‑Efficient Ethernet (802.3az) – Automatically reduces power usage based on cable length and activity
🔇 Silent Fanless Design – Perfect for quiet home or office setups without noise interruptions
🔄 Auto MDI/MDIX Support – Eliminates the need for crossover cables, ensuring hassle‑free plug & play
🛡️ 802.3x Flow Control & Store‑and‑Forward – Prevents packet loss and guarantees smooth data transfer
📈 High Switching Capacity (1 Gbps) – Handles up to 0.74 Mpps forwarding with a 2,000‑address MAC table

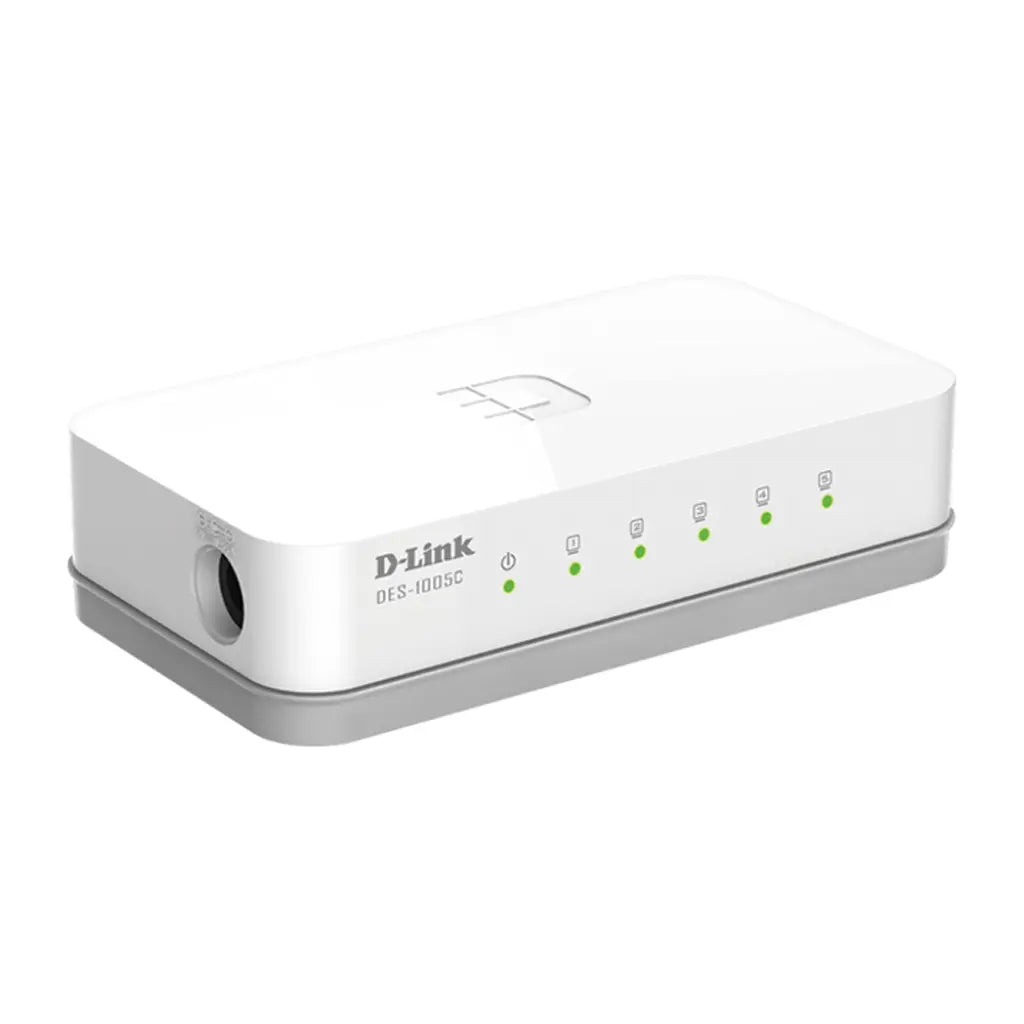

The D-Link DES-1005C is a compact 5-port unmanaged Fast Ethernet switch designed for home and small office networks.It offers plug-and-play convenience with auto MDI/MDIX and energy-saving 802.3az technology.A fanless design ensures silent operation, while 802.3x flow control enhances reliability.With full-duplex speeds up to 200 Mbps and a 1 Gbps switching fabric, it delivers consistent performance.
Product Specifications:
Product Specifications:
| Specification | Details |

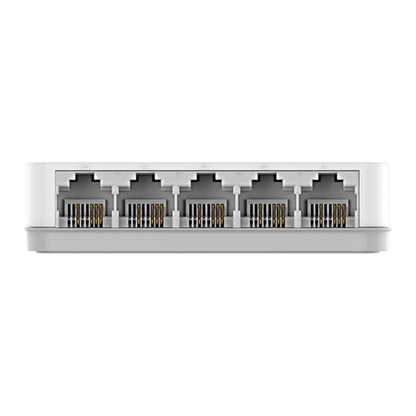

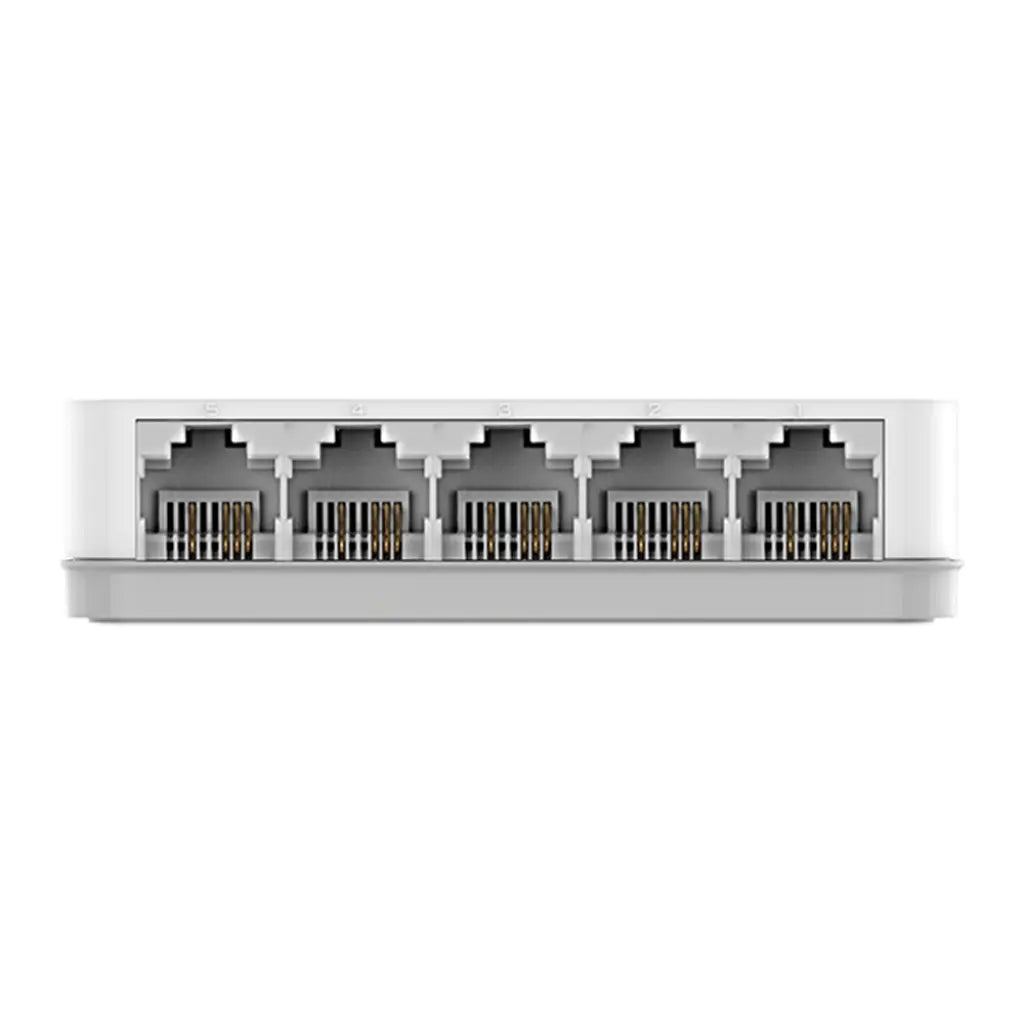

| Device Interfaces | 5 × 10/100 Mbps LAN Ports |
| Standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control |
| Switching Capacity | 1 Gbps Switching Fabric |
| Advanced Features | Auto MDI/MDIX, Store-and-Forward Switching, Full/Half Duplex, Back Pressure, Auto-Negotiation |
| Data Transfer Rates | Ethernet: 10 Mbps (Half), 20 Mbps (Full) |
| Fast Ethernet: 100 Mbps (Half), 200 Mbps (Full) | |
| Transmission Method | Store-and-Forward |
| MAC Address Table | 1K |
| Packet Forwarding | Ethernet: 14,880 pps per port |
| Fast Ethernet: 148,800 pps per port | |
| RAM Buffer | 56 KB per device |

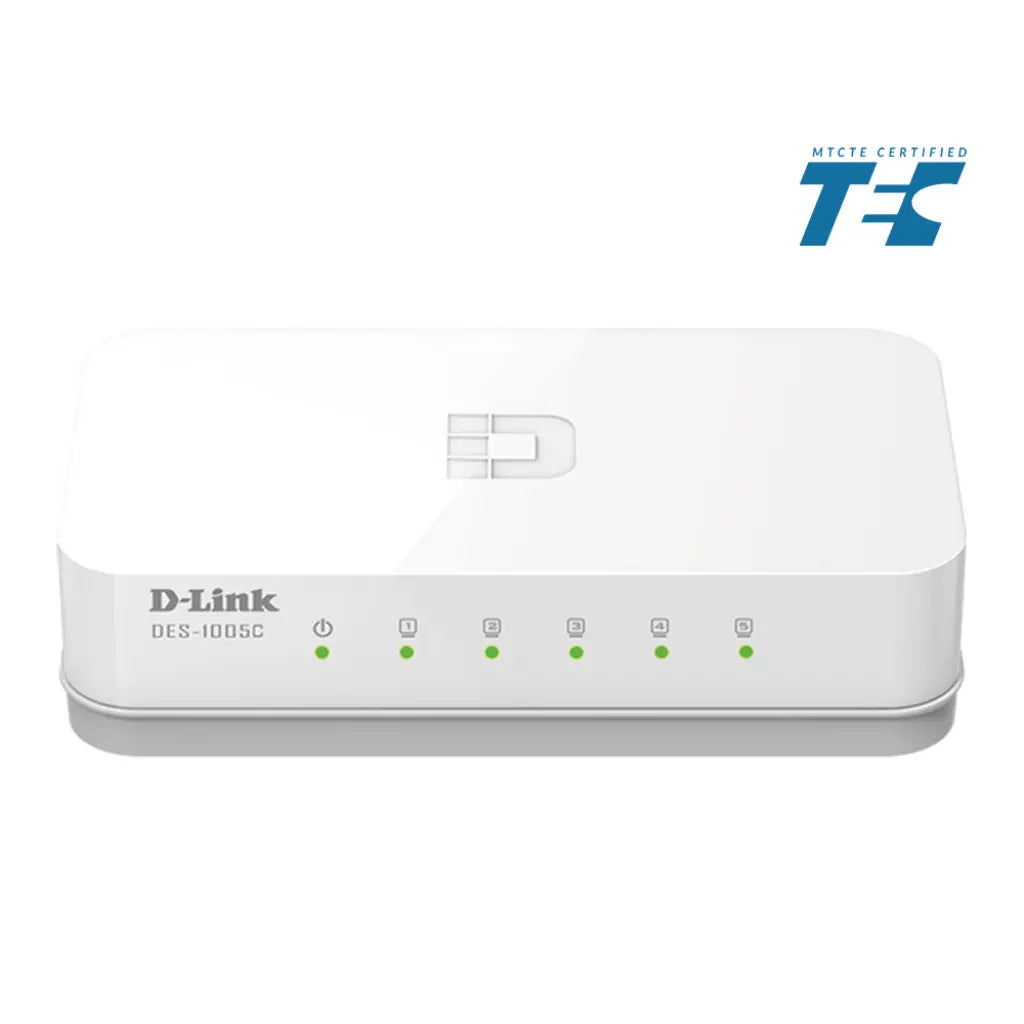

| LED Indicators | Per Port: Link/Activity/Speed |
| Per Device: Power | |
| Dimensions | 87 × 47 × 21 mm (3.42 × 1.85 × 0.83 inches) |
| Weight | 45 grams (1.58 ounces) |

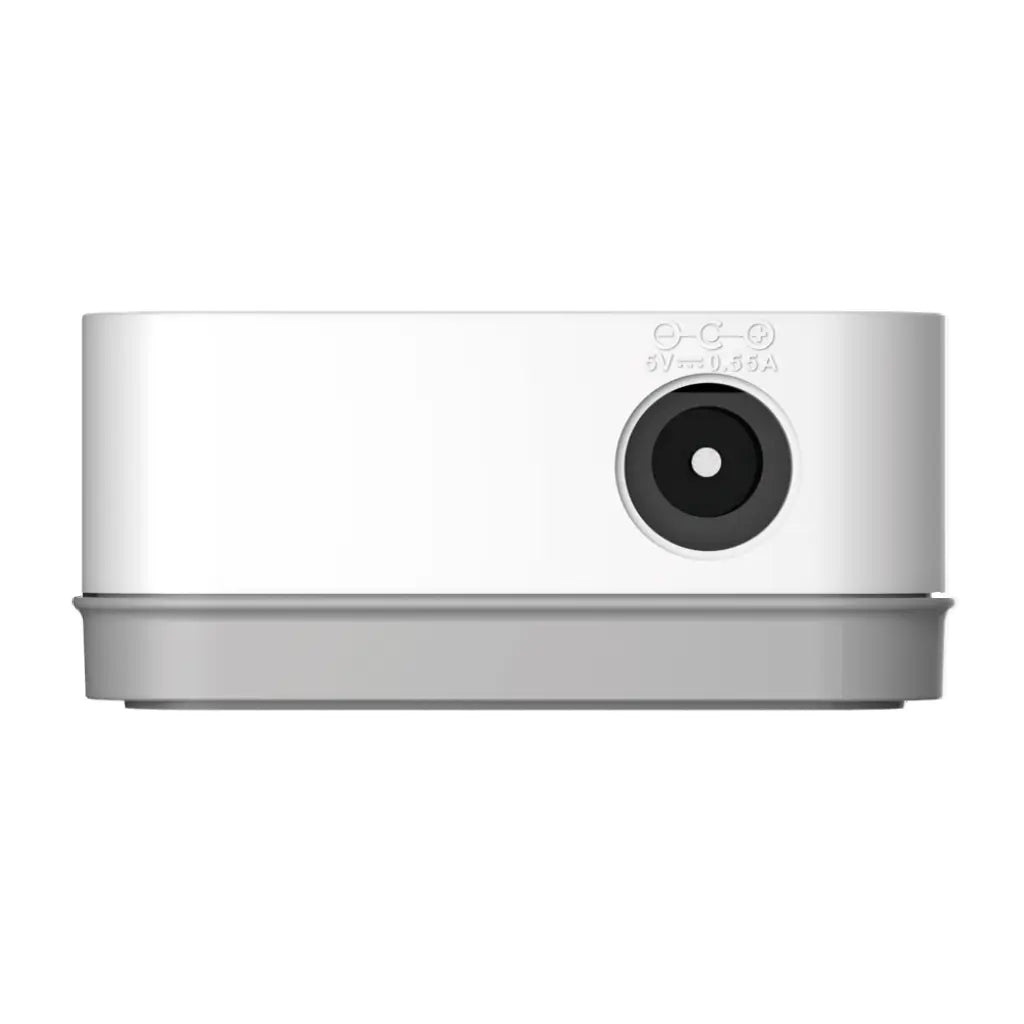

| Power | DC 5 V / 0.55 A |
| Power Consumption | Standby: 0.4 W |
| Maximum: 1.1 W | |
| Temperature | Operating: 0–40 °C |
| Storage: -40–70 °C | |
| Humidity | Operating: 10–90% non-condensing |
| Storage: 5–95% non-condensing | |
| MTBF | 1,405,335 hours |
| Certifications | CE Class B, CE LVD, FCC Class B, MTCTE |
