GIGABYTE B450M S2H V2 AMD AM4 Ultra Durable M-ATX DDR4 Motherboard

GIGABYTE B450M S2H V2 AMD AM4 Ultra Durable M-ATX DDR4 Motherboard

Brand: GIGABYTE
Rs. 5,799.00
56% off Rs. 5,799.00 Sale Sold out Rs. 12,999.00
Taxes included. Free Shipping.

Product Description:
AMD B450 Ultra Durable Motherboard with GIGABYTE Gaming LAN and Bandwidth Management, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistor Design.
  • Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors.
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • HDMI, DVI-D, D-sub Ports for Multiple Display
  • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • RGB Fusion supports RGB LED Strips in 7-Colors
  • High Quality Audio Capacitors and Audio Noise Guard Design
  • Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
  • APP Center Including EasyTune and Cloud Station Utilities



Model B450M S2H (rev. 1.x)
CPU Support AM4 Socket: Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors.
CPU Socket AM4 Socket
Chipset AMD B450
Form Factor Micro ATX Form Factor
Memory
  • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Expansion Slot 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
Onboard Graphics

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Maximum shared memory of 16 GB
I/O Controller iTE I/O Controller Chip
Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)4 x SATA 6Gb/s connectors
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
USB

Chipset:
2 x USB 3.1 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

CPU:
4 x USB 3.1 Gen 1 ports on the back panel
LAN Realtek GbE LAN chip (10/100/1000 Mbit)
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

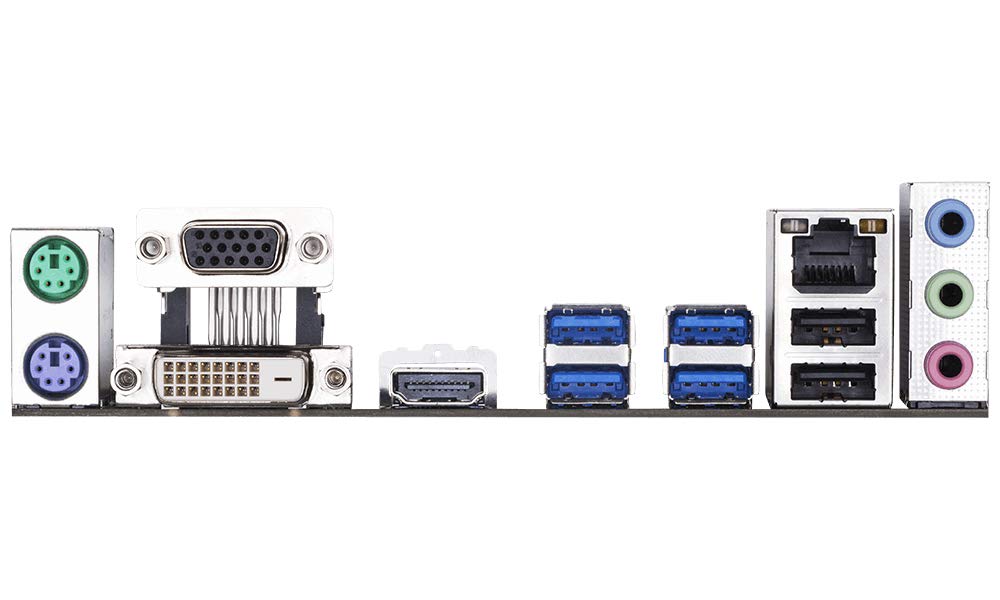

Back-Panel Ports 1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x CPU cooler LED strip/RGB LED strip header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
Operating System Support for Windows 10 64-bit
Support for Windows 7 64-bit
Dimension Micro-ATX
24.4cm x 20.5cm
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Warranty 3 Years Brand Warranty
