Gigabyte B760M DS3H GEN5 Intel B760 LGA1700 DDR5 Micro-ATX Motherboard
Gigabyte B760M DS3H GEN5 Intel B760 LGA1700 DDR5 Micro-ATX Motherboard
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🔥 PCIe 5.0 Ready: Enjoy next-gen bandwidth for GPUs and storage with PCIe 5.0 x16 slot.
⚡ DDR5 Memory Support: 4 DIMM slots supporting up to 256GB DDR5, speeds up to 7600MHz (OC).
🛡️ Ultra Durable Design: 6+2+1 Hybrid VRM phases, premium chokes & capacitors for stability.
🌐 High-Speed Networking: Realtek® 2.5GbE LAN for ultra-fast and reliable connectivity.
💾 Advanced Storage Options: Dual PCIe 4.0 M.2 slots + 4 SATA 6Gb/s ports for flexible storage.
❄️ Smart Cooling: Smart Fan 6 with multiple sensors and hybrid fan headers for optimal cooling.
The Gigabyte B760M DS3H GEN5 motherboard delivers cutting-edge performance for Intel 12th, 13th, and 14th Gen processors. Featuring PCIe 5.0 support, DDR5 memory compatibility, and advanced thermal design, it ensures superior speed and stability for gaming and productivity. With dual M.2 slots, 2.5GbE LAN, and Smart Fan 6, this Micro-ATX board is built for high-performance PC builds. Upgrade to next-gen technology with Gigabyte’s Ultra Durable design.
Product Specifications:
| Specification | Details |
| Brand | Gigabyte |
| Model | B760M DS3H GEN5 |
| Chipset | Intel B760 |
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Memory Support | DDR5 up to 7600MHz (OC), 4 DIMMs, max 256GB |
| Expansion Slots | 1 x PCIe 5.0 x16, 2 x PCIe 3.0 x1 |
| Storage | 2 x M.2 PCIe 4.0, 4 x SATA 6Gb/s |
| Networking | Realtek® 2.5GbE LAN |

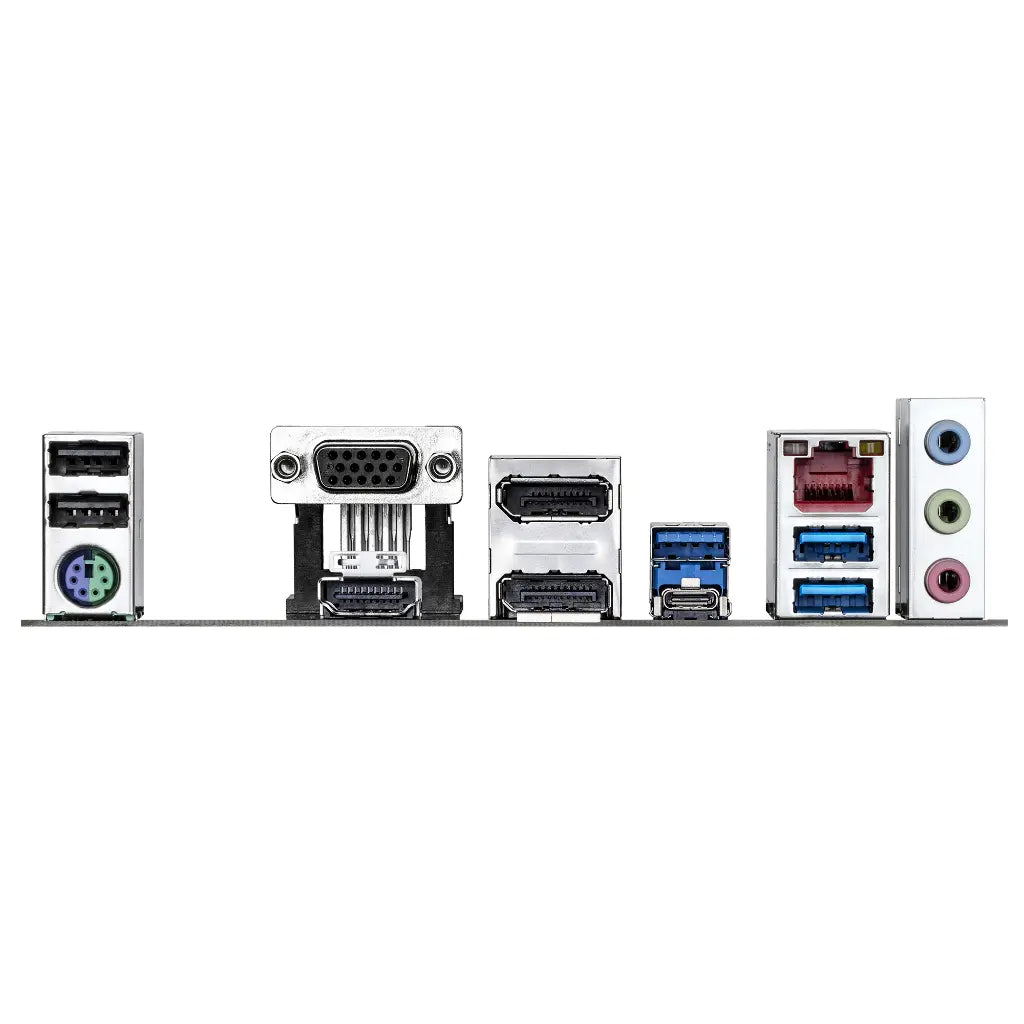

| USB Ports | Rear: 1 x USB-C (Gen 2), 3 x USB 3.2 Gen1, 2 x USB 2.0 |
| Audio | Realtek® High Definition Audio |
| Graphics Outputs | HDMI 2.1, DisplayPort, D-Sub |
| Cooling Features | Smart Fan 6, Hybrid Fan Headers |
| Country of Origin | China |
| Model Number | B760M DS3H GEN5 |
| Warranty | 3 Years |
| Weight | 1.2 kg |
