Microtek 2KVA IB-MAX+ Online UPS Pure Sinewave for Servers
Microtek 2KVA IB-MAX+ Online UPS Pure Sinewave for Servers
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
⚡ Double Conversion Online Technology: Delivers uninterrupted pure sinewave power with continuous AC-to-DC-to-AC conversion for critical equipment.
🛡️ Reliable Power Protection: Wide input voltage range, advanced PFC, overload, short-circuit and over-temperature protection help safeguard connected equipment.
🔋 72V In-Built Battery System: Includes six 12V 7Ah batteries with advanced battery management and 1.5A charging current.

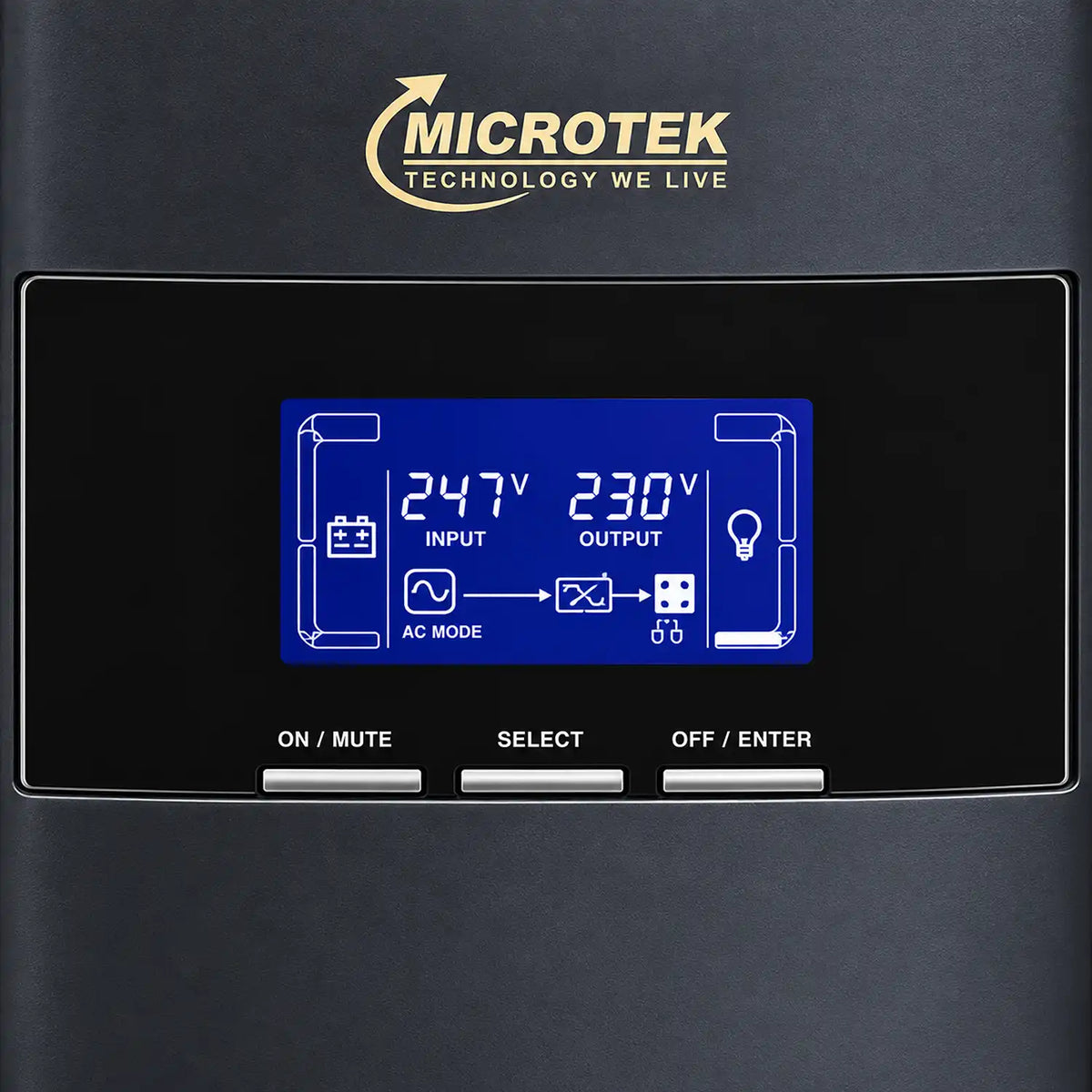

🖥️ Smart Monitoring & Connectivity: LCD display, RS232 communication with monitoring software and optional SNMP card support provides convenient monitoring.
🏢 Designed for Critical Applications: Suitable for computer networks, servers, cyber cafes, ATM machines and laboratories, with generator compatibility.
The Microtek ONLINE UPS 2KVA 1PH:1PH 72V-IB MAX+ is a high-frequency double-conversion online UPS rated at 2KVA/1800W. It provides pure sinewave output with zero transfer time from AC to battery mode and built-in 72V batteries. With wide input voltage handling, advanced PFC, protection features and RS232 monitoring, it is designed for servers, computer networks, ATMs, laboratories and other critical applications.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | Microtek |
| Model | ONLINE UPS 2KVA 1PH:1PH 72V-IB MAX+ |
| SKU | 899-711-2001 |
| UPS Technology | High Frequency Double Conversion Online |
| Rated Capacity | 2 KVA / 1800 Watts |
| Phase | Single Phase Input, Single Phase Output |
| Input Voltage Range, Load <50% | 118 ~ 295 V (±5 V) |
| Input Voltage Range, Load >50% | 160 ~ 295 V (±5 V) |
| Input Frequency | 40 ~ 70 Hz |
| Input Phase | Single Phase with Ground |
| Power Factor | ≥0.99 at full load |
| Output Voltage | 208 / 220 / 230 / 240 V AC |
| Output Frequency, Battery Mode | 50 Hz ±0.1 Hz or 60 Hz ±0.1 Hz |
| Synchronized Frequency Range | 47 ~ 53 Hz or 57 ~ 63 Hz |
| Waveform | Pure Sinewave |
| THD, Linear Load | ≤2% |
| THD, Non-Linear Load | ≤4% |
| Crest Factor | 3:1 Max |
| AC to Battery Transfer Time | Zero |
| Inverter to Bypass Transfer Time | <4 ms |
| Efficiency | 85% ~ 92% |
| Battery Configuration | 72V, 7Ah/12V × 6 batteries in-built |
| Battery Charge Current | 1.5 Amps |
| Communication Interface | RS232, SNMP Optional |
| Display/Indication | LCD Display |
| Noise Level | Less than 50 dBA at 1 metre with fan speed control |
| UPS Overload | 110% |
| UPS Short Circuit | 300% |
| Overload Behaviour | >110%, 30 seconds to bypass; >150%, instant bypass |
| Protection | Short Circuit, Overload, Over Temperature, DC Fan Failure, Over Voltage Cut-Off |
| EMI/RFI Protection | EMI / RFI Noise Filter |
| Battery Management | Advanced Battery Management |
| Battery Charging in UPS Off Mode | Yes |
| Generator Compatibility | Yes |
| Static Bypass | Enable / Disable |
| Outlets | Programmable and Non-Programmable |
| Output Frequency Setting | Fixed at 50Hz or synchronizable with input frequency |
| Isolation Transformer | Optional |
| SNMP Card Slot | Optional |
| Dimensions (L × W × H) | 19 × 42.1 × 31.8 |
| Weight | 29.04 kg |
| Warranty | 2 Years on Electronics & 1 Year on Battery |
