Microtek MAX+ 10 KVA Online UPS 1Ph:1Ph 192V with Double Conversion
Microtek MAX+ 10 KVA Online UPS 1Ph:1Ph 192V with Double Conversion
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
⚡ True Double-Conversion: Provides continuous power conditioning with zero transfer time from AC mode to battery mode for critical equipment.
🔋 Flexible Battery Configuration: Uses a default 192V DC battery bank with adjustable 216V and 240V options and supports 16, 18 or 20 batteries.
📈 High-Efficiency Performance: Delivers up to 94% efficiency in AC mode with active input power factor correction greater than 0.99 at 100% load.
🖥️ Smart Monitoring & Connectivity: LCD status monitoring plus RS-232/USB communication and optional SNMP support help with UPS management and monitoring.
🏢 Designed for Critical Applications: Pure sine wave output, generator compatibility, ECO mode, EPO, bypass options and optional N+X parallel redundancy support demanding power-backup applications.

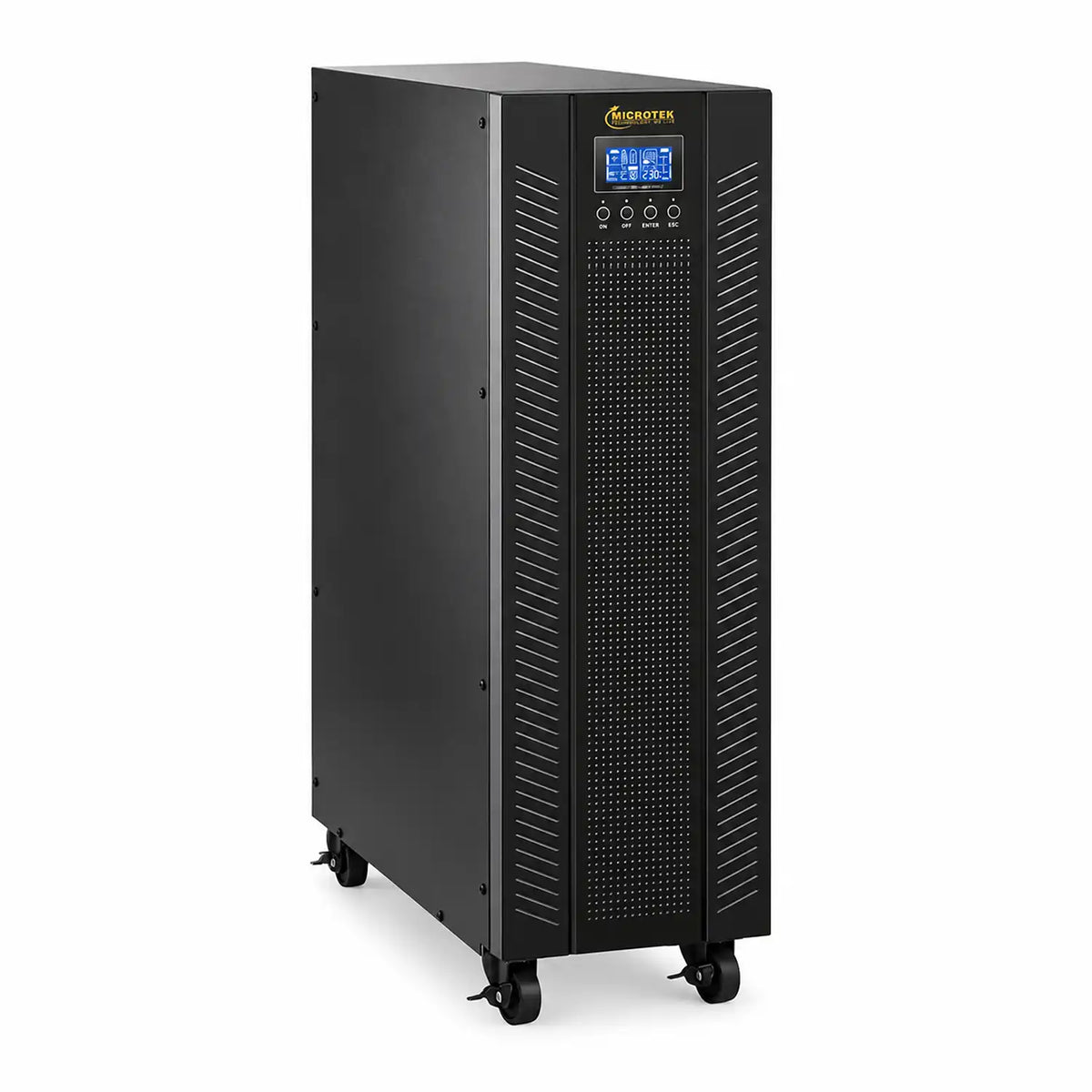

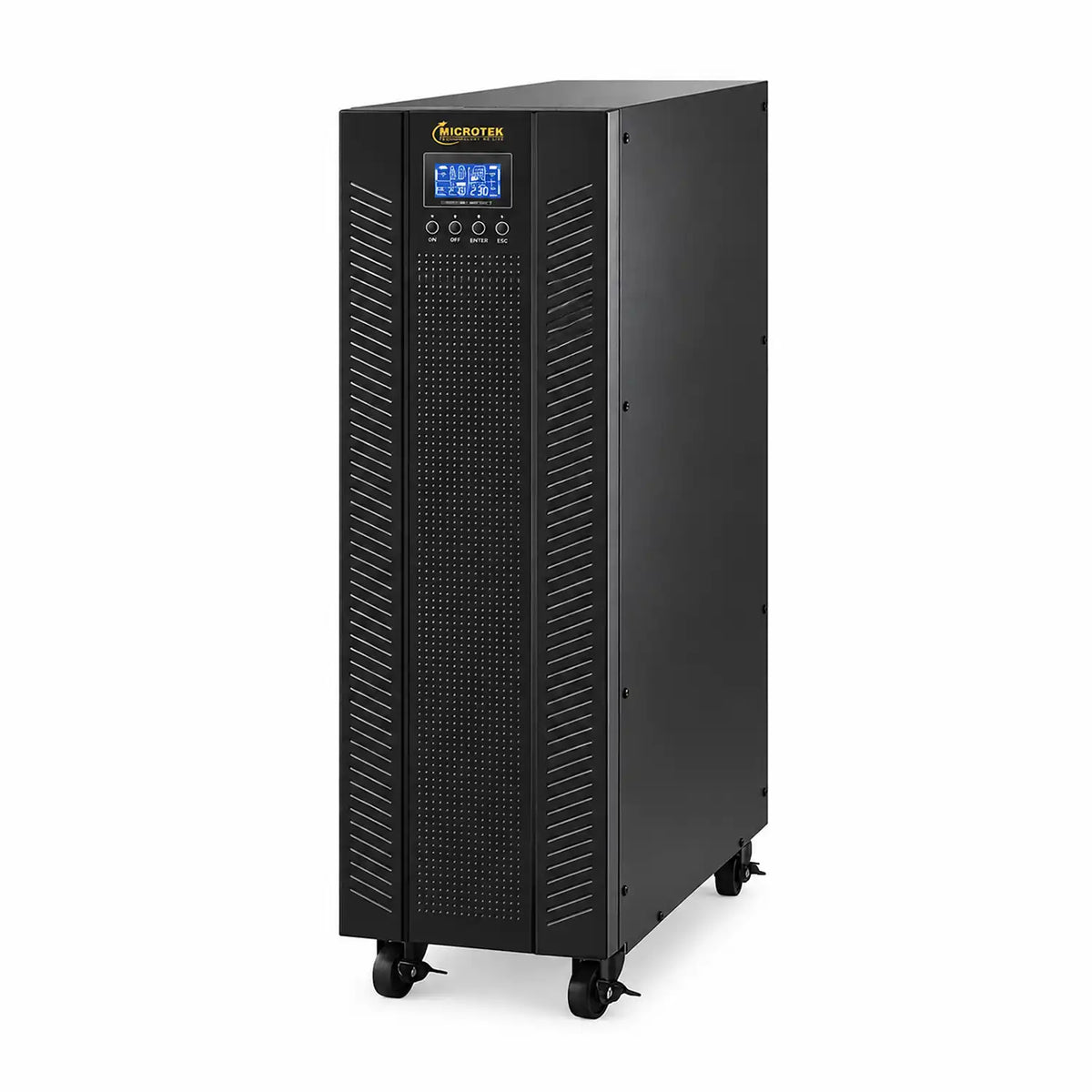

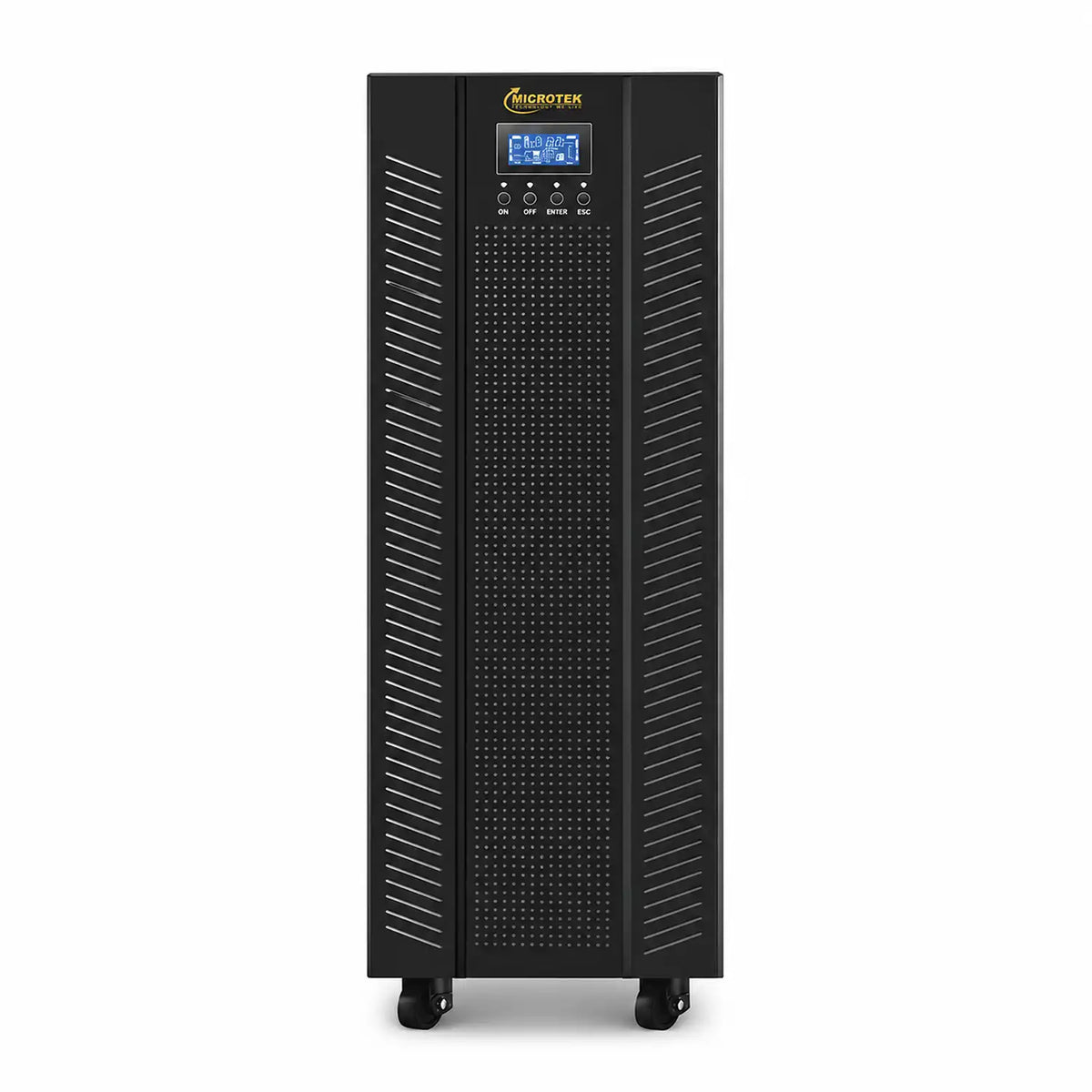

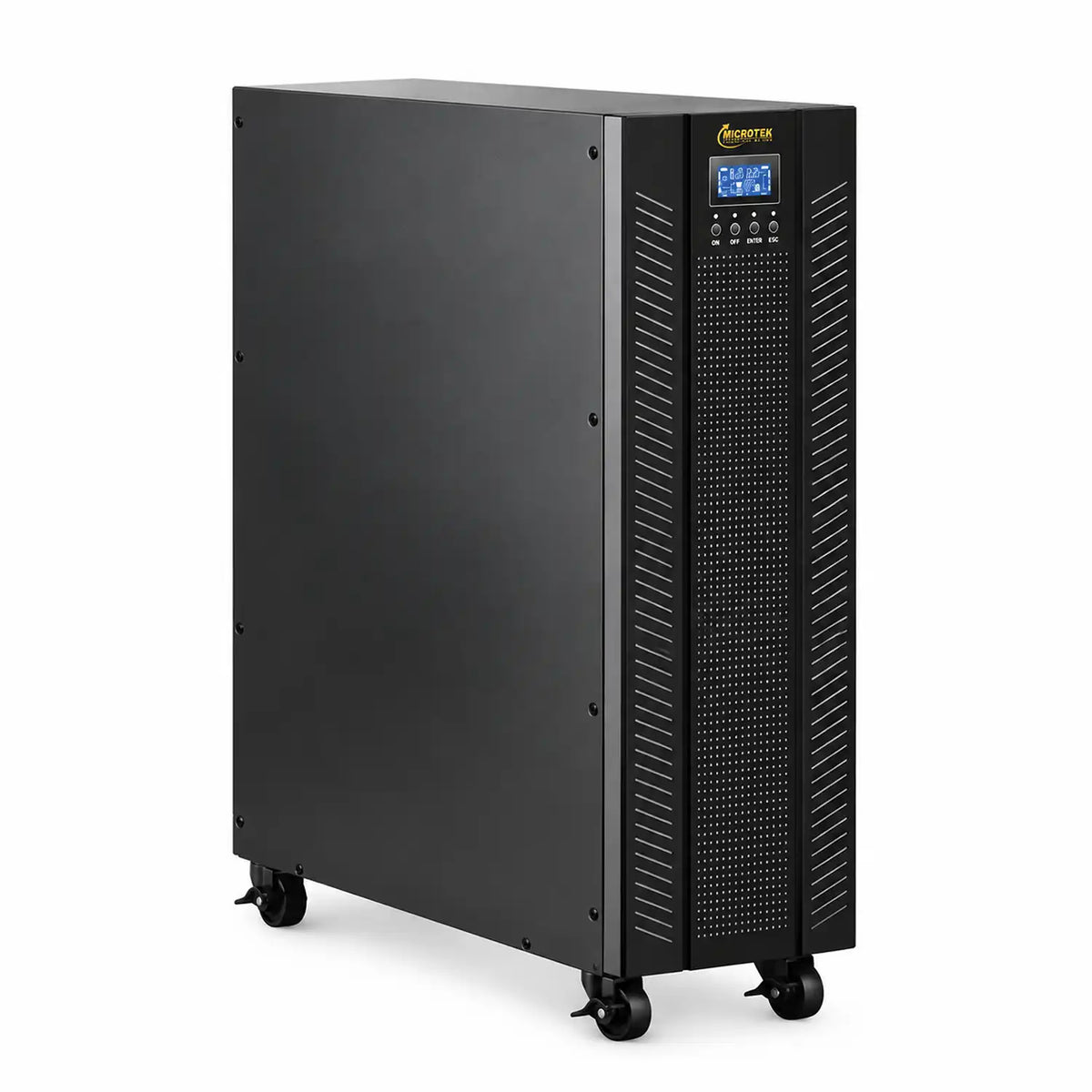

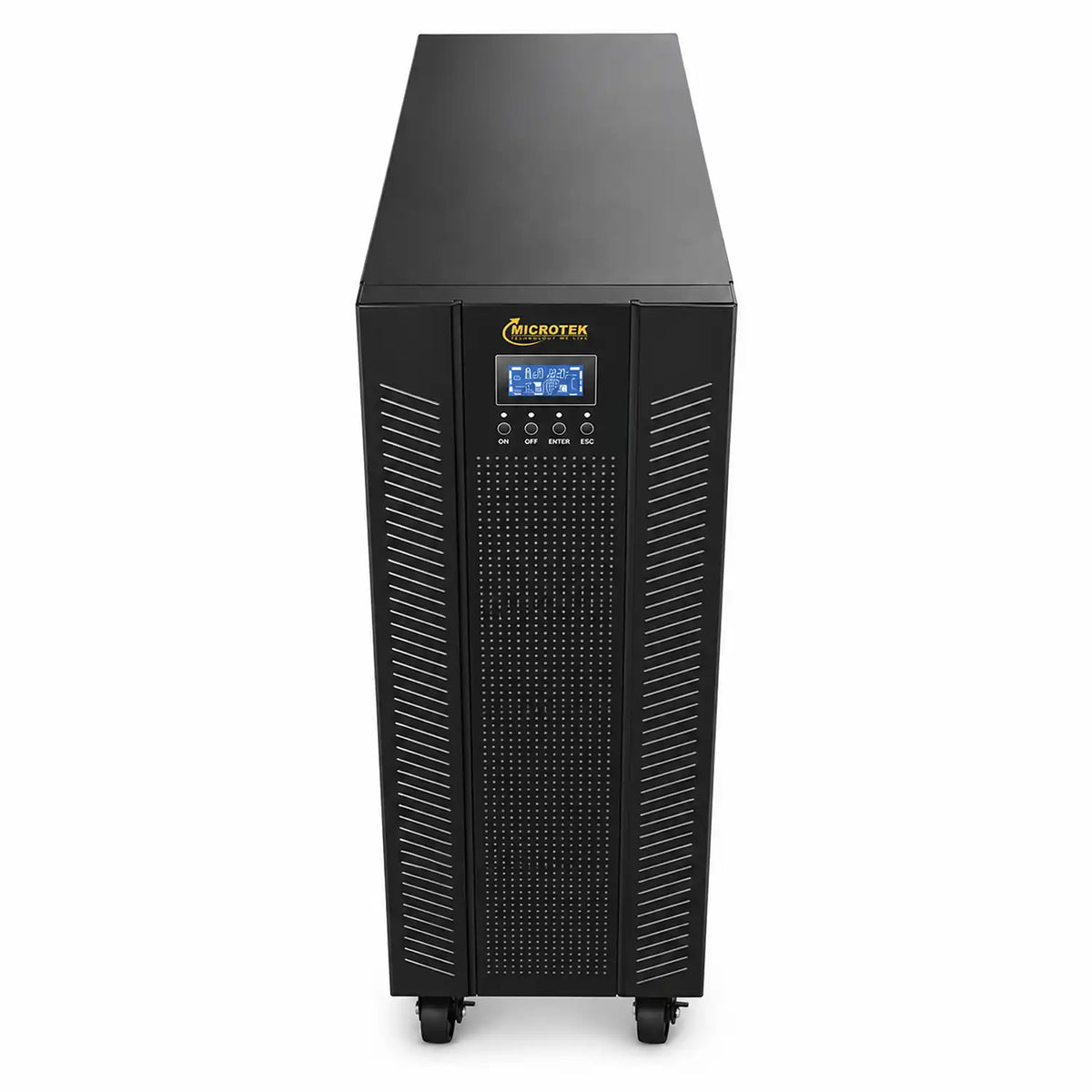

The Microtek MAX+ 10 KVA Online UPS is a 1-phase input and 1-phase output UPS rated at 10000VA/8000W, designed for high-capacity and critical power-backup applications. It features true double-conversion technology, pure sine wave battery output, up to 94% AC-mode efficiency and a wide 110-300VAC input range. With adjustable battery configurations, LCD monitoring, generator compatibility and RS-232/USB connectivity, it suits sophisticated equipment requiring stable and uninterrupted power.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | Microtek |
| Model | MAX+ 10 KVA |
| SKU | 899-601-1002 |
| Product Type | Online UPS |
| Capacity | 10000VA / 8000W |
| Phase | 1 Phase Input / 1 Phase Output |
| DC Voltage | Default: 192V DC; Adjustable: 216V DC & 240V DC |
| Input Nominal Voltage | 208/220/230/240 VAC |
| Input Voltage Range | 110-300 VAC ±3% at 50% Load; 176-300 VAC ±3% at 100% Load |
| Input Frequency Range | 46-54 Hz |
| Input Power Factor | >0.99 @ 100% Load |
| Input THD | <4% @ 100% Load; <6% @ 50% Load |
| Output Power Factor | Default: 0.8; Optional: 0.9 with Battery; 1 with 20-Battery |
| Output Nominal Voltage | 280*/220/230/240 VAC |
| AC Voltage Regulation | ±1% in Battery Mode |
| Output Frequency | 46-54 Hz synchronized; 50 Hz ±0.1 Hz in Battery Mode |
| Current Crest Ratio | 3:1 Maximum |
| Output Harmonic Distortion | <1% THD Linear Load; <4% THD Non-Linear Load |
| Waveform in Battery Mode | Pure Sine Wave |
| Transfer Time, AC to Battery | Zero |
| Transfer Time, Inverter to Bypass | Zero |
| Efficiency, AC Mode | 94% |
| Efficiency, Battery Mode | 91% |
| Overload Capability, AC Mode | 100%-110%: 10 min; 110%-130%: 1 min; >130%: 1 sec |
| Overload Capability, Battery Mode | 100%-110%: 30 sec; 110%-130%: 10 sec; >130%: 1 sec |
| Battery Type | VRLA / SMF |
| Battery Quantity | Default: 16 Nos.; Adjustable: 18 & 20 Nos. |
| Maximum Charging Current | 4.0 A |
| Charging Voltage | (13.65 VDC × Battery Number) + 1% |
| Dimensions (L × W × H) | 555 × 250 × 830 mm |
| Weight | 33 kg |
| Operating Humidity | 20-90% RH, non-condensing |
| Operating Temperature | 0-40°C |
| Noise Level | Less than 58 dB @ 1 metre |
| Display | LCD |

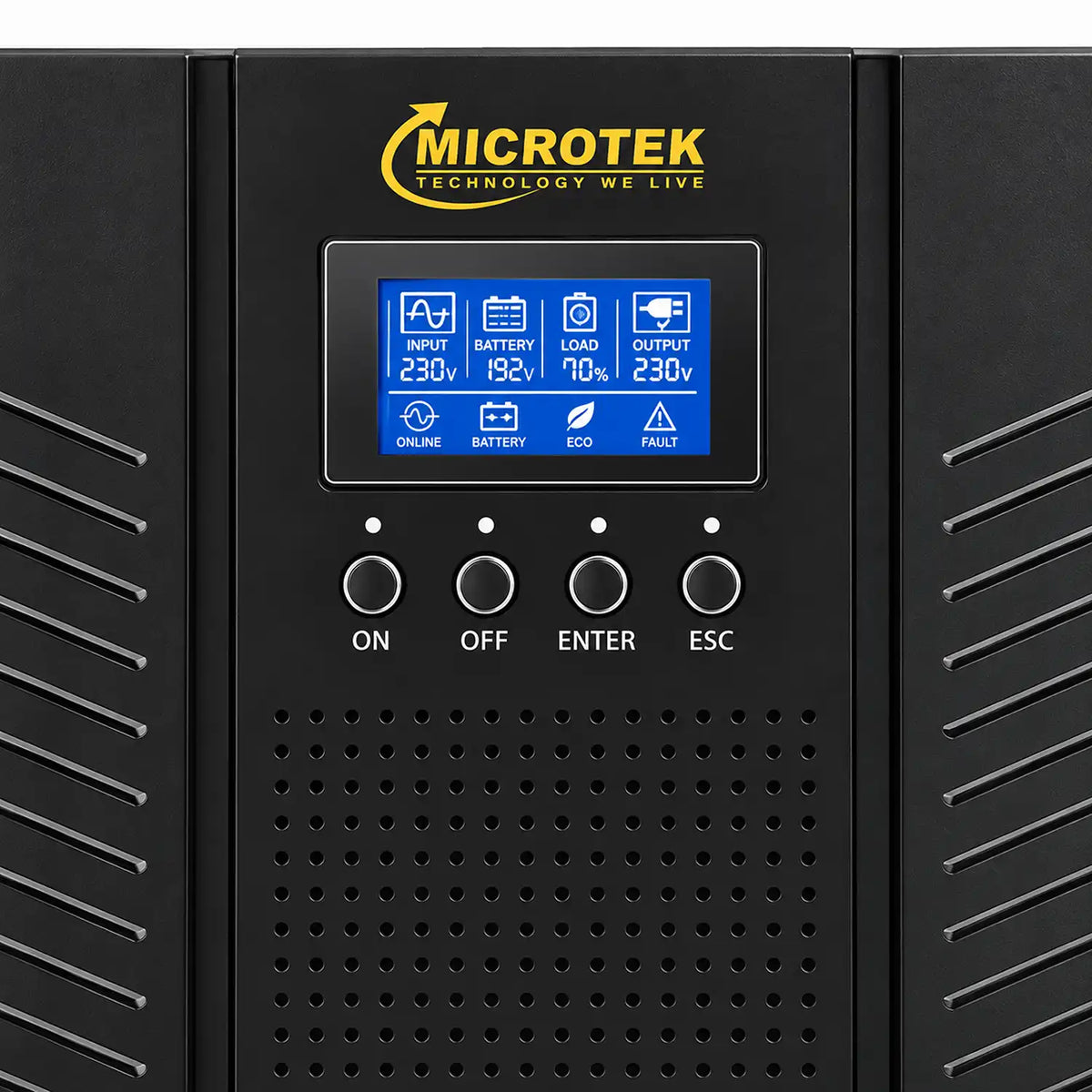

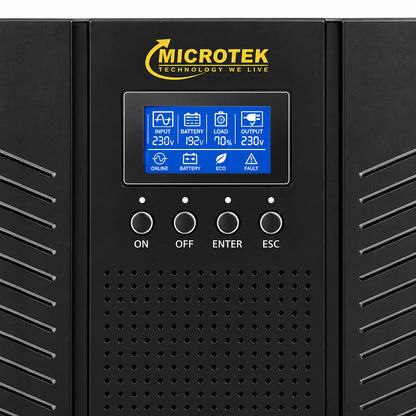

| LCD Indications | UPS status, load level, battery level, input/output voltage, input/output frequency, discharge timer and fault status |
| Communication | Smart RS-232 or USB |
| Supported Operating Systems | Windows 2000/2003/XP/Vista/2008/7/8/10, Linux & Mac |
| SNMP | Optional |
| Battery Management | Advanced Battery Management (ABM) |
| Technology | Microprocessor-based PWM technology using high-grade IGBTs |
| Power Factor Correction | Active Input Power Factor Correction 0.99 |
| Frequency Converter Mode | 50Hz/60Hz |
| Emergency Power Off | EPO |
| Energy Saving | ECO Mode |
| Bypass | Maintenance Bypass & Static Bypass Available |
| Parallel Redundancy | Optional N+X Parallel Redundancy |
| Surge Protection | In-built Surge Protection with OVCD available |
| Generator Compatibility | Yes |
| Output Technology | Pure Sinewave |
| Primary Application | High-capacity sophisticated applications |
| Warranty | 2 Year Manufacturer Warranty |
