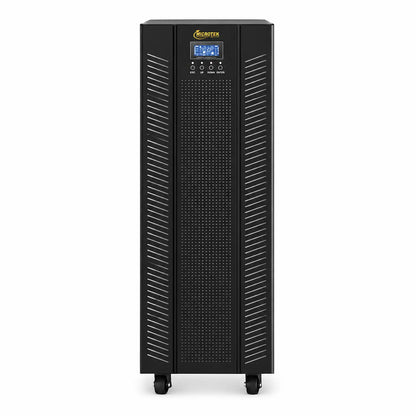

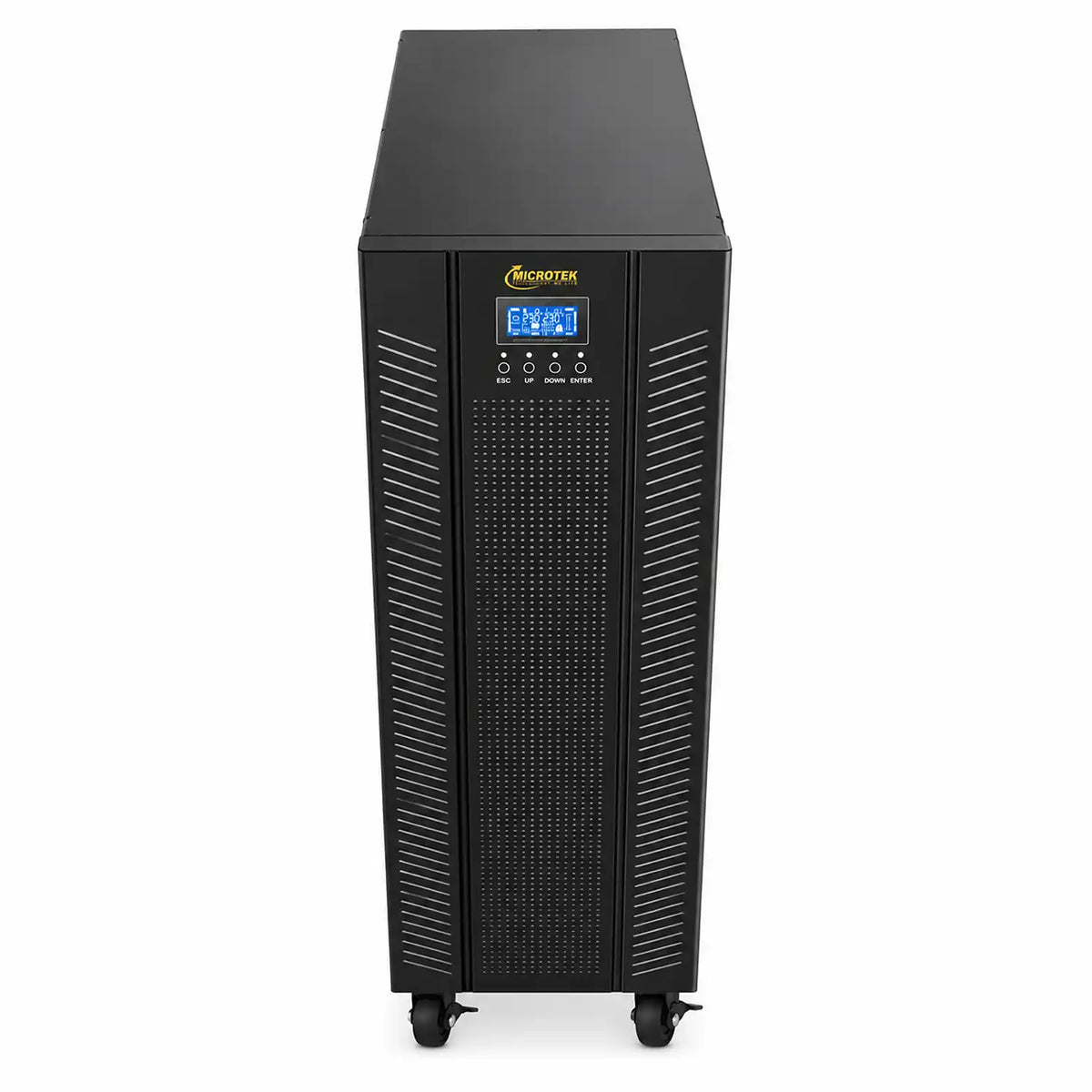

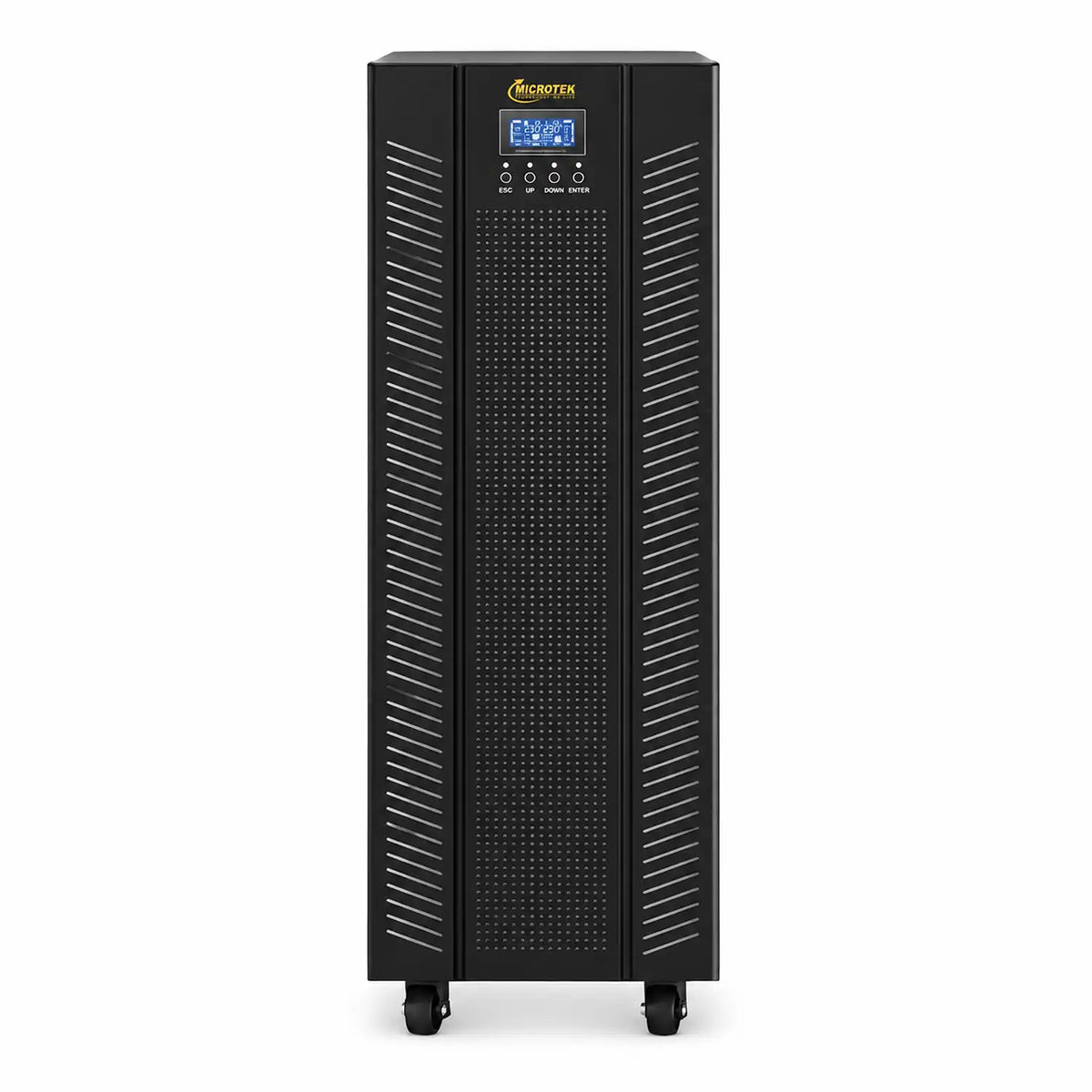

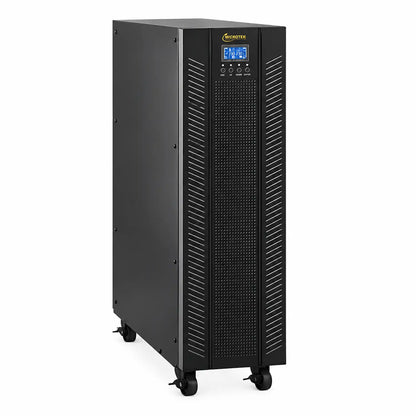

Microtek Supermax+ 20 kVA Online UPS with Pure Sine Wave for 3:3 Phase
Microtek Supermax+ 20 kVA Online UPS with Pure Sine Wave for 3:3 Phase
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
⚡ 20 kVA Capacity: Provides 20 kVA capacity with an 18-kW output for high-capacity power backup requirements.
🔄 Online Double Conversion: High-frequency DSP-controlled IGBT double-conversion technology delivers regulated power with pure sine wave output.
🔋 External Battery Support: Works with external SMF, VRLA or tubular battery banks in a 32 × 12 V configuration for ±192 V DC.
🛡️ Multiple Protections: Includes overload, short-circuit, deep-discharge, over-temperature and surge protection for connected equipment.

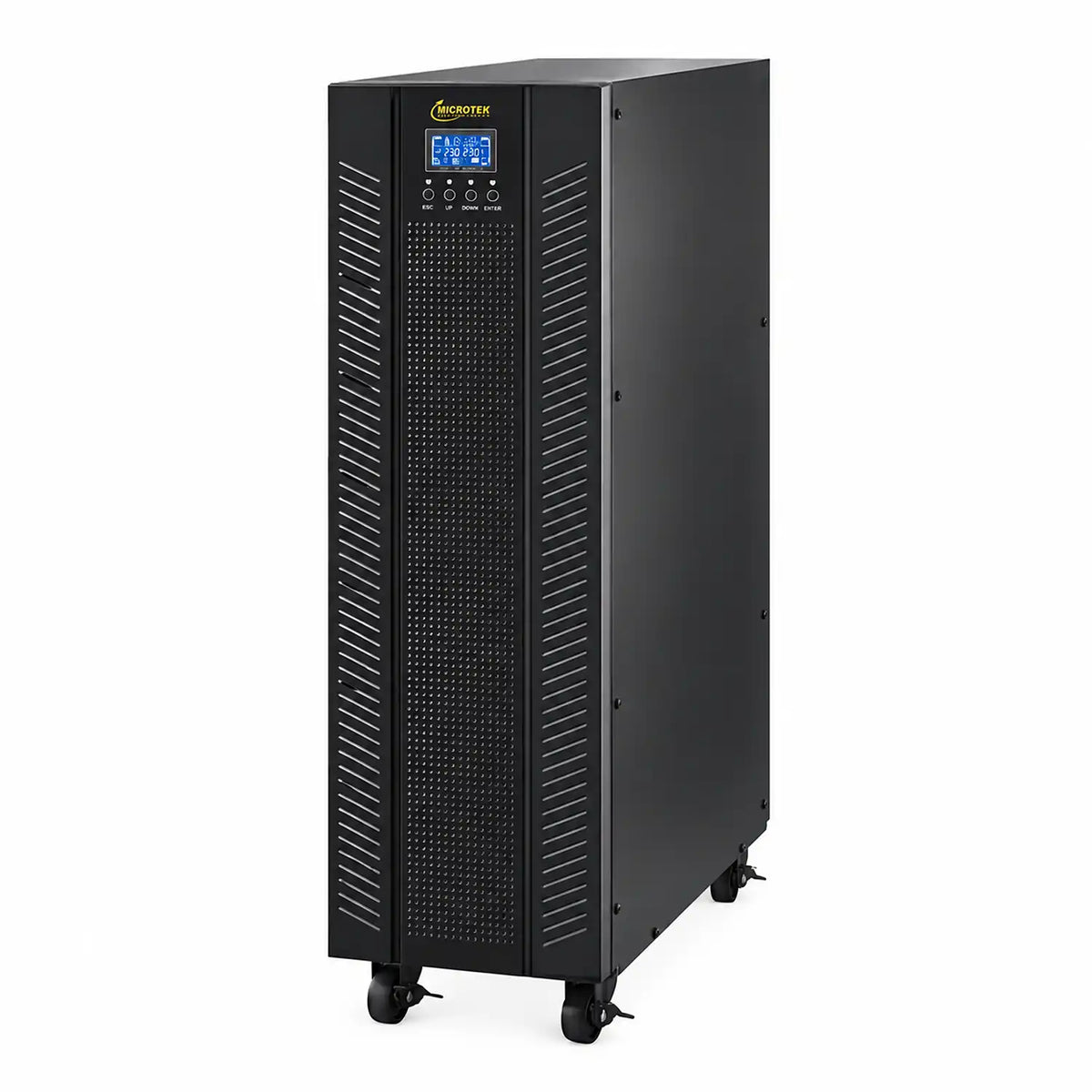

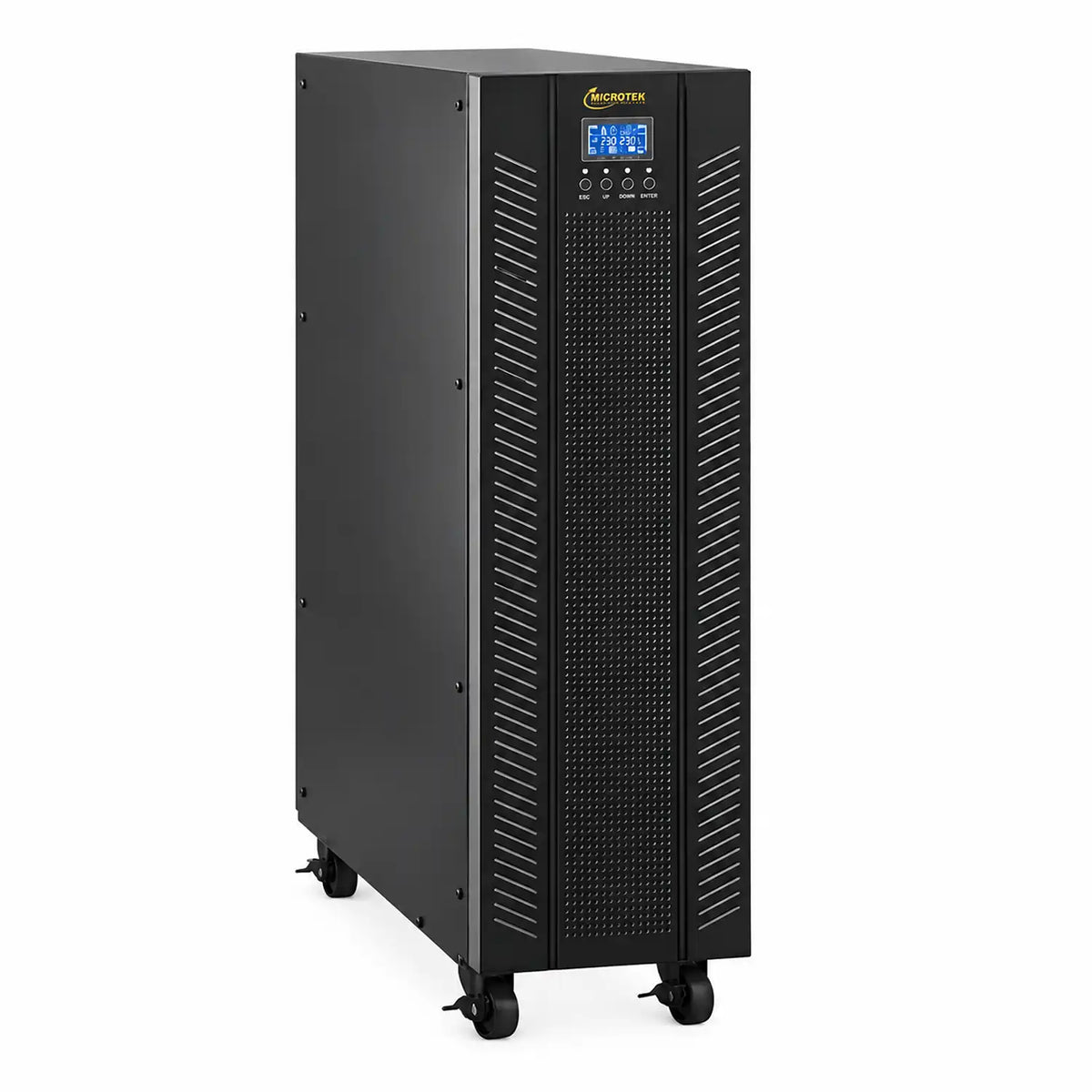

🏢 3:3 Phase Floor-Mounted Design: Supports 3-phase input and 3-phase output and is specified for home and office applications with floor mounting.
The Microtek Supermax+ 20 kVA Online UPS is a 3:3 phase online UPS designed for high-capacity power backup in home and office environments. It uses high-frequency DSP-controlled IGBT double-conversion technology and delivers an 18-kW output with pure sine wave power. Its ±192 V DC external battery configuration, multiple protection features and floor-mounted design make it suitable for applications requiring dependable three-phase power backup.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | Microtek |
| MPN | 899-430-2002 |
| Series / Type | HF Super / SUPERMAX+ |
| Product Type | Online UPS |
| Capacity | 20 kVA |
| Output Power | 18 kW |
| Technology | High Frequency, DSP Controlled, IGBT-Based Double Conversion |
| Phase | 3:3 Phase |
| Input Phase | 3 Phase |
| Output Phase | 3 Phase (3:3) |
| Input Voltage | 3 × 380/400/415 V AC |
| Output Voltage | 3 × 380/400/415 V AC |
| Input Voltage Range | 285–485 V AC, Phase-to-Phase |
| Frequency | 50–60 Hz |
| Wave Type | Pure Sine Wave |
| Efficiency | Up to 95% |
| DC Voltage | ±192 V DC |
| Battery Type | External SMF / VRLA / Tubular Battery Bank |
| Battery Configuration | 32 × 12 V Batteries (±192 V DC) |
| Protection | Overload, Short Circuit, Battery Deep Discharge, Over Temperature, Surge Protection |

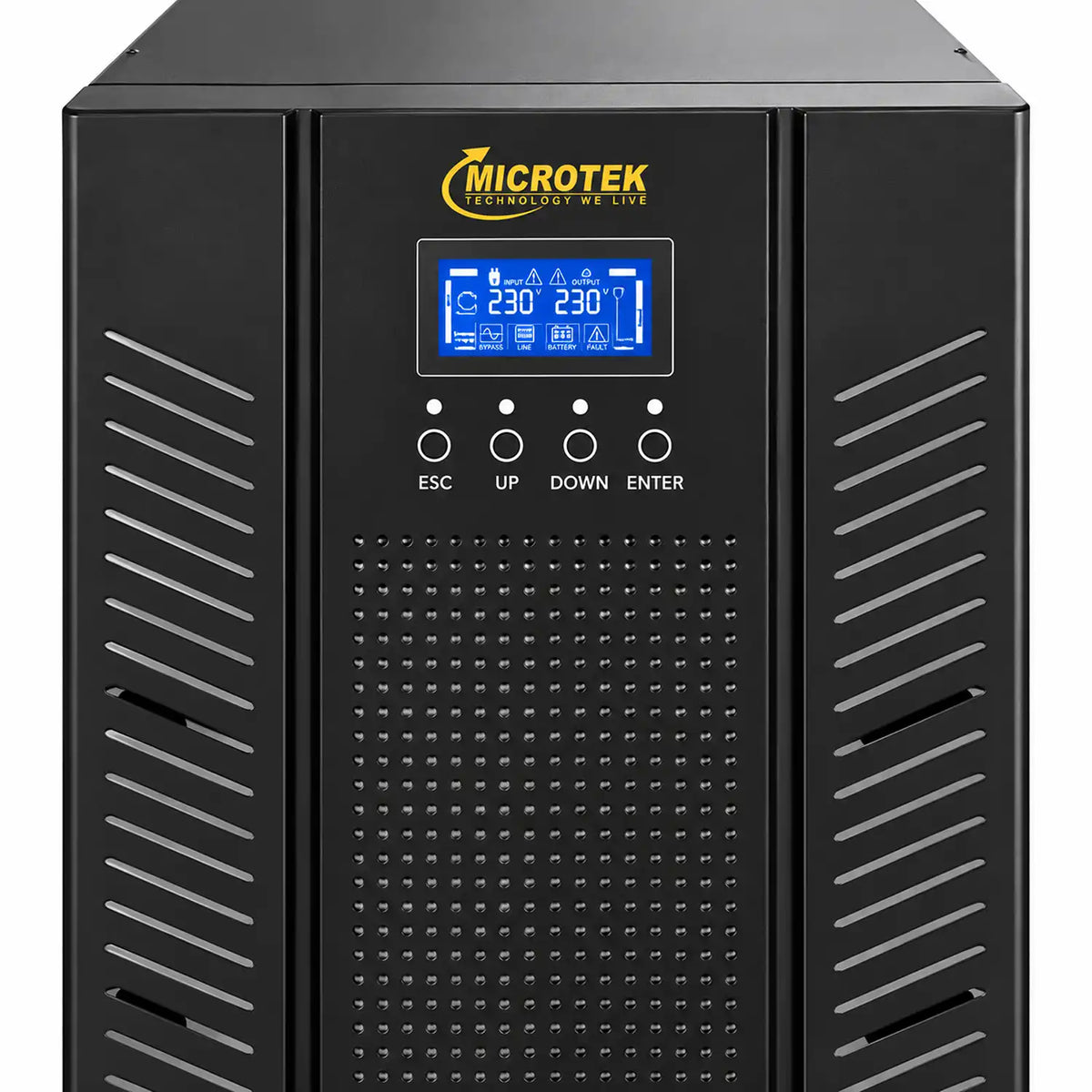

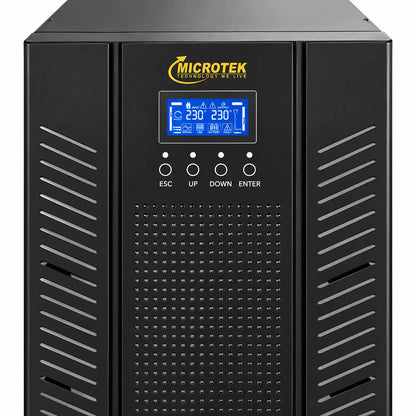

| Display Type | LED Display |

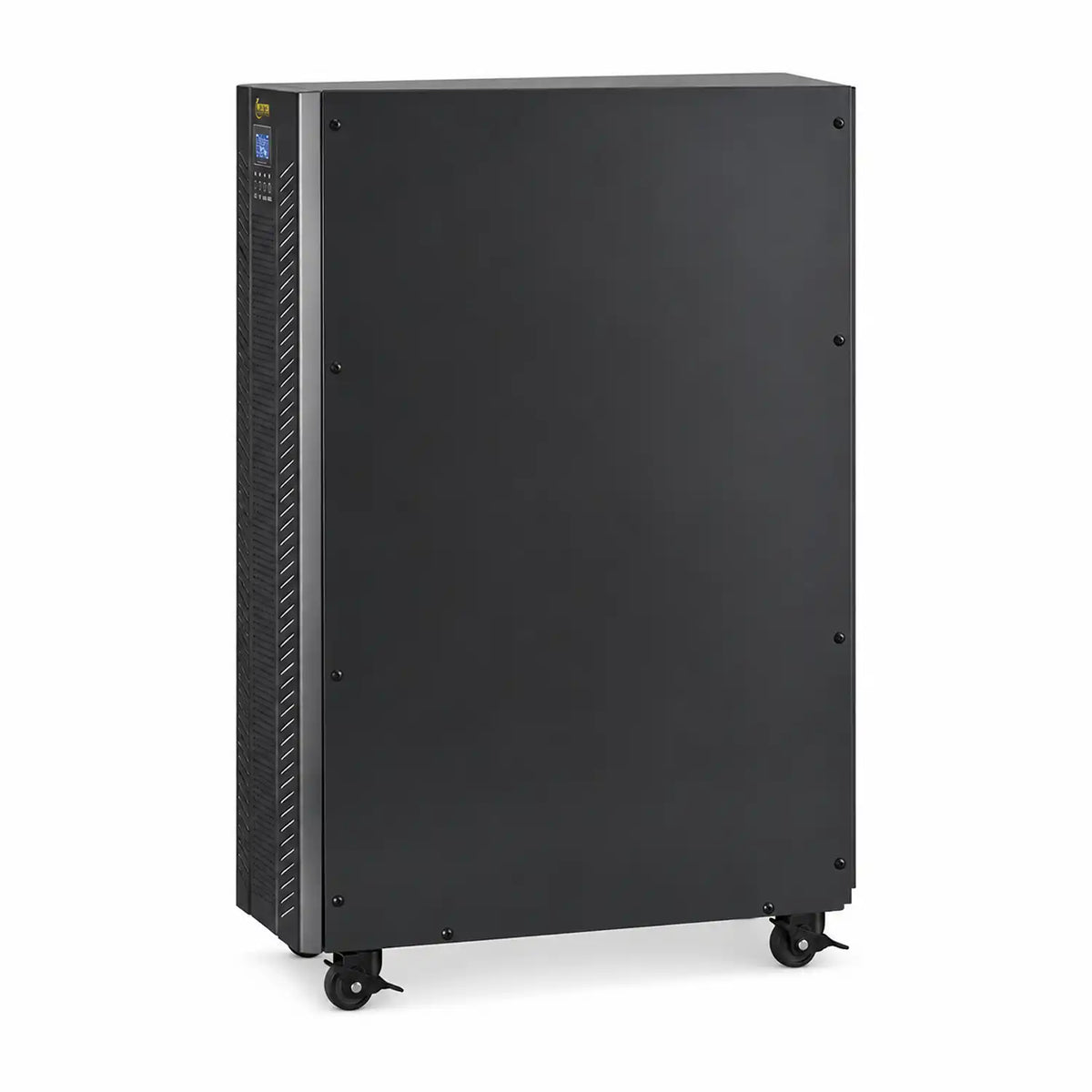

| Mounting Type | Floor Mounted |
| Colour | Black |
| Suitable For | Home & Office |
| Design | Tubular |
| Weight | 67.05 kg |
| Warranty | 2 Years Manufacturer Warranty |
