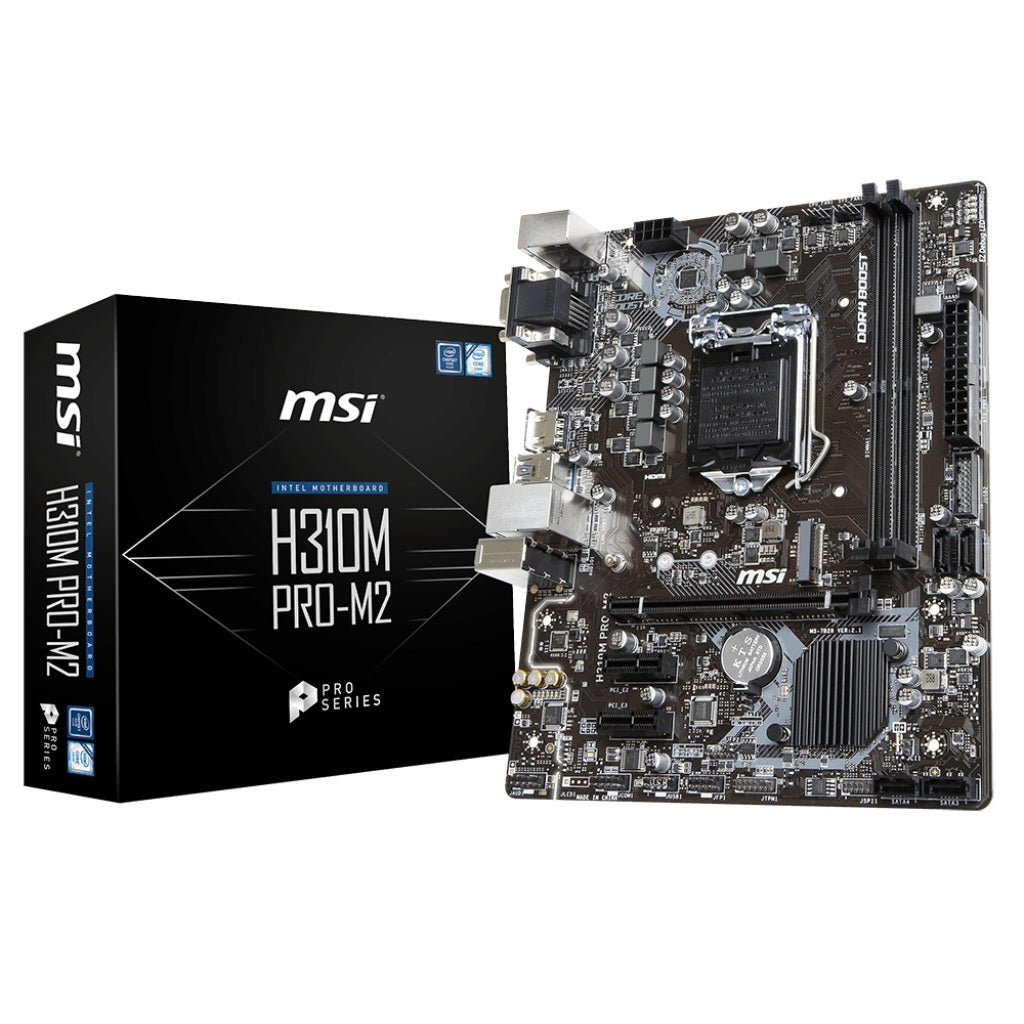

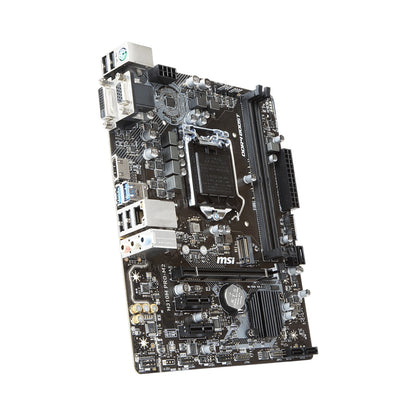

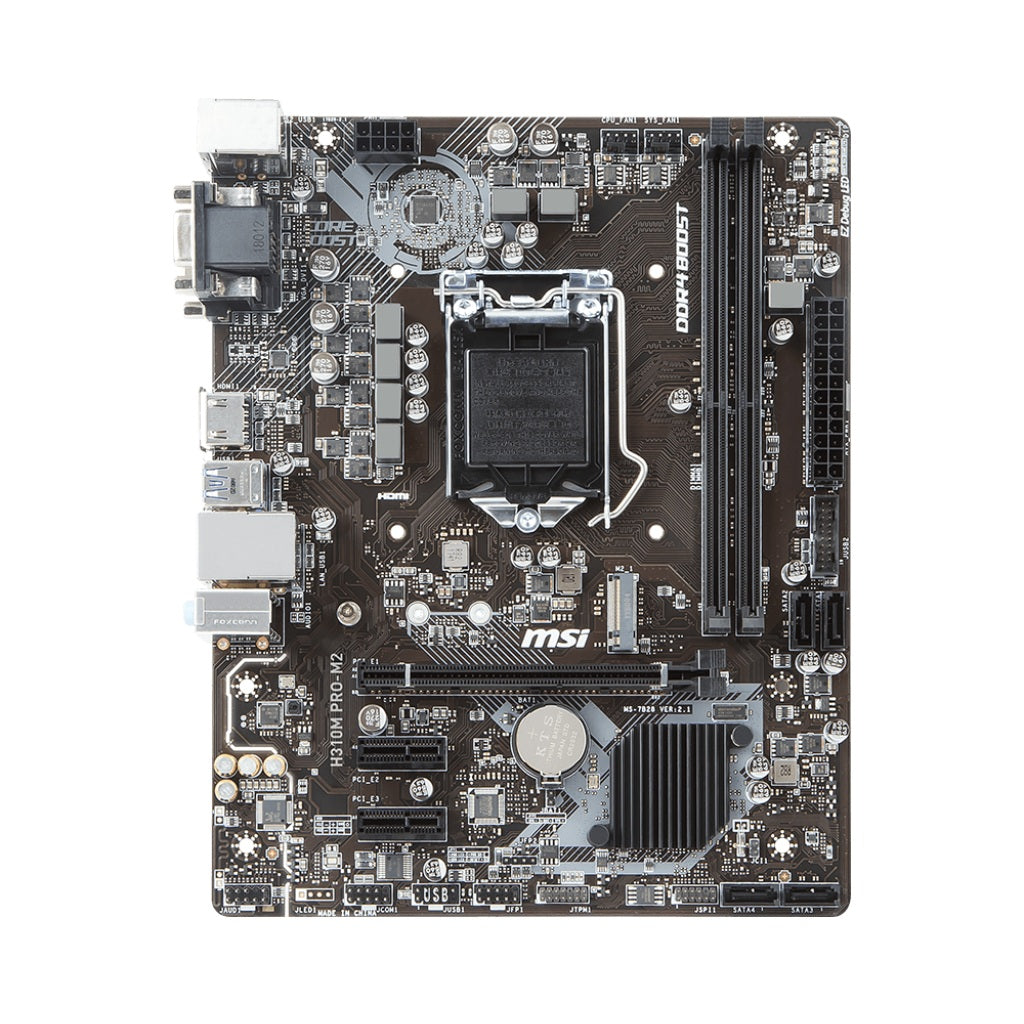

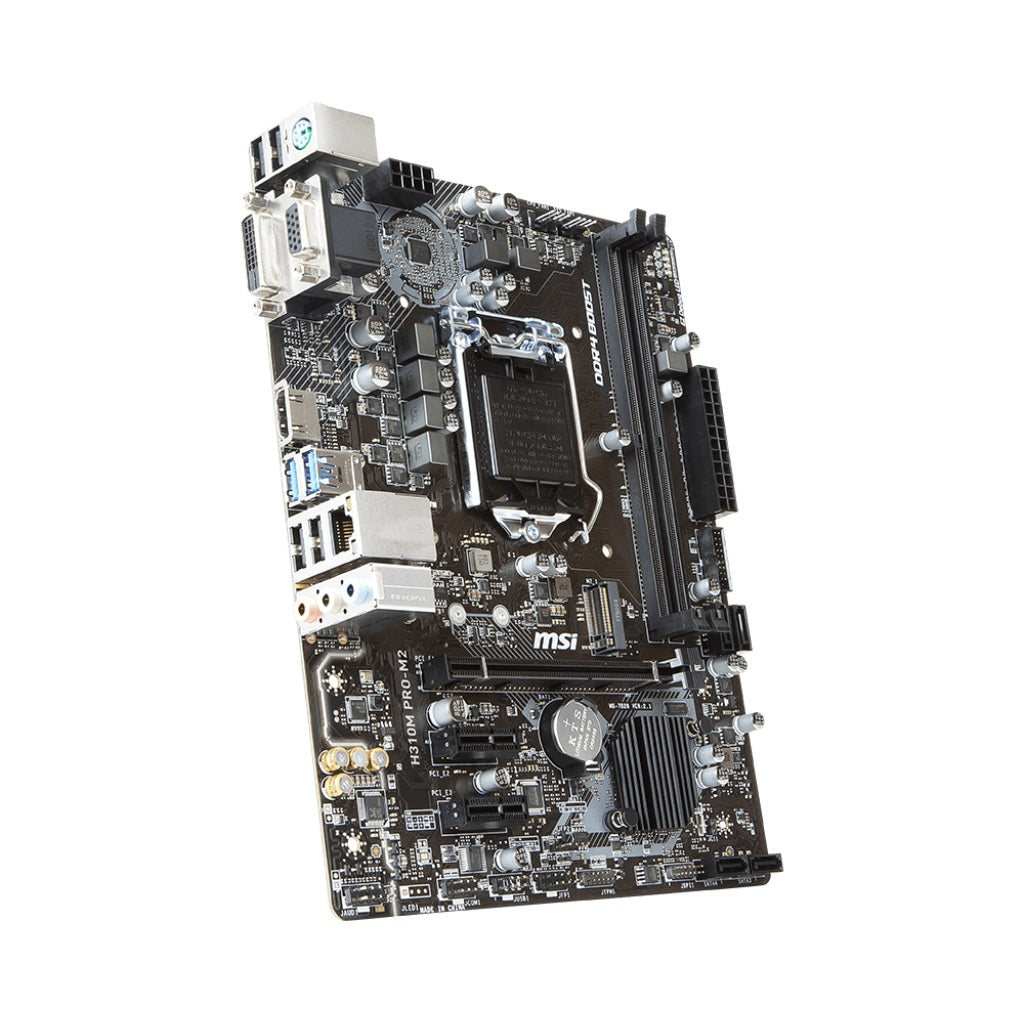

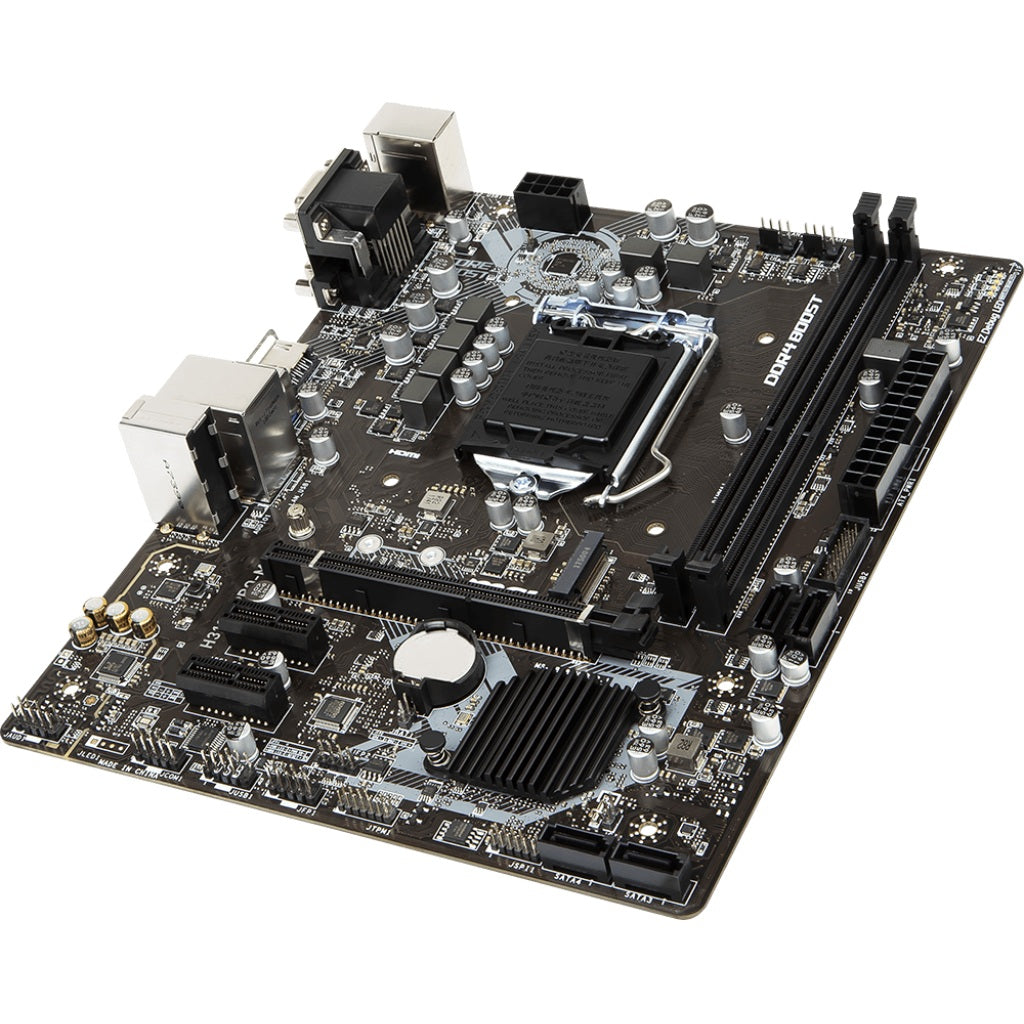

MSI H310M PRO-M2 Intel LGA1151 mATX with M.2 Motherboard

MSI H310M PRO-M2 Intel LGA1151 mATX with M.2 Motherboard

Brand: MSI
Rs. 5,799.00
43% off Rs. 9,999.00 Rs. 5,799.00
Sale Sold out
Loading Offers...
+ Offers

Product Description:

Processor Compatibility: Supports 8th and 9th Gen Intel Core, Pentium Gold, and Celeron processors, ensuring reliable performance for various computing needs.

DDR4 Memory Support: Equipped with dual DDR4 slots, supporting up to 32GB of memory for smooth multitasking and efficient data handling.

Enhanced Storage Options: Features a Turbo M.2 slot for high-speed SSDs, enabling faster boot times and improved system responsiveness.

Compact Micro-ATX Design: Space-saving form factor fits easily into smaller cases, ideal for compact PC builds.

Essential Connectivity: Includes USB 3.1 Gen1 ports, PCIe slots, and support for HDMI and VGA outputs, ensuring compatibility with a wide range of peripherals and displays.

Model MSI H310M PRO-M2
CPU Socket Intel Socket 1151
CPU Support IntelĀ® Socket 1151 for 9th / 8th Generation Coreā„¢ i7/Coreā„¢ i5/Coreā„¢ i3/PentiumĀ®/CeleronĀ® Processors
Supports IntelĀ® 14 nm CPU
Supports IntelĀ® Turbo Boost Technology 2.0
Chipset Intel H310
Memory
  • 2 x DDR4 memory slots, support up to 32GB
  • Supports DDR4 2666/ 2400/ 2133 MHz
  • Dual channel memory architecture
  • Supports non-ECC, un-buffered memory
  • Supports IntelĀ®Ā Extreme Memory Profile (XMP)
On-Board Graphics support
  • 1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz1
  • 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
  • 1x HDMIā„¢ port 1.4, supports a maximum resolution of 4096x2160@30Hz1

*No Display support when using the Processor model with suffix ā€œFā€

  1. Supports up to 2 displays simultaneously
Expansion Slot 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 3.0/2.0 x1
LAN RealtekĀ® RTL8111H
1 x Gigabit LAN Controller(s)
Storage

IntelĀ®Ā H310 Chipset

  • 4 x SATA 6Gb/s ports
  • 1 x M.2 slot (Key M)
    • Support up to PCIe 2.0 x4 and SATA 6Gb/s
    • Supports 2242/ 2260 /2280 storage devices
Audio RealtekĀ® ALC887 8-Channel High Definition Audio CODEC: Jack-detection, Front Panel Jack-retasking Audio Feature :
-LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB Ports

IntelĀ®Ā H310 Chipset

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
  • 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)

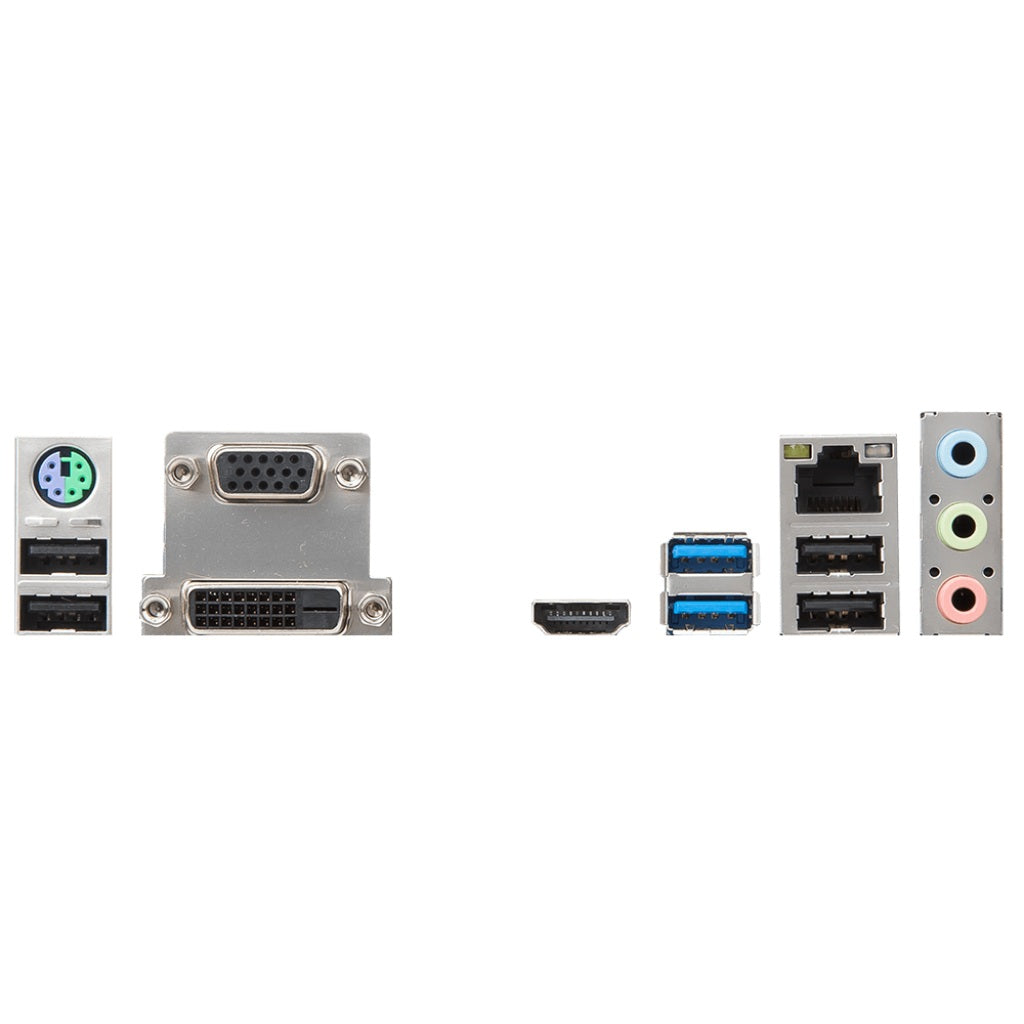

Back Panel I/O Ports
  1. PS/2 Combo Port
  2. VGA Port
  3. HDMIā„¢ Port
  4. USB 3.1 Gen1
  5. LAN Port
  6. HD Audio Connectors
  7. USB 2.0 Port
  8. DVI-D Port
  9. USB 2.0 Port
Internal I/O ports
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connector
  • 1 x Front panel audio connector
  • 1 x Serial port connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
Accessories User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Anchor
1 x Supporting DVD
Dimensions
  • 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)
  • m-ATX Form Factor
Warranty 3 Years of Brand Warranty
