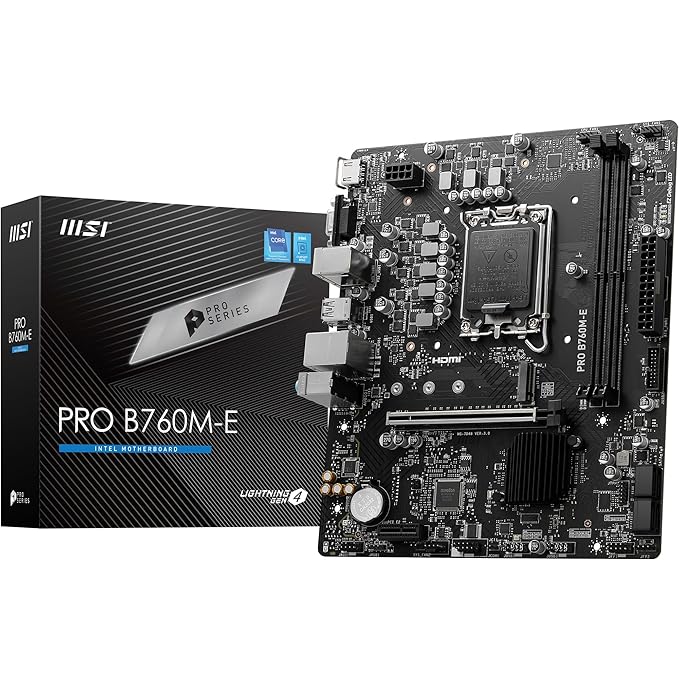

MSI PRO B760M-E DDR5 Intel B760 LGA 1700 Micro-ATX Motherboard
MSI PRO B760M-E DDR5 Intel B760 LGA 1700 Micro-ATX Motherboard
- Free Shipping
- 7-Days Return
- Original Warranty
Product Description:
The MSI motherboard is designed to support latest Intel Socket LGA 1700 for 13th gen, 12th Gen Intel Core processors and Pentium Gold and Celeron Processors.
The motherboard is PCIe 4.0 Ready supporting up to 96GB DDR5 4800+MHz (OC) and Intel Turbo Boost Technology. The DDR4 MSI motherboard support next gen PCIe 4.0 M.2 slots making it future proof.
Enjoy extended connectivity with the next-gen technology of PCIe 4.0, HDMI 1.4, VGA, Realtek RTL8111H Gigabit LAN, USB 3.2 Gen 1 Type A connector, USB 2.0, 1 M.2 slots.
Features the most comprehensive cooling options ever that are configurable via FROZR AI Cooling. We can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
The motherboard comes with DIY Friendly features. The EZ Debug LED will indicate the source of the problem, so you know exactly where to look to get up and running again.
DDR5 Memory
With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.
Fast Future Ready Storage
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
Lightning Gen 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation.
AIDA64 Extreme
AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
Intel LAN
Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays.
USB 3.2 GEN 1
USB 3.2 Gen 1 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 Gen 1 devices.
EZ Debug LED
Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.
Core Boost
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Model | MSI PRO B760M-E DDR5 Motherboard |
CPU Support | Supports 13th Gen, 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
CPU Socket | LGA 1700 |
Chipset | Intel B760 Chipset |
Form Factor | Micro-ATX |
Memory |
2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
Display Interface | 1x HDMI 1.4, supports a maximum resolution of 4K 30Hz VGA |
Expansion Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot |
Storage | 1x M.2 Gen4 x4 64Gbps slots 4x SATA 6Gbps ports |
USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
LAN | 1x Realtek RTL8111H Gigabit LAN |
Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
BackPanel Ports | 1 x VGA 1 x HDMI 1.4 1 x LAN Port 1 x Keyboard / Mouse 4 x USB 2.0 2 x USB 3.2 Gen 1 Type-A 3 x Audio Jacks |
Internal I/O Connectors | 1x 24-pin ATX main power connector 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 1x USB 3.2 Gen1 Type A ports |
LED Features | 4x EZ Debug LED |
Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
Dimension | 200mm x 236.16mm |
Warranty | 3 Years Brand Warranty |
Package Contents | MSI PRO B760M-E DDR4 Micro-ATX Motherboard User Manual Installation Guide |
