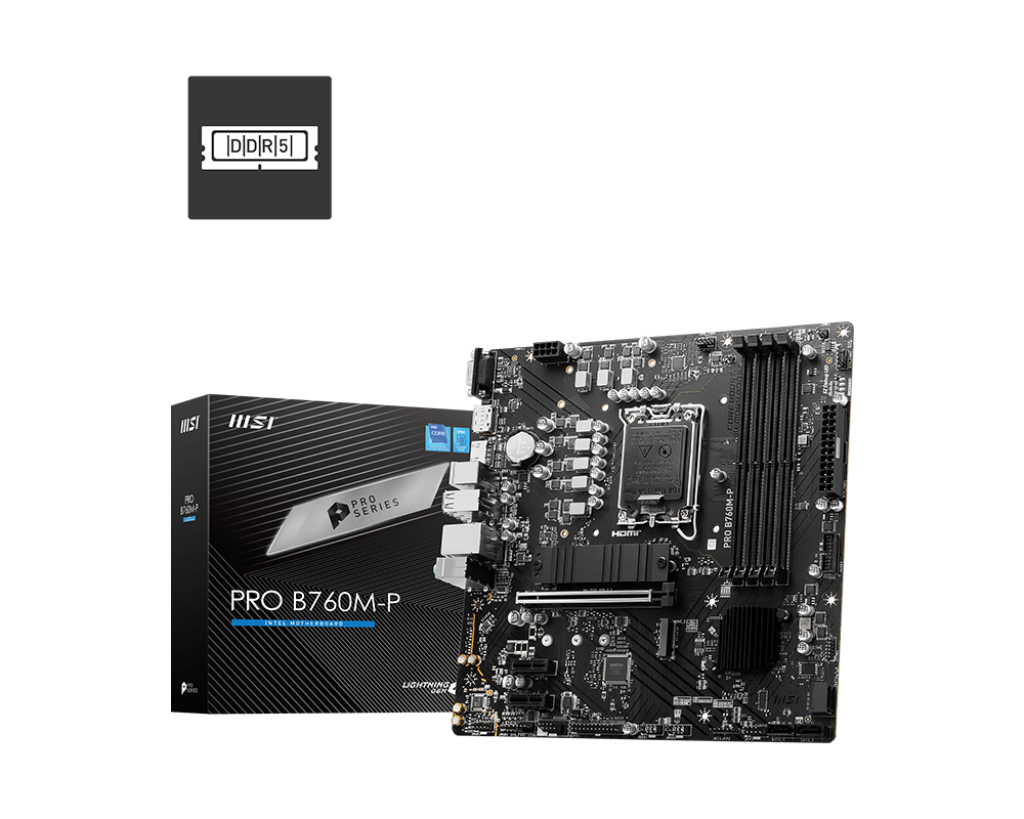

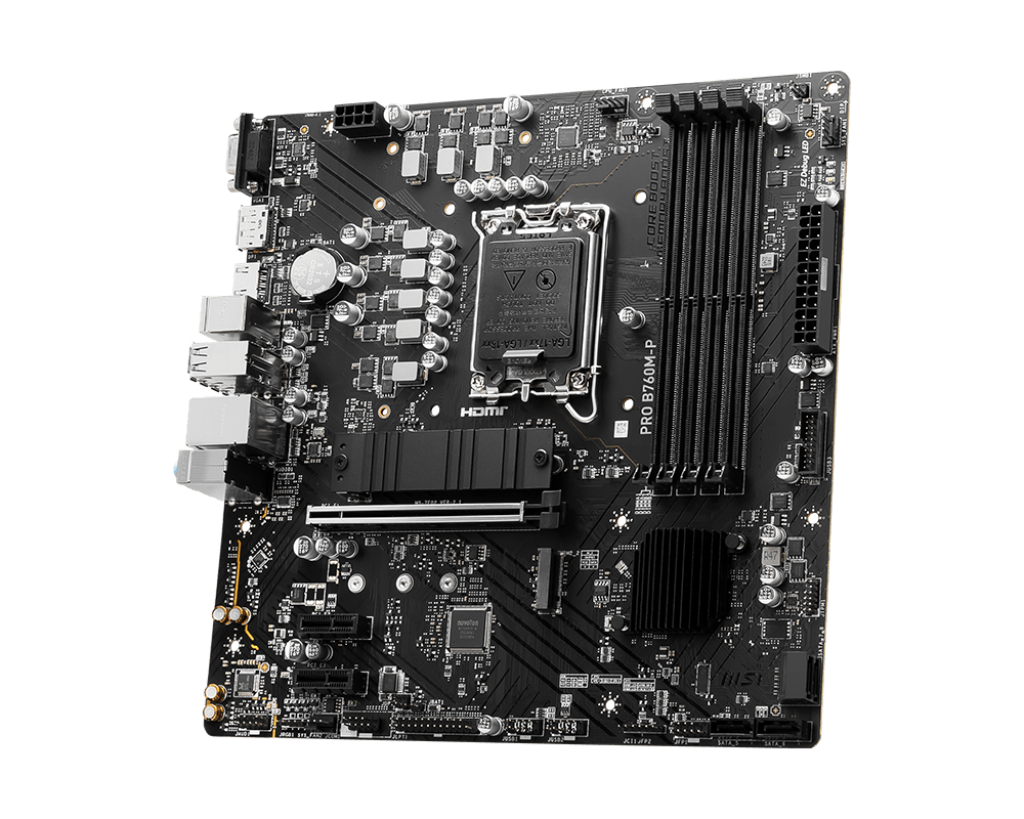

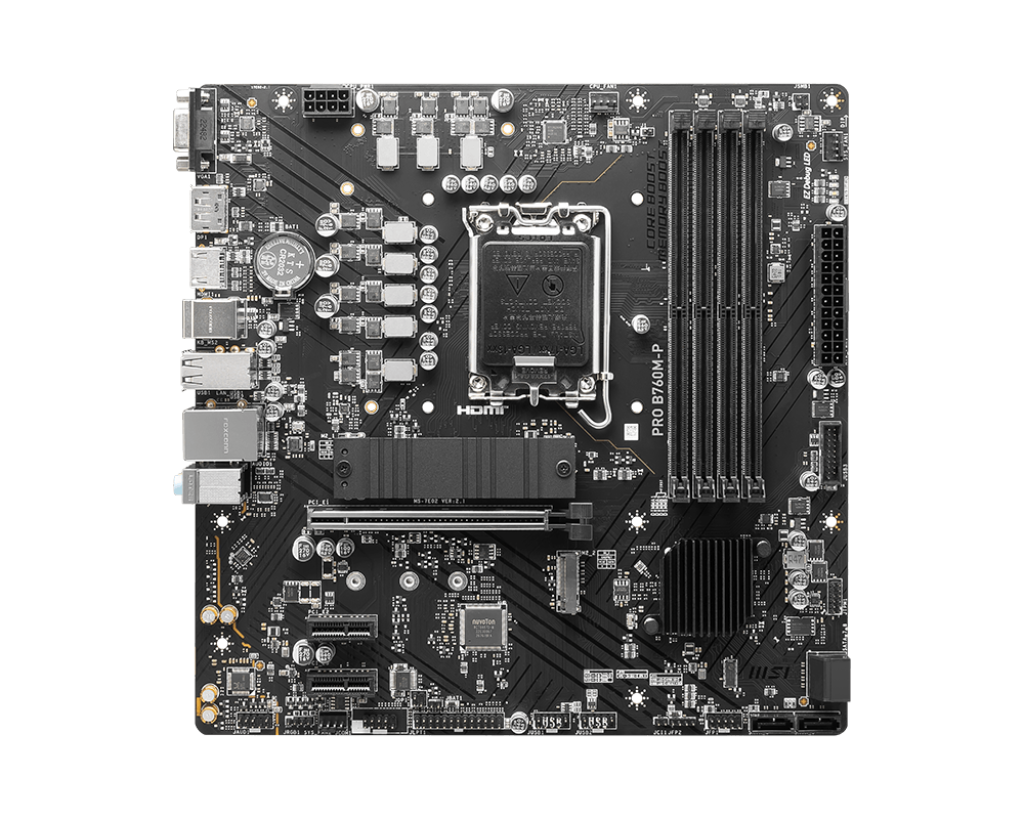

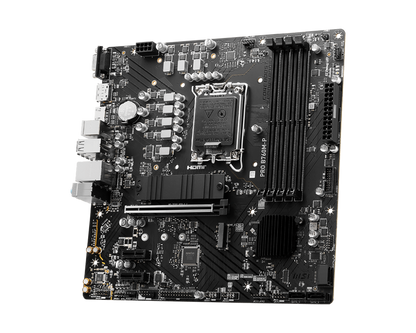

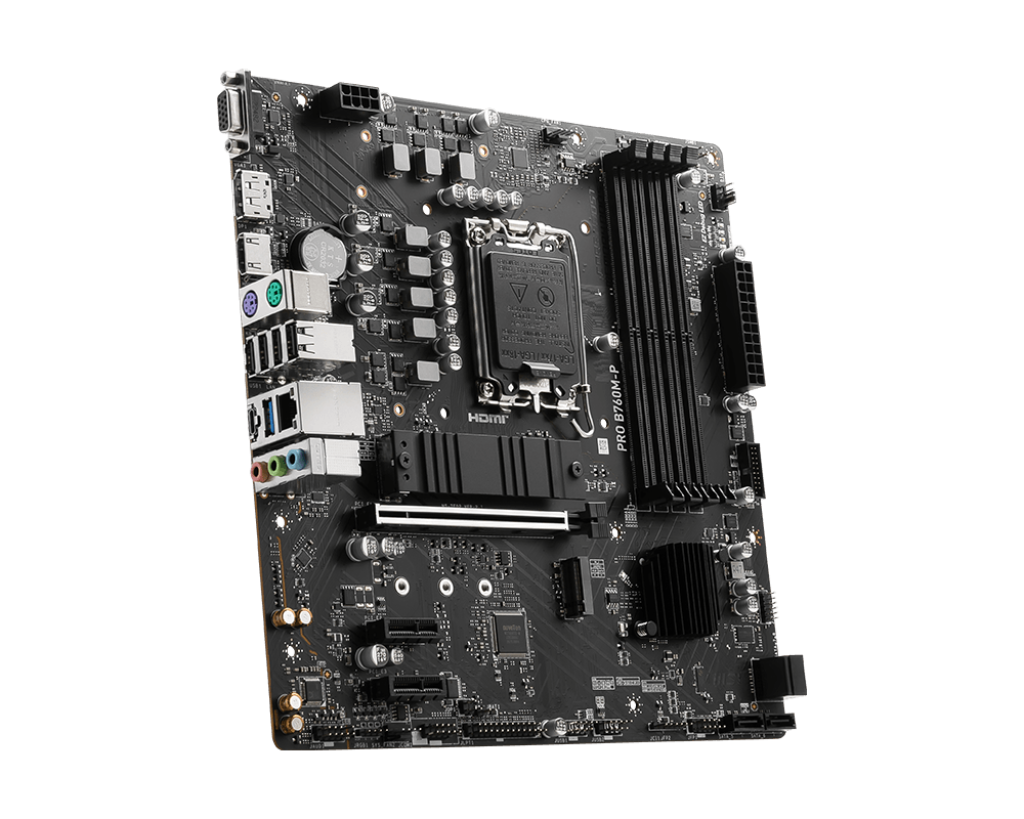

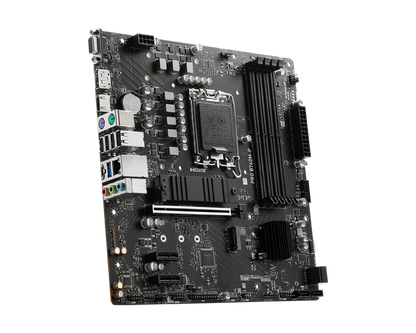

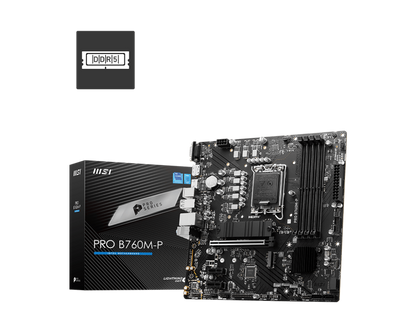

MSI PRO B760M-P DDR5 Intel LGA 1700 Socket Micro-ATX Motherboard
MSI PRO B760M-P DDR5 Intel LGA 1700 Socket Micro-ATX Motherboard
Brand: MSI
Regular price
Rs. 11,649.00
Sale price
52% off Rs. 11,649.00
Sale
Sold out
Regular price
Rs. 23,999.00
Unit price
/
per
- Free Shipping
- 7-Days Return
- Original Warranty
Product Description:
- Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Model | MSI PRO B760M-P |
CPU Support |
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium Gold and Celeron Processors |
CPU Socket | LGA 1700 |
Chipset | Intel B760 |
PCB INFO |
mATX 243.84mmx243.84mm |
Memory |
4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
Audio |
Realtek ALC897 Codec 7.1-Channel High Definition Audio |
Storage |
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
LAN | Realtek RTL8111H Gigabit LAN |
ONBOARD GRAPHICS |
1x HDMI Support HDMI 1.4, maximum resolution of 4K 30Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
Slot |
1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB |
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Rear) |
INTERNAL IO |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
LED FEATURE | 4x EZ Debug LED |

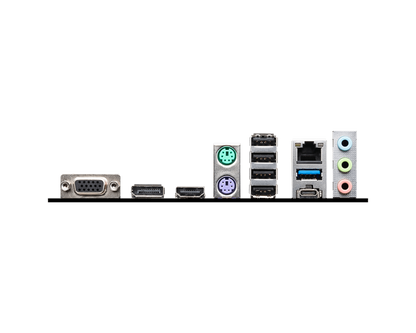

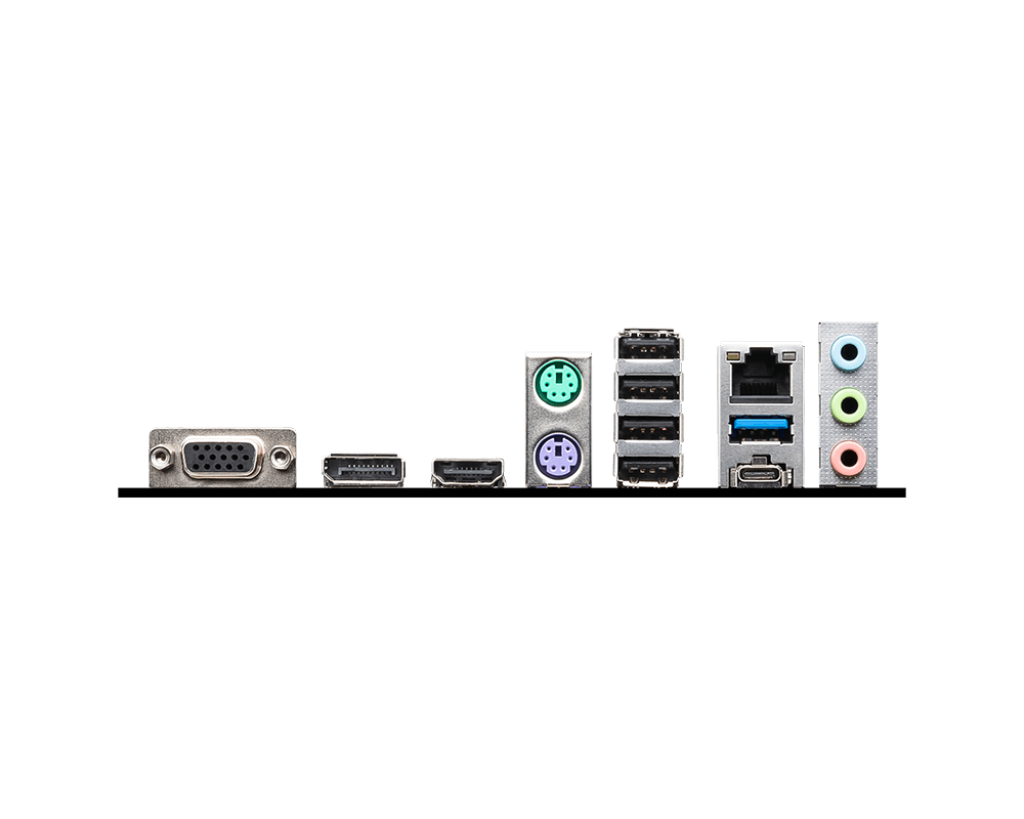

BACK PANEL PORTS | VGA DisplayPort HDMI™ Keyboard / Mouse USB 2.0 LAN port Audio Connectors USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) |
OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit |
Warranty | 3 Years Brand Warranty |
Package Contents | Motherboard European Regulatory Notice Quick Installation Guide 2 x M.2 Screw / Standoff Set SATA Cable I/O Shield |
