Product Description:
🔥 High‑Performance X870E Chipset: Built for smooth multitasking and next‑gen computing.
⚡ AM5 Socket Support: Compatible with Ryzen 7000/8000/9000 series processors.
🚀 DDR5 Memory Boost: Supports up to 256GB DDR5 for ultra‑fast system performance.
🛠️ PCIe 5.0 x16 Slot: Ideal for high‑end GPUs and future‑ready builds.
📡 WiFi 7 & 5G LAN: Super‑fast wireless connectivity with low‑latency networking.
❄️ Optimized Cooling Design: Ensures stable thermals for gaming and heavy workloads.
⚡ AM5 Socket Support: Compatible with Ryzen 7000/8000/9000 series processors.
🚀 DDR5 Memory Boost: Supports up to 256GB DDR5 for ultra‑fast system performance.
🛠️ PCIe 5.0 x16 Slot: Ideal for high‑end GPUs and future‑ready builds.
📡 WiFi 7 & 5G LAN: Super‑fast wireless connectivity with low‑latency networking.
❄️ Optimized Cooling Design: Ensures stable thermals for gaming and heavy workloads.

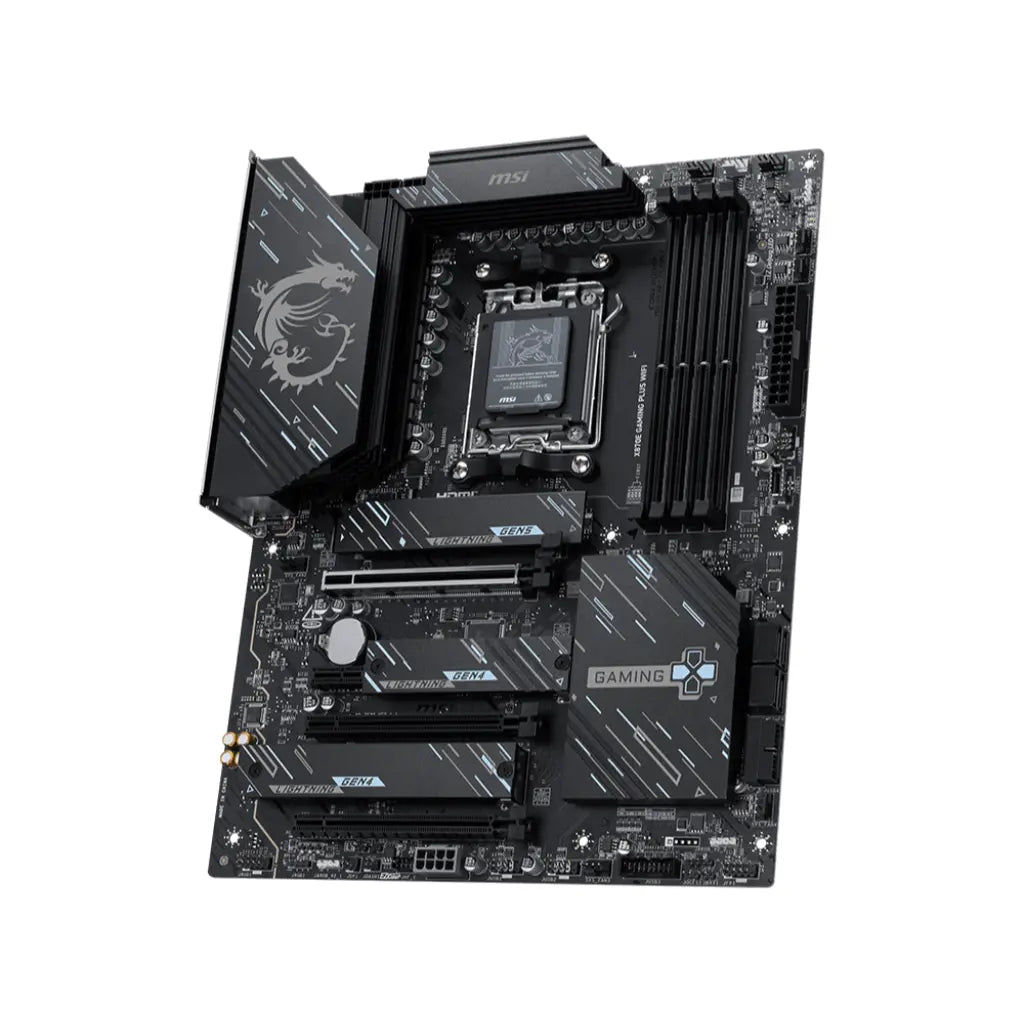

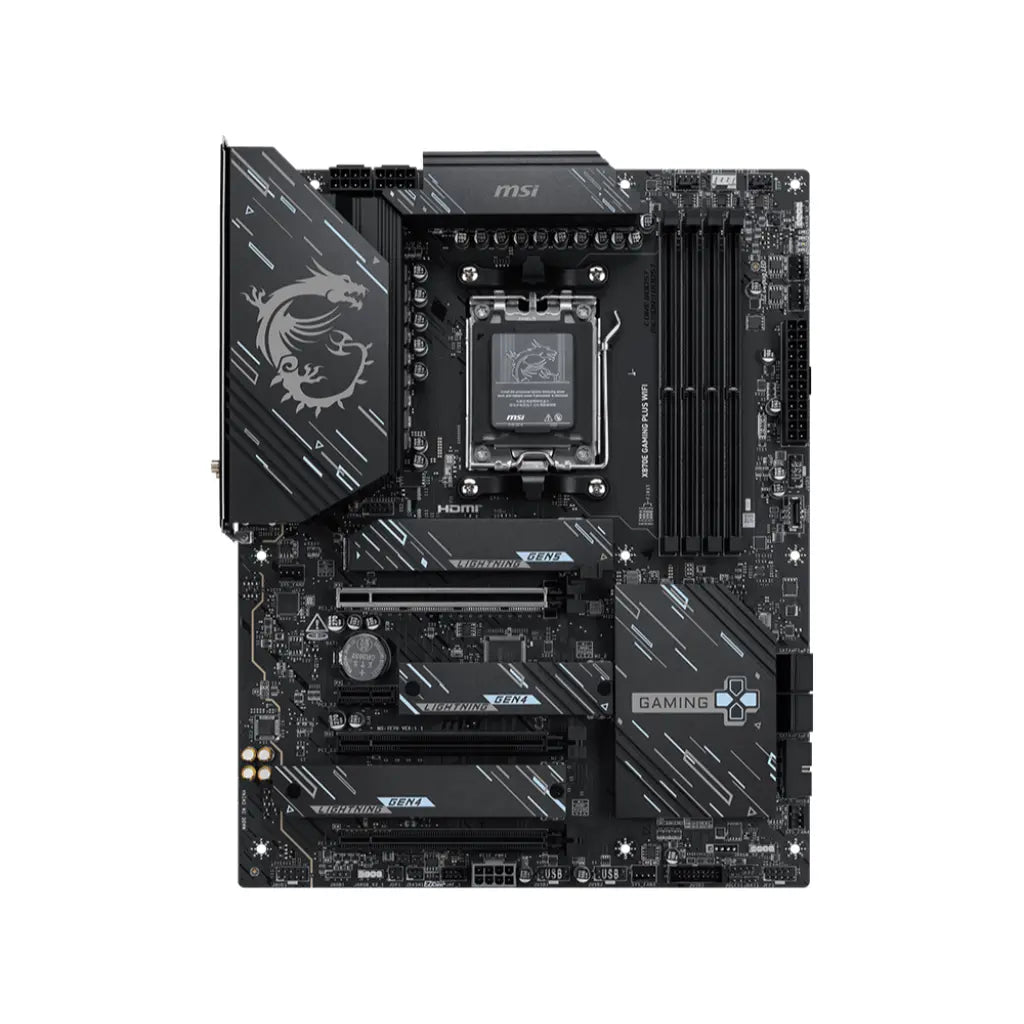

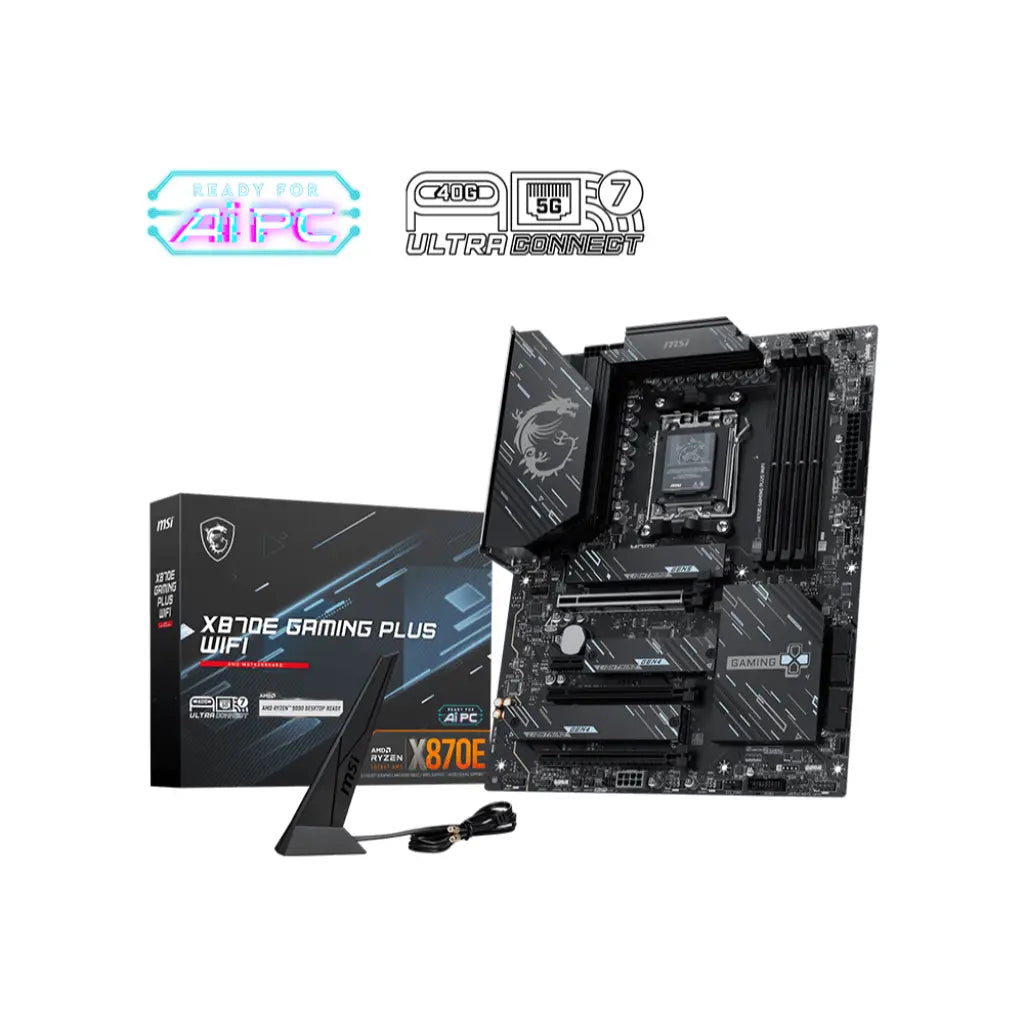

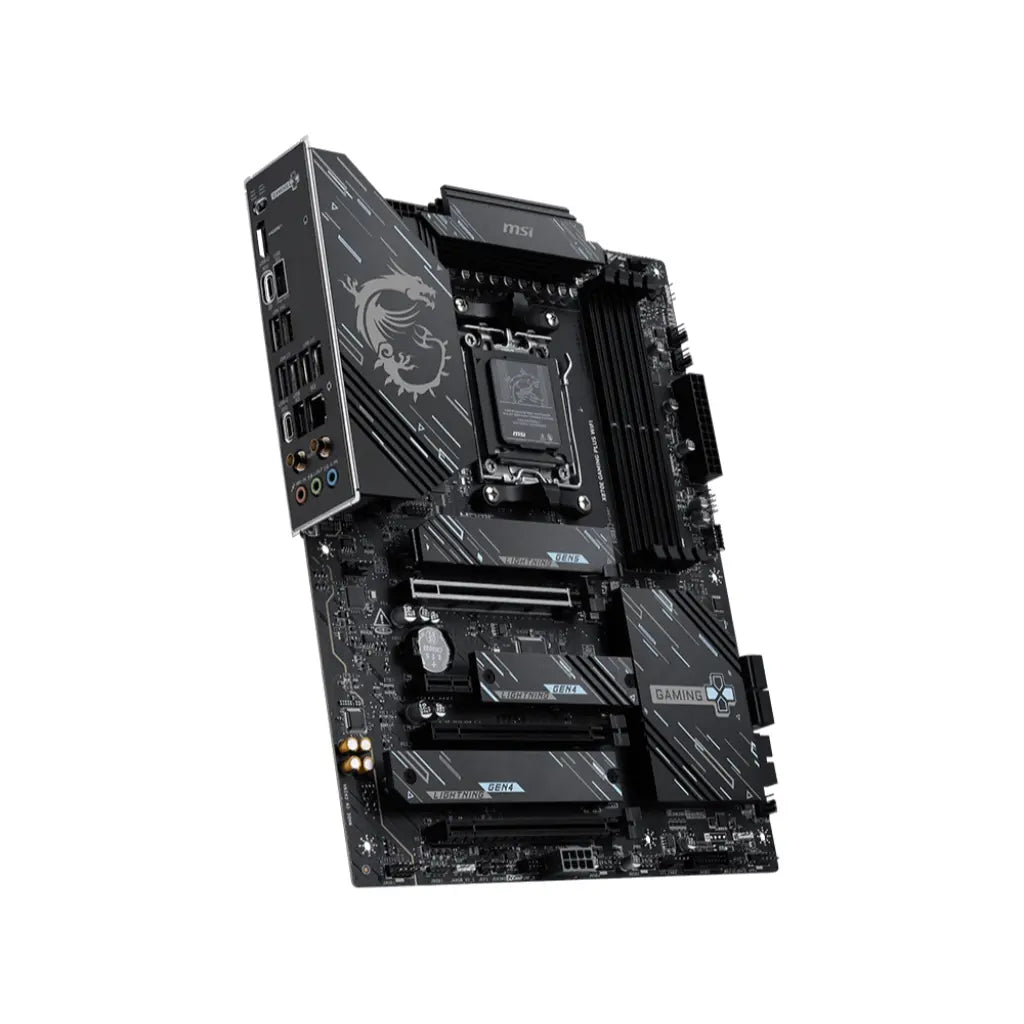

The MSI X870E Gaming Plus WiFi motherboard delivers cutting‑edge performance with the powerful AMD X870E chipset and AM5 socket compatibility. Designed for gamers and professionals, it supports high‑speed DDR5 memory, PCIe 5.0 expansion, fast NVMe storage, and advanced connectivity including WiFi 7 and 5G LAN. With durable components, enhanced cooling, and versatile expansion options, it ensures a stable and future‑ready platform for next‑generation Ryzen processors, making it ideal for high‑performance desktops.
Product Specifications:
| Specification | Details |
| Chipset | AMD X870E |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Socket | AM5 |
| Memory | 4× DDR5 UDIMM, up to 256GB |
| Memory Speed Support | DDR5 8200–5600 (OC), 5600–4800 (JEDEC) |
| Overclocking (Ryzen 9000 Series) | 1DPC 1R: 8200+ MT/s |
| 1DPC 2R: 6400 MT/s | |
| 2DPC 1R: 6400 MT/s | |
| 2DPC 2R: 6000 MT/s | |
| Memory Features | Dual‑Channel, Non‑ECC, Un‑buffered, AMD EXPO™, Overclocking, CUDIMM (bypass mode), AMD POR & JEDEC Support |
| Onboard Graphics | 1× HDMI™ 2.1 (4K 60Hz) |
| 1× USB4 Type‑C (DP 1.4, 4K 120Hz)* | |
| PCI‑E Slots | 3× PCI‑E x16 |
| 1× PCI‑E x1 | |
| PCI‑E Slot Details | PCI_E1: PCIe 5.0 x16 (Ryzen 9000/7000) |
| PCIe 4.0 x8 (8700/8600/8400) | |
| PCIe 4.0 x4 (8500/8300) | |
| Audio | Realtek® ALC897, 7.1‑Channel HD Audio |
| Storage | 3× M.2 (Gen5/Gen4 support based on slot & CPU) |
| 4× SATA 6Gb/s | |
| M.2 Details | M.2_1 (CPU): PCIe 5.0 x4 (Ryzen 9000/7000), 4.0 x4 (Ryzen 8000) |
| M.2_2 (Chipset): PCIe 4.0 x4 | |
| M.2_3 (Chipset): PCIe 4.0 x4 (22110/2280) | |
| RAID Support | SATA: RAID 0/1/10 |
| M.2: RAID 0/1/5 (RAID 5 for Ryzen 9000 only) | |
| USB Ports (Rear) | 4× USB 2.0 |
| 2× USB 5Gbps Type‑A | |
| 2× USB 10Gbps Type‑A | |
| 1× USB 20Gbps Type‑C | |
| 1× USB 40Gbps Type‑C | |
| USB Ports (Front) | 6× USB 2.0 |
| 4× USB 5Gbps Type‑A | |
| 1× USB 10Gbps Type‑C | |
| LAN | Realtek® 8126VB 5G LAN |
| Wireless & Bluetooth | Wi‑Fi 7 (802.11a/b/g/n/ac/ax/be), MU‑MIMO, 2.4/5/6GHz, up to 5.8Gbps |
| Bluetooth® 5.4 | |
| Internal I/O | ATX_PWR |
| 2× CPU_PWR | |
| PCIE_PWR 8‑pin | |
| 1× CPU Fan | |
| 1× Pump/Combo Fan | |
| 6× System Fan | |
| RGB & ARGB headers | |
| TPM 2.0 header | |
| Front Audio | |
| Front USB Headers | |
| LED Features | 4× EZ Debug LED |
| 1× EZ Memory Detection LED | |

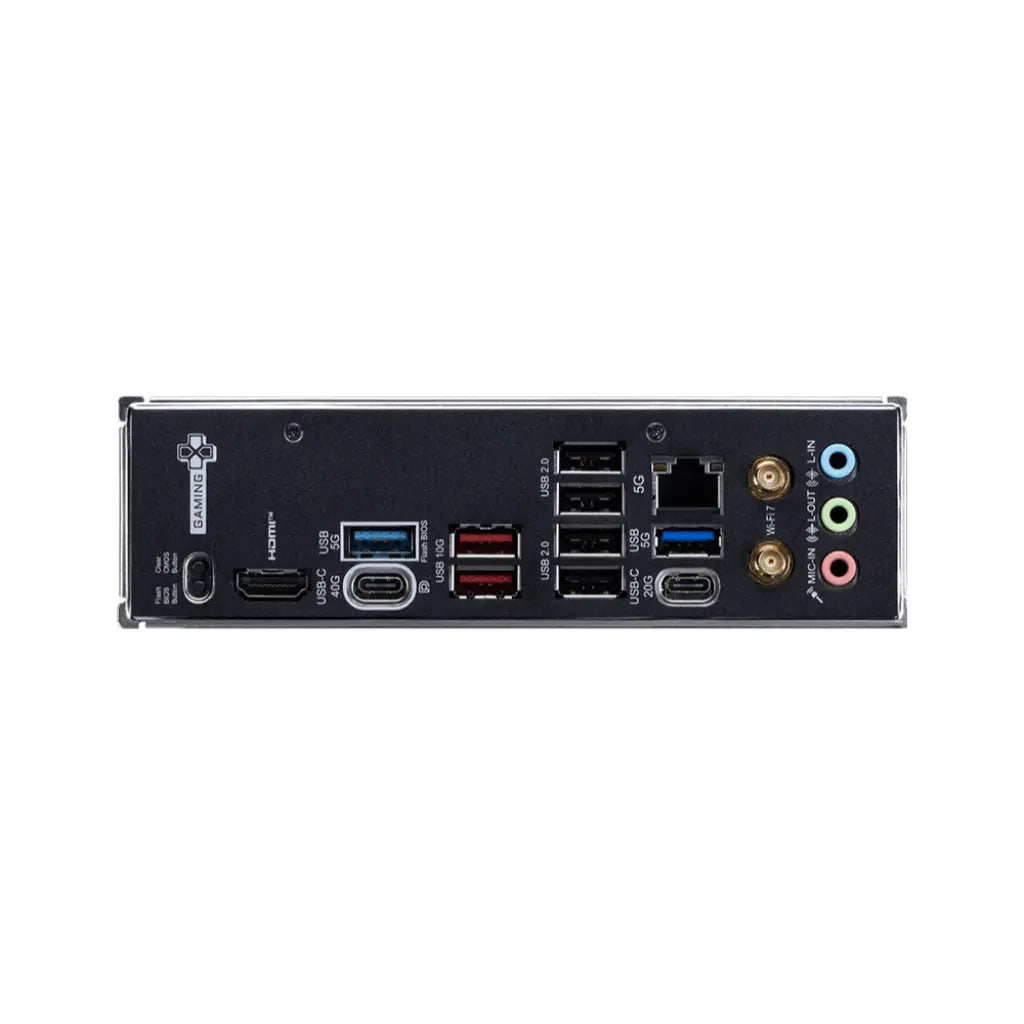

| Back Panel Ports | Clear CMOS, Flash BIOS Button, HDMI™, Wi‑Fi antenna slots, 5G LAN, Audio ports, Multiple USB (2.0/5G/10G/20G/40G) |
| Operating System Support | Windows® 11 64‑bit |
| Country of Origin | China |
| Warranty | 3 Years |
| Weight | 1 kg |
