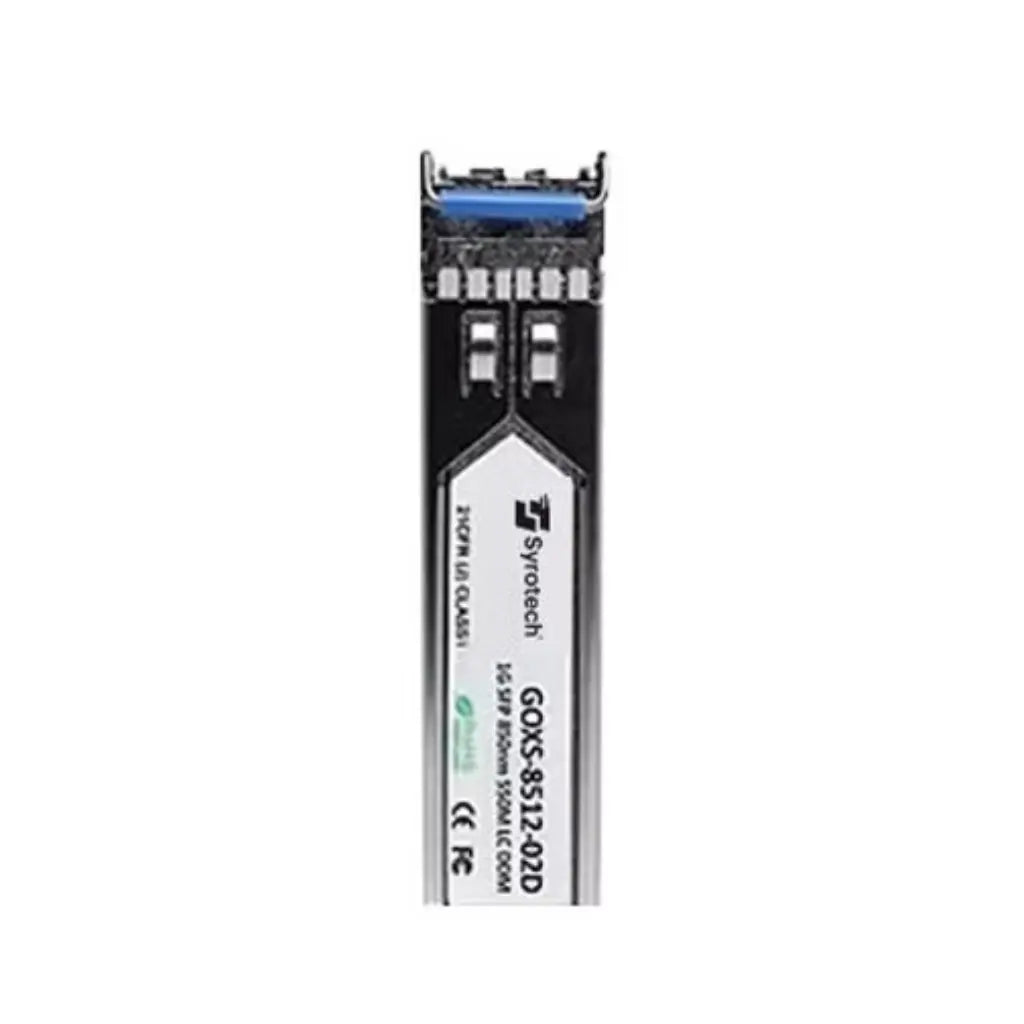

Syrotech GOXS 8512 02D 1.25Gbps Multimode SFP Transceiver with LC Connector
Syrotech GOXS 8512 02D 1.25Gbps Multimode SFP Transceiver with LC Connector
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🔹 High-Speed Performance: Supports data rate of 1.25Gbps for fast and reliable transmission.
🔸 Laser & Detector Combo: Equipped with 850nm VCSEL laser and PIN photodetector for efficient optical communication.
🔹 Extended Compatibility: Compliant with SFP MSA and SFF-8472 standards with duplex LC connector.
🔸 Digital Diagnostics: Offers internal/external calibration for monitoring temperature, voltage, TX/RX power, and bias current.
🔹 Multimode Fiber Support: Up to 550m reach with 50/125µm MMF and 300m with 62.5/125µm MMF.
🔸 Robust Design: Operates in standard (0 to +70°C) and industrial (-40 to +85°C) temperature ranges.
The Syrotech GOXS-8512-02D is a high-performance SFP optical transceiver designed for Gigabit Ethernet and Fiber Channel applications. With a data rate of 1.25Gbps and support for multimode fiber up to 550 meters, it ensures reliable and efficient data transmission. The module integrates a VCSEL laser, PIN photodiode, and advanced diagnostics for real-time monitoring. Its compliance with SFP MSA and RoHS standards makes it ideal for modern networking environments.
Product Specifications:
| Specification | Details |
| Data Rate | 1.25Gbps |
| Wavelength | 850nm |
| Transmission Distance | 550m (50/125µm MMF), 300m (62.5/125µm MMF) |
| Connector Type | Duplex LC |
| Laser Type | VCSEL |
| Photo Detector | PIN |
| Digital Diagnostics | Internal/External Calibration |
| Operating Temperature | 0 to +70°C (Standard), -40 to +85°C (Industrial) |
| Power Supply Voltage | +3.3V |
| Compliance | SFP MSA, SFF-8472, RoHS |
| Application | Gigabit Ethernet, Fiber Channel, Switch/Router Interface |
| Country of Origin | China |
| Model Number | GOXS-8512-02D |
| Warranty | 3 Year |
| Weight | 100 g |
