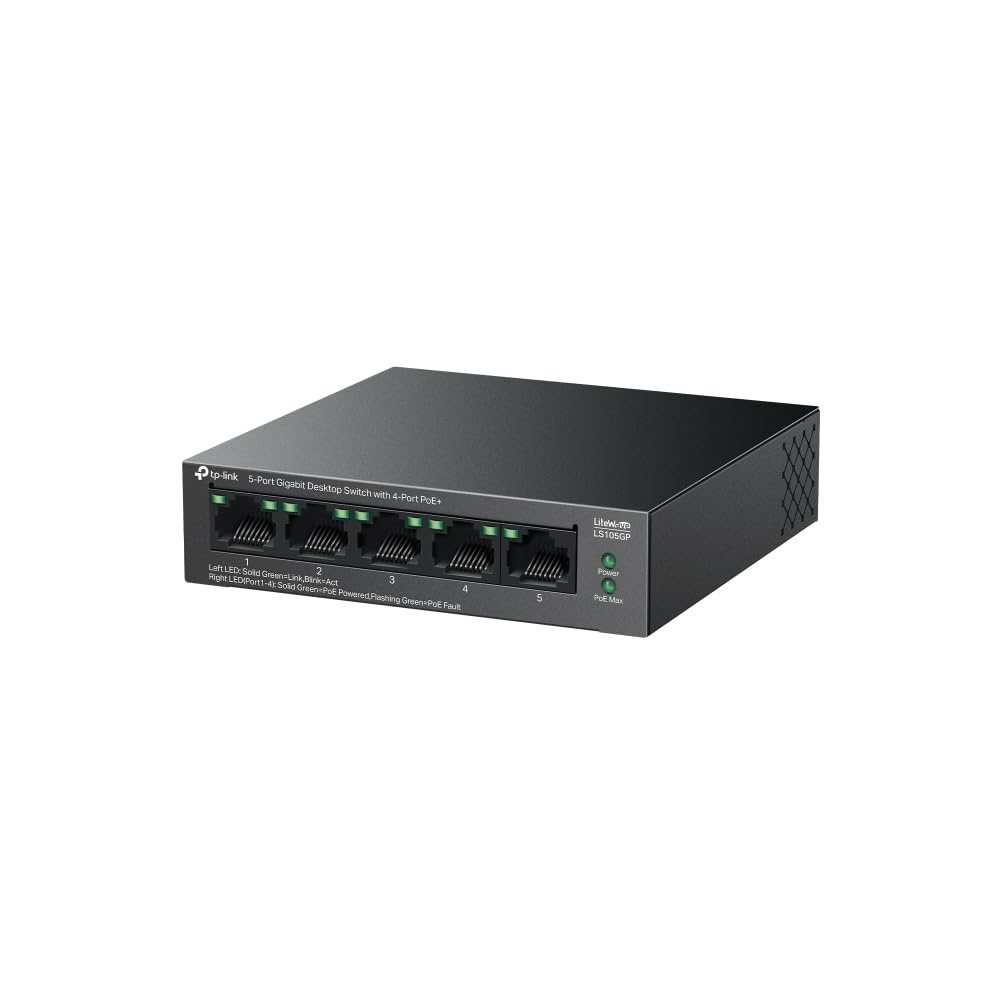

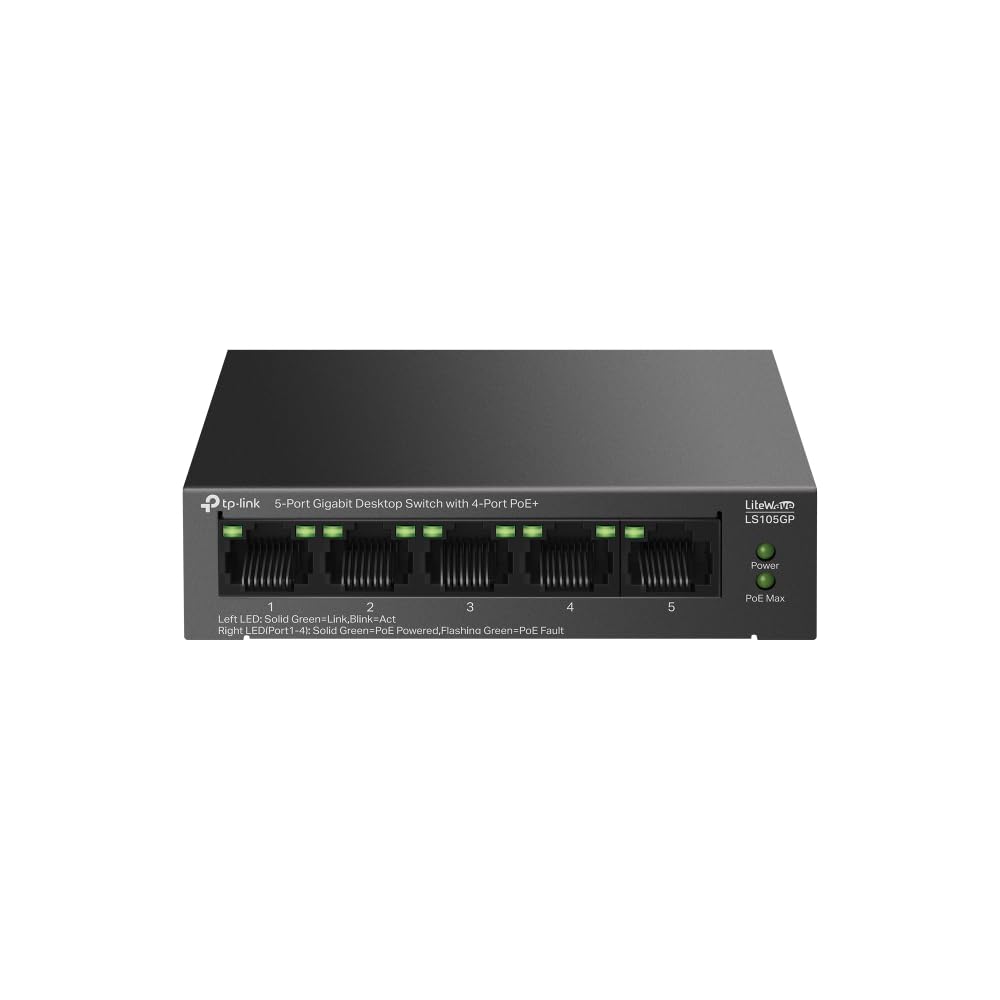

TP-Link LS105GP 5-Port Gigabit Desktop Ethernet Switch with 4-Port PoE+

TP-Link LS105GP 5-Port Gigabit Desktop Ethernet Switch with 4-Port PoE+

Brand: TP-Link
Regular price Rs. 2,399.00
Regular price 77% off Rs. 9,999.00 Sale price Rs. 2,399.00
Sale Sold out
Quantity
Loading Offers...
+ Offers

Product Description:

Full Gigabit Ports: The switch is equipped with five gigabit Ethernet ports, providing up to 10 Gbps switching capacity. This setup ensures high-speed data transfer and robust network performance, making it ideal for handling large data volumes and maintaining smooth connectivity for multiple devices.

65 W PoE Budget: With four PoE+ ports, each capable of delivering up to 30 watts, the switch supports a total PoE power budget of 65 watts. This allows you to power devices such as IP cameras, wireless access points, and VoIP phones directly through the Ethernet cable, simplifying installation and reducing the need for additional power supplies.

Extended PoE Transmission: The LS105GP features an Extend Mode that allows PoE transmission distances to reach up to 250 meters. This is particularly beneficial for deploying devices like surveillance cameras in larger areas, where standard Ethernet cables would typically fall short.

PoE Auto Recovery: One of the standout features is its ability to automatically detect and reboot unresponsive PoE-powered devices. This ensures that your network remains operational with minimal downtime, as the switch can autonomously manage and recover from device failures without manual intervention.

Plug and Play with Silent Operation: Designed for ease of use, the LS105GP requires no configuration for setup. Its fanless design ensures silent operation, making it suitable for noise-sensitive environments like offices and residential areas. Additionally, the durable metal casing provides robust protection for the internal components.

Model LS105GPĀ
Interface 5Ɨ 10/100/1000Mbps RJ45 Ports (Ports 1–4 supports 802.3af/at PoE+)
AUTO Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ī© STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ī© STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ī© STP (maximum 100m)

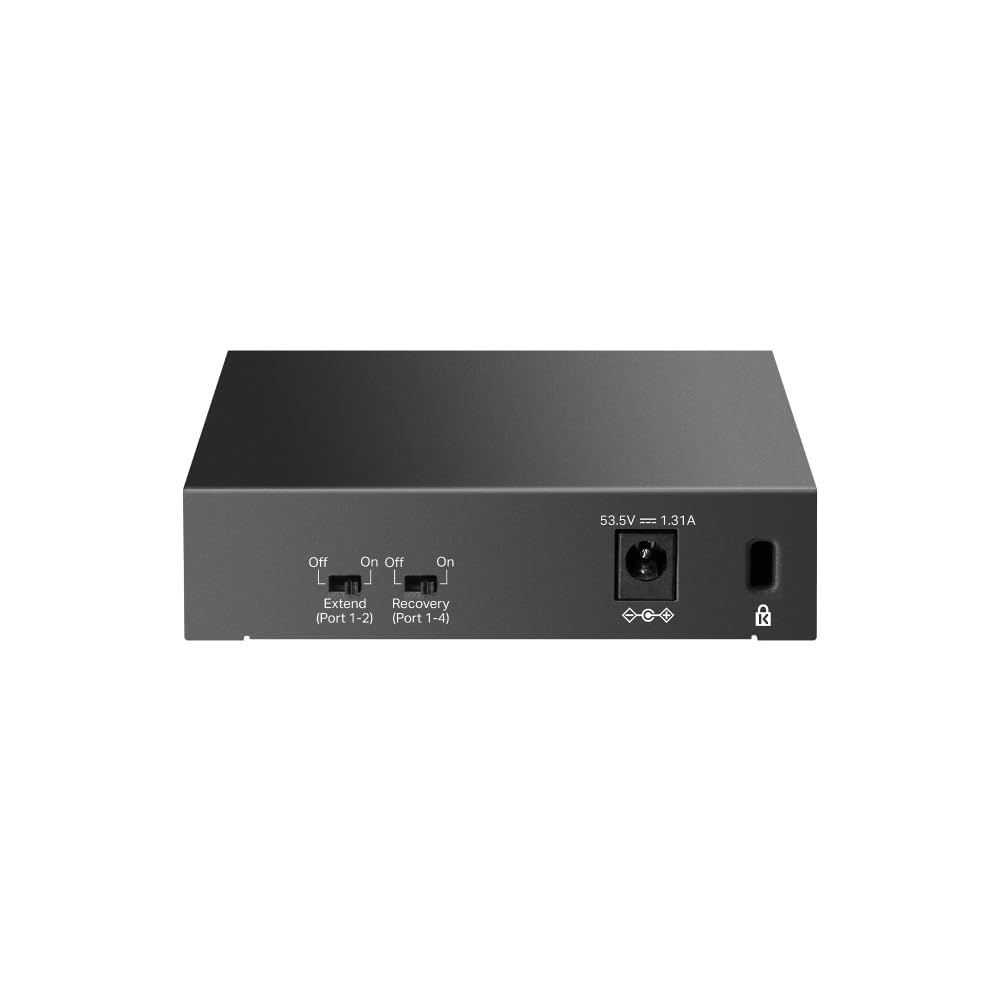

Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A)
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4, up to 30 W PoE output per port
Power Supply: 65 W
Max. Power Consumption 4 W (220/50 Hz. no PD connected)
74.46 W (220/50 Hz. with 65 W PD connected)
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.44 Mpps
Fan Quantity Fanless
Dimensions ā€Ž19.6 x 12.1 x 13.1 cm

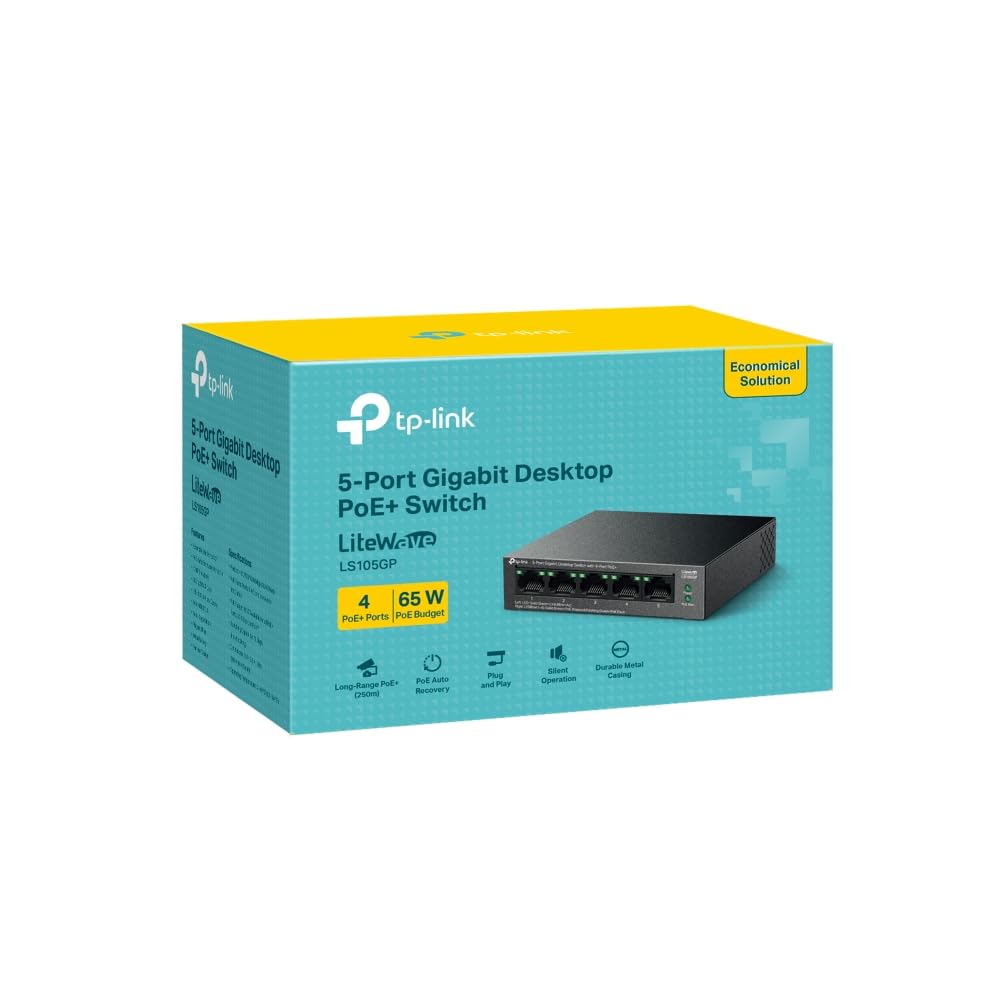

Package Content LS105GP
Power Adapter
Installation Guide
Warranty 3 Year Brand Warranty
