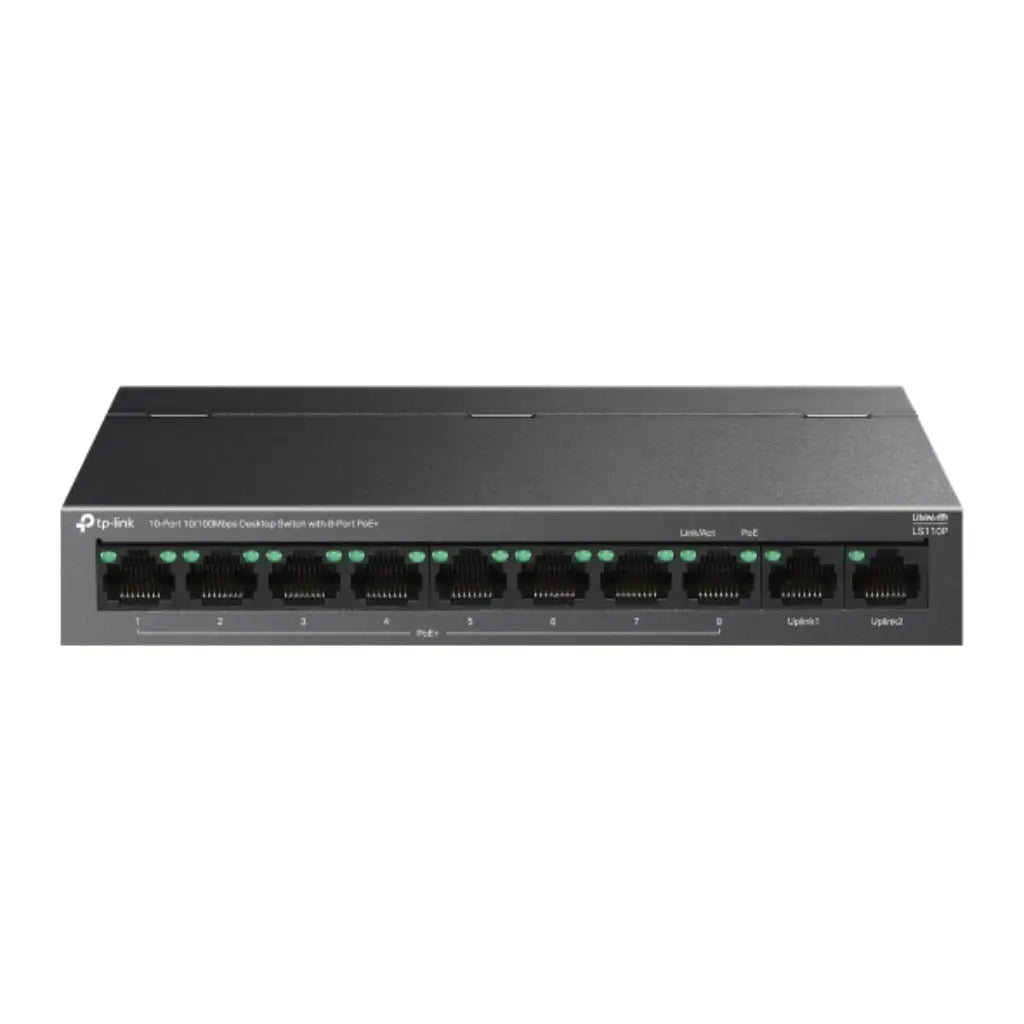

TP-Link LS110P 10-Port 10/100Mbps Desktop Switch 8-Port PoE+
TP-Link LS110P 10-Port 10/100Mbps Desktop Switch 8-Port PoE+
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🔌 10-Port Fast Ethernet Switch – Includes 8 PoE+ ports and 2 non-PoE ports for flexible connectivity.
⚡ High PoE Power Budget – 96W total PoE budget with up to 30W per port for IP cameras, APs, and VoIP phones.
📏 Extended Range Mode – Supports up to 250m data and power transmission for long-distance deployments.
🔒 Isolation Mode for Security – One-click traffic separation to enhance network security and performance.
🔄 PoE Auto Recovery – Automatically reboots unresponsive PoE devices for stable operation.
🔇 Silent Fanless Design – Energy-efficient and noise-free, ideal for offices and surveillance setups.
The TP-Link LS110P is a 10-Port 10/100Mbps Desktop Switch featuring 8 PoE+ ports for seamless power and data delivery over a single cable. With a 96W PoE budget, it supports IP cameras, access points, and VoIP phones effortlessly. Its Extend Mode enables up to 250m transmission, while Isolation Mode ensures secure traffic separation. Designed with a fanless, plug-and-play design, it’s perfect for small businesses and surveillance networks.
Product Specifications:
| Specification | Details |
| Model | TP-Link LS110P |
| Ports | 10 × 10/100 Mbps RJ45 (8 PoE+ Ports) |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | 96W Total (Up to 30W per port) |
| Switching Capacity | 2 Gbps |
| Packet Forwarding Rate | 1.488 Mpps |
| MAC Address Table | 2K |
| Packet Buffer | 768 KB |
| Jumbo Frame | 2 KB |
| Extend Mode | Up to 250m (Ports 1-8) |
| Isolation Mode | Supported |
| Power Supply | External Adapter (53.5 VDC / 1.92 A) |
| Max Power Consumption | 99.6 W |
| Dimensions (W×D×H) | 171 × 98 × 27 mm |
| Fan | Fanless |
| Certifications | CE, RoHS |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% non-condensing |
| Storage Humidity | 5%–90% non-condensing |
| Package Contents | Switch, Power Adapter, Rubber Feet, Installation Guide |
| Country of Origin | China |
| Model Number | LS110P |
| Warranty | 3 Years Warranty |
| Weight | 0.8 kg |
