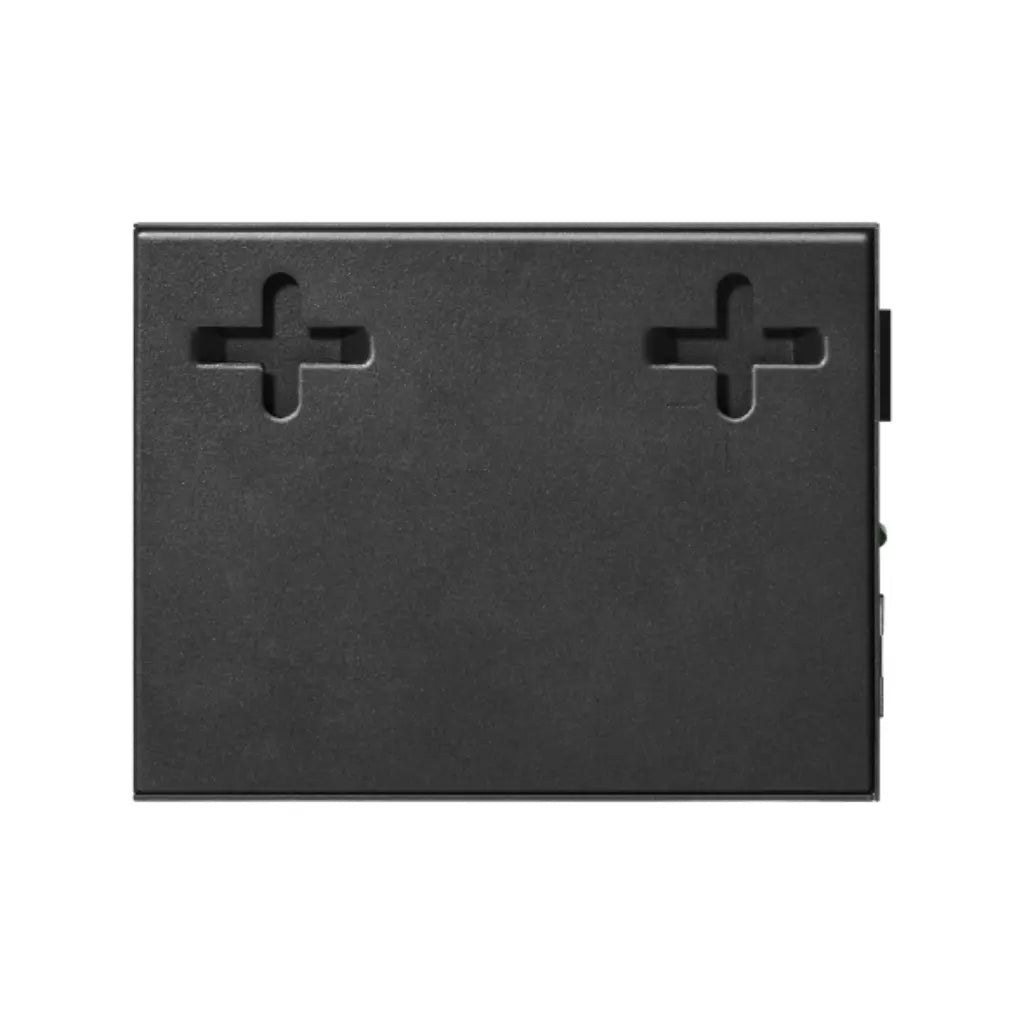

TP‑Link Omada MC211CS‑20 Gigabit WDM Media Converter 20km Single‑Mode SC Fiber
TP‑Link Omada MC211CS‑20 Gigabit WDM Media Converter 20km Single‑Mode SC Fiber
Regular price
Rs. 2,350.00
Regular price
53% off
Rs. 4,899.00
Sale price
Rs. 2,350.00
Quantity
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Product Description:
🔹 Gigabit Performance – 1× 10/100/1000 Mbps RJ45 port delivers fast and stable wired connectivity
🔹 WDM Technology – Transmit and receive data over a single optical fiber, reducing fiber cost and complexity
🔹 Long‑Range Fiber Link – Supports single‑mode SC fiber transmission up to 20 km
🔹 Auto‑Negotiation Support – Automatically adjusts speed and duplex mode for seamless connectivity
🔹 Industrial Reliability – Designed for continuous operation in enterprise and ISP environments
🔹 Plug & Play Design – No configuration required, easy integration with existing networks
🔹 WDM Technology – Transmit and receive data over a single optical fiber, reducing fiber cost and complexity
🔹 Long‑Range Fiber Link – Supports single‑mode SC fiber transmission up to 20 km
🔹 Auto‑Negotiation Support – Automatically adjusts speed and duplex mode for seamless connectivity
🔹 Industrial Reliability – Designed for continuous operation in enterprise and ISP environments
🔹 Plug & Play Design – No configuration required, easy integration with existing networks
The TP‑Link Omada MC211CS‑20 Gigabit WDM Media Converter enables long‑distance network extension over a single‑mode optical fiber up to 20 km. Equipped with WDM technology, it efficiently transmits and receives data on a single SC fiber strand, reducing infrastructure costs. With one Gigabit RJ45 port and one Gigabit SC fiber port, it is ideal for enterprise networks, surveillance systems, and inter‑building connectivity requiring stable, high‑speed data transmission.
| Brand | TP‑Link |
| Series | Omada |
| Model | MC211CS‑20 |
| Device Type | Gigabit WDM Media Converter |
| Ethernet Port | 1× 10/100/1000 Mbps RJ45 (Auto‑MDI/MDIX) |
| Fiber Port | 1× Gigabit SC/UPC |
| Fiber Type | Single‑Mode 9/125 µm |
| Wavelength | 1550 nm TX / 1310 nm RX |
| Max Transmission Distance | Up to 20 km |
| Supported Standards | IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z |
| Duplex Mode | Half / Full Duplex Auto‑Negotiation |
| Power Supply | External Adapter 9V / 0.6A |
| LED Indicators | Power, Link/Act |
| Operating Temperature | ‑5°C to 50°C |
| Storage Temperature | ‑40°C to 70°C |
| Operating Humidity | 10%–90% RH (Non‑condensing) |
| Dimensions | 94.5 × 73 × 27 mm |
| Country of Origin | China |
| Warranty | 3 Years Manufacturer Warranty |
| Part Number | MC211CS‑20 |
