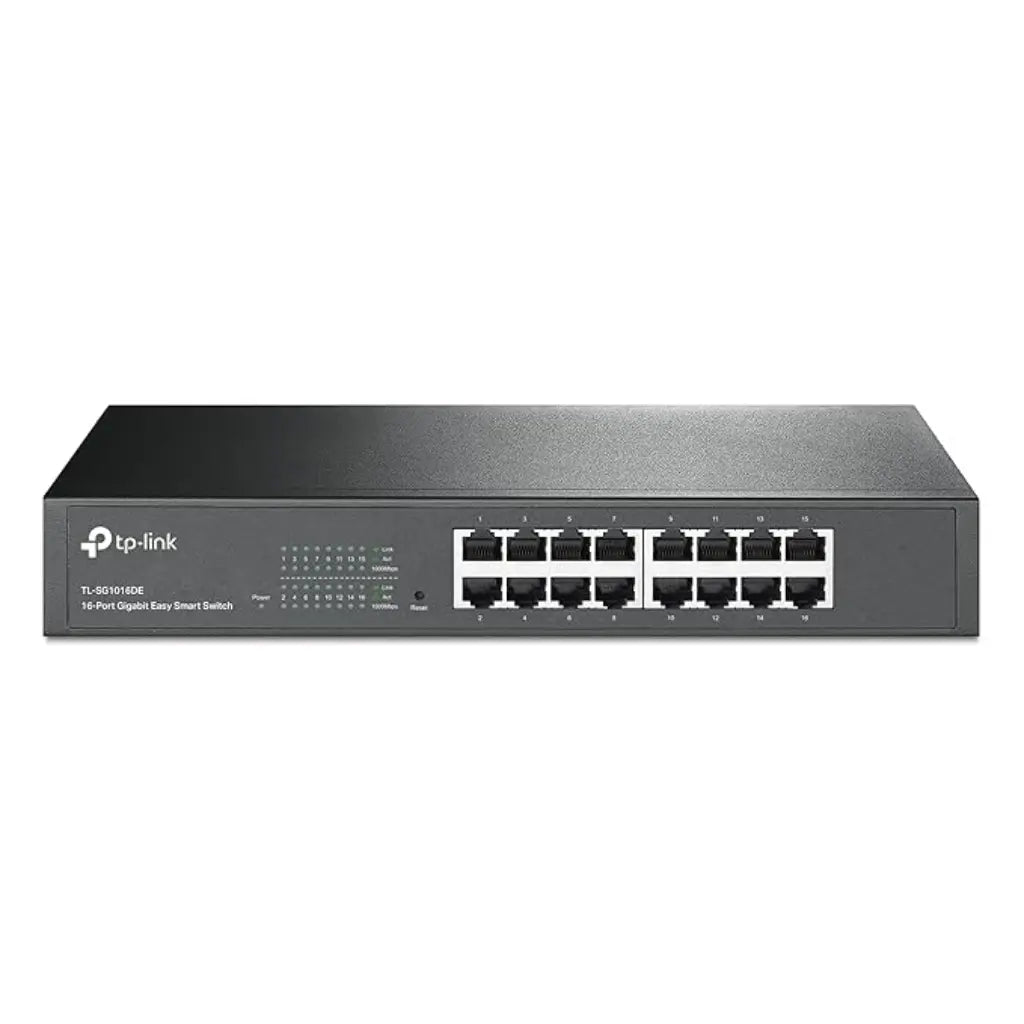

TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch with VLAN
TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch with VLAN
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🔌 16 Gigabit Ports – Equipped with 16 × 10/100/1000 Mbps RJ45 ports for high-speed connectivity.
🌐 Smart Management – Supports VLAN, QoS, IGMP Snooping, and Port Mirroring for optimized traffic control.
⚡ Energy-Efficient Design – Green technology reduces power consumption automatically based on link status.

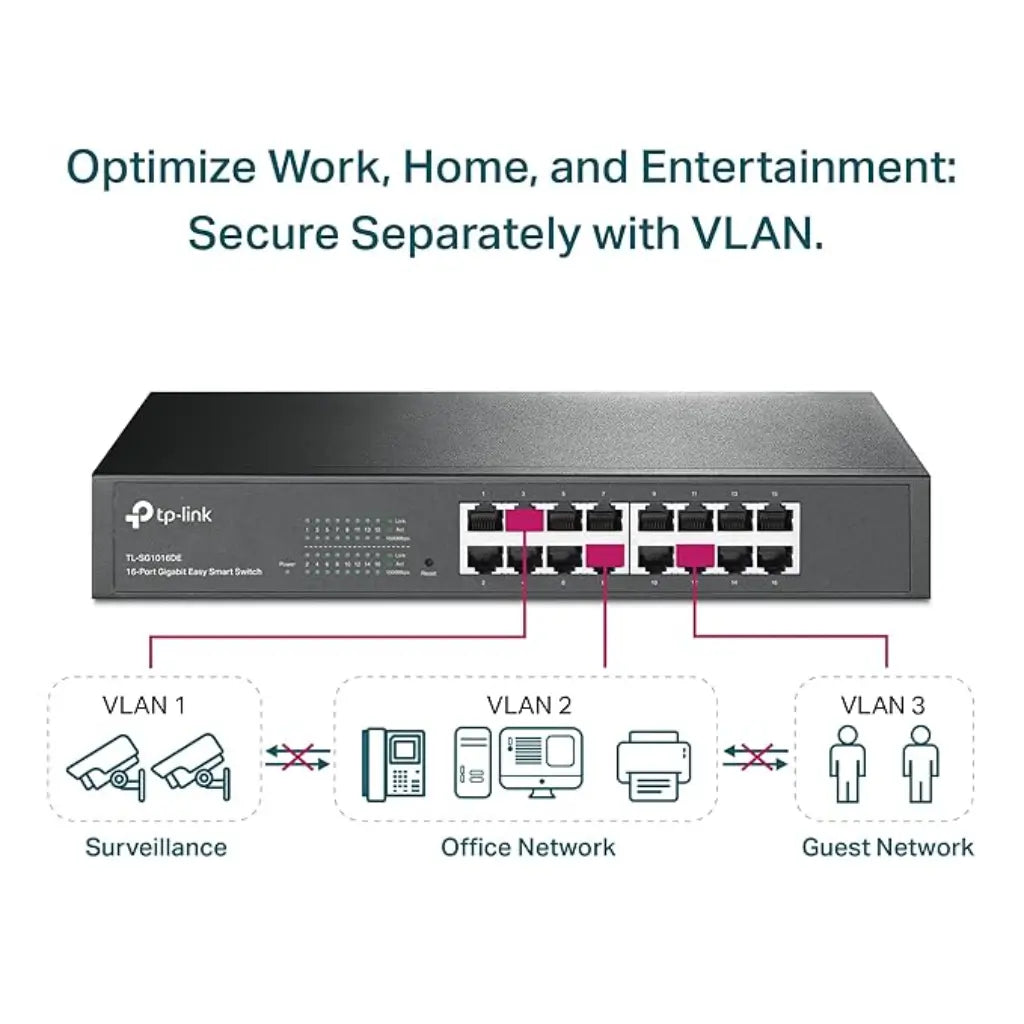

🛡️ Enhanced Security – MTU/Port-Based/802.1Q VLAN segmentation for secure and efficient networking.

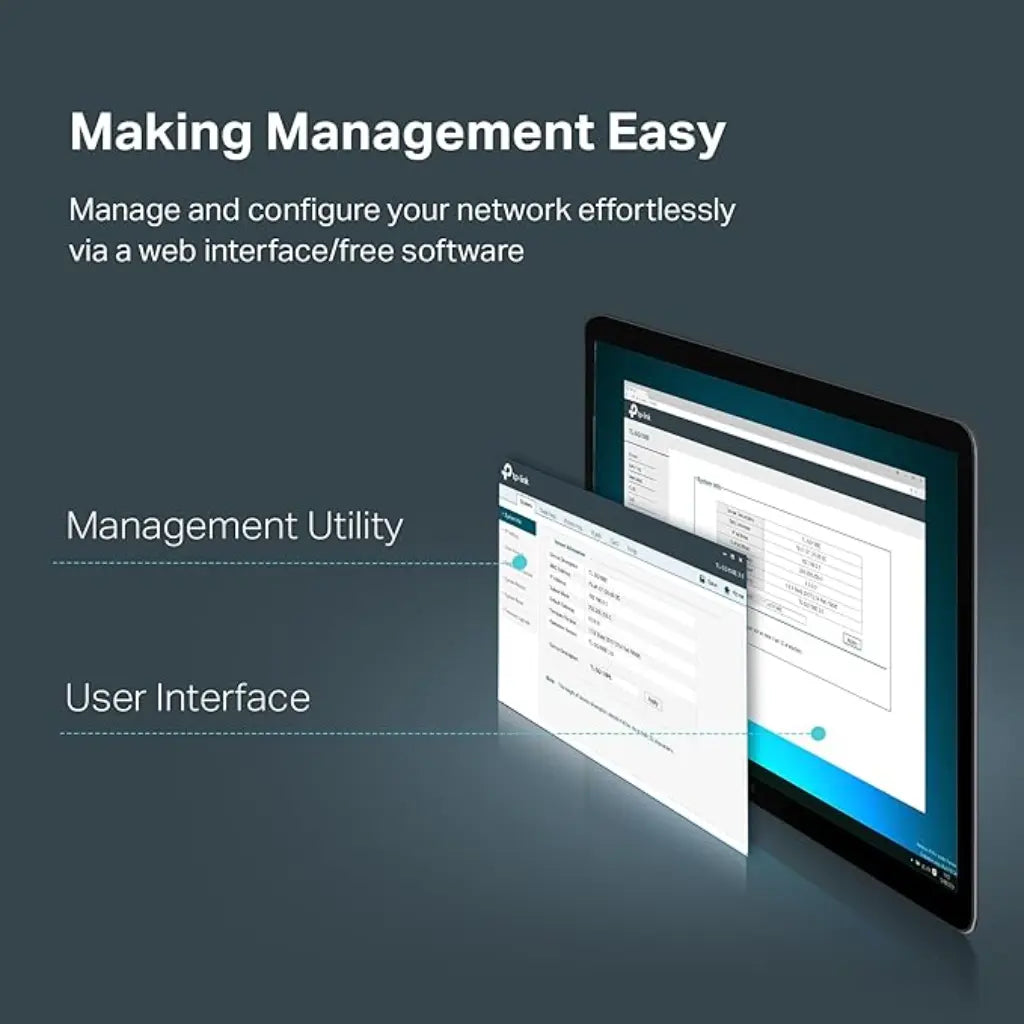

🖥️ Easy Configuration – Web-based GUI and Easy Smart Configuration Utility for hassle-free setup.
🔇 Silent Operation – Fanless design ensures quiet performance, ideal for office environments.
The TP-Link TL-SG1016DE is a 16-Port Gigabit Easy Smart Switch designed for small and medium businesses seeking efficient network management. It offers advanced features like VLAN, QoS, and IGMP Snooping to optimize traffic and enhance security. With energy-saving technology and a fanless design, it delivers eco-friendly, silent operation. Simple web-based management makes configuration quick and easy, ensuring smooth network performance.
Product Specifications:
| Specification | Details |
| Model | TL-SG1016DE V7 |
| Ports | 16 × 10/100/1000 Mbps RJ45 (Auto Negotiation/AUTO MDI/MDIX) |
| Standards | IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p |
| Switching Capacity | 32 Gbps |
| Forwarding Rate | 23.8 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4.1 Mbit |
| Jumbo Frame | 10 KB |
| Power Supply | 100–240 V, 50/60 Hz |
| Max Power Consumption | 10.27 W |
| Heat Dissipation | 34.92 BTU/h |
| Dimensions | 294 × 140 × 44 mm (11.6 × 5.5 × 1.7 in.) |
| Installation | Desktop/Rack Mountable |
| Operating Temp | 0°C–40°C (32°F–104°F) |
| Storage Temp | -40°C–70°C (-40°F–158°F) |
| Operating Humidity | 10%–90% RH non-condensing |
| Storage Humidity | 5%–90% RH non-condensing |
| Certifications | CE, FCC, RoHS |
| Software Features | IGMP Snooping, Link Aggregation, Port Mirroring, Cable Test, Loop Prevention |
| VLAN Support | Up to 32 VLANs (MTU/Port-Based/802.1Q Tag VLAN) |
| QoS | 4 Priority Queues, Port-based/802.1p/DSCP Priority, Bandwidth Control |
| Management | Web-based GUI, Easy Smart Configuration Utility |
| Country of Origin | China |
| Warranty | 3 Years |
| Weight | 204 g |
