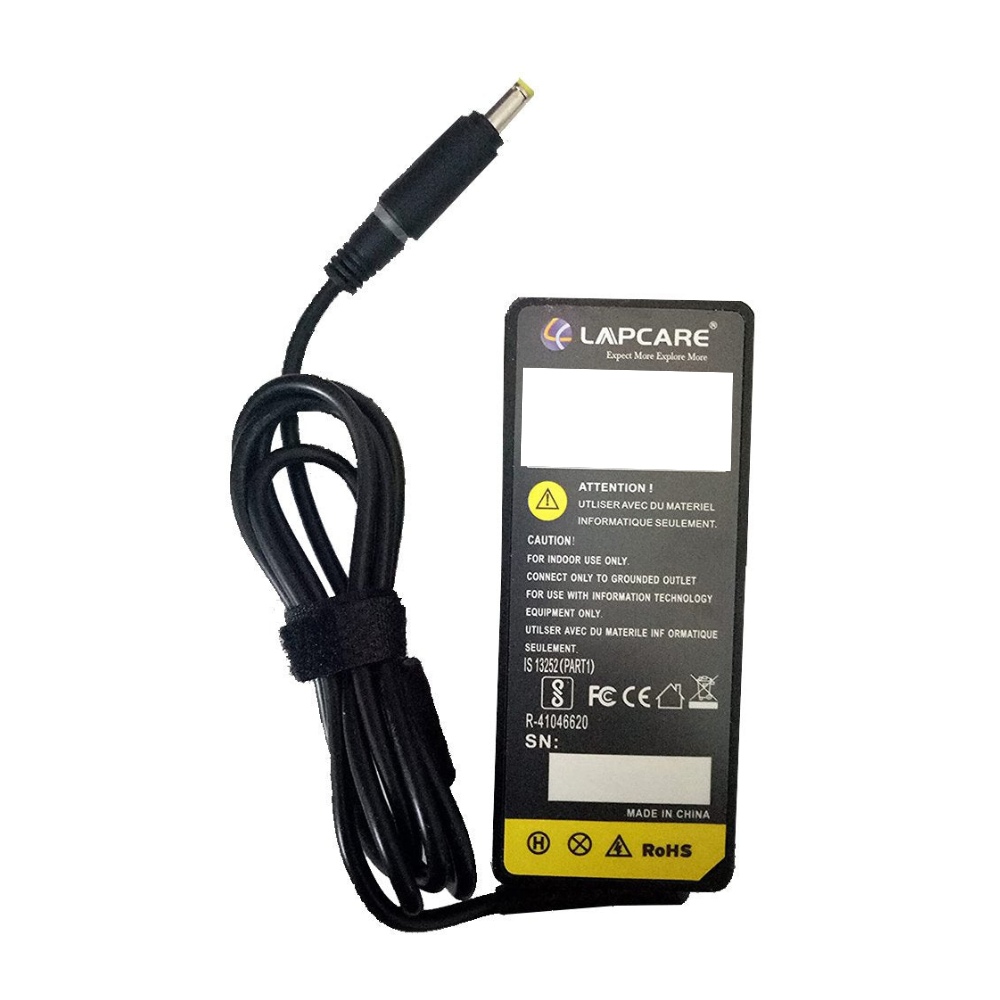

ACER Compatible 45W 19.5V 5.5mm Pin Laptop Charger Adapter
ACER Compatible 45W 19.5V 5.5mm Pin Laptop Charger Adapter
Compatibility check is must for dispatch.
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
The Perfect Partner for Your Laptop on the Go
Always on the go? Stop lugging your adapter back and forth between home and office. Get a second adapter for your laptop or Tablet and keep one in the office and one for home or travel.
The 5.5mm pin laptop adapter for select Acer Laptops comes with 45W output power and 2.37A output current.
This 19V adapter is specially designed to meet the power needs of your Acer laptop.
Low ripple operating noise, High-efficiency power conversion ratio, Over Voltage, Over Current, Short circuit protection.
Backed by standard full 12-month replacement warranty, the adapter is also RoHS and CE certified.
Troubleshooting Adapter Issues
The adapter cable and power cables may get frayed or cut, and wires may become exposed at either end of the cables. This may be due to the way the cable is wrapped around the adapter, or if the cable is subject to undue stress. If the damage is severe enough to expose wires, you should discontinue using the adapter. To check the adapter, cables, and adapter port on the laptop for any damages:
- Unplug the adapter from the wall outlet.
- Unplug the adapter from the PC.
- Check the adapter and cables (including the power cable) for signs of physical damage or overheating.
- Check if the pin inside the plug or adapter port is bent, broken, or damaged.
- Unplug the adapter from the wall outlet.
- Connect another device on the wall outlet to verify if the wall outlet is working correctly.
- Try a known-good wall outlet.
- Plug the adapter directly to the wall outlet.
Bypass any power regulators like surge protectors, UPS (uninterruptible power supply), power splitters, etc.
- Unplug the adapter from the wall outlet.
- Disconnect any external peripherals that are connected to the PC.
- Remove the battery. Refer to the User Manual of the PC for instructions on how to remove the battery.
If the laptop PC has a non-removable battery, skip this step. - Press and hold the Power button for 30 seconds to drain a residual power from the PC.
- Connect the battery.
- Plug the adapter to the PC.
- Turn on the PC.
- Unplug the adapter from the wall outlet.
- Unplug the adapter from the PC.
- Disconnect the power cable from the adapter.
- Connect the power cable firmly to the adapter.
The BIOS is firmware that is embedded onto the System Board of your computer. Updating the BIOS to the latest version may help the PC recognize the adapter. Updating the BIOS to the latest version requires the laptop PC to be powered by the adapter and battery.
Technical Specifications
| Product Type | Laptop Adapter |
| Product Brand | Lapcare |
| Pin Size | 5.5 x 1.7mm |
| Power Output | 19V/2.37A |
| Power Capacity | 45 Watt |
| Compatible Part Numbers | PA-1450-26 PA-1450-86 PA-1450-26LW PA-1450-41 PA-1450-58 PA-1450-22 PA-1450-14 ADP-45BW ADP-45DW ADP-45EW AP.04501.001 AP.0450H.001 AP.04503.001 AP.04506.001 AP.0450A.001 KP.04501.001 |
| Compatible Model Numbers | Aspire One series Aspire ES1 series Aspire E1-421, E1-431, E1-471, E1-531, E1-571 Aspire V5-431, V5-471, V5-571 Aspire 4250, 4251, 4333, 4349, 4733, 4736, 4741, 4750, 4752, 4755 Aspire 5333, 5349, 5551, 5552, 5560, 5733, 5741, 5742, 5750, 5755 Aspire 7235, 7250, 7339, 7535, 7551, 7552, 7560 TravelMate 5335, 5735, 5742, 5760, 6595, B113 Extensa 2510, 2519, 2520, 5235, 5635 Chromebook C7, C710 (select models with 5.5mm pin) |
| Warranty | 1 Year National Warranty |
| Package Contents | Lapcare 45W Laptop Adapter for Select Laptops |
