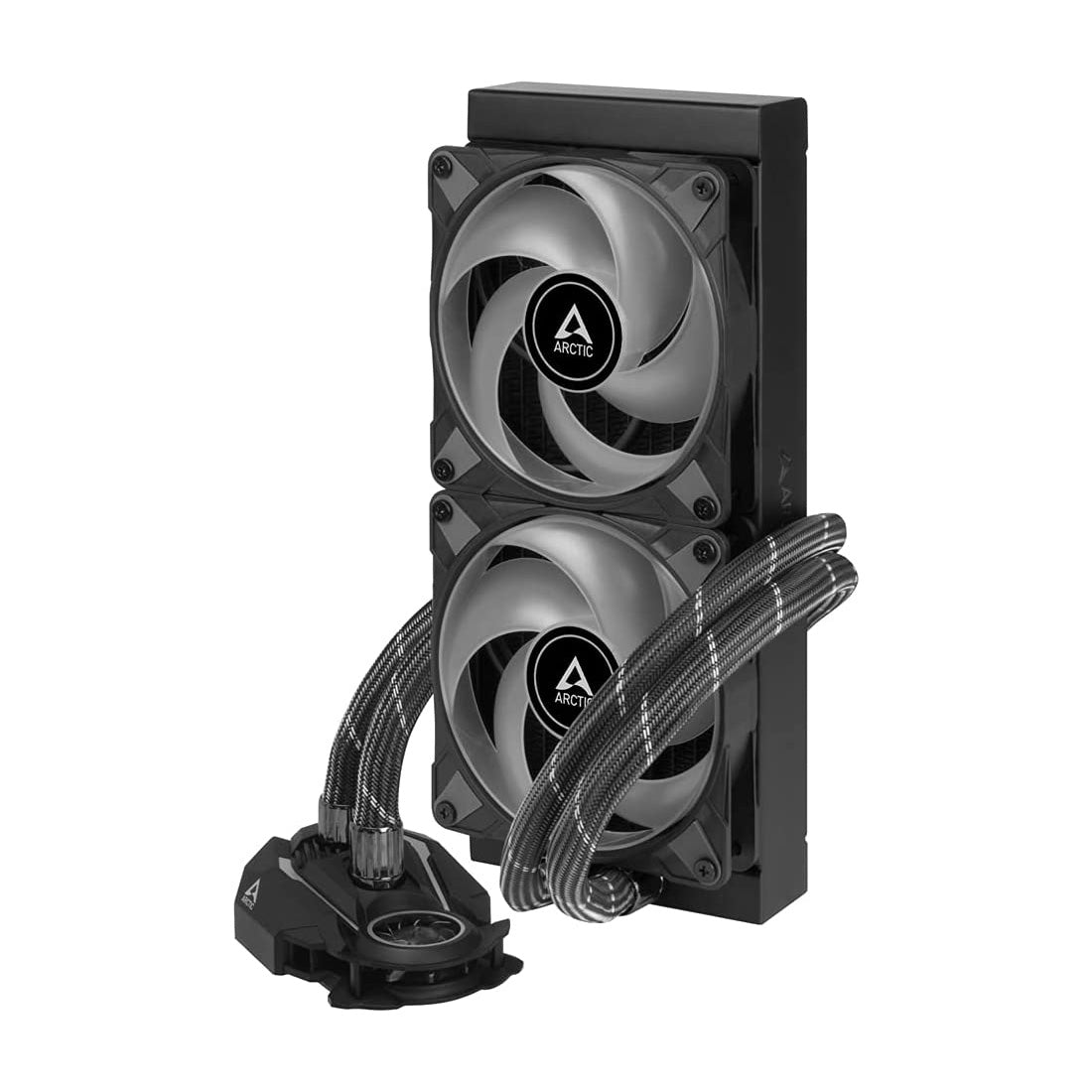

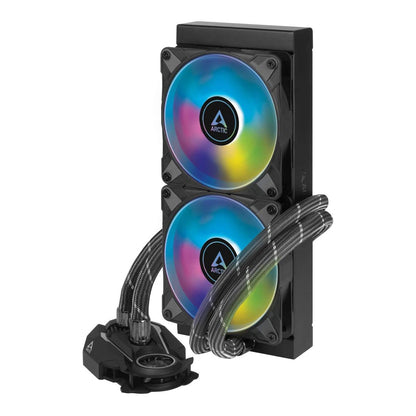

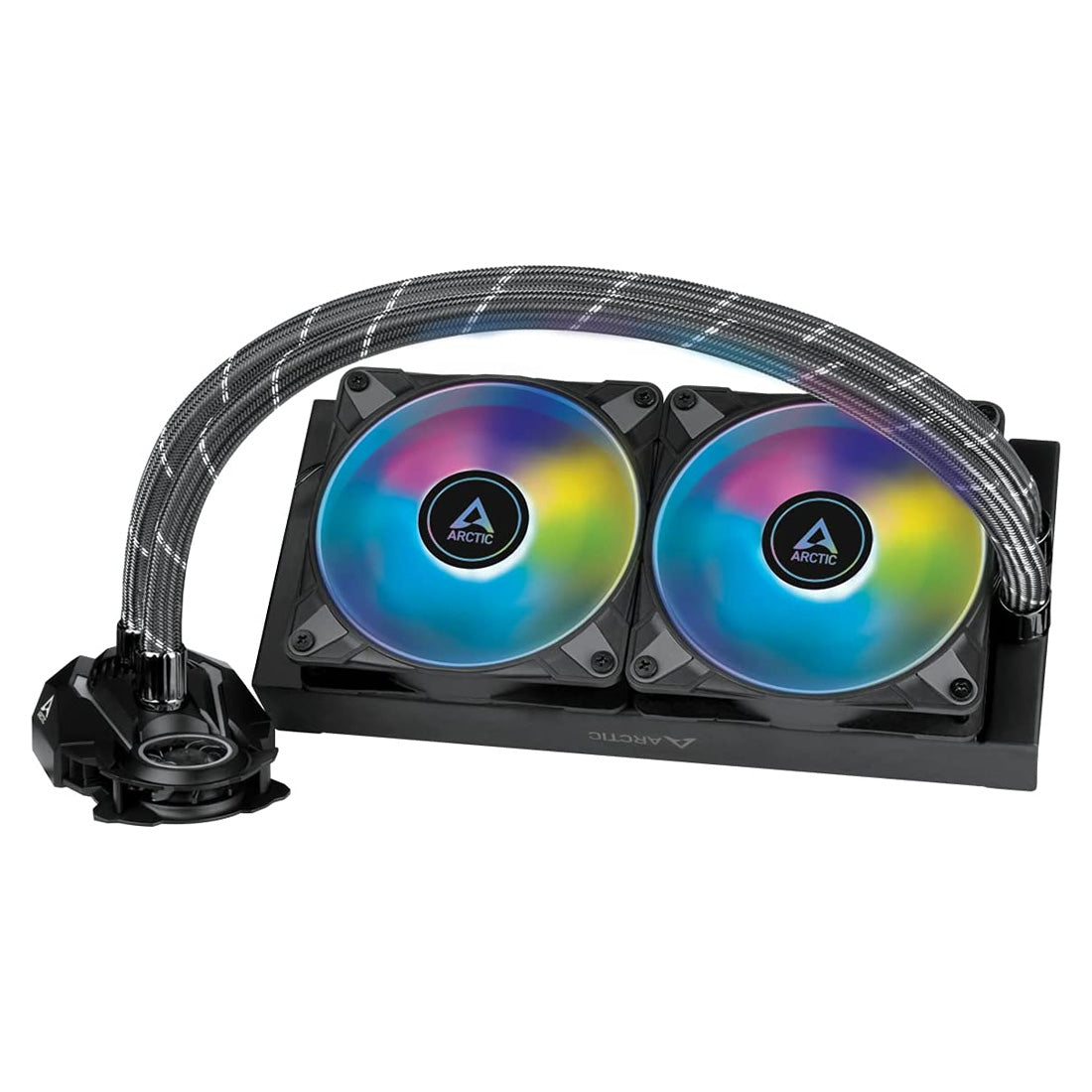

ARCTIC Liquid Freezer II 240 A-RGB 240mm AIO CPU Liquid Cooler with PWM Pump and Fans
ARCTIC Liquid Freezer II 240 A-RGB 240mm AIO CPU Liquid Cooler with PWM Pump and Fans
- Free Shipping
- 10-Days Return
- Original Warranty
Product Description:
- ARCTIC launches their new all-powerful AIO CPU liquid cooler with Liquid Freezer II 240 A-RGB. The 240mm liquid cooler comes with a PWM pump and ARGB fans optimized for static pressure of 1.85 mm H2O.
- The fan is PWM-controlled and can cool your voltage transformers and the base area almost inaudibly by up to 15°C. This is especially effective in overclocking scenarios, inadequate VRM cooling, or in housings with poor airflow, thus permitting continuously high loads.
- It hides both the A-RGB and PWM cables of your radiator fans thanks to a well-thought-out cable management system. This way, you only have to connect two plugs to the mainboard and save valuable time during installation.
- The liquids cooler is designed to have compatibility with Intel's latest LGA 1700 socket, 1200, 115X, 2011-3, 2066 and AMD AM4 sockets. The unit uses 38mm mm thick radiators with a high fin density. This means that a larger amount of water can be used in the circuit, and the cooling surface can be significantly increased.

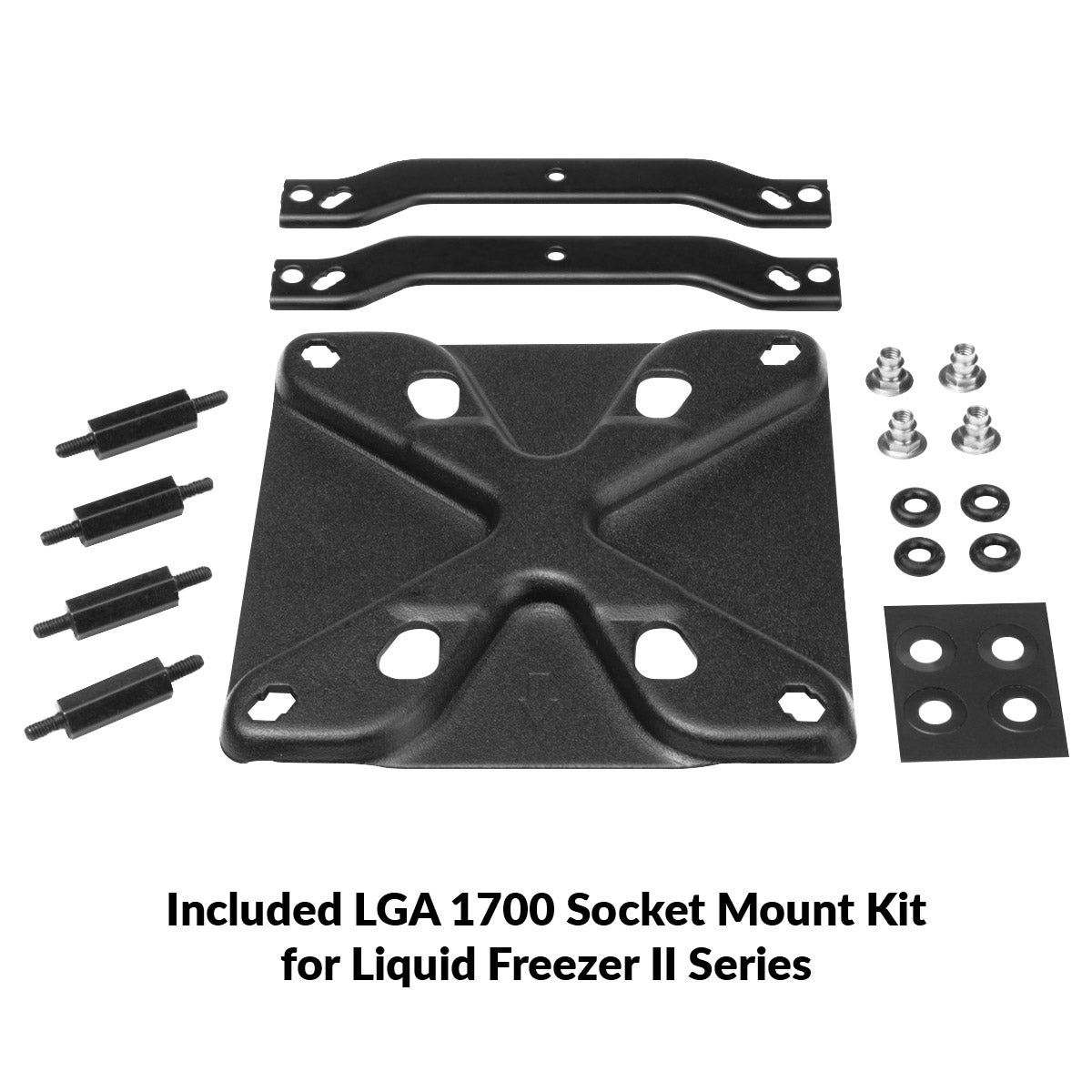

- To receive your Free LGA1700 Installation kit please visit: https://www.arctic.de/en/support/lga1700-mounting-kits/
~section~

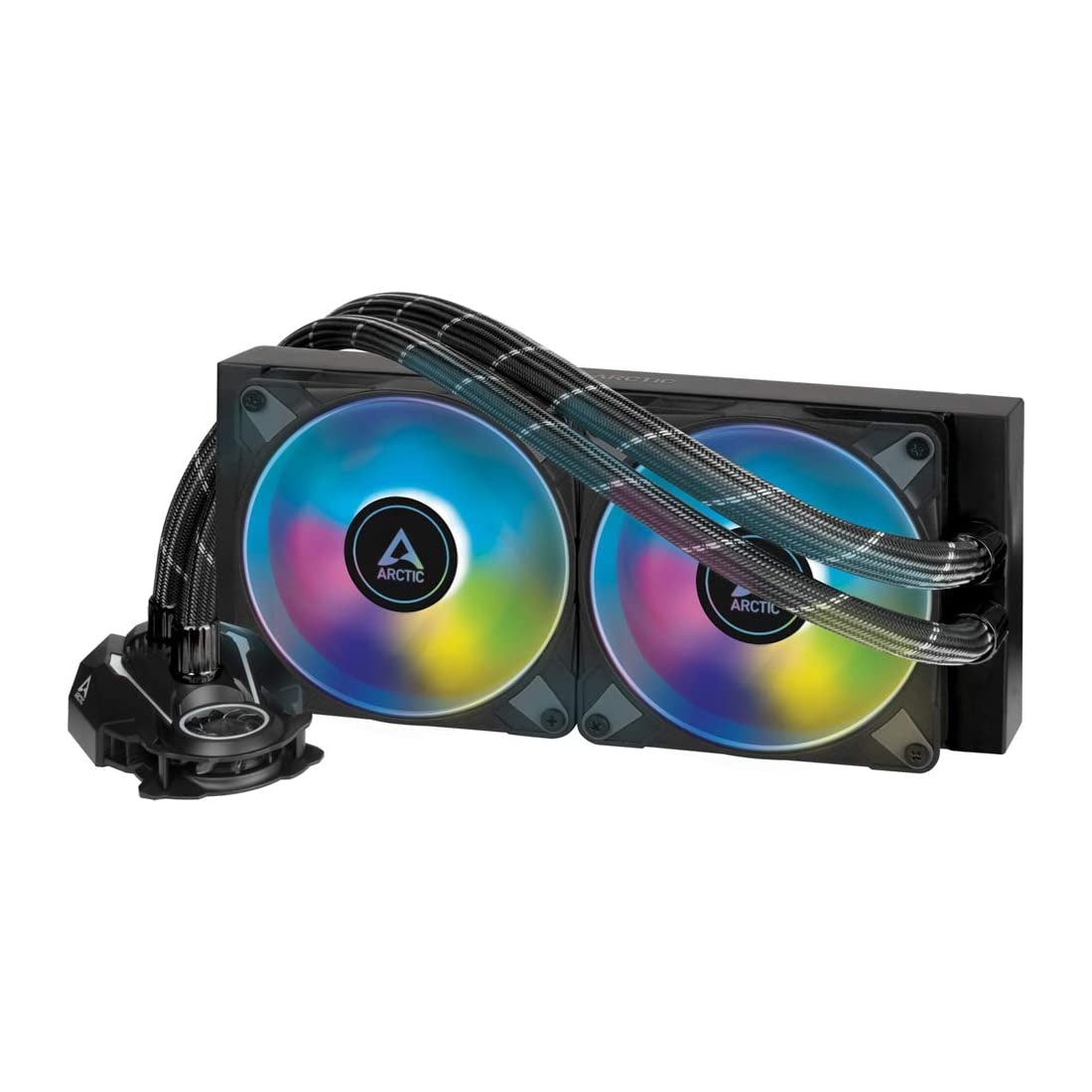

Light Up Your Build
The Liquid Freezer II A-RGB combines the efficient, award-winning PWM pump of the Liquid Freezer II with new A-RGB fans optimized for static pressure. This gives you a whole new aesthetic with extremely low noise and equally low temperatures.
PWM Pumps and Fans
Like the other components, the pump is also PWM controlled. This leads to a significantly lower noise level at low and typical loads, but also to much lower power consumption, with a maximum of of 0.8 W at no load, 2.3 W under normal load and a maximum of 4.8 W under full load for the entire AIO.
High Quality Hoses
The fibre-reinforced, long EPDM tubing of the Liquid Freezer II allows installation even in large cases and effectively prevents the coolant from evaporating, so you don't have to worry about refilling the compact water cooling system.

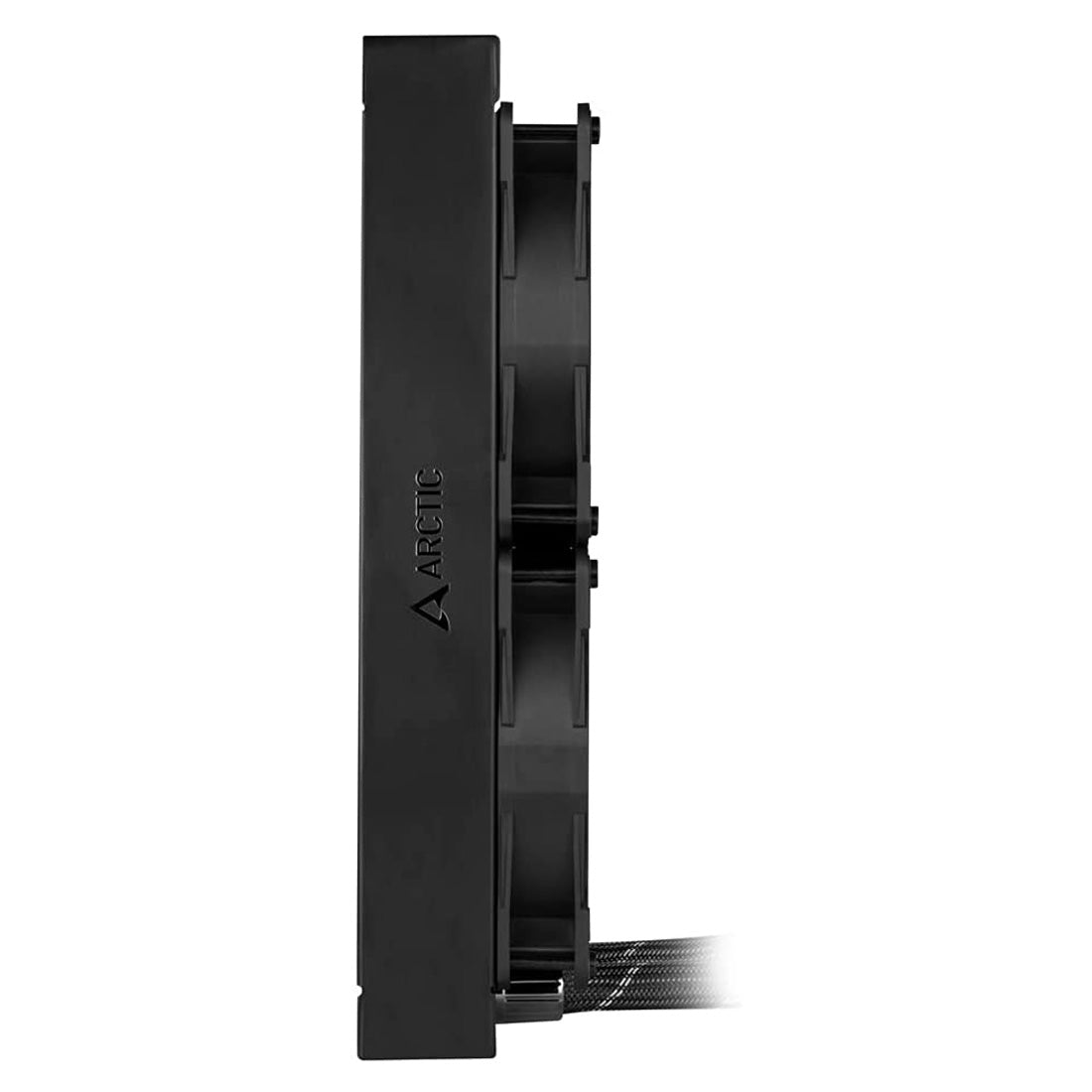

Premium Class Radiator
With 38 mm thick radiators with a high fin density. This means that a larger amount of water can be used in the circuit, and the cooling surface can be significantly increased.

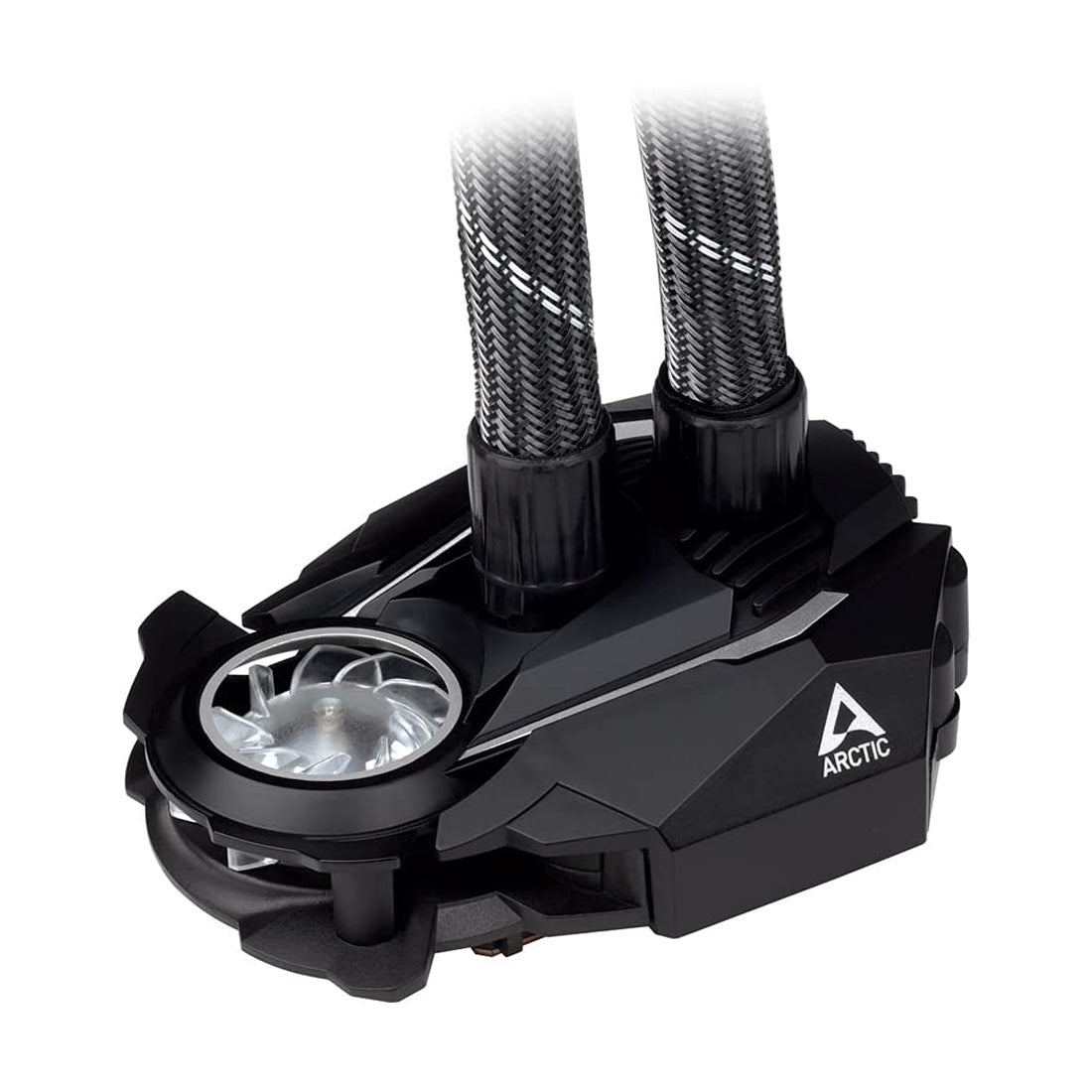

Smooth VRM Fan
The fan is PWM-controlled and can cool your voltage transformers and the base area almost inaudibly by up to 15 ° C. This is especially effective in overclocking scenarios.
Fan Optimized Static Pressure
High static pressure for improved cooling performance with 1.85mm H2O. The fan comes with high quality plain bearing and the rubber bumpers helps in vibration reduction by 95%.
~section~
Model | Liquid Freezer II 240 A-RGB |
Part-Number | ACFRE00093A |
Fan |
|
Fan | 2x ARCTIC P12 PWM A-RGB – 120mm Fan |
Fan Speed | 200 – 1800 RPM |
Fan Bearing | Fluid Dynamic Bearing |
Noise Level | 0.3 Sone |
Voltage / Current | 0.08 A / 12 V DC |
AirFlow | 48.8 CFM |
Static Pressure | 1.85 mm H2O |
Connector | 4 Pin Connector |
Pump/Cold Plate |
|
VRM Fan | 40 mm, 1000 - 3000 RPM (PWM controlled) |
Pump | 800 – 2000 RPM (PWM controlled) |
Power Consumption | 0.5W – 2.7W (Pump + VRM Fan) |
Cold Plate | Copper, Micro-Skived-Fins |
Thermal Paste | MX-5 (0.8 g) |
Miscellaneous |
|
Compatibility | Intel: 1700 (Kit Included), 1200, 115X, 2011-3, 2066 AMD: AM4 |
RAM Clearance | Unlimited |
Operating Temperature | 0 - 40 °C |
Connector | Cooler: 4 pin PWM Connector LEDs: 4-pin 12V-G-R-B Connector with Y-Splitter |

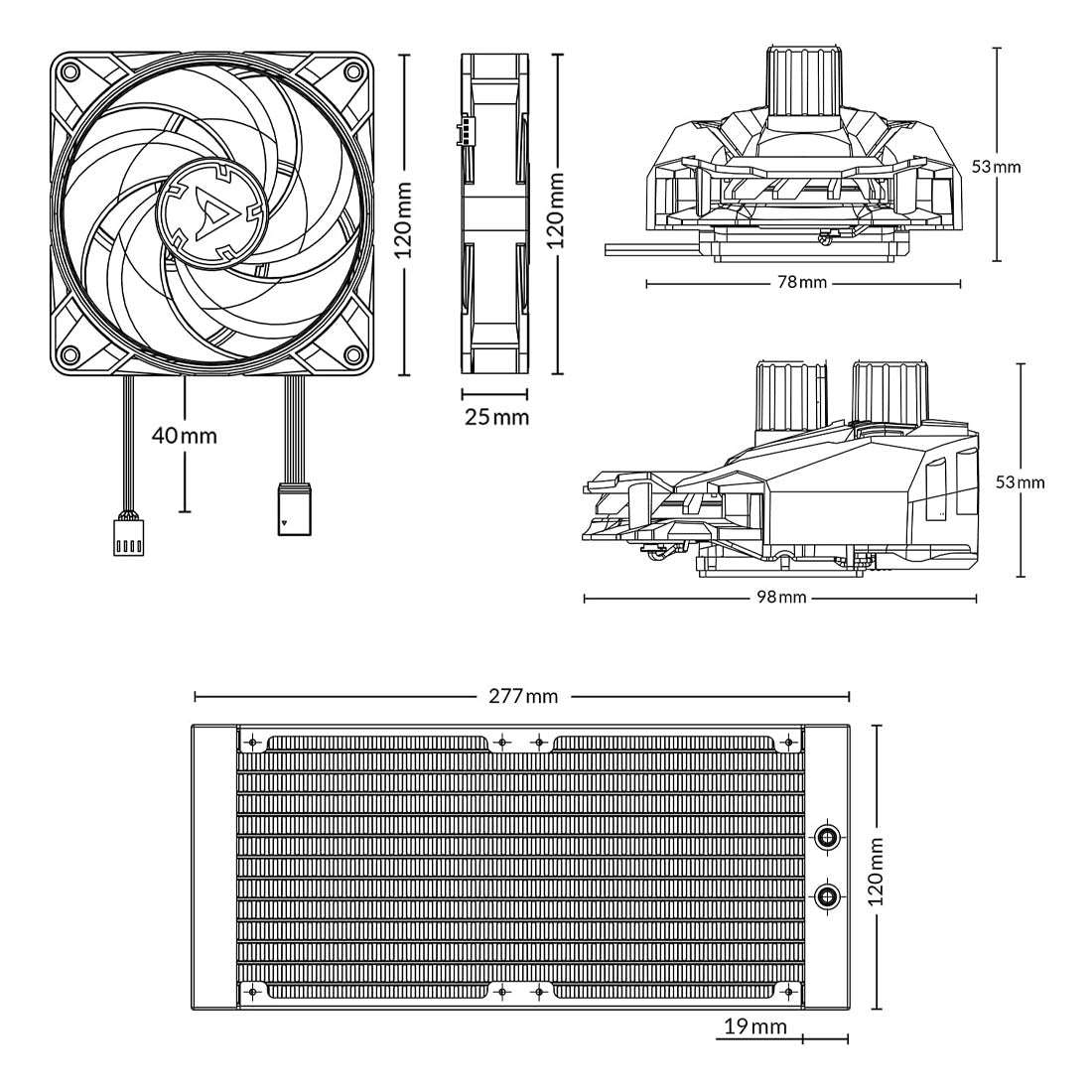

Radiator Dimensions | 277 x 120 x 38 mm |
Pump Dimensions | 98 mm x 78 mm x 53 mm |
Tube Length | 450 mm |
Weight | 1.21Kg |
Warranty | 6 Years of Warranty from the Manufacturer |
