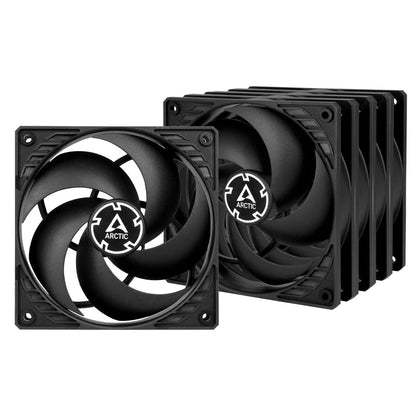

ARCTIC P14 PWM PST 140 mm Black CPU Case Cooling Fan Pack of 5
ARCTIC P14 PWM PST 140 mm Black CPU Case Cooling Fan Pack of 5
- Free Shipping
- 7-Days Return
- Original Warranty
Product Description:
- ARCTIC CPU Case Fan with P14 PWM PST Black 140mm Fan in which the PWM PST controlled fan is designed to work with upto 1700rpm at a low sound level 0.3 Sone.
- Developed with a motor which is a combination of alloy/lubricant gives reduced friction and noise. Making the P14 ideal solution for your silent work and gaming environment.
- The new P14 PWM PST case fan, special emphasis was placed on a focused airstream and thus a high static pressure. It is particularly suitable for use on heatsinks and radiators.
- The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation.
~section~
High Static Pressure
The new P14 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure, guarantees extremely efficient cooling, even with increased air resistance.
200 To 1700 RPM Via PWM PST
Comes with 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. So, the noise is kept at a minimum while maximum cooling performance is guaranteed when needed.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved.
More Efficient Technology
The motor is powered by a PWM IC of the newest generation, which allows the new P14 PWM PST to run much more efficiently than its predecessors. This saves energy without compromising the performance.
~section~
Model | ARCTIC P14 PWM PST CPU Case Fan |
Part-Number | ACFAN00138A |
Fan |
|
Size | 5 x 140 mm Fan |
Control Type | PWM PST |
Fan Bearing | Fluid Dynamic Bearing |
Connector | 4-Pin-Connector + 4-Pin-Socket |
Performance |
|
Fan Speed | 200 - 1700 rpm |
Airflow | 72.8 CFM/ 123.76 m³/h |
Static Pressure | 2.40 mm H₂O |
Noise Level | 0.3 Sone |
Operating Ambient Temperature | 0 - 40 °C |
Electric Characteristics |
|
Typical Voltage | 12 V DC |
Starting Voltage | 3.9 V |
Current/ Voltage | 0.12 A / 12 V |
Cable Length | 400 mm |
Miscellaneous |
|
Dimensions | 140 x 140 x 27 mm |
Weight | 194 g |
Warranty | 6 Years of Brand Warranty |
