Highlights:
- ARCTIC's APT2560 thermal pad, which is based on silicone and a special filler, far outperforms generic and performance-oriented pads. The pads have excellent processability and reusability in every respect.
- Thanks to its low rigidity and good compression properties, the thermal pad acts as a perfect gap filler and easily bridges uneven surfaces and air gaps.
- The pad contains no metal particles, is electrically insulating and not capacitive. This makes handling them safe, since contact with electrical parts does not lead to damage.
- The Thermal Pads are available in 0.5 mm, 1.0 mm and 1.5 mm. Its slimness makes the 0.5 mm variant an excellent alternative to heat-conducting film.
Excellent Thermal Conductivity
The thermal pad, which is based on silicone and a special filler, far outperforms generic and performance-oriented pads. The thermal pad shows excellent processability and reusability in every respect.
Bridging the Gap
Thanks to its low rigidity and good compression properties, the thermal pad acts as a perfect gap filler and easily bridges uneven surfaces and air gaps.
Safe Handling
The ARCTIC Thermal Pads are non-adhesive and can therefore be placed precisely. The pad contains no metal particles, is electrically insulating and not capacitive, this makes handling them safe.
| Model | ARCTIC Thermal Pad - APT2560 |
| Part-Number | ACTPD00001A ACTPD00002A ACTPD00003A |

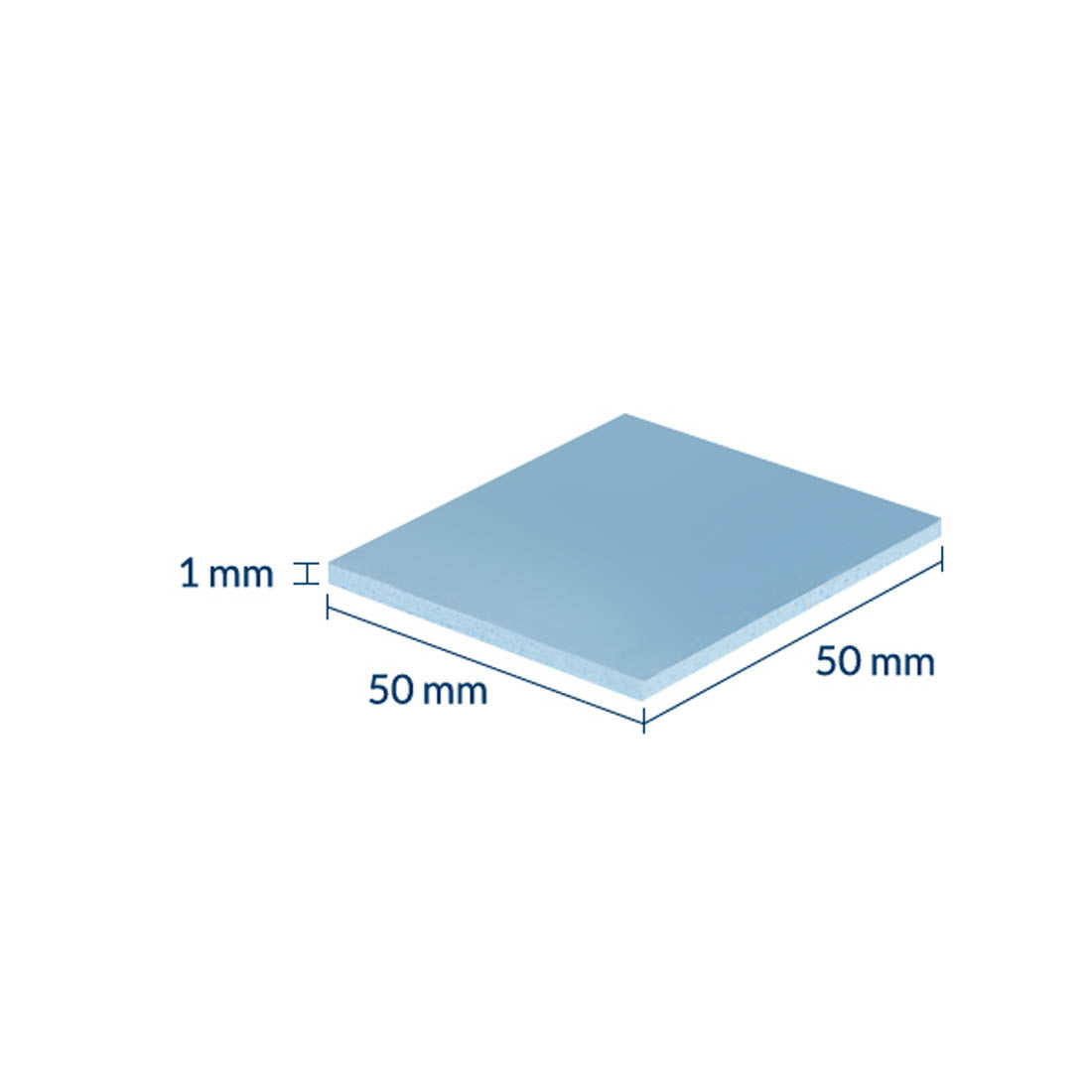

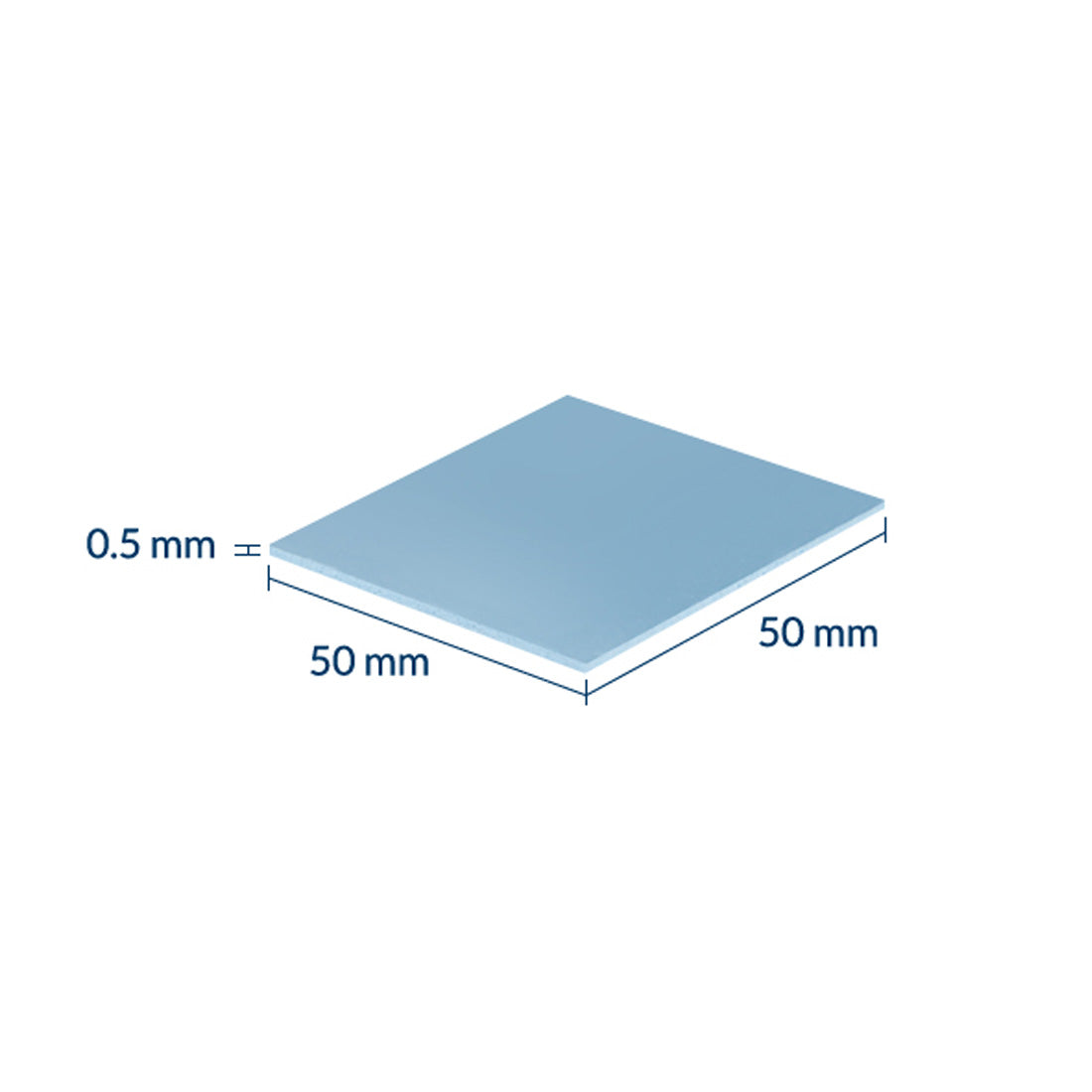

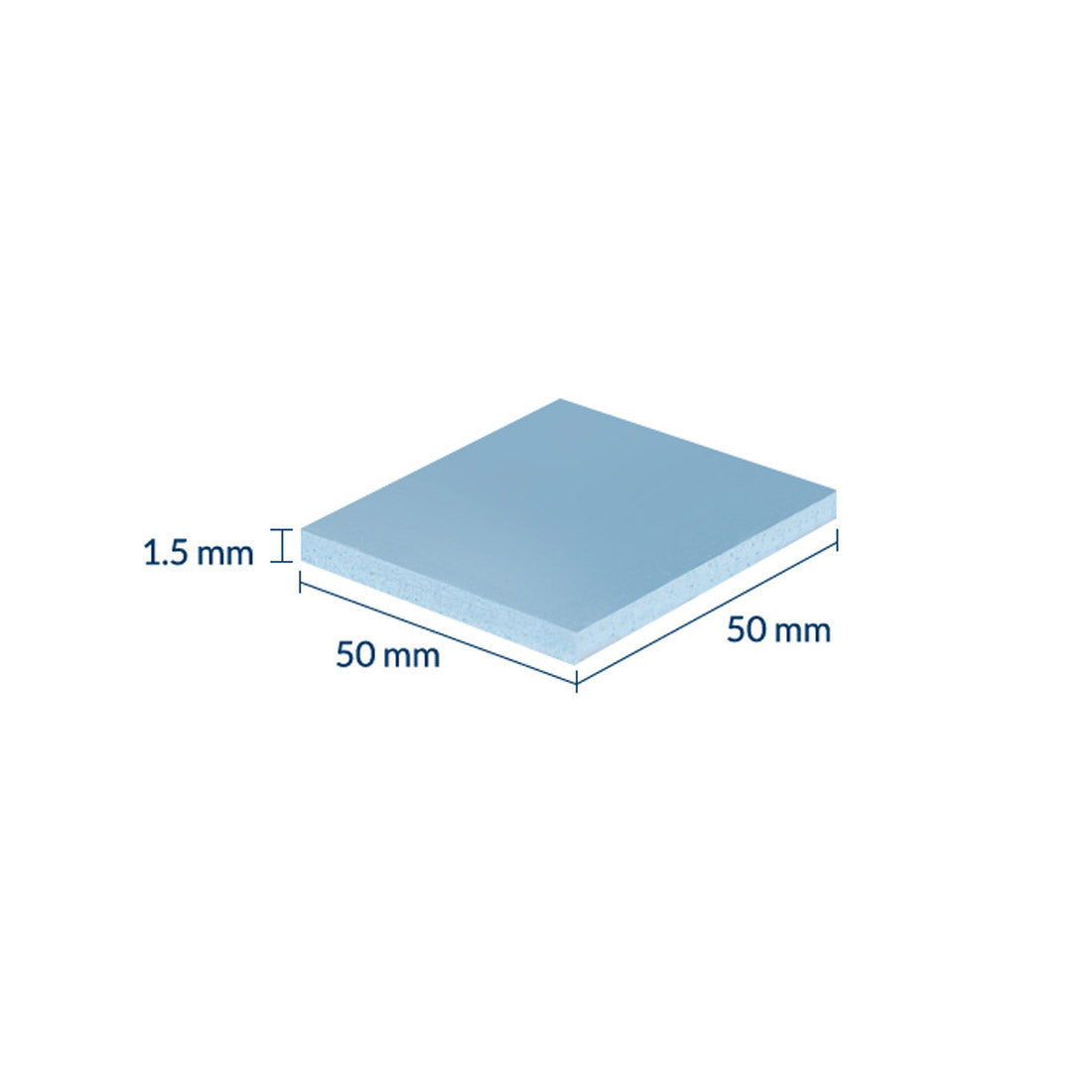

| Pad Thickness | 0.5mm 1mm 1.5mm |
| Material | APT260 |
| Hardness | 50 Shore OO |
| Specific Gravity | 3.2 g/cm³ |
| Thermal Conductivity | 6.0 W/(m K) |
| Volume Resistivity | 1 X 10^12 Ω-cm |
| Continuous Use Temperature | -40 ~ 200°C |
| Flammability Rating | UL 94 V-0 |
| Colour | Blue |
| Package Dimensions | 112 x 94 x 5 mm |
| Weight | 10g |
| Warranty | 6 Years of Warranty from the Manufacturer |
