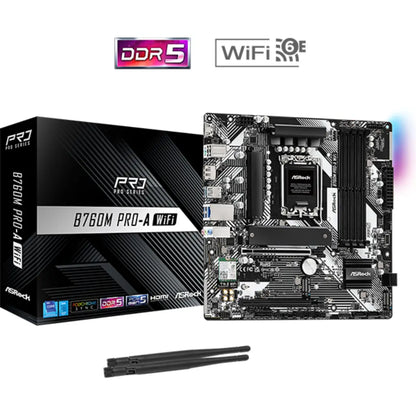

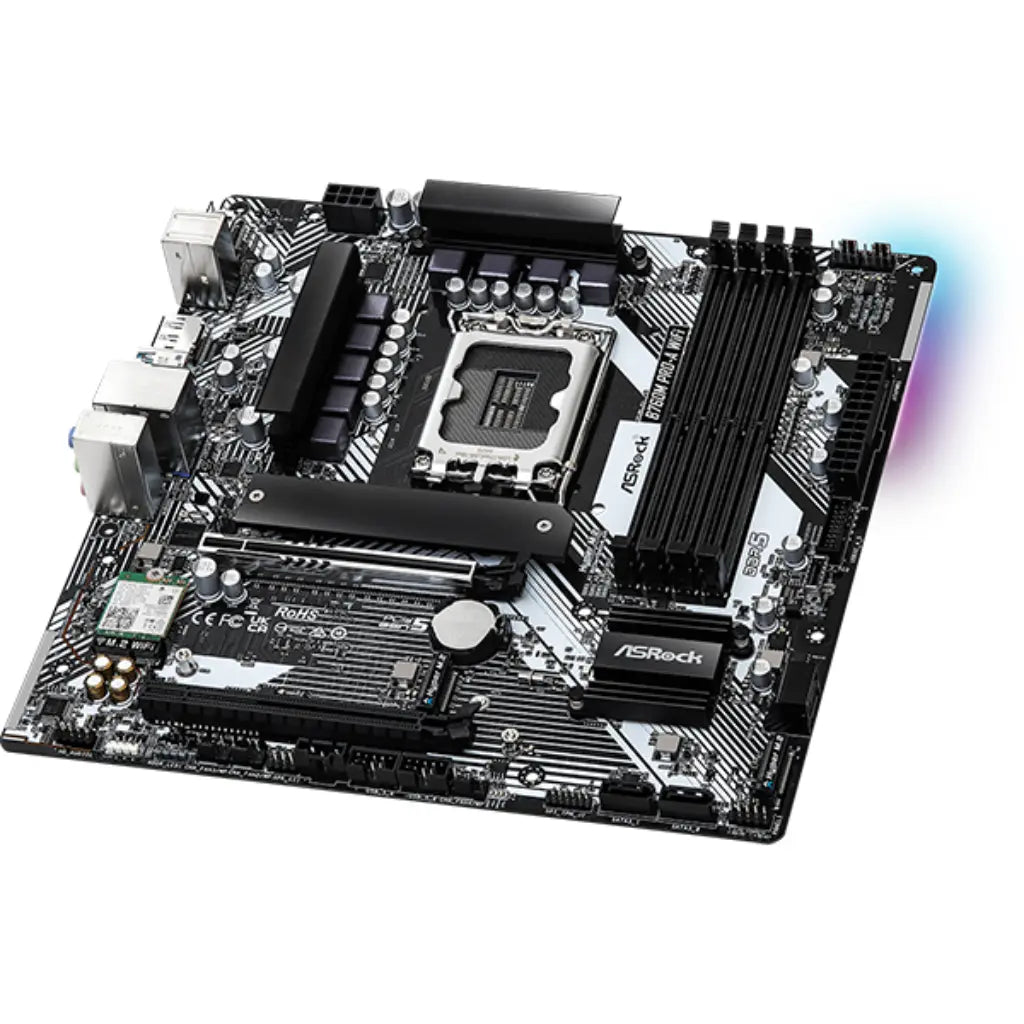

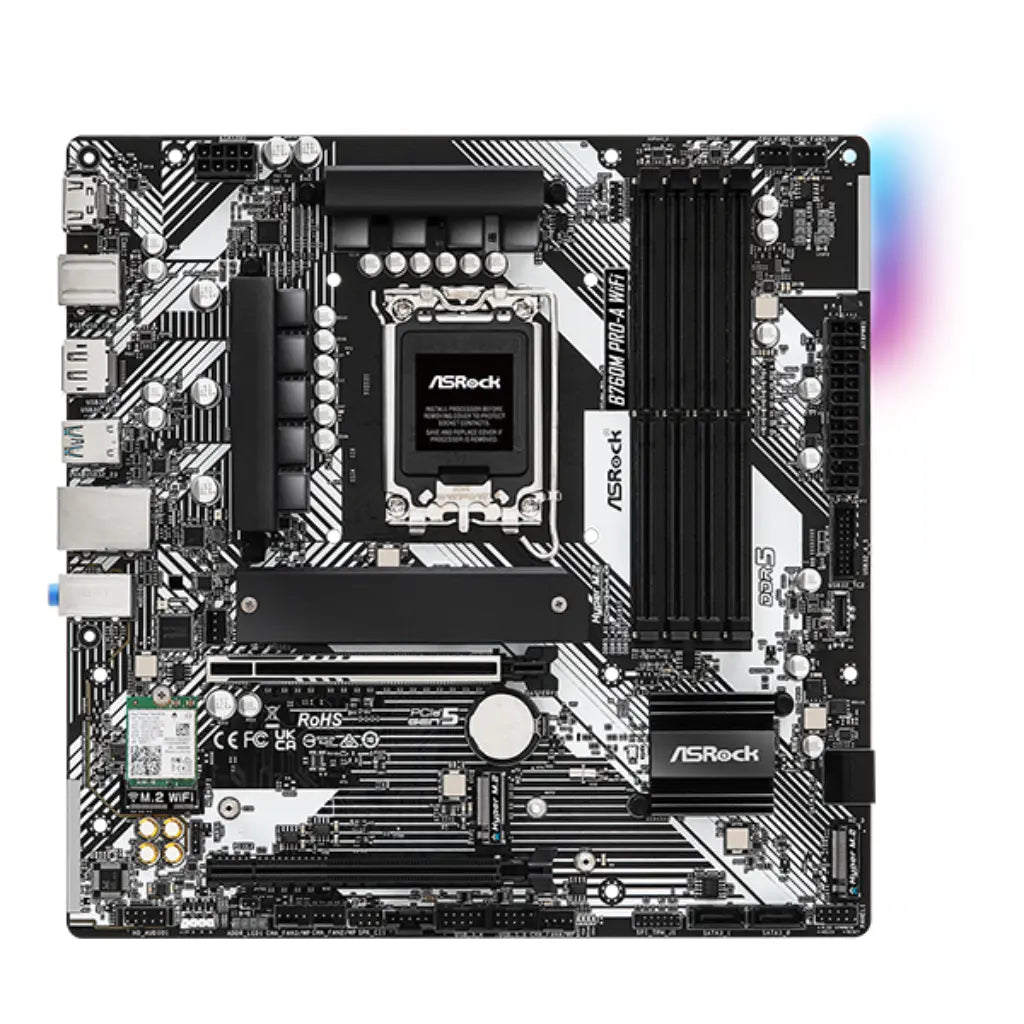

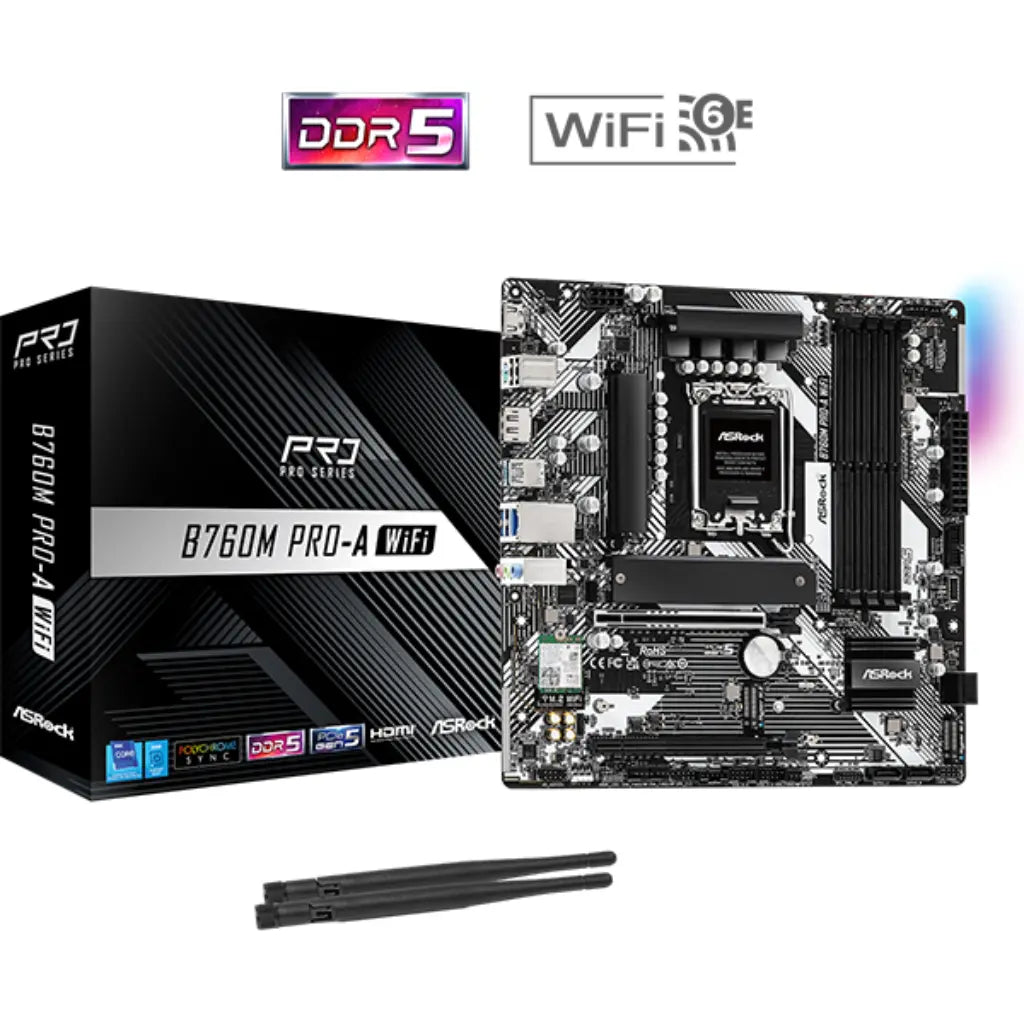

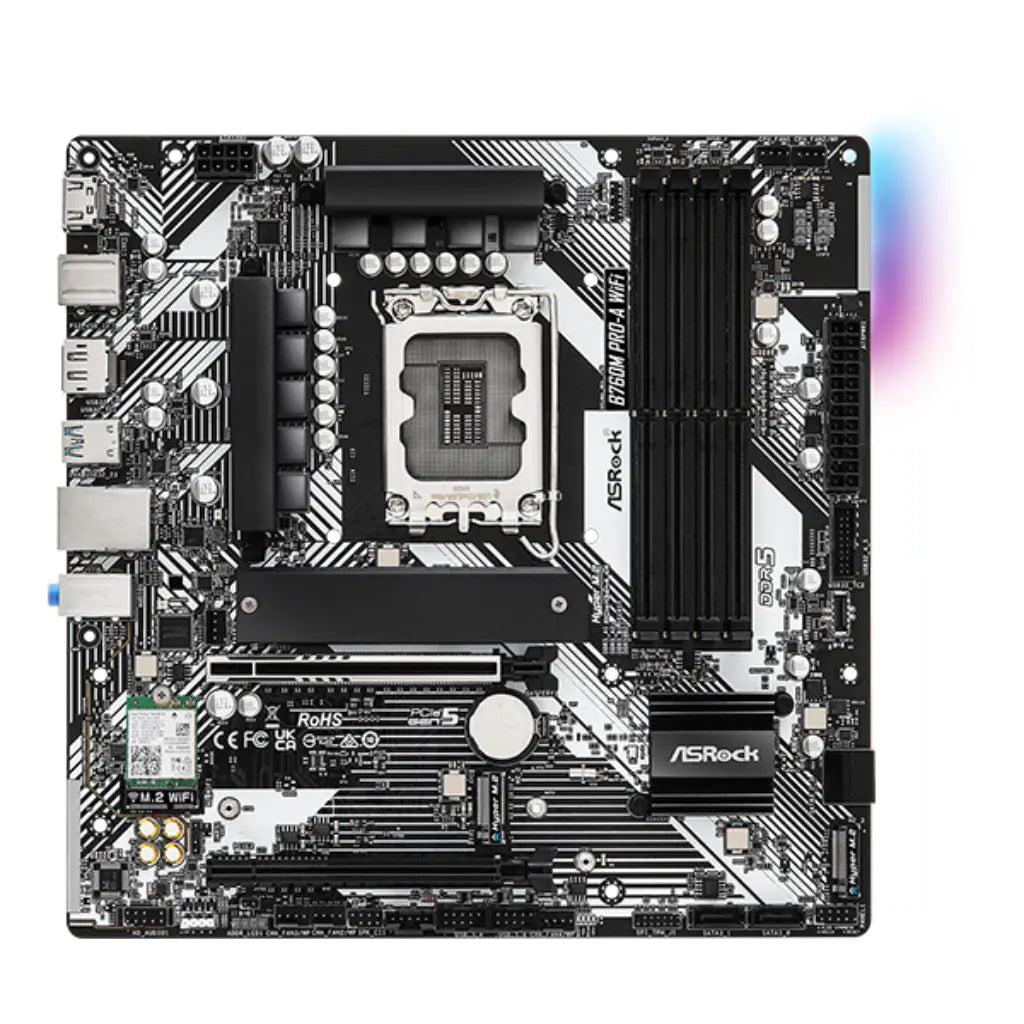

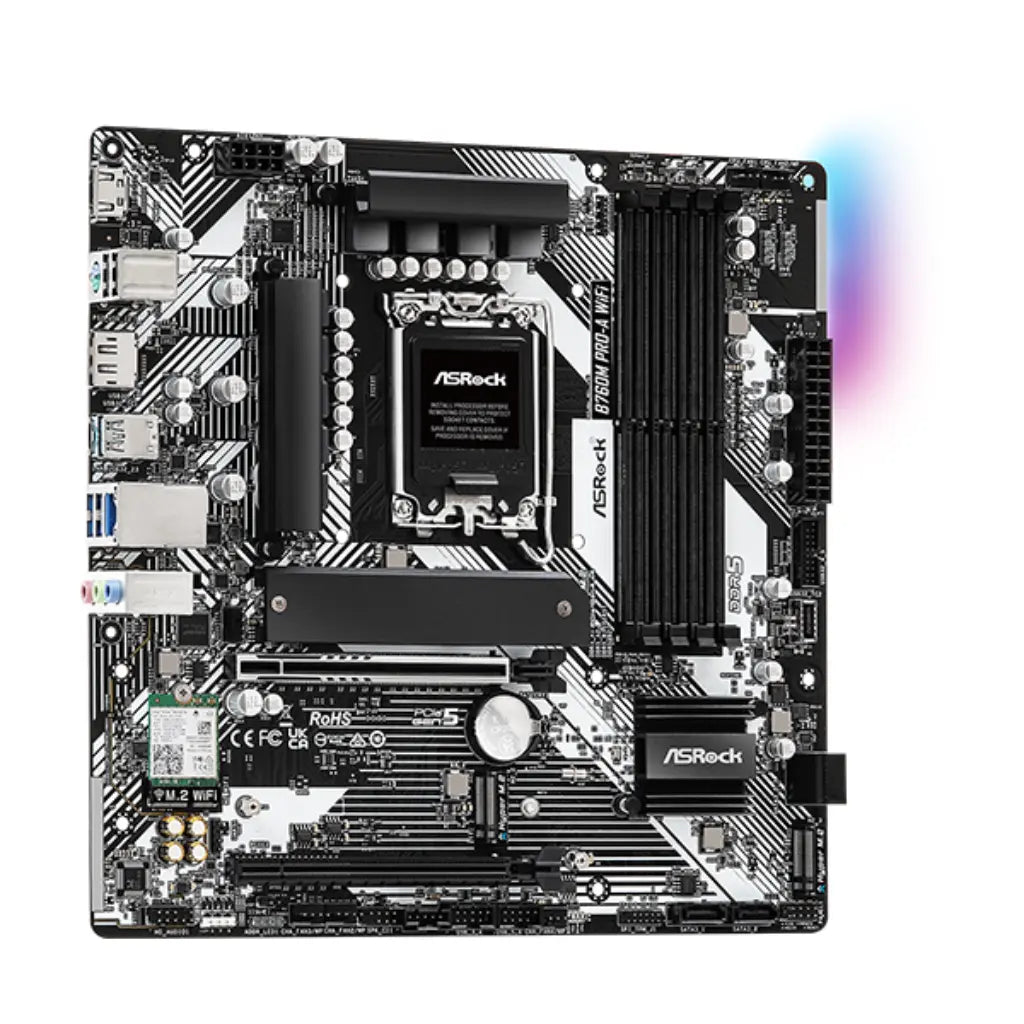

ASRock B760M PRO-A WIFI B760 Intel LGA1700 DDR5 Micro-ATX Motherboard
ASRock B760M PRO-A WIFI B760 Intel LGA1700 DDR5 Micro-ATX Motherboard
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
š¹ Supports Latest CPUs: Compatible with 14th, 13th & 12th Gen IntelĀ® Coreā¢ processors on LGA1700 socket.
š¹ High-Speed Memory: 4 x DDR5 DIMM slots, dual-channel, up to 7200+ MHz (OC) for extreme performance.
š¹ Next-Gen Expansion: 1 PCIe 5.0 x16 slot for graphics, plus 3 Hyper M.2 (PCIe Gen4x4) for ultra-fast storage.
š¹ Premium Networking: Dragon 2.5G LAN and Killer WiFi 6E with Bluetooth for seamless connectivity.
š¹ Advanced Power Design: 7+1+1 Power Phase with Dr.MOS and 6-layer PCB for stable overclocking.
š¹ Rich Connectivity: HDMI & DisplayPort outputs, USB 3.2 Gen1 Type-C, multiple USB ports for versatile usage.
The ASRock B760M PRO-A WIFI motherboard delivers cutting-edge performance for gamers and creators. Featuring Intel B760 chipset, DDR5 support, PCIe 5.0 graphics slot, and triple M.2 storage, it ensures lightning-fast speeds and stability. With WiFi 6E, 2.5G LAN, and robust power design, this Micro-ATX board is built for reliability and efficiency. Perfect for high-end builds that demand speed and connectivity.
Product Specifications:
| Specification | Details |
| CPU Support | 14th / 13th / 12th Gen IntelĀ® Coreā¢, PentiumĀ®, CeleronĀ® |
| Socket | LGA1700 |
| Chipset | IntelĀ® B760 |
| Form Factor | Micro-ATX |
| Memory | 4 x DDR5 DIMM, Dual Channel, up to 7200+ MHz (OC) |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 |
| Storage | 3 x Hyper M.2 (PCIe Gen4x4), 4 x SATA3 |

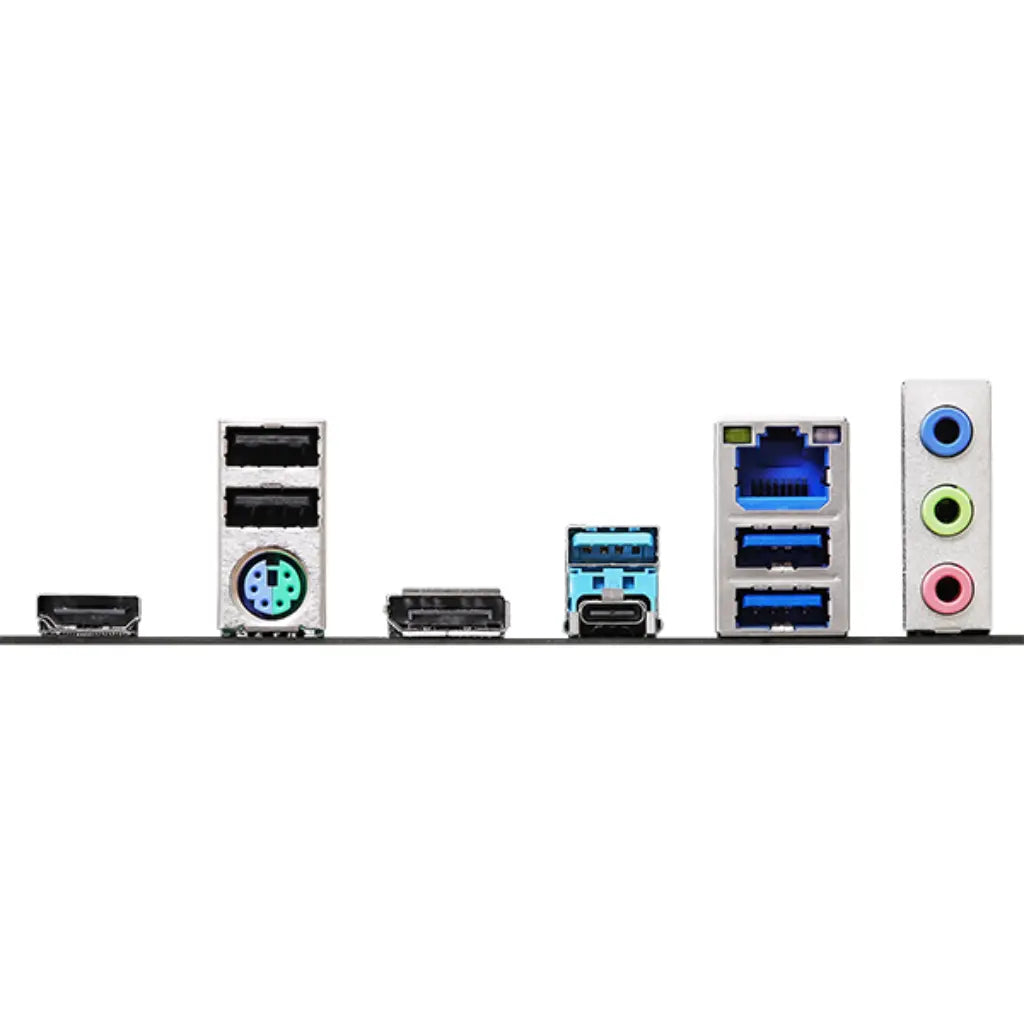

| Graphics Output | 1 x HDMI, 1 x DisplayPort |
| Audio | Realtek ALC897 7.1 CH HD Audio Codec |
| Networking | Dragon 2.5G LAN, Killer WiFi 6E + Bluetooth |
| USB Ports | 2 x USB 3.2 Gen1 Type-C, 5 x USB 3.2 Gen1 Type-A, 6 x USB 2.0 |
| Power Design | 7+1+1 Power Phase, Dr.MOS |
| Country of Origin | China |
| Model Number | B760M PRO-A WIFI |
| Warranty | 3 Years |
| Weight | 454 g |
