ASRock Q270 Pro BTC+ Intel LGA 1151 DDR4 ATX Mining Motherboard
ASRock Q270 Pro BTC+ Intel LGA 1151 DDR4 ATX Mining Motherboard
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🔌 PCIe Expansion: 1x PCIe 3.0 x16 & 12x PCIe 3.0 x1 slots – ideal for multi-GPU mining rigs
🧠 Memory Support: DDR4 2400/2133 MHz, non-ECC unbuffered & ECC UDIMM (non-ECC mode)

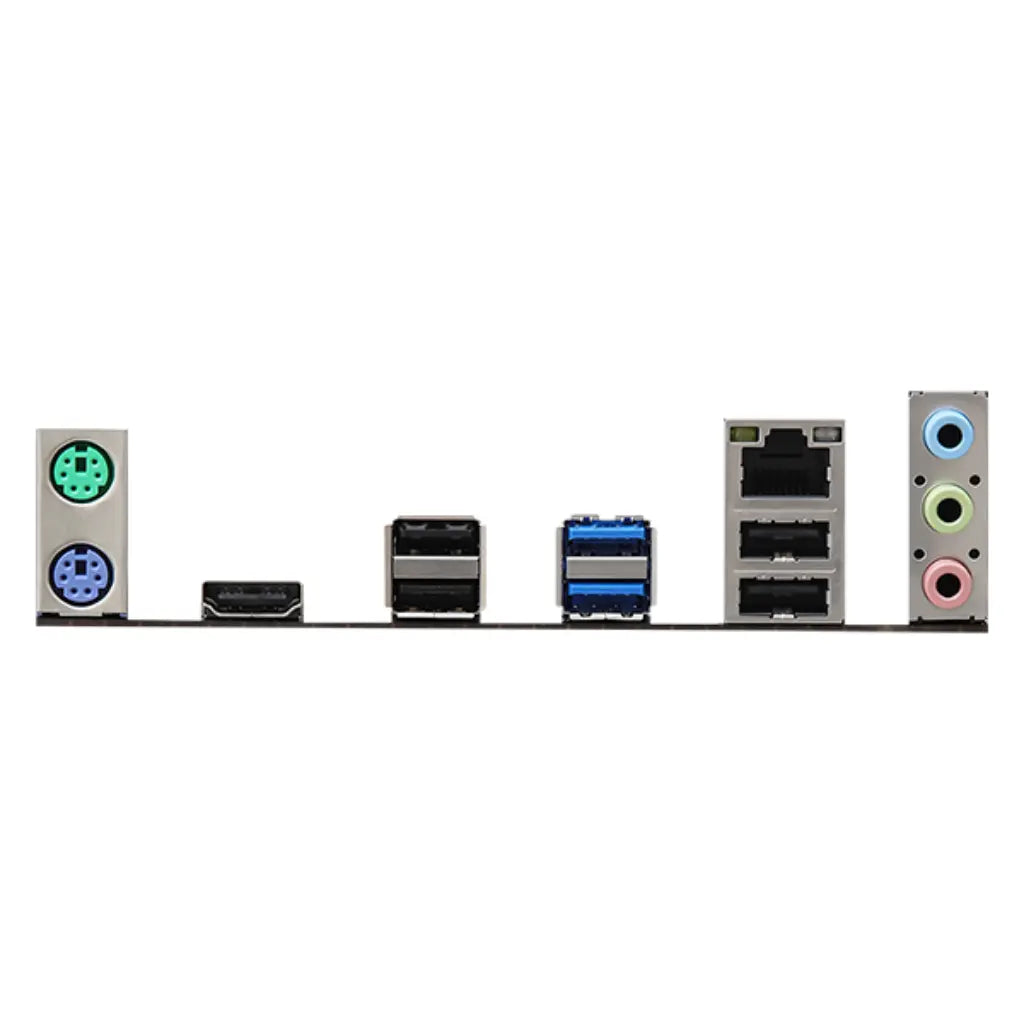

🎧 Audio & Display: 7.1 CH HD Audio (Realtek ALC897) & HDMI 1.4 with 4K support
⚡ Power & Stability: Digi Power PWM, onboard Power On/Reset buttons, Full Spike Protection
🌐 Connectivity: Intel Gigabit LAN, 4x USB 3.2 Gen1, 4x USB 2.0, 1x M.2 SATA3, 4x SATA3
🛡️ Durability: Sapphire Black PCB, High Density Glass Fabric PCB for moisture resistance.

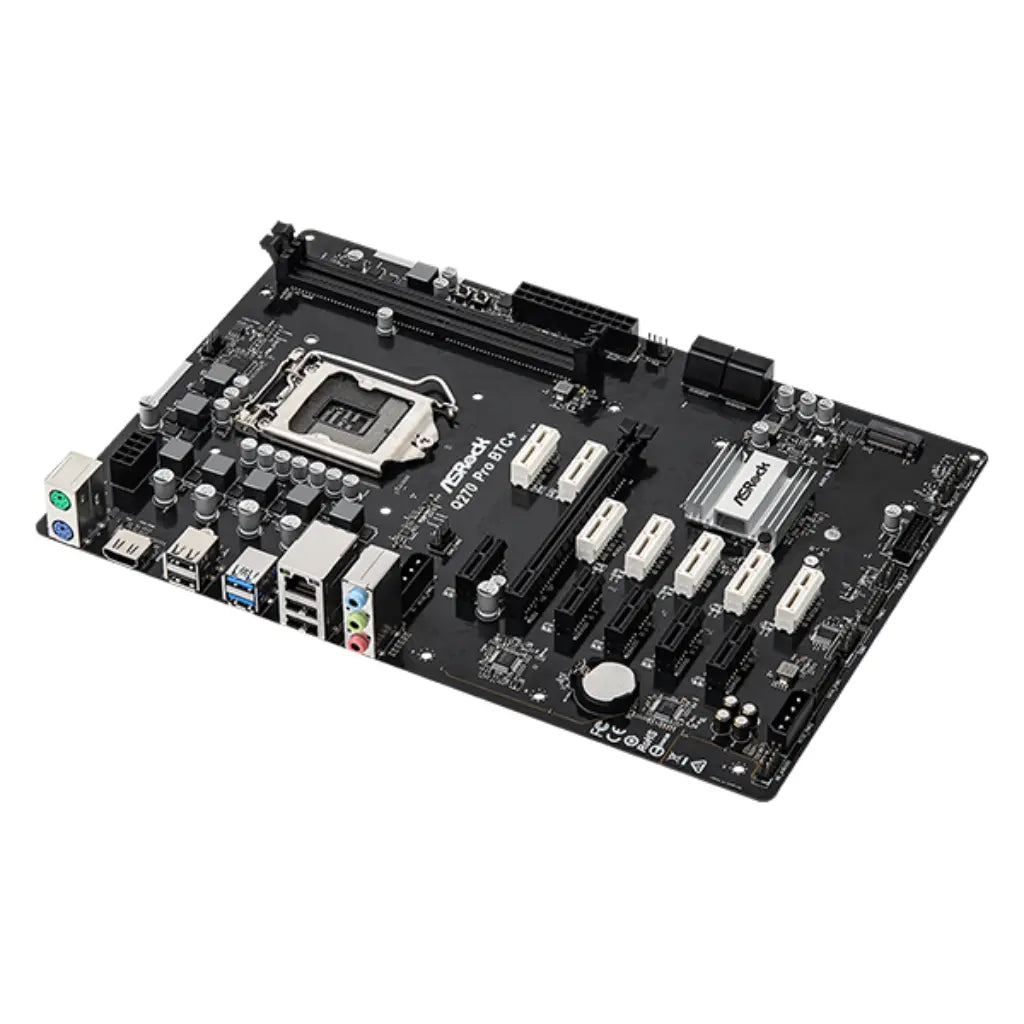

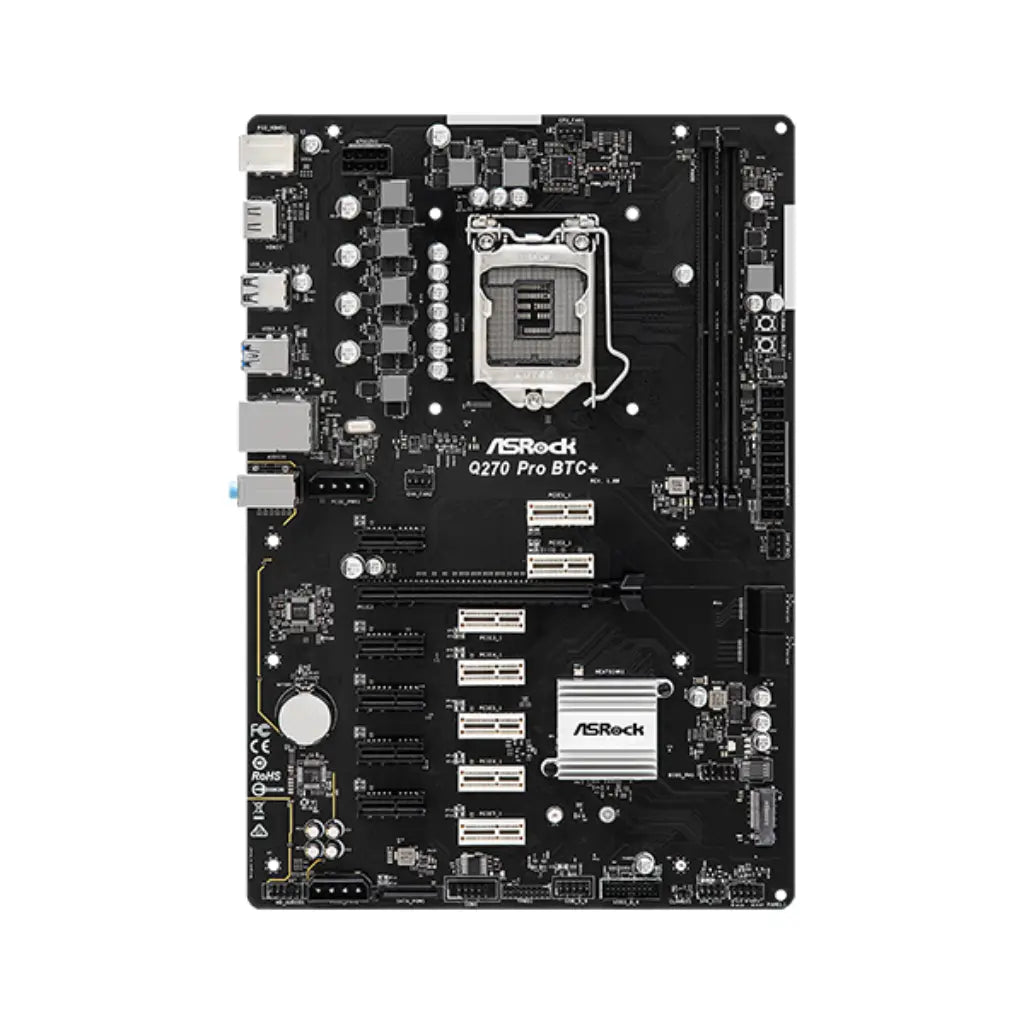

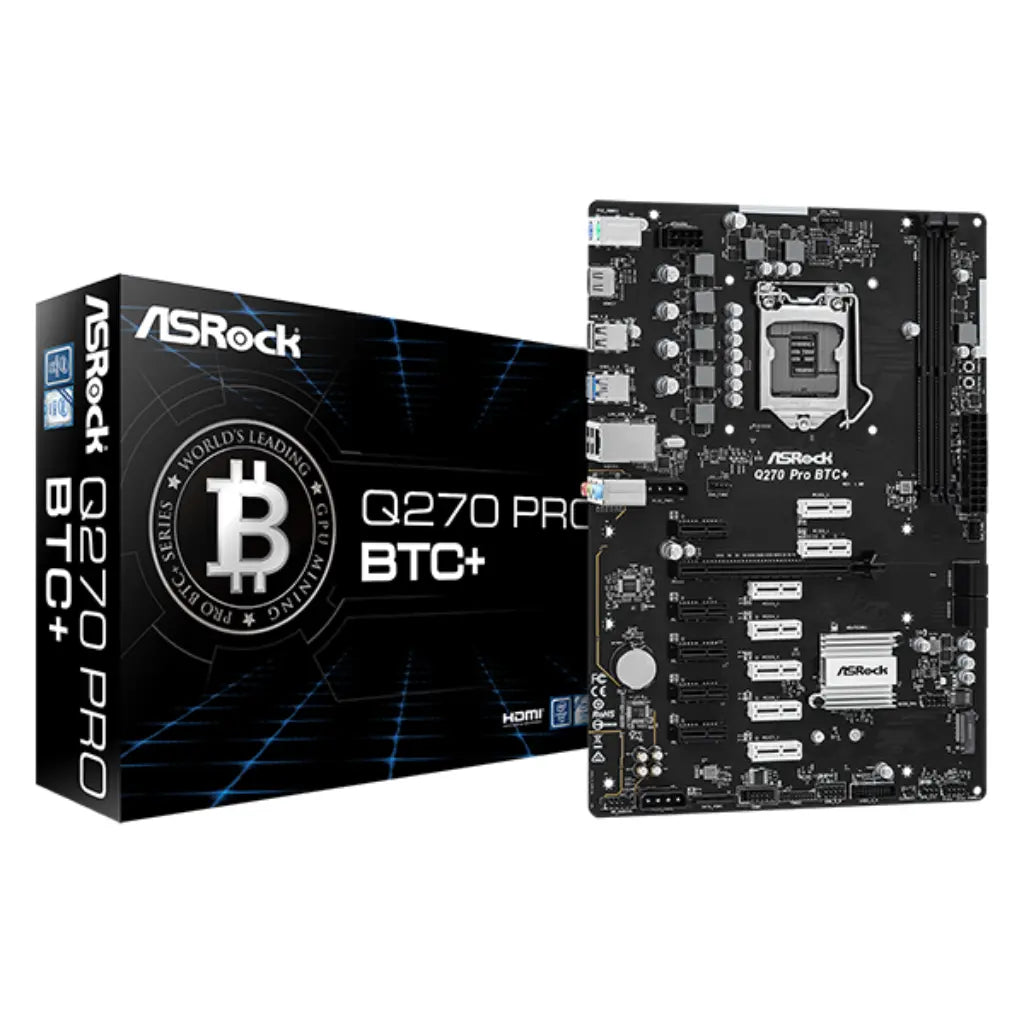

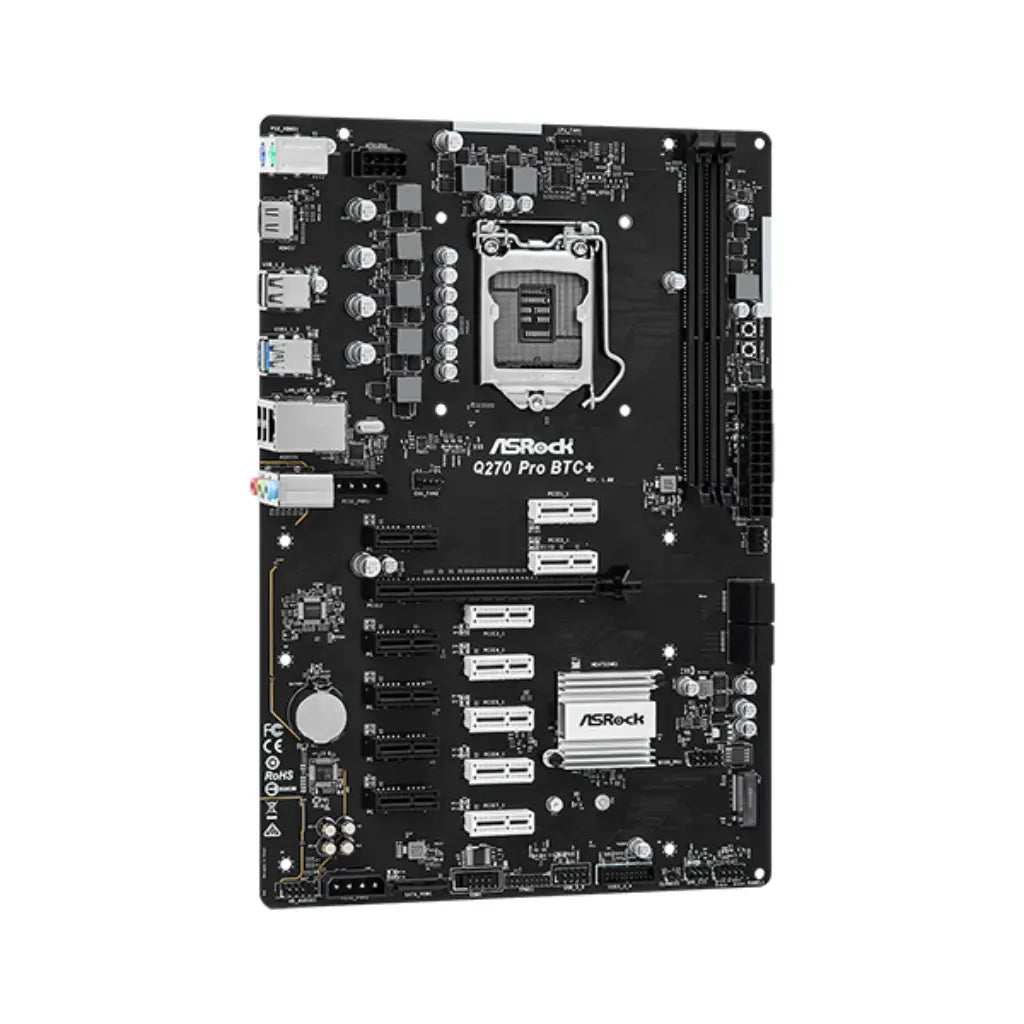

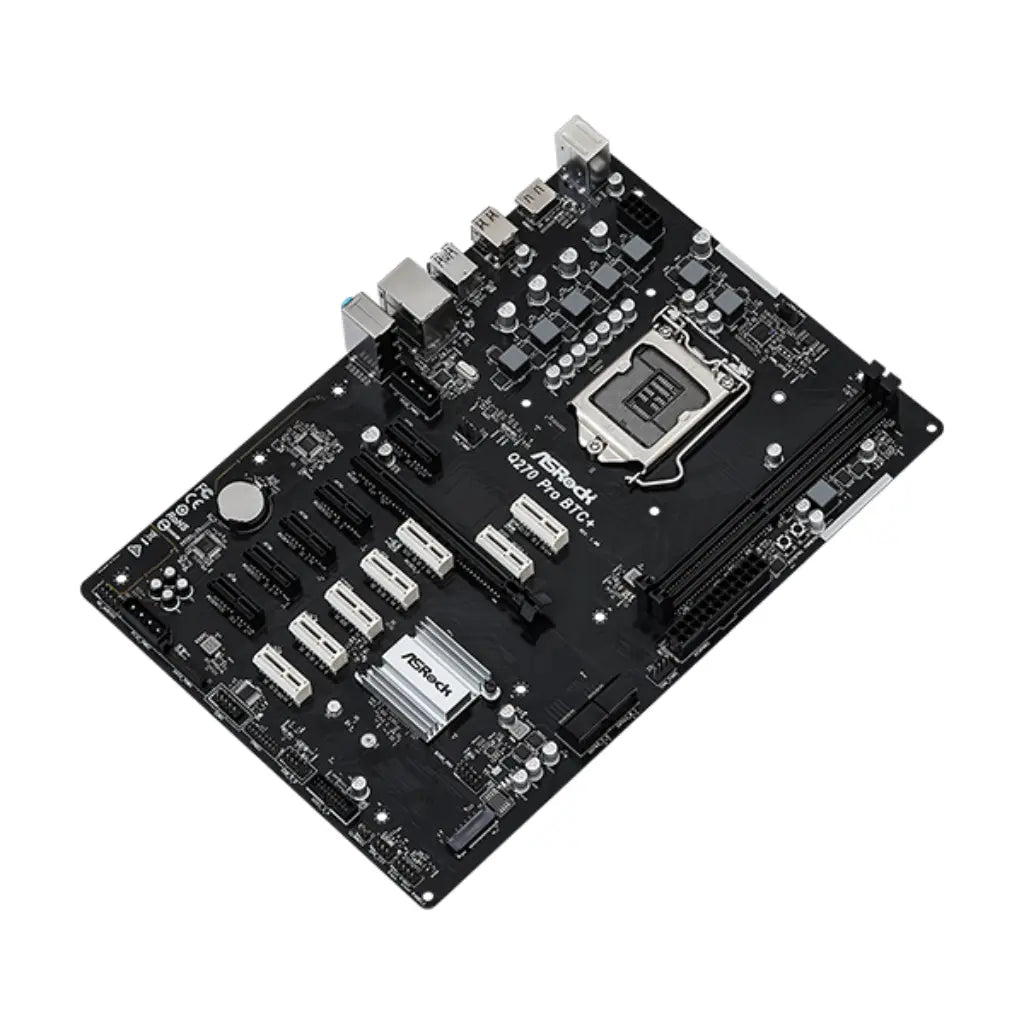

The ASRock Q270 Pro BTC+ is a purpose-built ATX motherboard designed for serious crypto miners. Featuring 13 PCIe slots, it supports up to 12 GPUs for maximum mining efficiency. With support for 7th and 6th Gen Intel processors, DDR4 memory, and advanced power delivery, it ensures stable performance under heavy loads. Enhanced with Full Spike Protection, onboard buttons, and a rugged PCB design, this board is built to last in demanding mining environments.
Product Specifications:
| Specification | Details |
| Form Factor | ATX (30.5 cm x 20.8 cm) |
| CPU Support | Intel 7th & 6th Gen Core i7/i5/i3/Pentium/Celeron |
| Chipset | Intel Q270 |
| Memory Support | DDR4 2400/2133 MHz, up to 64GB |
| PCIe Slots | 1x PCIe 3.0 x16, 12x PCIe 3.0 x1 |
| Storage Interfaces | 4x SATA3, 1x M.2 (SATA3, 6Gb/s) |
| Audio | 7.1 CH HD Audio (Realtek ALC897) |
| LAN | Intel Gigabit LAN |
| USB Ports | 4x USB 3.2 Gen1, 4x USB 2.0 |
| Graphics Output | HDMI 1.4 (up to 4K @ 24Hz) |
| Special Features | Digi Power, Smart PCIe Detection, Spike Protection |
| Power Buttons | Onboard Power On / Reset |
| Compliance | FCC, CE, ErP/EuP ready |
| Country of Origin | China |
| Model Number | Q270 Pro BTC+ |
| Warranty | 3 Years |
| Weight | 1 kg |
