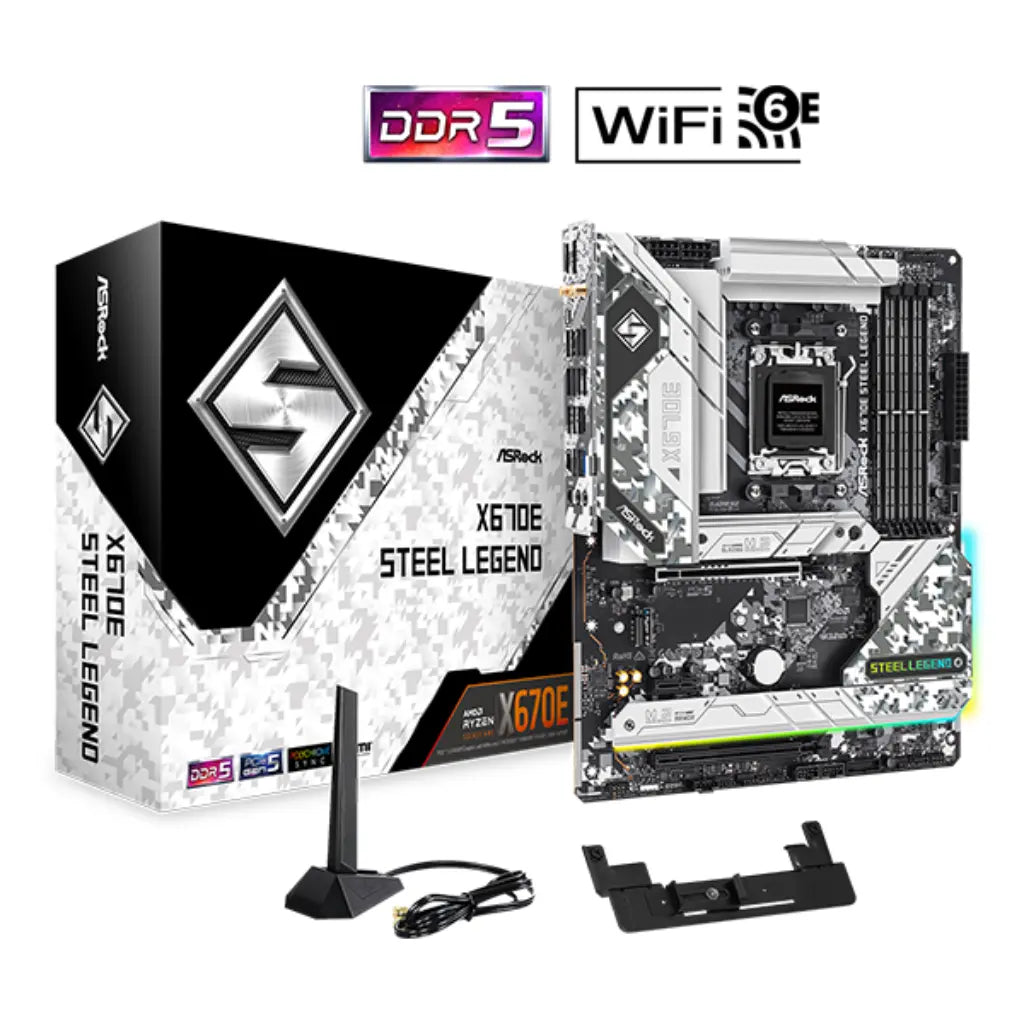

ASRock X670E Steel Legend Wi-Fi AMD X670E AM5 DDR5 ATX Motherboard
ASRock X670E Steel Legend Wi-Fi AMD X670E AM5 DDR5 ATX Motherboard
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🧠 Powerful Performance: 16+2+1 Phase SPS Power Design - ensures stable power delivery for extreme overclocking.
🚀 Next-Gen Connectivity: PCIe 5.0 x16 slot & Blazing M.2 Gen5 - ultra-fast data transfer for future-ready builds.
📶 Wireless Excellence: Integrated Wi-Fi 6E & Bluetooth 5.2 - seamless high-speed wireless networking.
🎮 Immersive Audio: Realtek ALC1220 7.1 CH HD Audio with Nahimic - premium sound for gaming and media.
🌈 RGB Customization: Polychrome RGB Sync - personalize lighting with addressable RGB headers.
🛡️ Durable Design: 8-layer Server Grade PCB & reinforced DIMM slots - built for longevity and stability.
The ASRock X670E Steel Legend is engineered for elite gamers and creators, supporting AMD Ryzen™ 9000/8000/7000 Series processors on the AM5 socket. With DDR5 memory up to 7600+ MHz (OC), PCIe Gen5 support, and Wi-Fi 6E, it delivers cutting-edge speed and connectivity. The board features robust power phases, advanced cooling, and premium audio for immersive experiences. Built with an 8-layer server-grade PCB, it ensures durability and peak performance for demanding tasks.
Product Specifications:
| Specification | Details |
| Brand | ASRock |
| Model | X670E Steel Legend |
| Chipset | AMD X670E |
| Socket | AM5 |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Memory Support | 4 x DDR5 DIMMs, Dual Channel, up to 7600+ MHz (OC), ECC/non-ECC |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 |
| Storage Interface | 1 x Blazing M.2 (Gen5x4), 3 x Hyper M.2 (Gen4x4), 4 x SATA3 |
| Audio | Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio |
| Networking | Realtek 2.5G LAN, Realtek 1G LAN, Wi-Fi 6E + Bluetooth 5.2 |
| USB Ports | 2 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen2 Type-A, 10 x USB 3.2 Gen1 |
| Graphics Output | 1 x HDMI 2.1 (4K@120Hz), 1 x DisplayPort 1.4 |
| RGB Support | Polychrome RGB Sync, Addressable RGB & RGB headers |
| Power Design | 16+2+1 Phase SPS, Dr.MOS, Hi-Density Power Connectors |
| Cooling Features | Multi-layer M.2 heatsinks, Smart Fan Speed Control |
| Country of Origin | China |
| Model Number | X670E Steel Legend |
| Warranty | 3 Years |
| Weight | 1.2 kg |
