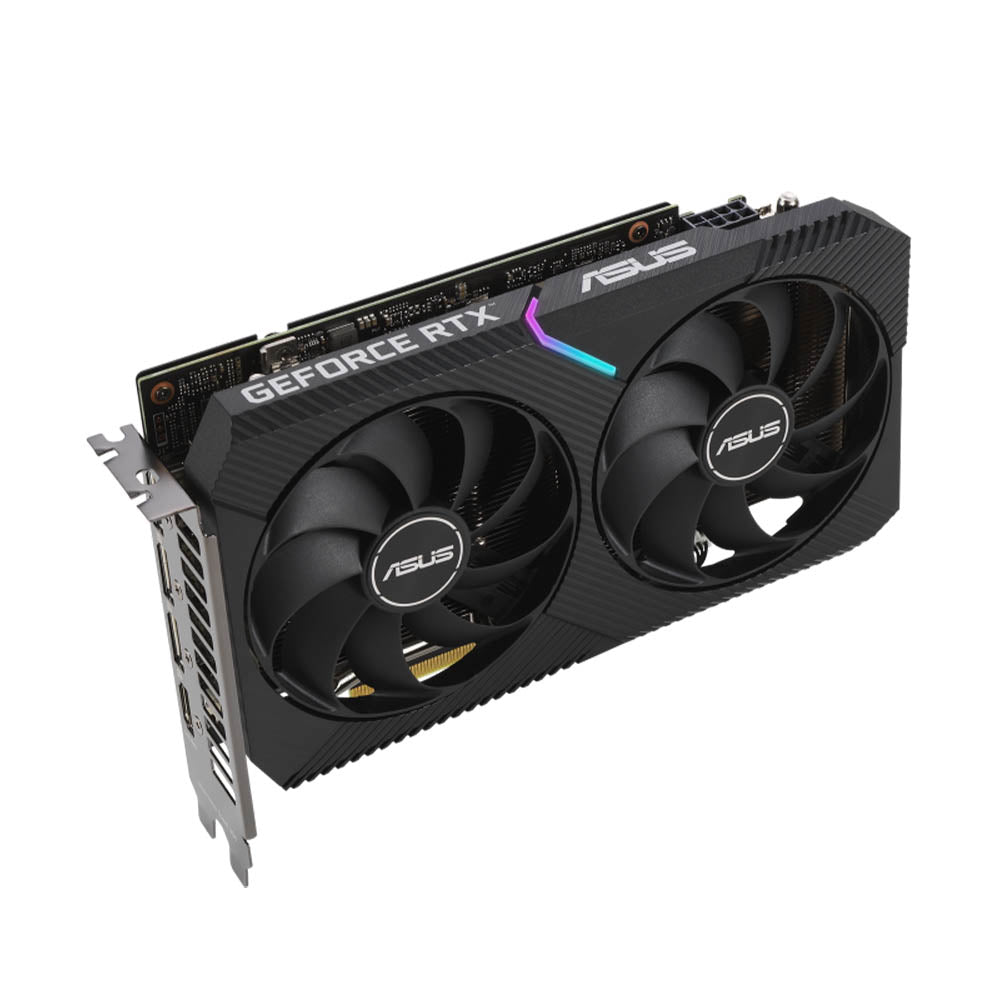

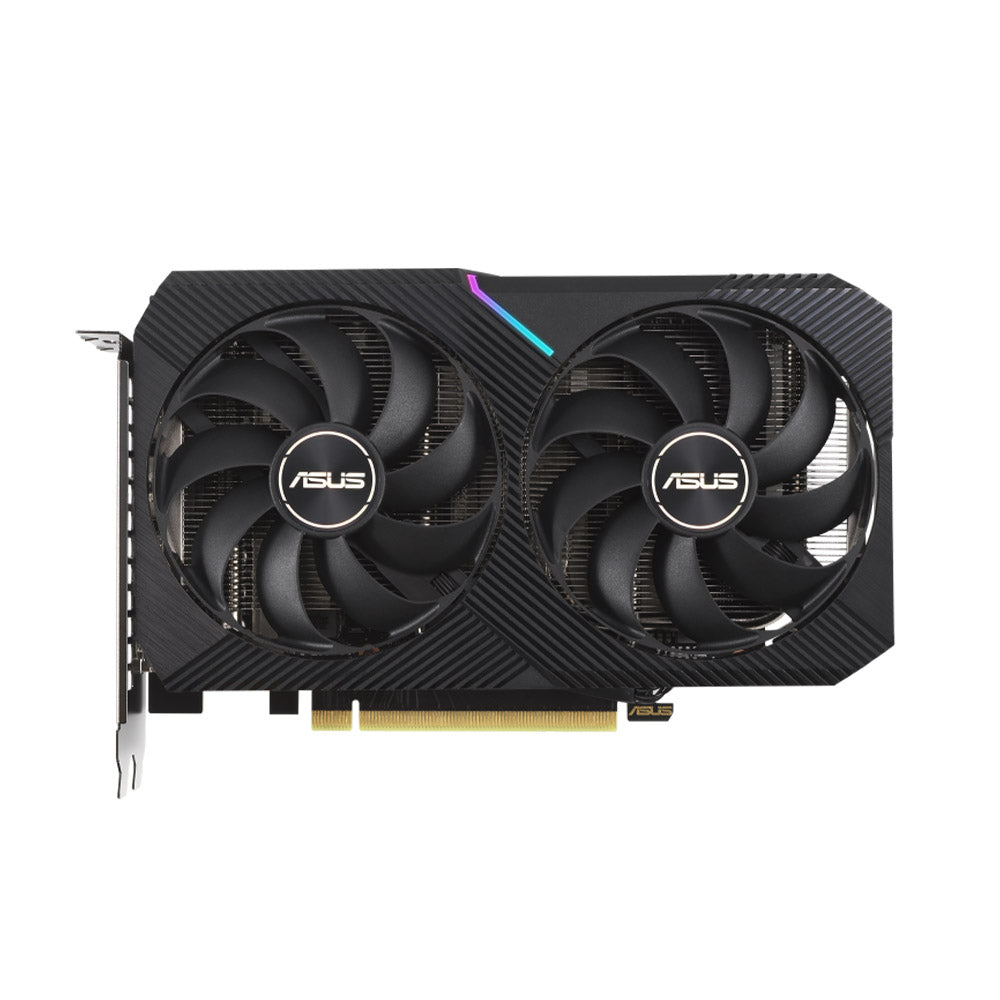

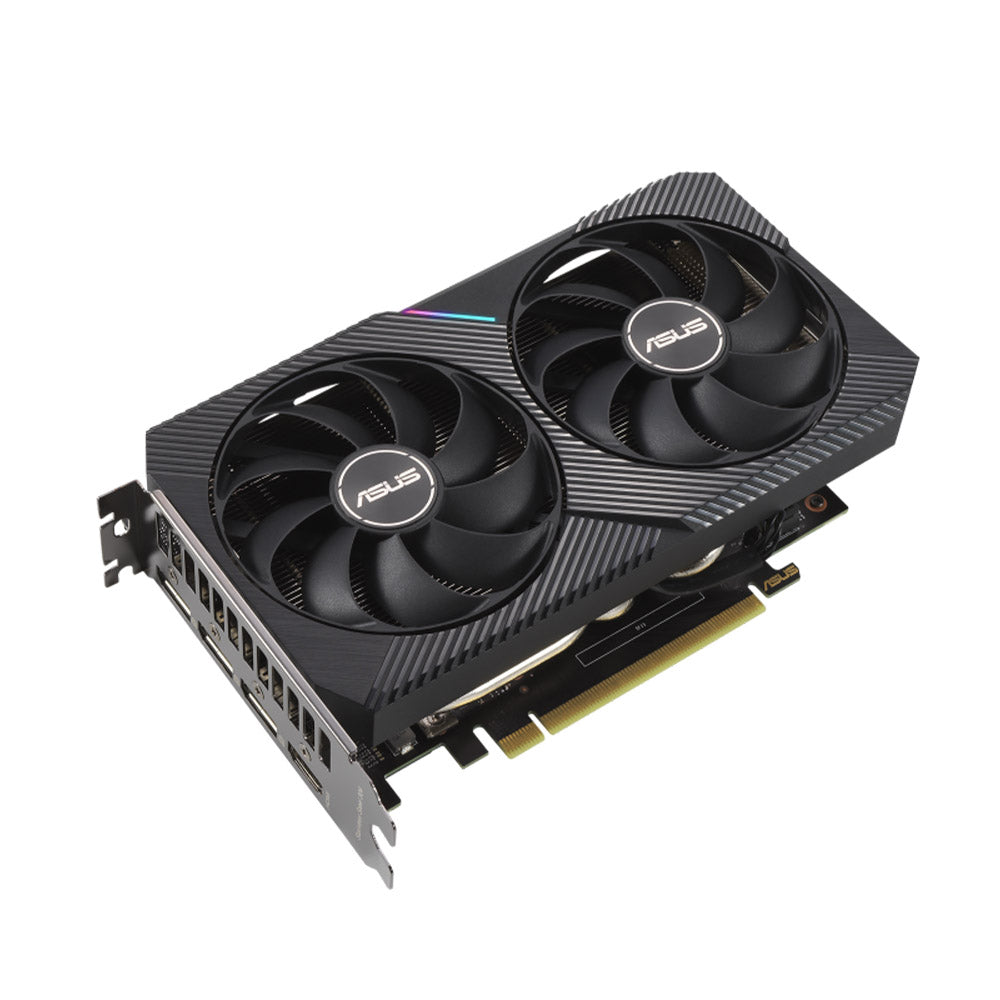

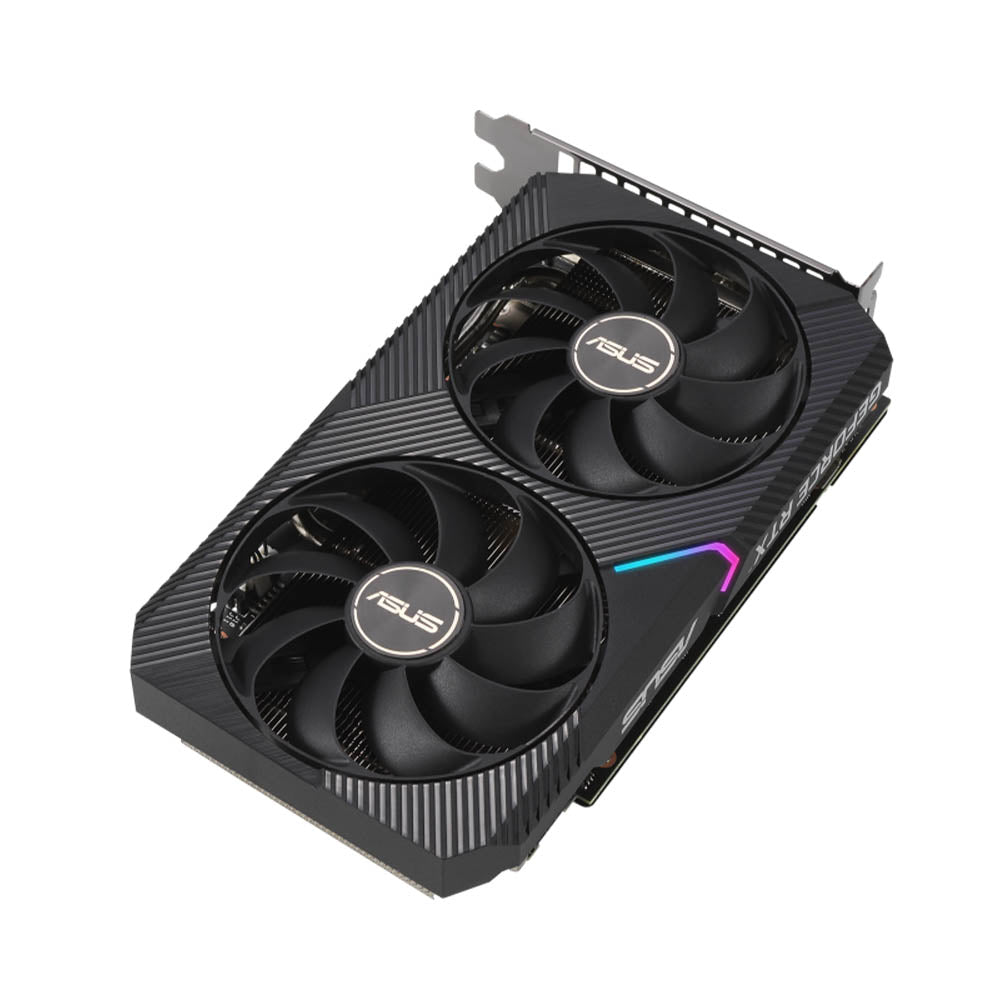

ASUS Dual RTX 3060 V2 12GB GDDR6 192-Bit LHR Graphics Card

• Powered by NVIDIA Ampere architecture, ASUS Dual GeForce RTX 3060 V2 is equipped with 12GB GDDR6 memory and 3584 CUDA cores.
• The ASUS 12GB graphics card has a base clock speed of 1777MHz and 1807MHz of a Boost clock speed. It is designed to work across 192-bit memory interface.
• Built on Axial Tech technology the dual fan setup is optimal to satisfy the thermal demands of the new Turing architecture. 0dB technology stops the fan once the GPU temperature has fallen below 50°c, reducing power consumption.
• The NVIDIA based GPU supports up to 4 displays at 8K UHD (7680x4320) resolution giving you the ultimate visual experience at your games or at your work space.
• ASUS RTX 3060 is a PCIe 4.0 ready graphics comes with RTX (ray tracing) technology to give you the most realistic visual treat. The GPU Tweak II utility allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time.

~section~

2x Fans. 2x Fun.

Delivering the latest NVIDIA Ampere architecture experience in its purest form, the ASUS Dual GeForce RTX 3060 Edition melds performance and simplicity like no other. Leveraging advanced cooling technologies derived from flagship graphics cards, the Dual opts for substance over style, the perfect choice for a well-balanced build.

Axial-tech Fan Design

Features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. The enhanced efficiency allows the fan to keep things cool at low RPMs, resulting in less overall system noise and increased component lifespan.

0dB Technology

An advanced onboard controller brings fans to a standstill when the GPU core temperature is below 55 Celsius, letting you enjoy light gaming in relative silence. As temps rise past the threshold, the fans automatically start up again.

2-Slot Design

A carefully designed shroud, heatsink, and heatpipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card’s size.

NVIDIA Ampere Architecture

The all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.

Ray Tracing

Experience today's biggest blockbusters like never before with the visual fidelity of real-time ray tracing and the ultimate performance of AI-powered DLSS.

DLSS AI Architecture

A groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings.

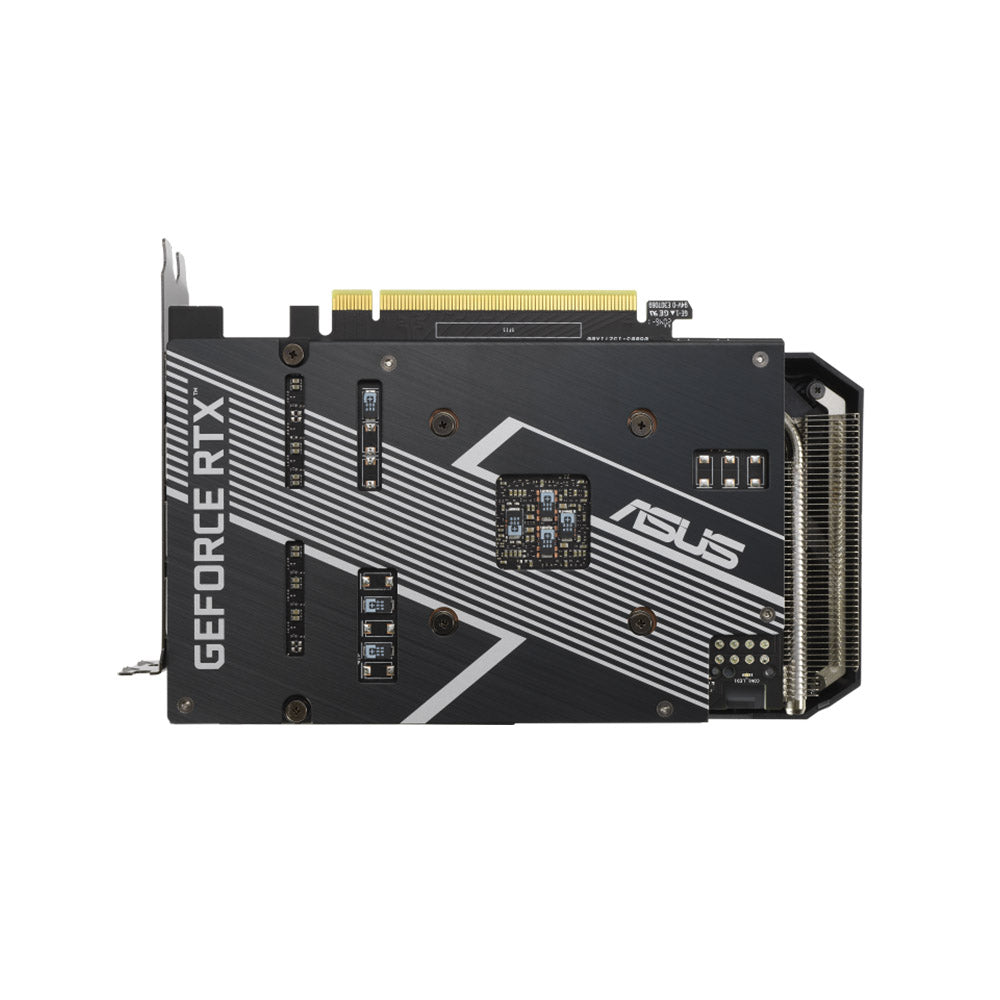

Protective Backplate

The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent PCB flex and protect components and trace pathways from damage.

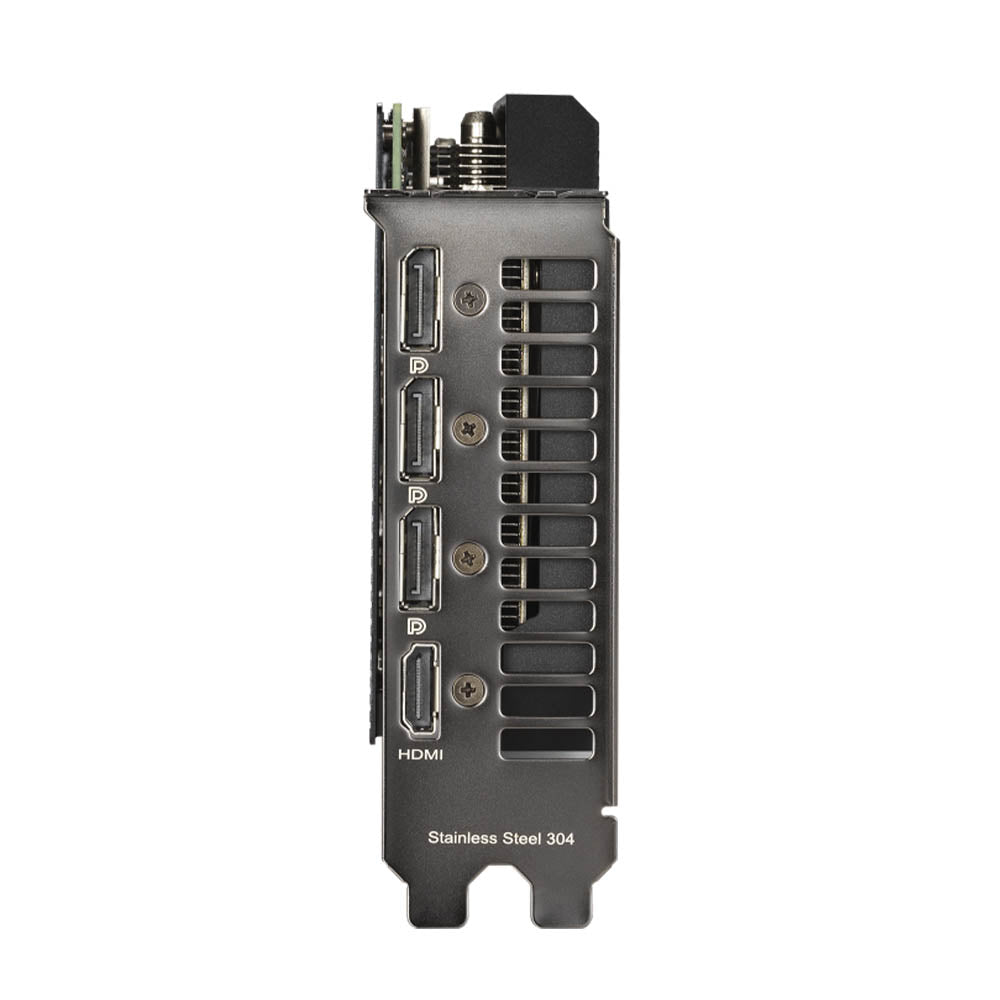

Stainless Steel Bracket

The mounting bracket of the Dual MINI has been beefed up with 304 Stainless Steel that is harder and more resistant to corrosion.

Subtle Lighting

The shroud features a subtle illuminated strip that creates a stylish accent for your build.

2-Slot Design

A carefully designed shroud, heatsink, and heatpipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card’s size.

GPU Tweak II

It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time.

QuantumCloud

A safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account.

~section~

Model	DUAL-RTX3060-O12G-V2
GPU	NVIDIA GeForce RTX 3060 V2
CUDA Cores	3584
Video Memory	12GB GDDR6
Memory Interface	192-bit
Bus Standard	PCI Express 4.0
OpenGL	4.6
Engine Clock	OC Mode - 1807 MHz (Boost Clock) Gaming Mode - 1777 MHz (Boost Clock)
Memory Speed	15 Gbps
System Interface	1 x Native HDMI 2.1 3 x Native DisplayPort 1.4a
Resolution	7680x4320
HDCP Support	Yes (2.3)
Recommended Power Supply	650W
Maximum Display Support	4
Power Connectors	1 x 8-pin
Slot	2 Slot
Accessories	1 x Collection card 1 x Speedsetup manual
Software	ASUS GPU Tweak II & Driver
Dimensions	20 x 12.3 x3.8 Centimeter
Warranty	3 Years of Brand Warranty

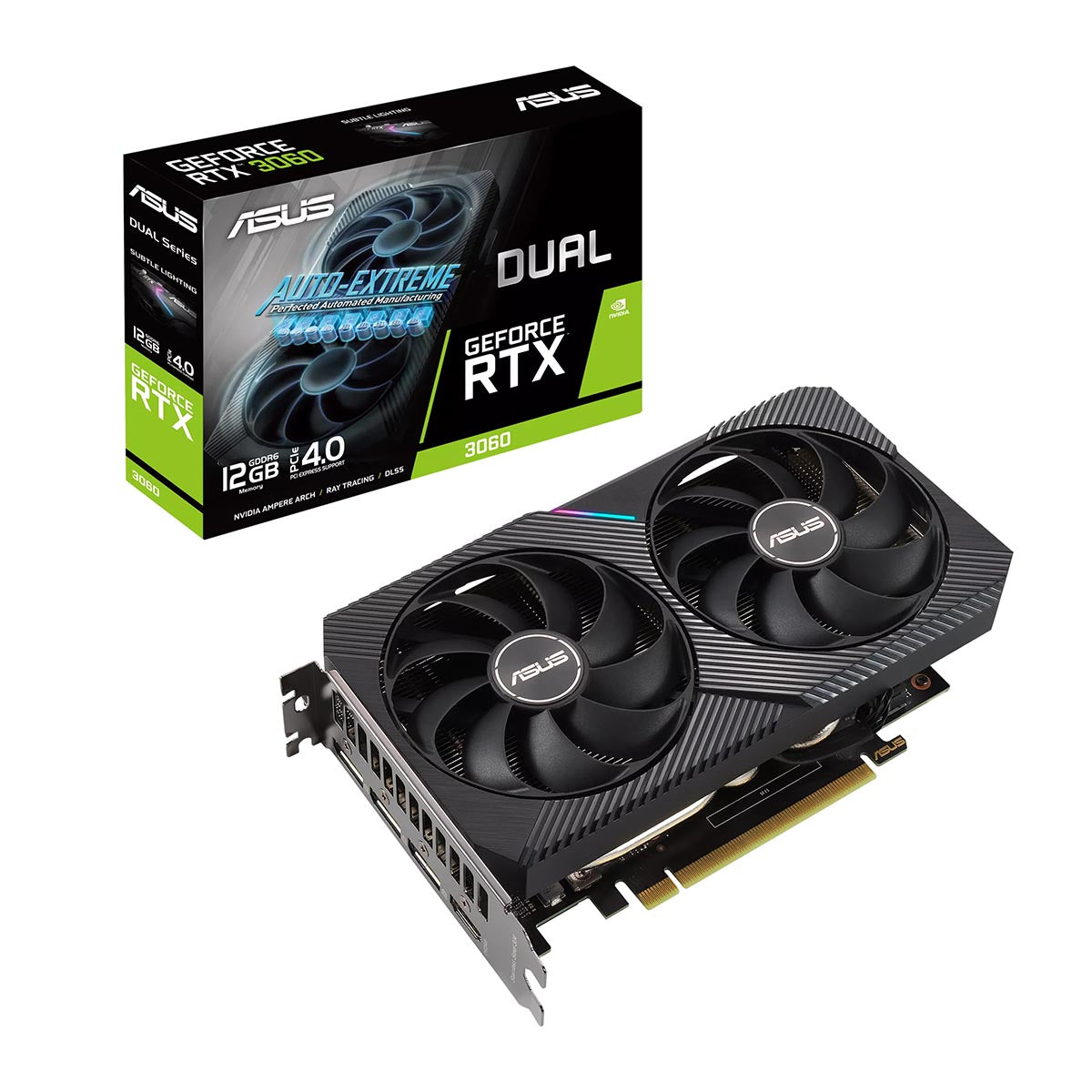

Package Contents	ASUS Dual RTX 3060 OC Edition 12GB Gaming Graphics card 1 x Collection card 1 x Speedsetup manual
