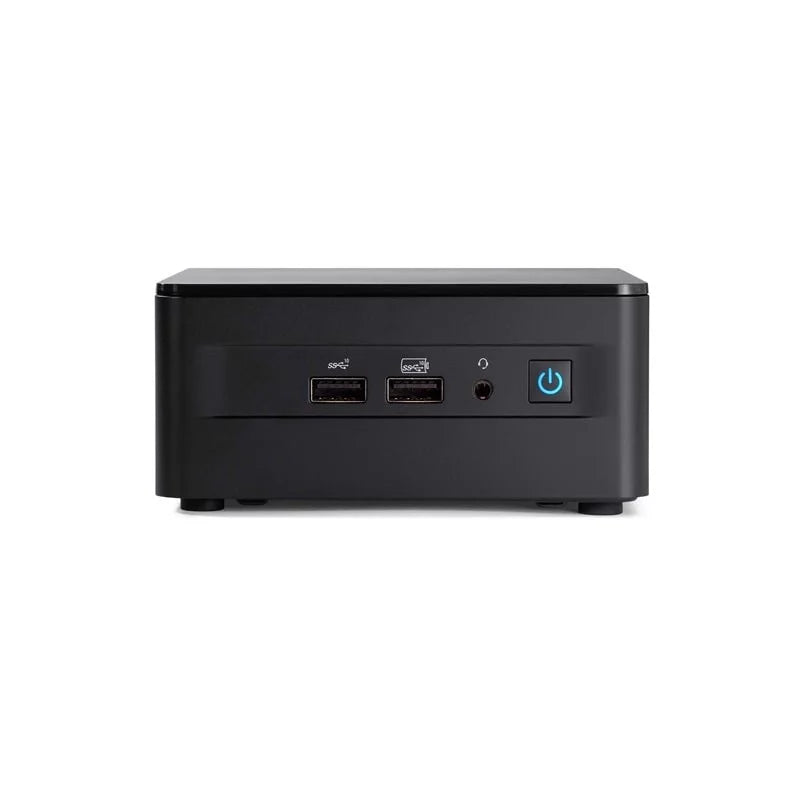

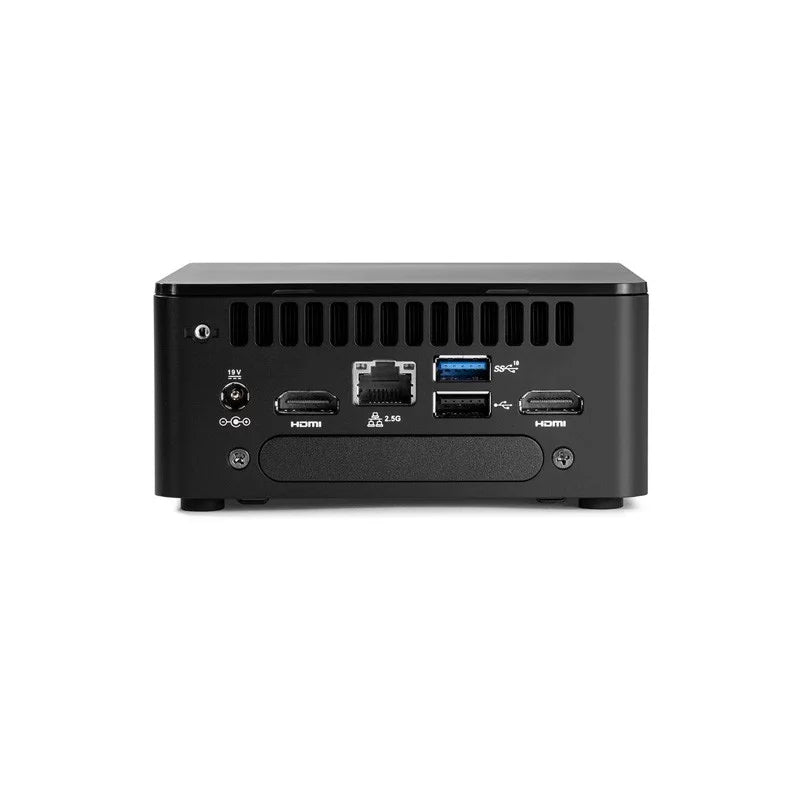

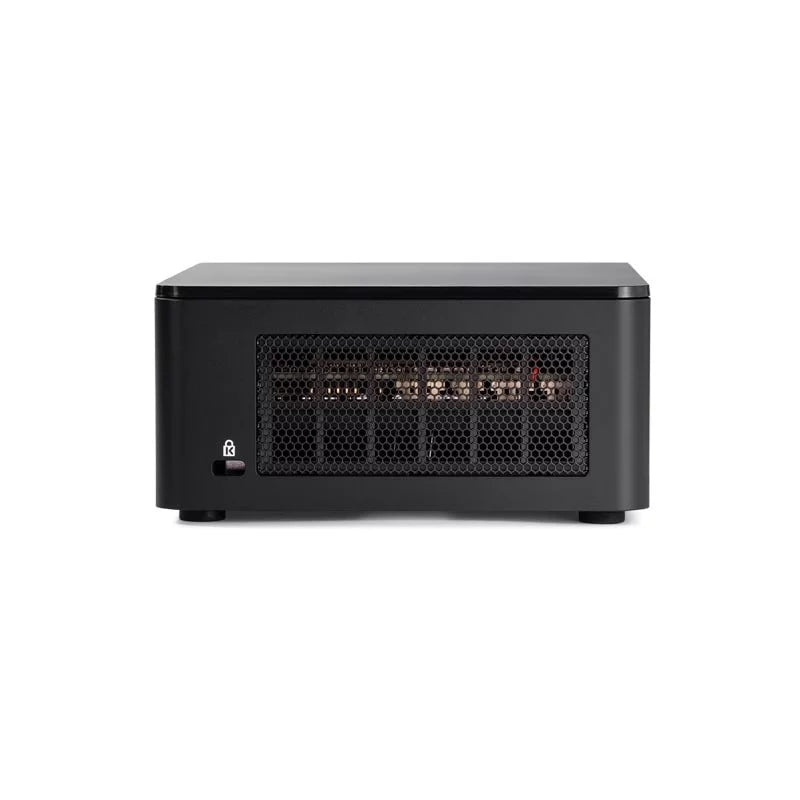

Asus Intel NUC 12 Pro Kit RNUC12WSHi5 Mini PC with Intel Core i5 (No Pre-Installed Storage & Memory)
Asus Intel NUC 12 Pro Kit RNUC12WSHi5 Mini PC with Intel Core i5 (No Pre-Installed Storage & Memory)
- Free Shipping
- 10-Days Return
- Original Warranty
Product Description:
Intel NUC 12 Pro Kit NUC12WSHi5.
Chassis type:UCFF, Product type:Barebone Mini PC.
BIOS types:EEPROM.
Compatible memory types:DDR4-SDRAM, Number of memory slots:2, Maximum internal memory:64 GB.
Supported storage drive types:SSD, Storage drive interface:M.2, Serial ATA III.
Ethernet LAN (RJ-45) number of ports:1.
Wi-Fi standards:Wi-Fi 6E (802.11ax), Bluetooth version:5.2.
Intel NUC RNUC12WSHI50000 Mini PC with Intel 12th Gen Core i5-1240P processor
Small Outside. Powerful Inside.
Intel® NUC 12 Pro Mini PCs and Kits raise the bar for performance and connectivity in a 4×4 device for the edge, business, or home. 12th Gen Intel® Core™ processors deliver revved-up performance with up to 64 GB dual-channel memory and ample SSD capacity-plus lightning-fast wired and wireless connectivity.
Intel® NUC Pro Form Factors
Available as mini PCs or customizable kits, every device is qualified for 24×7 operation and comes with three-year availability and a three-year warrant.
Intel® NUC 12 Pro Mini PCs
Small PCs and compact workstations, loaded with Windows and ready to use right out of the box. Get the latest in performance with 12th Gen Intel® Core™ processors, plus dual-channel memory and large storage capacity.
Intel® NUC 12 Pro Kits
Kits include a range of 12th Gen Intel® Core™ processors, chassis, and board. They are easy to customize with the right operating system, memory, and storage to meet different customer needs.
Intel® NUC 12 Pro Boards
Choose from Intel® NUC board, compute, and chassis elements to create unique integrated or embedded compute solutions.
Surprising Size. Supercharged Performance.
Level up your business with the latest technologies.
Mighty Performance
With 12th Gen Intel® Core™ processors, Intel® NUC 12 Pro Mini PCs, Kits, and Boards deliver the latest in powerful performance for edge computing, collaboration, home offices, and more.
Intel vPro® Platform
Created for IT professionals, Intel vPro® Enterprise sets the standard for business: multilayer hardware-based security, efficient remote manageability, business-class performance, and PC fleet stability. Powerful, proven performance for today and tomorrow.
Device Management Is Built in
Stay on top of all of your devices. Oversite tools like Application Monitor, Player Failover and Advanced Features make Intel NUC devices easy for admins.
All Day, Every Day
Intel® NUC devices are engineered, built, and backed by Intel for 24/7 commercial use1, perfect for your “always on” needs like digital signage, security systems and more.
Powerful Tools for Digital Signage
Intel® NUC Pro Software Suite(NPSS) ensures that digital signage applications stay running and enables player redundancy, agnostic of CMS package.
The Power of Small
With a 4″ x 4″ footprint, pint-sized Intel® NUC 12 Pro Mini PCs and Kits are available in two chassis, including tall kits with a 2.5″ drive bay and an internal expansion bay.
Model | RNUC12WSHi50000 |
Socket | Soldered-down BGA |
Board Form Factor | UCFF (4" x 4") |
Processor | Intel Core i5-1240P Processor (12M Cache, up to 4.40 GHz) |
Cores | 12 |
Threads | 16 |
Base Frequency | 1.70 GHz |
Boost Frequency | 4.40 GHz |
TDP | 35 W |
Supported Operating System | Windows 11, Windows 10 Home, Windows 10 IoT Enterprise, Red Hat Linux, Ubuntu 20.04 LTS |
Memory and Storage | |
Included Memory | No Pre-Installed Memory |
Max Memory Support | 64GB |
Memory Type | DDR4-3200 1.2V SO-DIMM |
Max Memory Channels | 2 |
Included Storage | No Pre-Installed Storage |
Internal Storage Form Factor | M.2 and 2.5-inch Drive |
Processor Graphics | |
Grpahics | Intel Integrated Graphics |
Graphics Output | 2 x HDMI |
Displays Supported | 2 |
Expansion Options | |
PCI Express Revision | Gen4 (m.2 22x80 slot) Gen 3 (otherwise) |
PCI Express Configurations | PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x1 Gen 3: M.2 22x42 (key B) PCIe x1: M.2 22x30 (key E) |
M.2 Card Slot (wireless) | 22x30 (E) |
M.2 Card Slot (storage) | 22x80 NVMe (M); 22x42 SATA (B) |
I/O Specifications | |
USB Ports | 4 |
USB Configuration | Front: 2x USB 3.2 Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers) |
Total SATA Ports | 1 |
Audio | Front panel: 3.5mm headphone/mic jack |
Integrated LAN | Intel Ethernet Controller i225-V |
Integrated Wireless | Intel Wi-Fi 6E AX211(Gig+) |
Integrated Bluetooth | Yes |
Miscellaneous | |
Additional Headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
Dimensions | 117 x 112 x 54mm |
Warranty | 3 Years of Brand Warranty |
