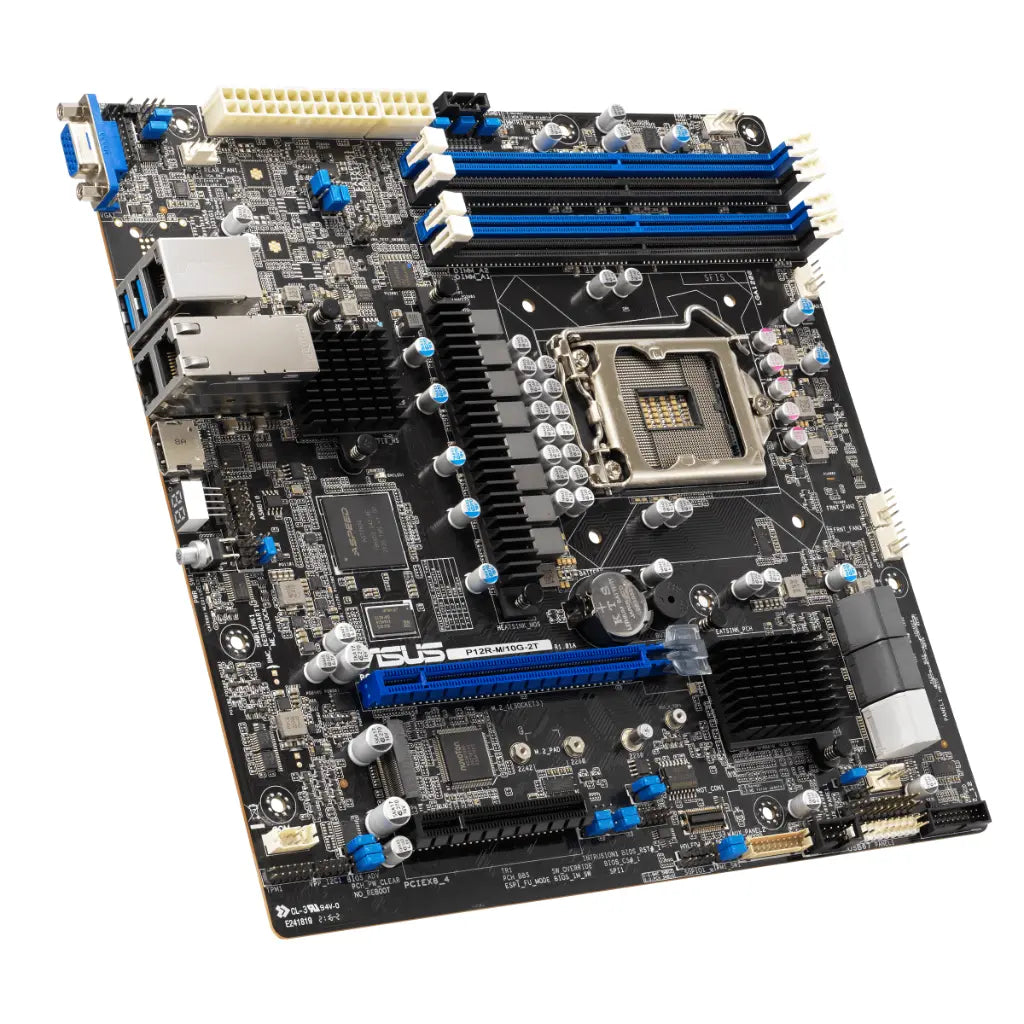

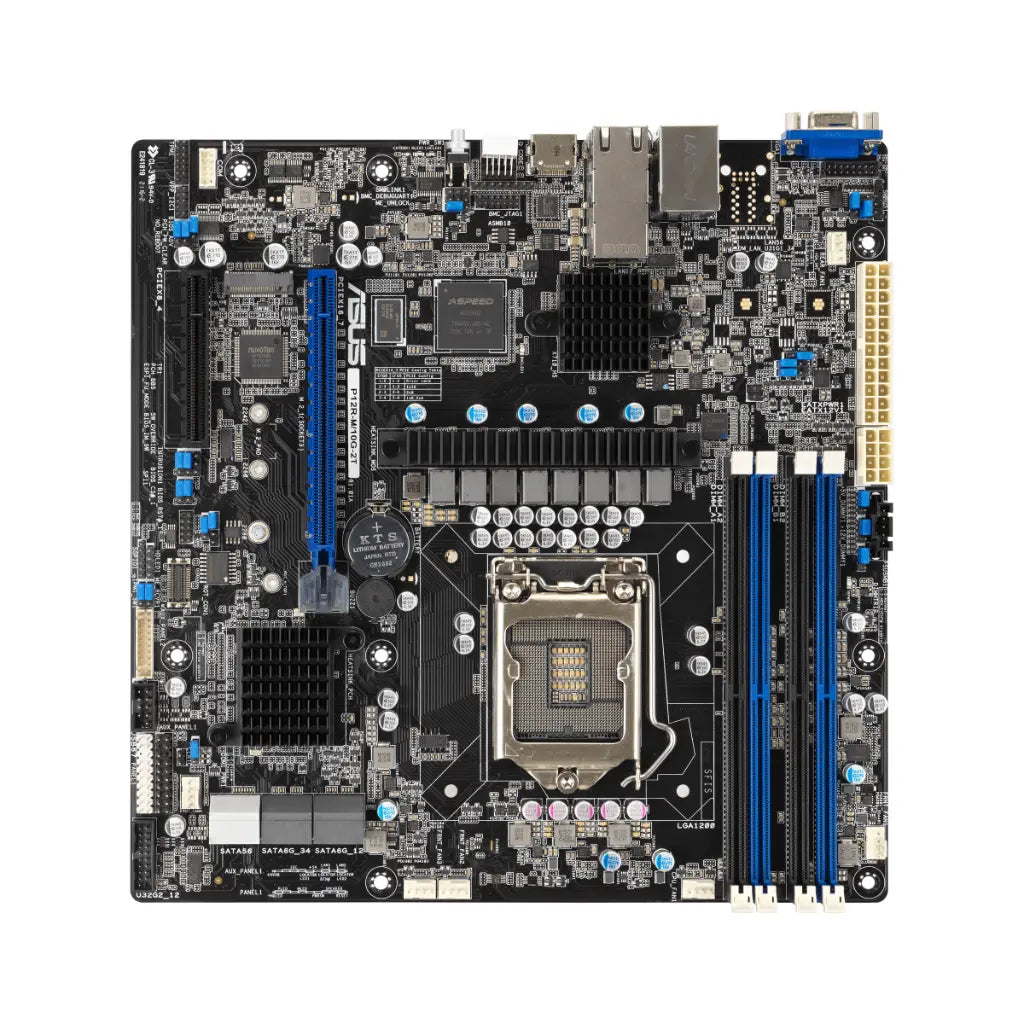

ASUS P12R-M-10G-2T Intel C252 LGA1200 Micro ATX Server Motherboard
ASUS P12R-M-10G-2T Intel C252 LGA1200 Micro ATX Server Motherboard
Brand: ASUS
No reviews
Get Price on WhatsApp
Or on email sales@tpstech.in
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🔹 Intel Xeon E‑2300 Ready – Supports Intel Xeon E‑2300 & Pentium processors with LGA1200 socket for business‑class server performance.
🔹 Dual 10G LAN Connectivity – Features Dual Intel X710‑AT2 10Gb Ethernet for high‑speed data transfer and low‑latency networking.
🔹 Enterprise C252 Chipset – Built on Intel C252 chipset ensuring stability, security, and long‑term reliability.
🔹 DDR4 ECC Memory Support – 4× DIMM slots support up to 128GB DDR4 ECC UDIMM for error‑free server operation.
🔹 PCIe 4.0 Expansion – Equipped with PCIe Gen4 x16 and x8 slots for high‑bandwidth storage and accelerator cards.
🔹 Remote Server Management – Onboard ASPEED AST2600 BMC with ASUS ASMB10‑iKVM (optional) for remote monitoring and control.
🔹 Dual 10G LAN Connectivity – Features Dual Intel X710‑AT2 10Gb Ethernet for high‑speed data transfer and low‑latency networking.
🔹 Enterprise C252 Chipset – Built on Intel C252 chipset ensuring stability, security, and long‑term reliability.
🔹 DDR4 ECC Memory Support – 4× DIMM slots support up to 128GB DDR4 ECC UDIMM for error‑free server operation.
🔹 PCIe 4.0 Expansion – Equipped with PCIe Gen4 x16 and x8 slots for high‑bandwidth storage and accelerator cards.
🔹 Remote Server Management – Onboard ASPEED AST2600 BMC with ASUS ASMB10‑iKVM (optional) for remote monitoring and control.
The ASUS P12R‑M‑10G‑2T is a compact yet powerful Micro‑ATX server motherboard designed for modern business and edge server deployments. Supporting Intel Xeon E‑2300 processors, DDR4 ECC memory, and PCIe 4.0 expansion, it delivers reliable enterprise performance. Dual 10G LAN ensures ultra‑fast connectivity, while ASUS server‑grade firmware protection and remote management features make it ideal for virtualization, file servers, and data‑intensive workloads.
| Brand | ASUS |
| Model | P12R-M-10G-2T |
| Product Type | Server Motherboard |
| Form Factor | Micro ATX (244 × 244 mm) |
| Processor Support | Intel Xeon E‑2300, Intel Pentium |
| CPU Socket | LGA1200 |
| Chipset | Intel C252 |
| Memory Slots | 4 × DIMM |
| Max Memory Supported | Up to 128GB |
| Memory Type | DDR4 3200/2933/2666 ECC UDIMM |
| Graphics Controller | ASPEED AST2600 BMC |
| Storage Interfaces | 6 × SATA 6Gb/s, 1 × M.2 |
| Expansion Slots | 1 × PCIe 4.0 x16, 1 × PCIe 4.0 x8 |
| Networking | Dual 10GbE Intel X710‑AT2 + 1 Management LAN |
| USB Ports | 2 × USB 3.2 Gen2 |
| Video Output | HDMI 1.4, VGA |
| Server Management | ASUS ASMB10‑iKVM (optional) |
| Operating System Support | Windows Server, Linux |
| Country of Origin | China |
| Net Weight | 0.76 kg |
| Warranty | 3 Years Manufacturer Warranty |
