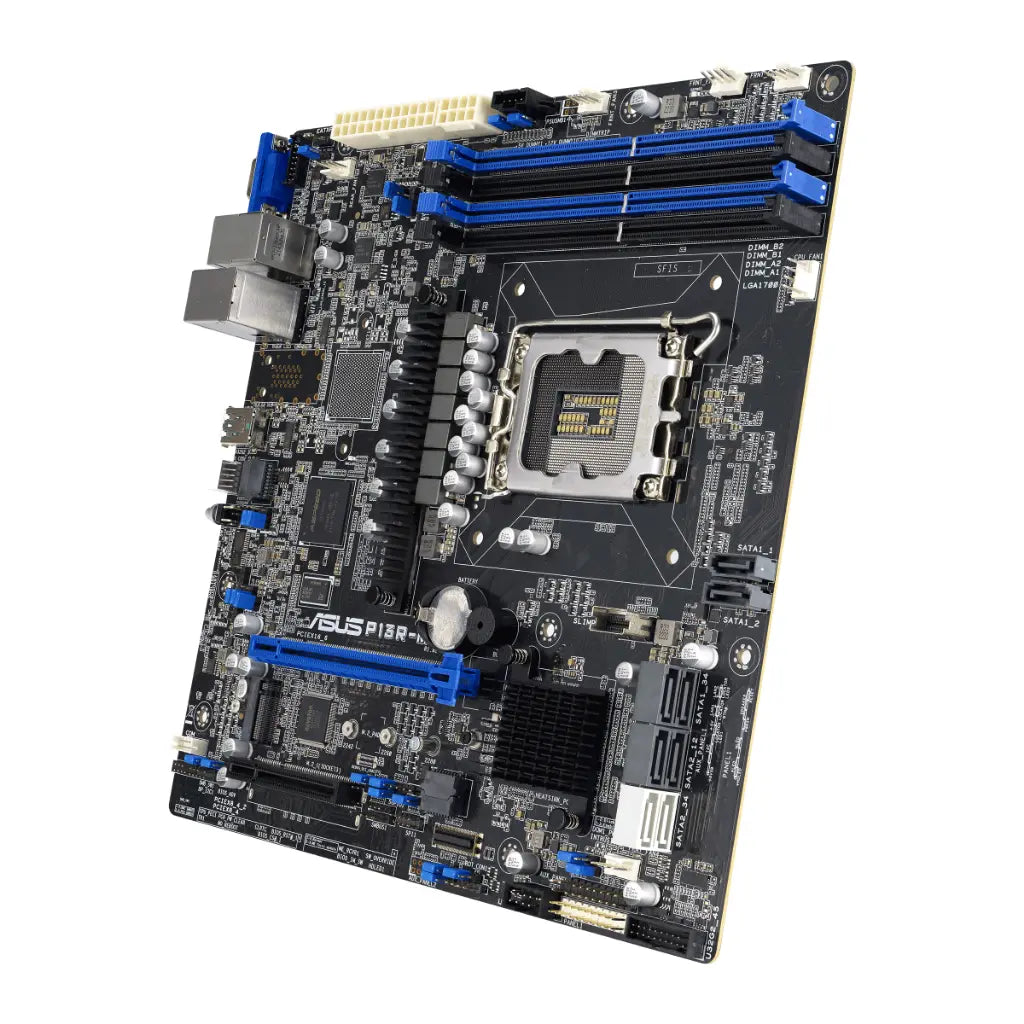

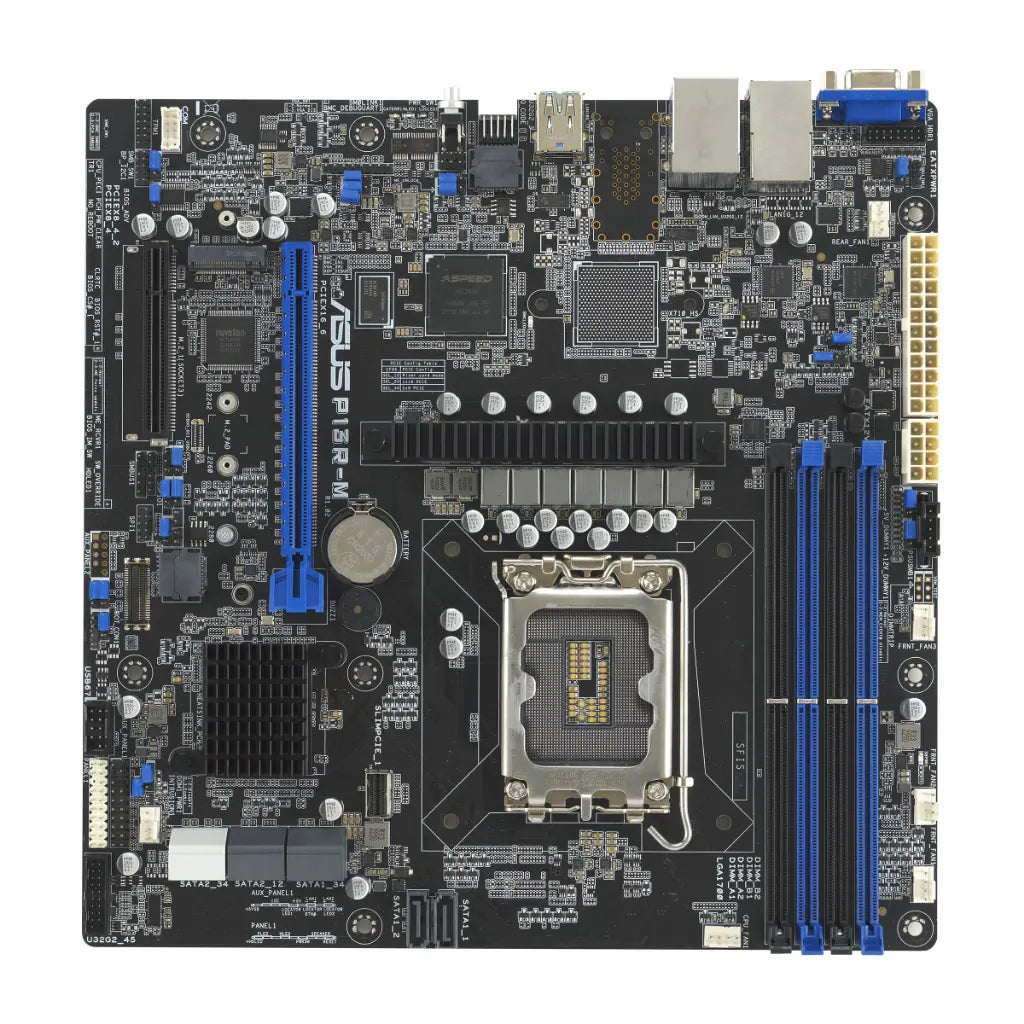

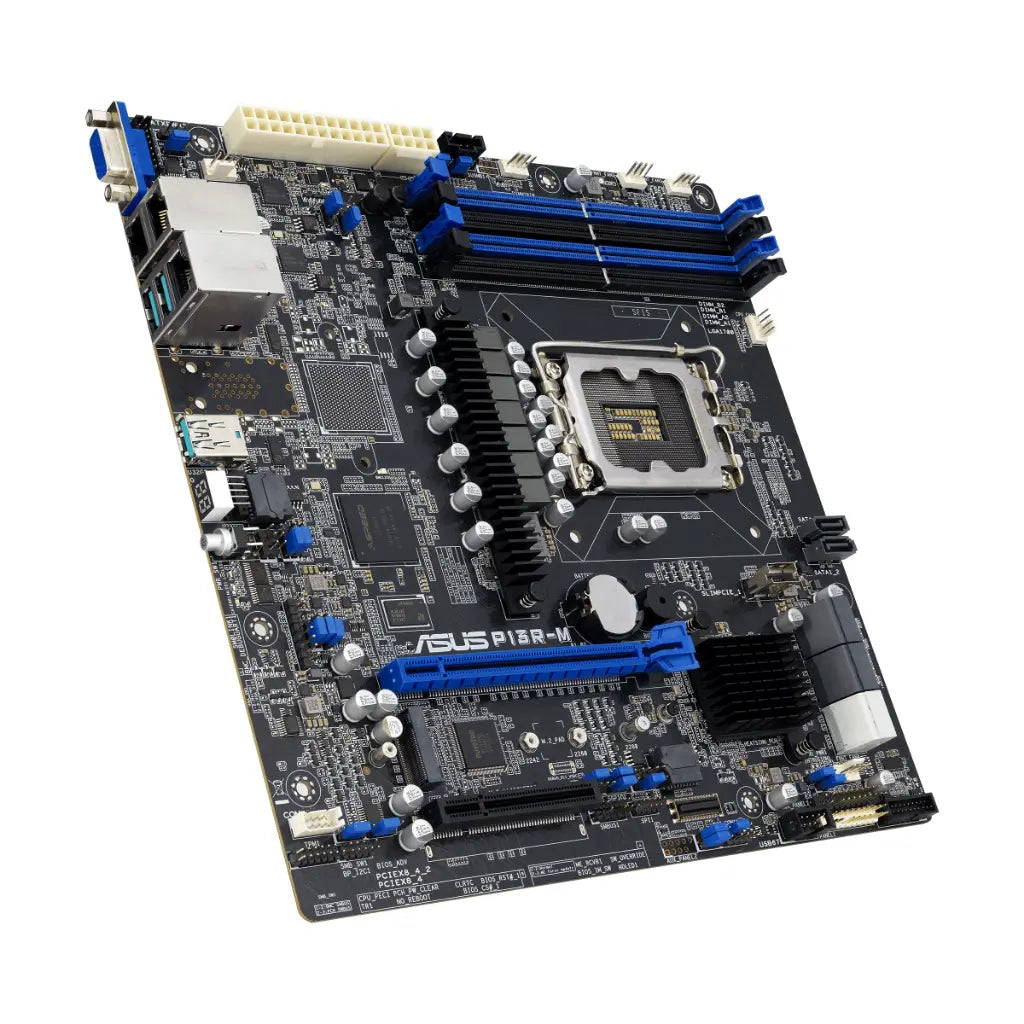

ASUS P13R‑M C262 LGA1700 Micro‑ATX DDR5 Server Motherboard

🔧 Intel C262 Chipset with LGA1700 Socket: Engineered for Intel Xeon processors, delivering robust and reliable server‑grade performance.

⚡ DDR5 ECC UDIMM Up to 128GB : Supports high‑speed DDR5 memory with ECC reliability for mission‑critical operations.

🚀 PCIe 5.0 + PCIe 4.0 Expandability: Next‑gen expansion with PCIe 5.0 and PCIe 4.0 slots for enhanced speed and scalability.

🌐 Dual Intel LAN + Dedicated Management Port: Features dual Gigabit LAN and onboard iKVM for seamless remote management.

💾 Fast M.2 Storage + 8 SATA Ports: Includes an M.2 slot for high‑speed OS booting plus eight SATA III ports for flexible storage.

🔒 Platform Firmware Resilience (PFR): Built‑in PFR security ensures reliable, protected firmware operations for enterprise environments.

The ASUS P13R‑M is a high‑performance Intel C262 chipset server motherboard designed for professional environments. Supporting Intel Xeon processors, it offers DDR5 ECC memory, PCIe 5.0 expandability, dual LAN connectivity, and onboard iKVM for streamlined remote management. With M.2 high‑speed storage, eight SATA ports, and enterprise‑grade PFR security, this Micro‑ATX board ensures reliable, scalable, and secure server performance—ideal for SMBs, virtualization, data processing, and cloud applications.

Product Specifications:

Specifications	Details
Processor / System Bus	• 1 x Socket LGA1700 • Supports Intel® Pentium® Processors • Intel® Xeon® E Processors • Intel® Xeon® 6300 Series Processors
Chipset (Core Logic)	Intel® C262 Chipset
Memory	• Total Slots: 4 (Dual‑Channel) • Max Capacity: 128GB UDIMM • Type: DDR5 4400 / 4000 / 3600 UDIMM • Supported Sizes: 32GB / 16GB / 8GB
Expansion Slots	• Total Slots: 2 • Slot 4: PCI‑E x8 (Gen4 x4 Link) • Slot 6: PCI‑E x16 (Gen5 x16 Link)
Form Factor	Micro‑ATX (9.6” x 9.6” / 244mm x 244mm)
Storage	• 8 x SATA 6Gb/s Ports • 1 x M.2 (2280/2260/2242) Optional SAS (via PIKE II): • PIKE II 3008‑8i (8‑Port SAS 12G RAID) • PIKE II 3108‑8i (8‑Port SAS 12G HW RAID)
Networking	• 2 x Intel® I210AT GbE LAN • 1 x Management LAN
Graphics	Aspeed AST2600 with 64MB VRAM
Onboard I/O	• 1 x TPM Header • 24‑pin ATX + 8‑pin 12V Power • 3 x USB 3.2 Gen2 Ports • 1 x USB 3.2 Gen1 Header (2 Ports) • 1 x USB 2.0 Header (2 Ports) • 6 x 4‑pin Fan Headers • 1 x SMBus • Chassis Intrusion • 4 x Front LAN LED • 1 x Serial Port Header • 1 x M.2 Connector • 1 x VGA Header • Header for Optional Management Card

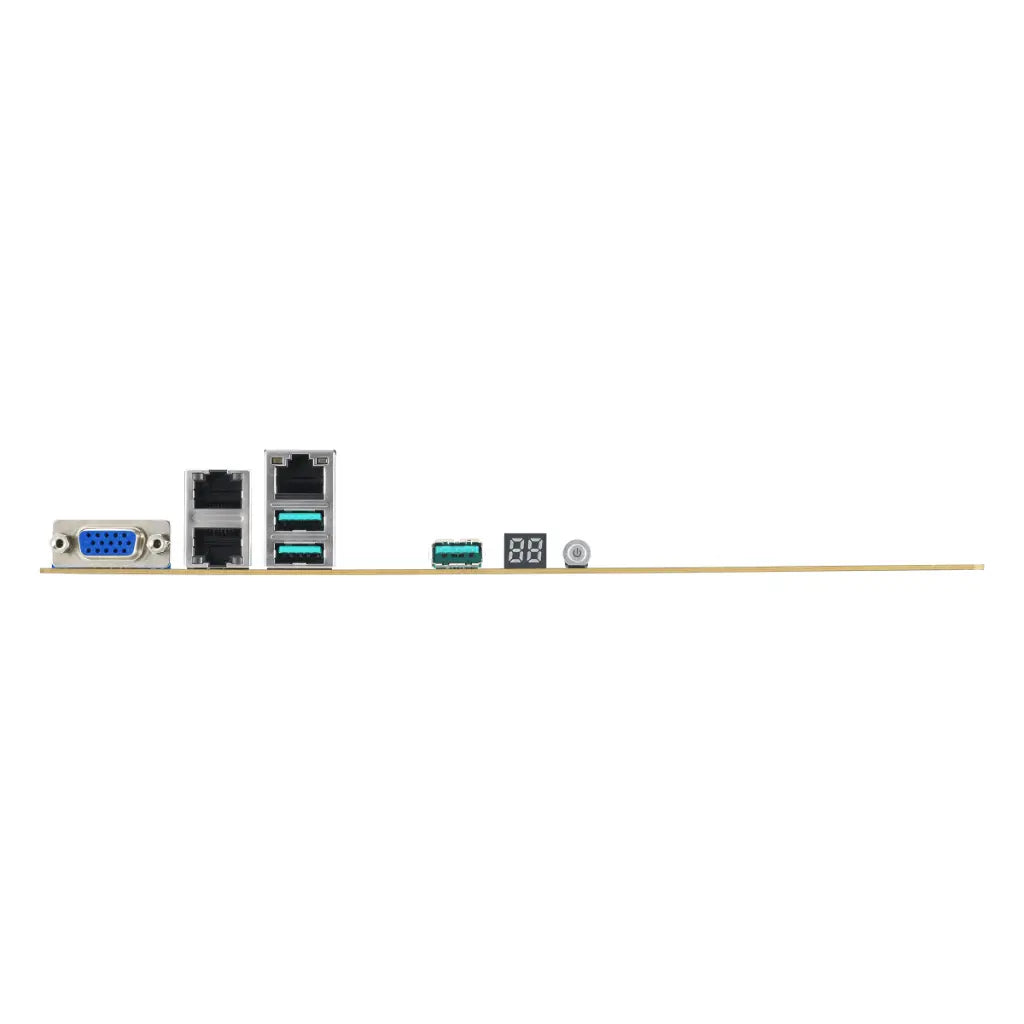

Back I/O Ports	• 3 x USB 3.2 Gen2 • 1 x VGA Port • 2 x GbE LAN + 1 x Mgmt LAN
Management	• ASUS Control Center Enterprise (Optional) • Onboard ASMB11‑iKVM
Weight	• Net Weight: 760g
Environment	• Operating: 10°C ~ 50°C • Non‑Operating: -40°C ~ 70°C • Humidity: 20% ~ 90% (Non‑Condensing)
Accessories	Gift Box (1‑in‑1): • 1 x I/O Shield • 8 x SATA 6G Cables • 4 x LGA1700 Plates Bulk Pack (10‑in‑1): • 1 x I/O Shield • 1 x LGA1700 Plate
Monitoring	CPU Temperature, Fan RPM
Country of Origin	China
Warranty	3 Years
Weight (Single Unit)	760 g
