ASUS PN64 Mini PC Barebone – Intel Core i5-12500H, Iris Xe Graphics, DDR5, USB-C, WiFi 6E (No RAM/Storage)
ASUS PN64 Mini PC Barebone – Intel Core i5-12500H, Iris Xe Graphics, DDR5, USB-C, WiFi 6E (No RAM/Storage)
Couldn't load pickup availability
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
12-Core Intel Core i5-12500H Processor: Delivers powerful hybrid performance with 4 performance cores and 8 efficiency cores, ideal for multitasking and productivity.
Intel Iris Xe Graphics: Integrated GPU supports smooth 4K video playback and multi-display setups for creative and professional use.
Next-Gen DDR5 Memory Support: Supports up to 64GB DDR5 4800MHz RAM for faster data access and improved system responsiveness (RAM not included).
Advanced Connectivity: Equipped with USB 3.2 Gen2, USB-C with DisplayPort and Power Delivery, HDMI 2.1, WiFi 6E, Bluetooth 5.3, and 2.5G LAN.
Compact & Customizable Barebone Design: Ultra-small form factor with VESA mount support, dual storage options (PCIe Gen4 + SATA), and no pre-installed RAM or storage for flexible configuration.
| Category | Specification |
| Model | ASUS ExpertCenter PN64-B-S5235MD (Barebone) |
| Processor (CPU) | Intel Core i5-12500H (12 cores: 4P + 8E / 16 threads, up to 4.5 GHz, 18MB cache) |
| Graphics (iGPU) | Intel Iris Xe Graphics |
| Memory Support | 2x DDR5 SO-DIMM slots, up to 64GB 4800MHz (RAM not included) |
| Storage Options | 1x M.2 2280 PCIe Gen4 x4 SSD + 1x 2.5" SATA HDD/SSD (storage not included) |
| Wireless Connectivity | Intel WiFi 6E (Gig+) and Bluetooth 5.3 |

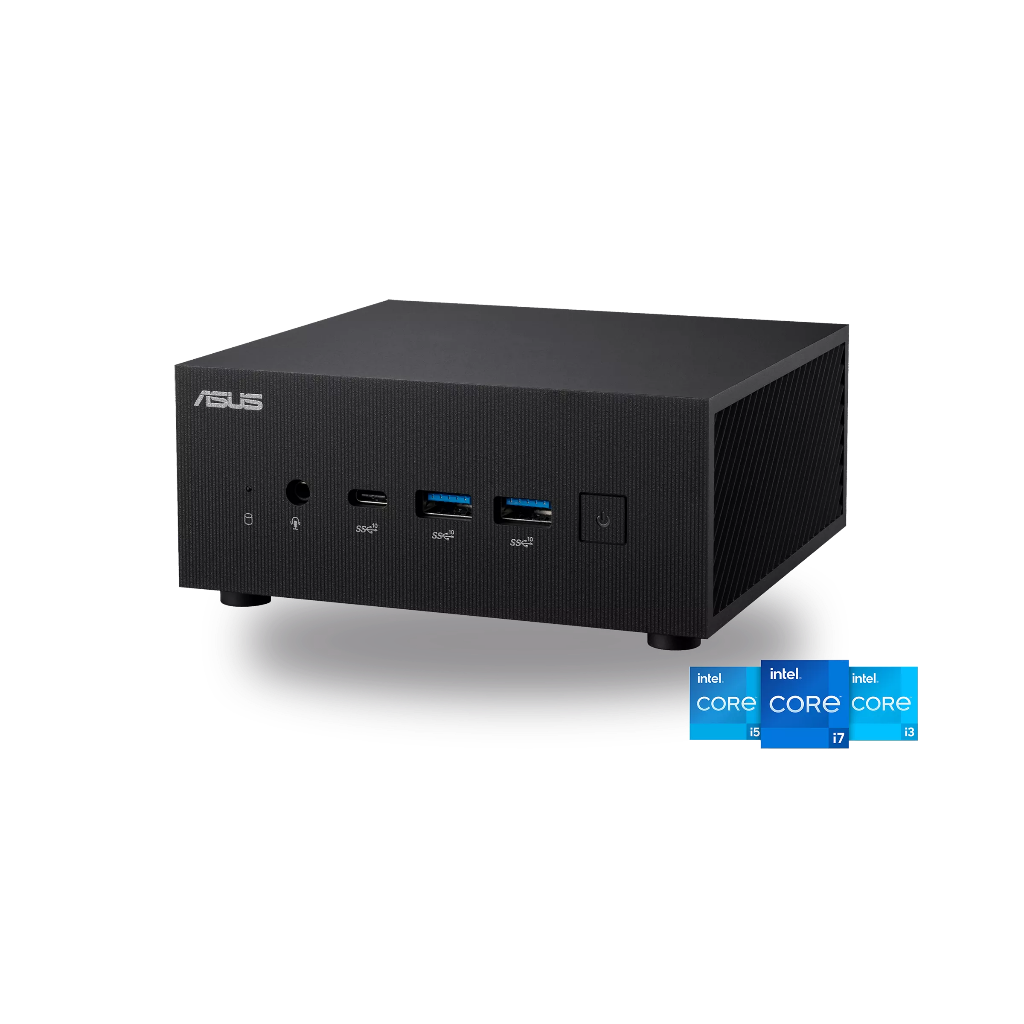

| Ports (Front) | 1x USB 3.2 Gen2 Type-C, 2x USB 3.2 Gen2 Type-A, 1x Audio Jack |

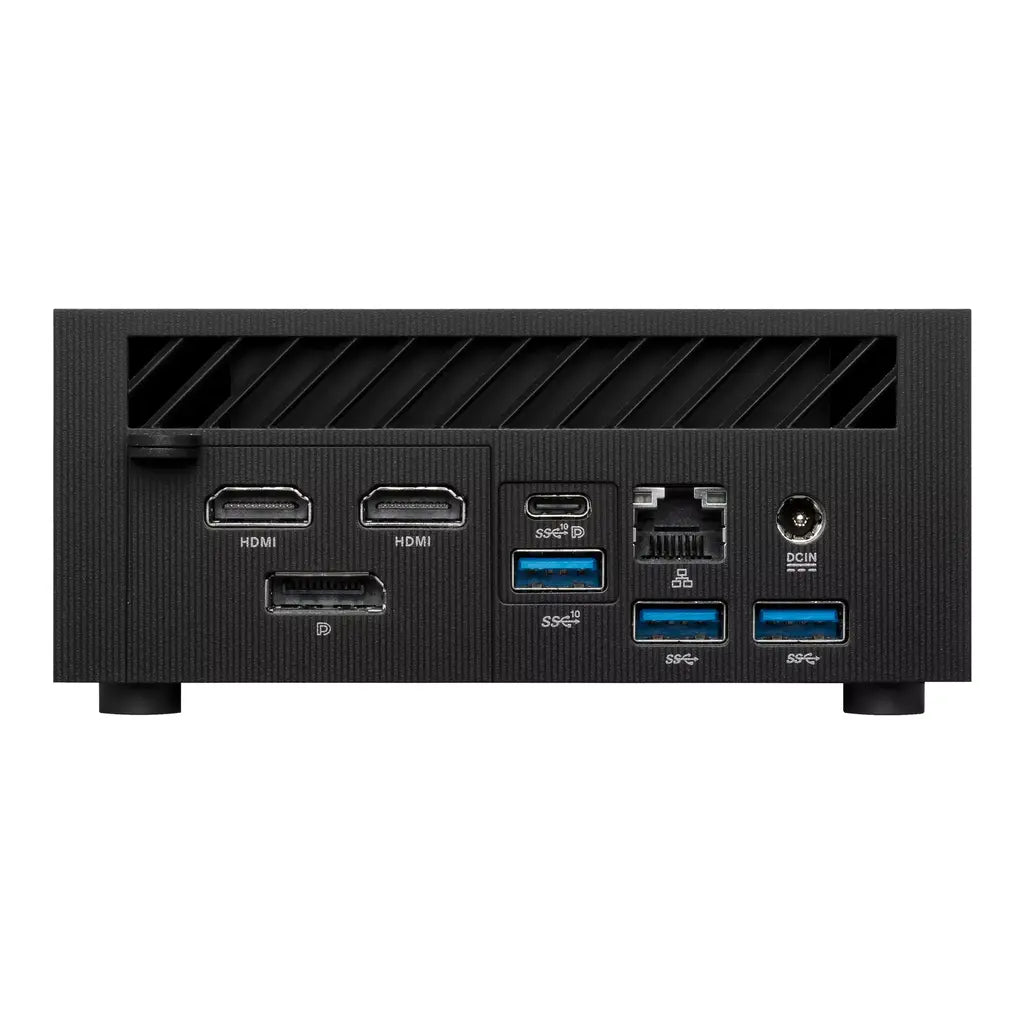

| Ports (Rear) | 1x USB 3.2 Gen2 Type-C (DP1.4 + PD input), 1x USB 3.2 Gen2 Type-A, 2x HDMI 2.1, 1x Configurable Port, 1x 2.5G LAN, 1x DC-in |
| Display Support | Up to 4 displays, including dual HDMI 2.1 (4K@60Hz), DisplayPort, and USB-C |
| Audio | Realtek ALC3251 HD Audio CODEC |
| Networking | 2.5G RJ45 Ethernet (10/100/1000/2500 Mbps) |
| Operating System | Not included (user-installable) |
| Power Supply | 120W power adapter |
| Dimensions | 120 x 130 x 58 mm |
| Mounting | VESA mount compatible |
| Warranty | 3 years from ASUS |
